Hismart 5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 18dBi

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Hismart 5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 18dBi

79,00 €
Monthly payment from 2.93
2541496

TV992263

9990000992263

Shipping 2-4 days

Quantity
You are interested in this product?
(Read terms of service)

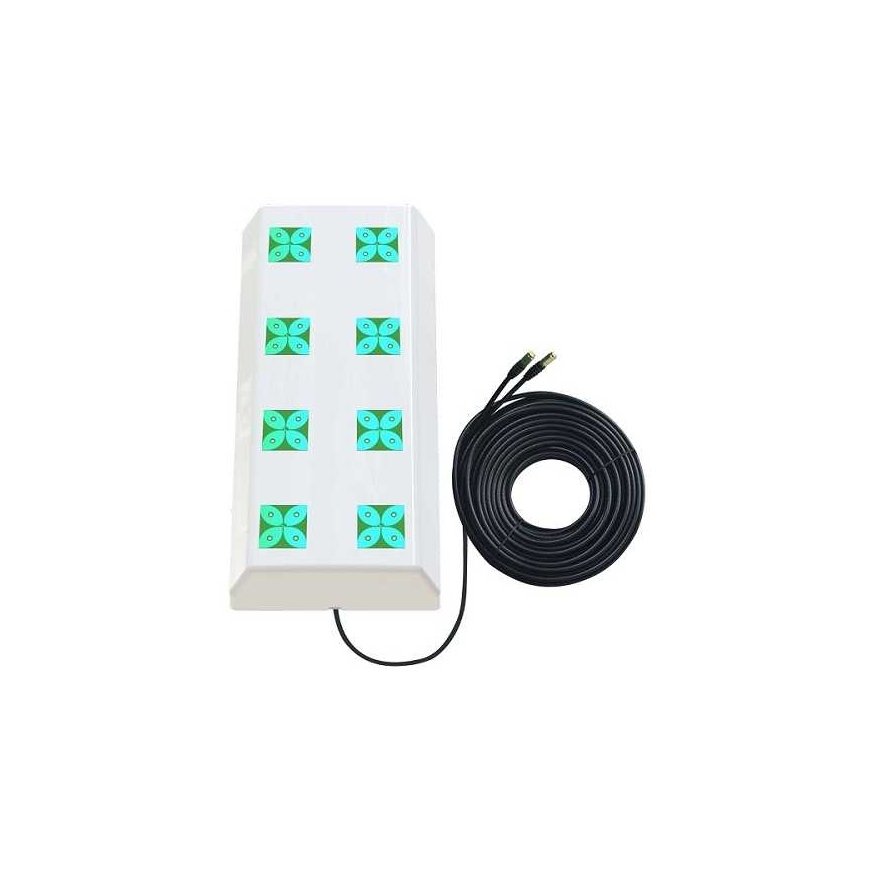

LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-3800MHz, 2x 18dBi, connector SMA-Male


Features:
Dual polarization panel design antenna, 1710-2690MHz / 3300-3800MHz, 2x 18dBi.
Application: LTE, 3G/4G/5G, CBRS, mobile networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.
With 2x 15m long cables.
Lightning protection DC grounding.


Technical specifications:
Frequency: 1710-2690MHz / 3300-3800MHz.
Amplification: 2x 18 dBi.
VSWR: <2.
Resistance: 50 ohms.
Max. power per port: 50W.
Connector: 2x SMA-male.
Cables: 2x RG58 copper.
Cable length: about 15m.
Mounting: on a pole with a diameter of 30-50 mm.
Material: PC, ABS.
Dimensions: 485 x 200 x 66 mm.
Polarization: +/-45° of two polarizations.
Color: white.
Weight: 1.5 kg.
Operating temperature: -40°C~ +70°C.
Operating humidity: up to 95%RH.


Warranty: 24 months
