NETGEAR MS510TXM network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grey, Blue
NETGEAR MS510TXM network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grey, Blue
NETGEAR MS510TXM network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grey, Blue
NETGEAR MS510TXM network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grey, Blue
NETGEAR MS510TXM network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grey, Blue
NETGEAR MS510TXM network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grey, Blue

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

NETGEAR MS510TXM network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grey, Blue

583,36 €
Monthly payment from 15.92 €
2530077

MS510TXM

0606449152364

This product is no longer in stock

You are interested in this product?
(Read terms of service)

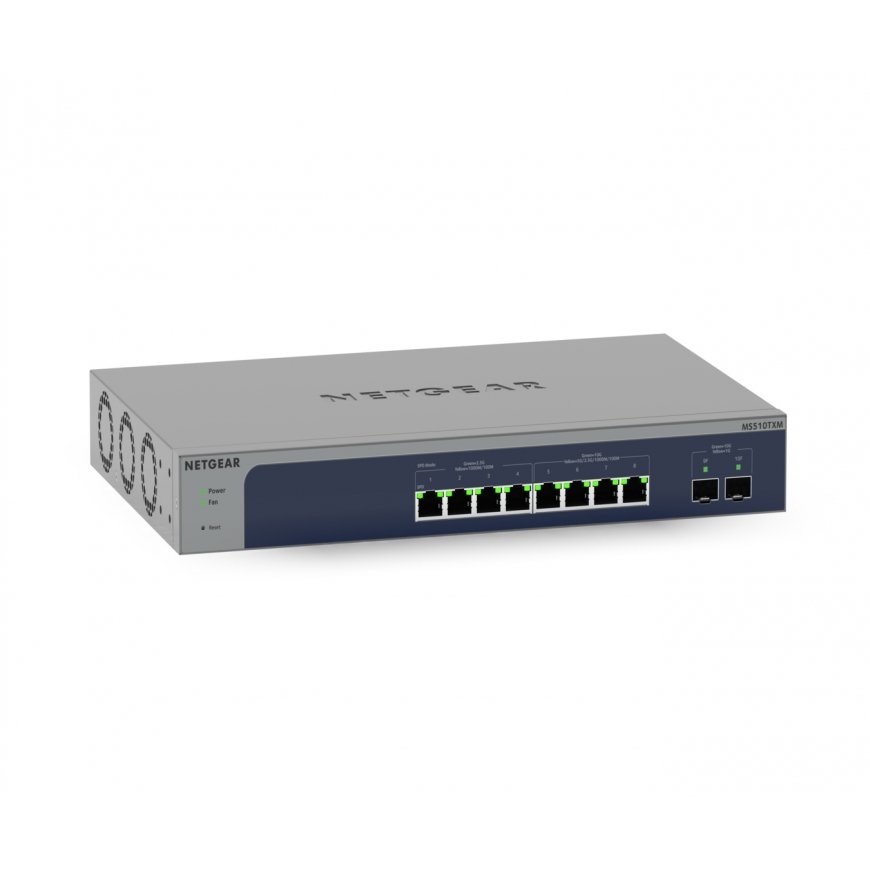

The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-Gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. It is the ideal companion to the NETGEAR WAX610PA WiFi 6 Access Point that features a 2.5G Ethernet port and a power adapter.

MS510TXM provides four auto-adapt multispeed Gigabit RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 Multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.
Network
Networking standards IEEE 802.1D, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1s, IEEE 802.1w
Flow control support Yes
Ethernet LAN data rates 100, 1000, 2500, 10000, 5000
Full duplex Yes
Multicast support Yes
Jumbo frames support Yes
Jumbo frames 10000
Port mirroring Yes
Number of VLANs 256
Management features
Web-based management Yes
Quality of Service (QoS) support Yes
Cloud-managed Yes
Security
Security algorithms SSL/TLS, HTTPS
MAC address table 32000 entries
Access Control List (ACL) Yes
IGMP snooping Yes
Protocols
Management protocols SNMP v1/v2c,SNMP v3
Design
LED indicators Power, Activity, Speed
Product colour Grey, Blue
Features
Built-in processor Yes
Processor frequency 1000 MHz
Internal memory 256 MB
Flash memory 64 MB
Power
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 3000 m
Weight & dimensions
Width 330 mm
Depth 206 mm
Height 43 mm
Other features
Rack mounting Yes
