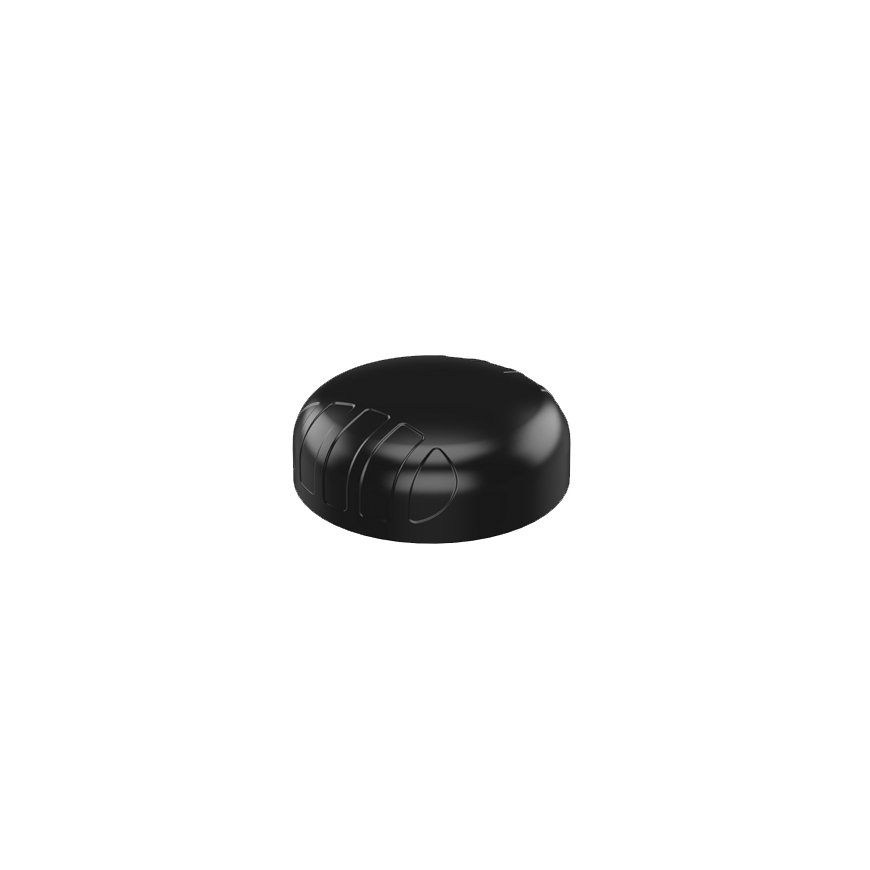

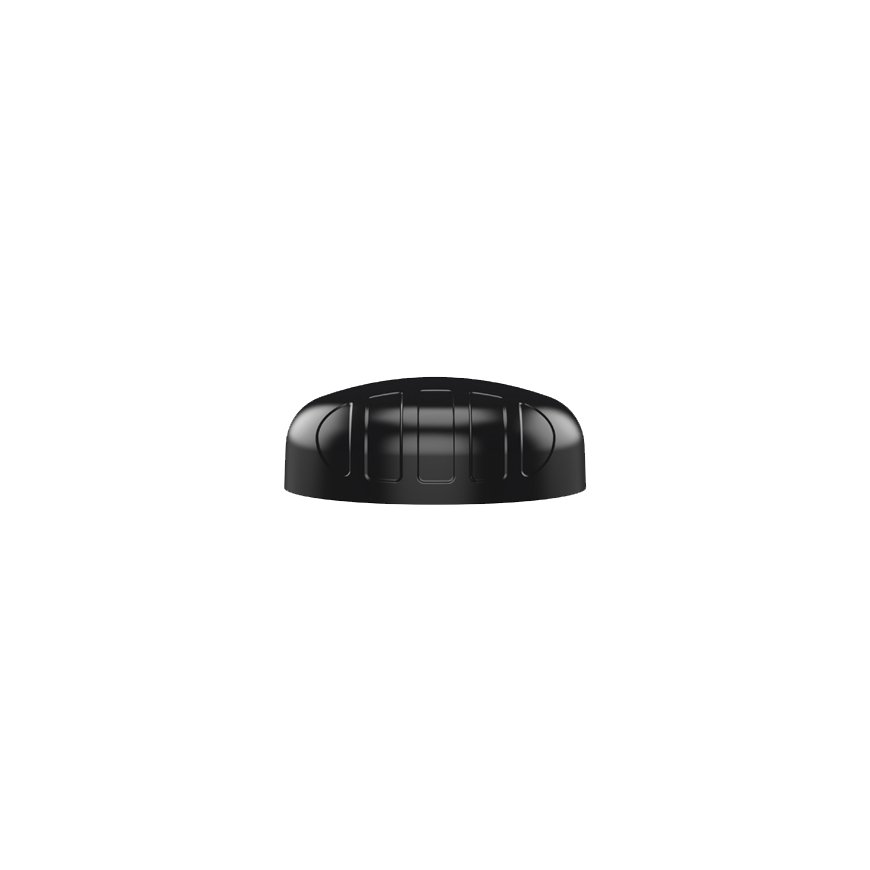

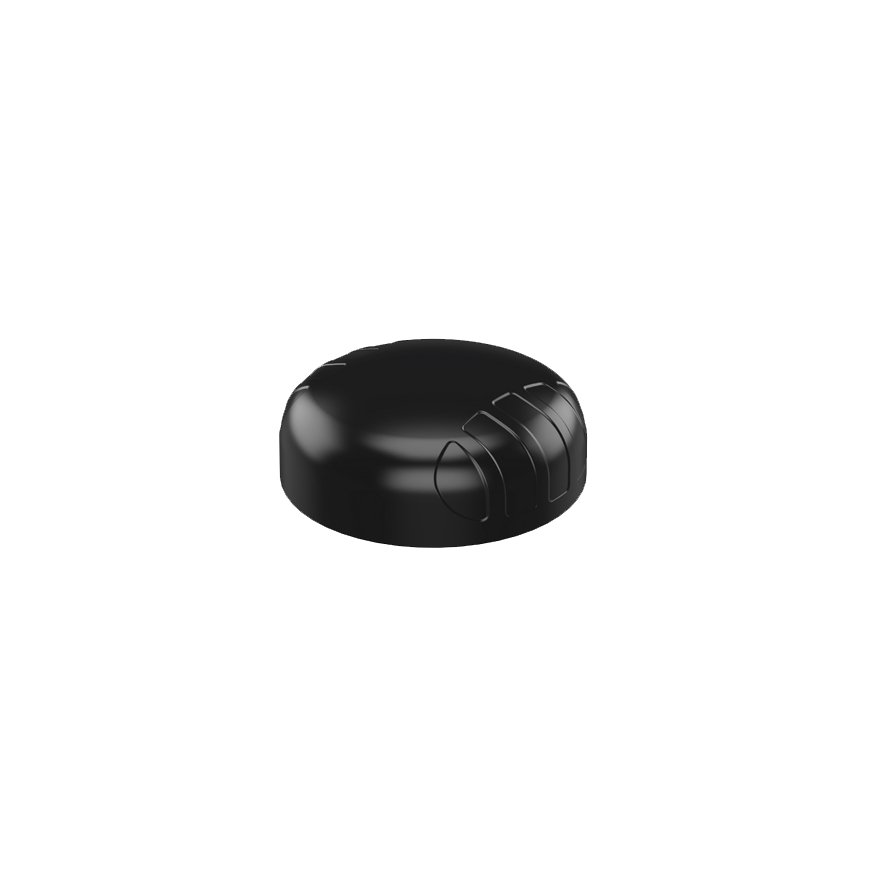

Poynting PUCK-8 network antenna Omni-directional antenna 7.5 dBi
149,00 €
140.38 €
Monthly payment from 4,51 €
2508840 A-PUCK-0008-V1-01
6009880915408, 6009710920510
Shipping 8-11 b.d.
You are interested in this product?
All about the product
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-8 consists of a 3-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE and Wi-Fi (Dual-band 2.4 GHz & 5 GHz). The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 698 MHz to 3800 MHz band, this includes the most popular international LTE bands. The antenna provides a dual-band Wi-Fi antenna offering concurrent 2.4 GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax |
Design | |
| Product colour | Black |
| International Protection (IP) code | IP68 |
Antenna | |
| Antenna gain level (max) | 7.5 dBi |
| Antenna type | Omni-directional antenna |
Packaging data | |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 120 mm |
| Package weight | 557 g |
Other features | |
| Frequency band | 0.698 - 3.8 GHz |
| Cable length | 2 m |
| Mounting | Ceiling/wall |
Logistics data | |
| Country of origin | China |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 18 kg |
| Quantity per pack | 1 pc(s) |
