QuWireless QuMax network antenna Directional antenna PoE/LAN 6 dBi
158,62 €
Monthly payment from 4.98 €
2497904 A955M
5907772035108
Shipping 4-5 b.d.
You are interested in this product?

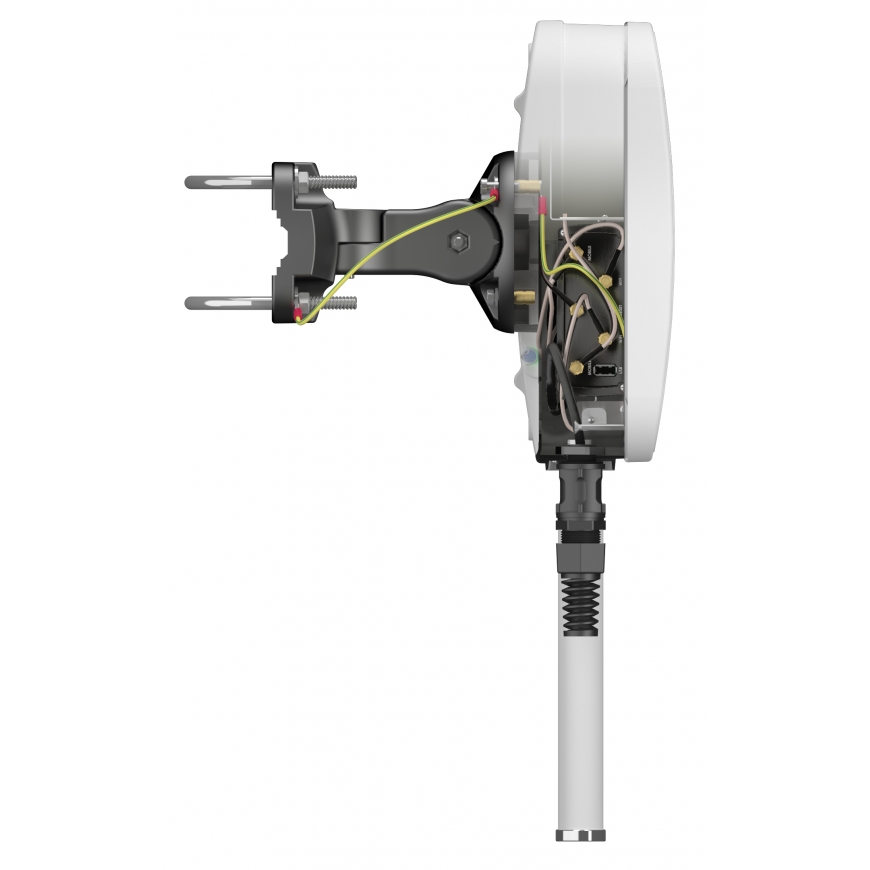

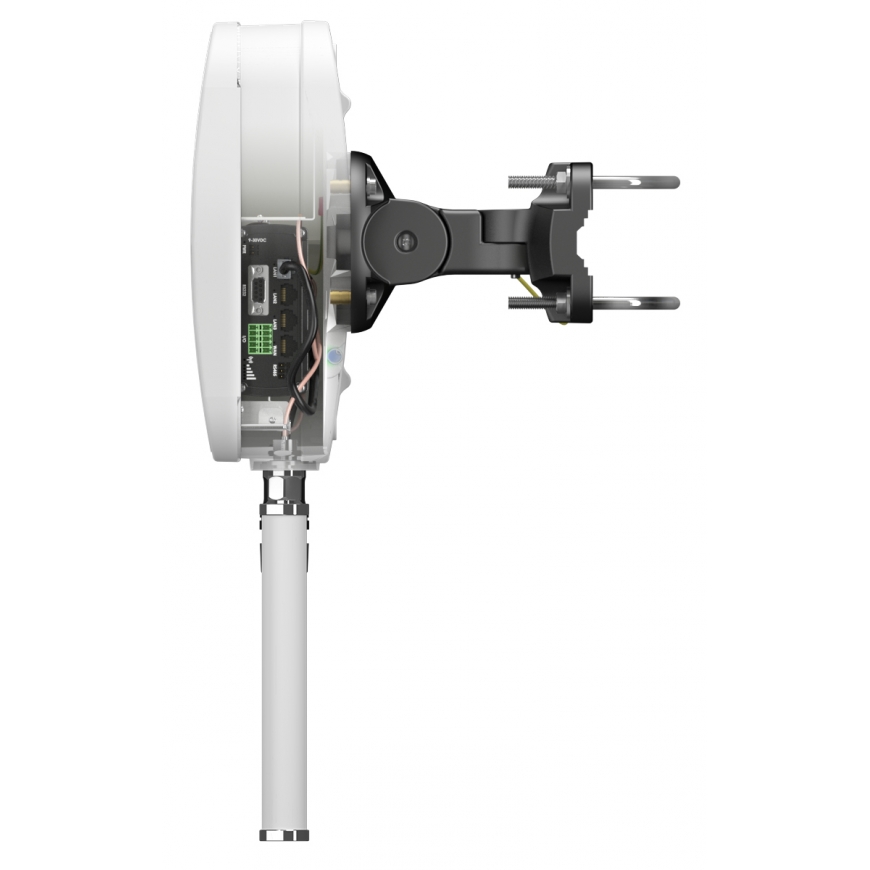

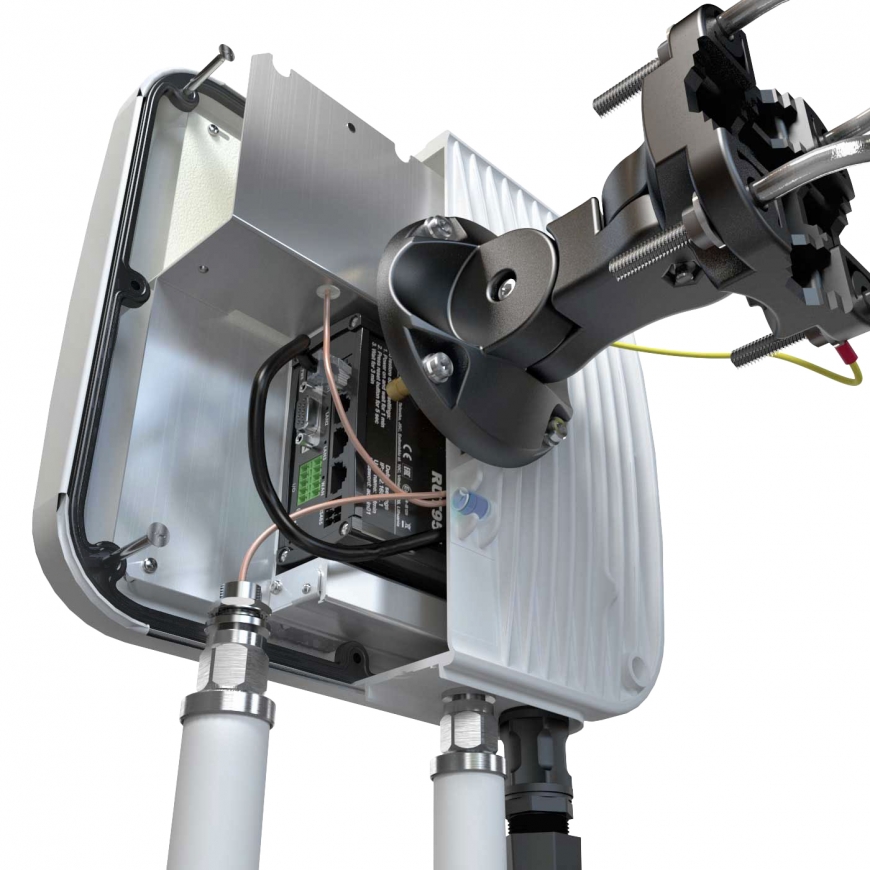

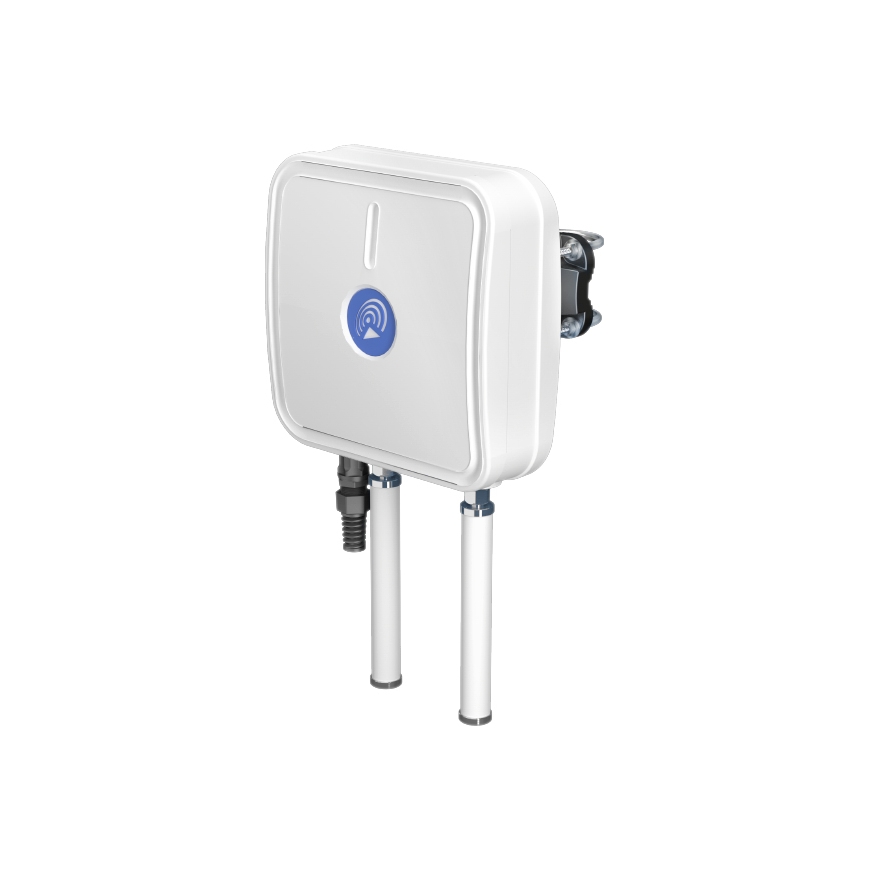

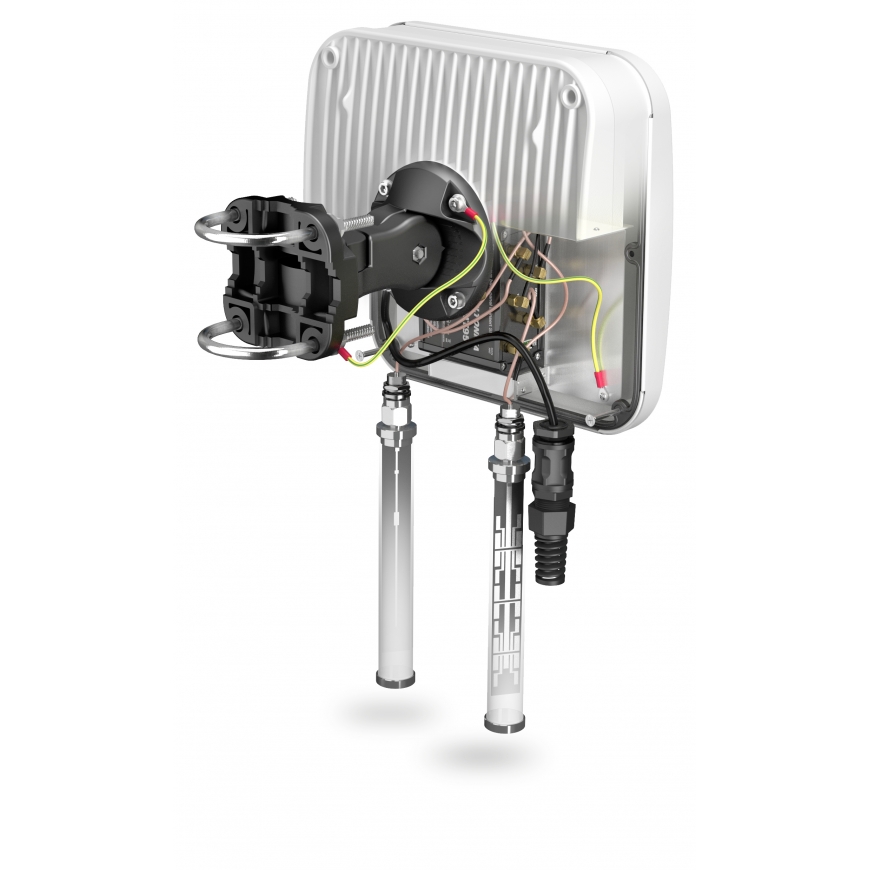

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT956, RUT955 or RUT906 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.
| Product colour | White |
| International Protection (IP) code | IP67 |
| Weight | 1.8 kg |
| Width | 272 mm |
| Depth | 96 mm |
| Height | 276 mm |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Country of origin | Poland |
| Purpose | Indoor & outdoor |
| Operating temperature (T-T) | -40 - 75 °C |
| Housing material | Aluminium; Acrylonitrile butadiene styrene (ABS) |
| Impedance | 50 Ω |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Antenna type | Directional antenna |
| Compatible products | RUT906, RUT955, RUT956 |
| Harmonized System (HS) code | 85177100 |
| Mounting | Wall/Pole |
| Antenna gain level (max) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Horizontal beam width | 90° |
| Vertical beam width | 90° |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 25° |
| Polarization | Vertical polarization |
