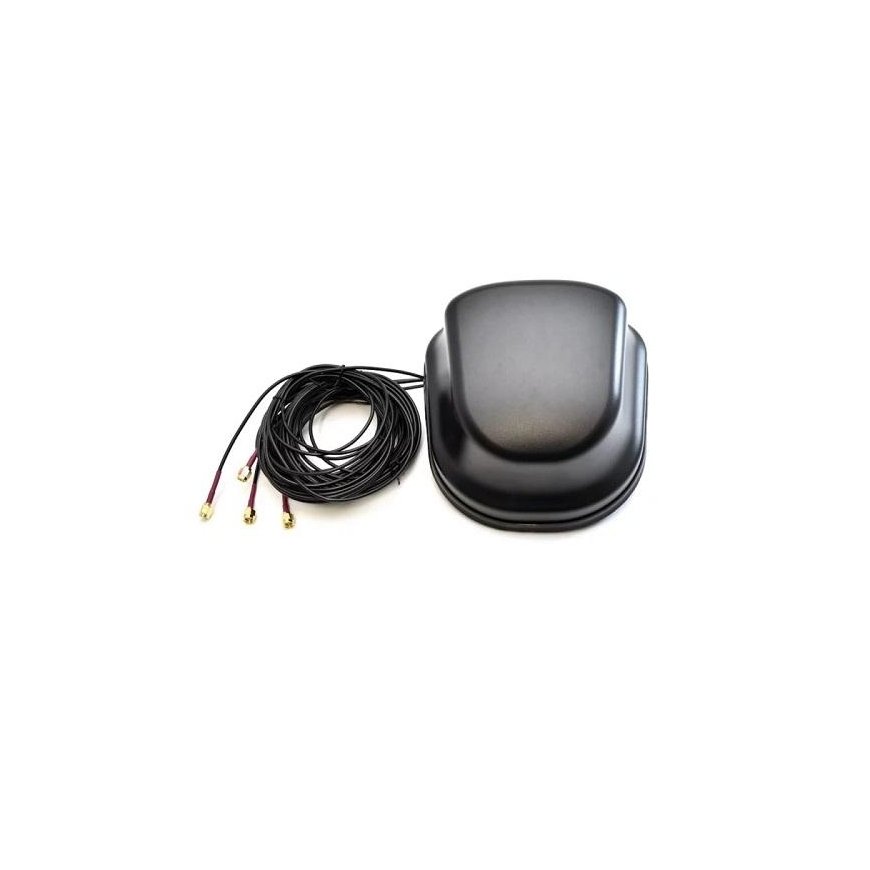

Hismart 5G NR MIMOx4 antenna, 698~960/1710~2690/2900~3800/4400~5000MHz, 4dBi, IP67
109.00 €
Monthly payment from 3,71 €
2495291 TV992232
9990000992232
Shipping 1-2 days
You are interested in this product?
All about the product
5G NR MIMOx4 antenna, 698~960MHz / 1710~2690MHz / 2900~3800MHz / 4400~5000MHz, 4dBi, IP67Features:
Linear polarization 5G New Radio MIMOx4 antenna, 698~960MHz / 1710~2690MHz / 2900~3800MHz / 4400~5000MHz, 4dBi.
5G New Radio technology is adapted to the global 5G radio communication standard.
With 4x 3m long cables.
Environmentally friendly, meets ROHS standards.
Technical specifications:
Frequency: 698~960 / 1710~2690 / 2900~3800 / 4400~5000 MHz.
Gain: 4 dBi.
VSWR: <3.0.
Resistance: 50 ohms.
Connector: SMA-male.
Cable: LMR100 x4.
Cable length: about 3m.

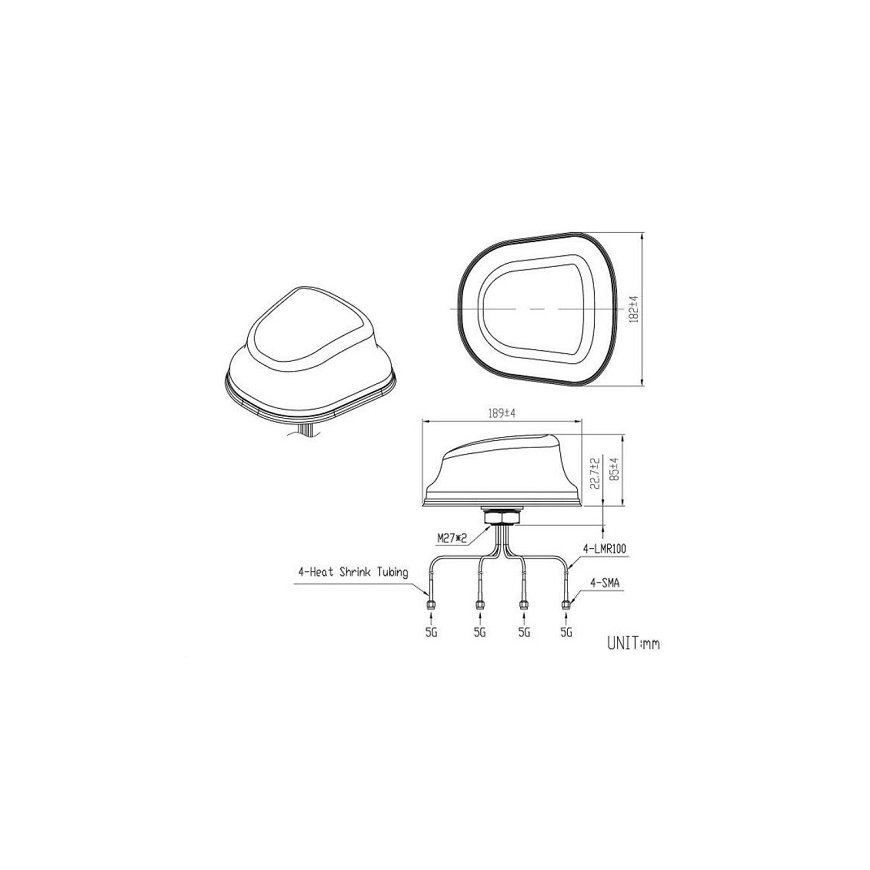

Antenna dimensions: 189.6x85x182 mm.
Fastening: screw.
Material: PC, ABS.
Safety class: IP67.
Linear polarization.
Color black.
Operating temperature: -40°C~ +85°C.
Operating humidity: up to 95%RH.
Warranty: 24 months
