Router Aktywna antenna GPS Poynting GPS-0001-V2-01 GLONASS
2484743 GPS-0001-V2-01
0707273469823
Shipping 8-11 b.d.
All about the product

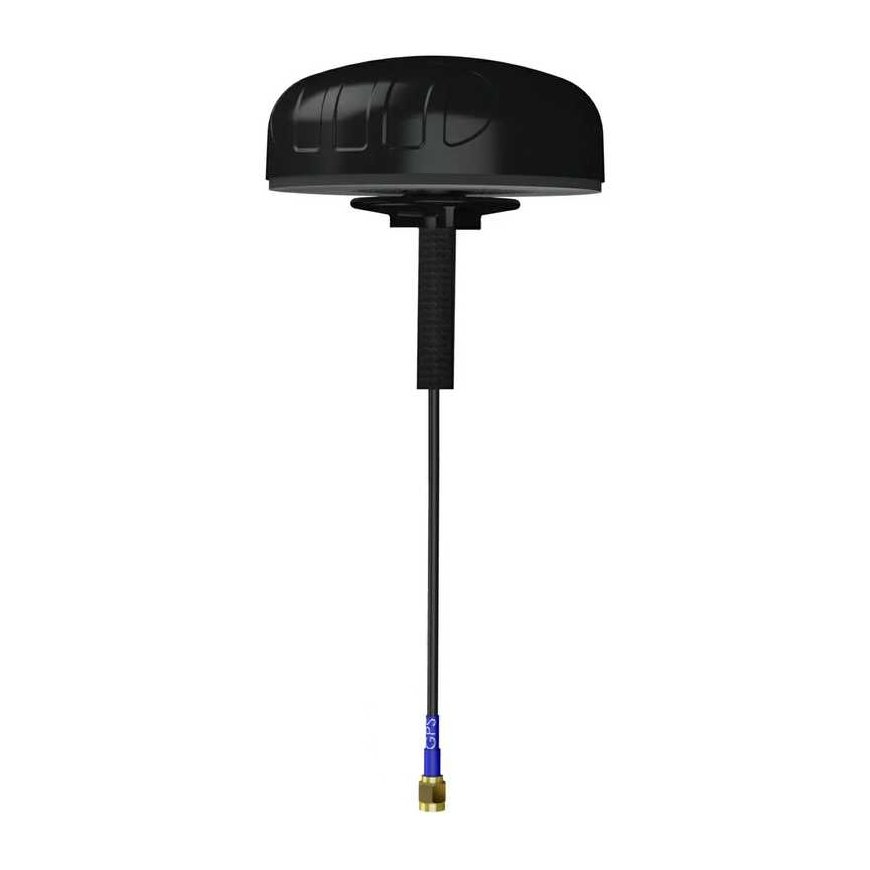

Active GPS antenna for cars Poynting GPS-0001-V2-01 GPS GLONASS 21 dBi
The new version of Poynting's V2 GPS-1 antenna offers a low-profile antenna for use in the IoT/M2M and transportation markets where robust and accurate positioning and synchronization are required. This new active GPS antenna housing allows for maximum ease of use with multiple mounting options. The frequency band of the GPS/GLONASS system is 1575.42/1600 MHz. The antenna works at temperatures up to -40ºC
Product features
- Small and low profile (100 mm x height 36 mm)
- Careful mechanical construction ensures durability, resistance to corrosion, water and dust (IP68)
- Fire resistant (according to ECE-R 118.02)
- UV resistant housing
- Easy installation; many implementations (standard)
- Fastening with tenon
- Magnetic fastening
- Fastening with adhesive tape
- Mounting bracket
Using the antenna
- Industrial automation, robotic machines and other M2M systems
- Transportation, tracking (buses, utilities and public safety)
- Communication and positioning of mining vehicles and machines (M2M and IoT)
- Agricultural machinery
- Cars, public transport vehicles
- Marine: small ships, yachts
- Time and timing systems
GPS radiation patterns

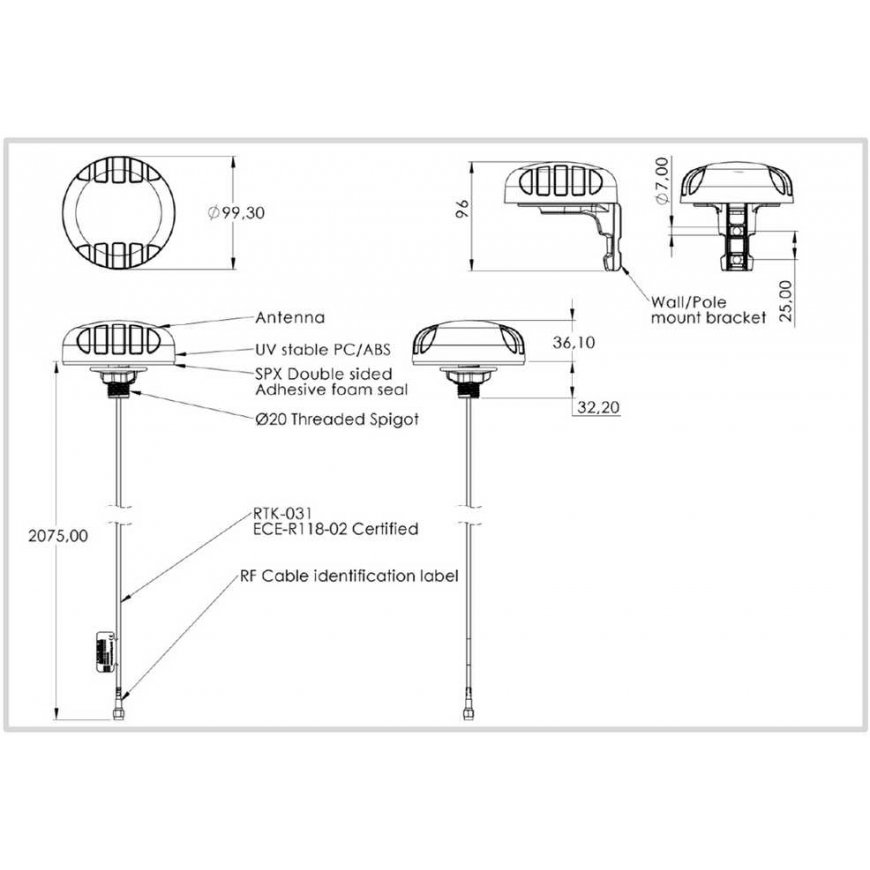

Lots of assembly options
Poynting's new PUCK antenna series offers easy installation with multiple mounting options. As standard, this includes:
- Fixed with pin - two different lengths (40mm and 80mm) included
- Vertical pole mounting (inside and outside mounting for smaller and larger poles)
- Horizontal pole mounting (e.g. marine rails)
- Magnetic fastening
- Surface mounting (double-sided tape)
- Wall mounting
Technical Highlights:
Technical specifications
Click here to view the complete antenna technical documentation.
