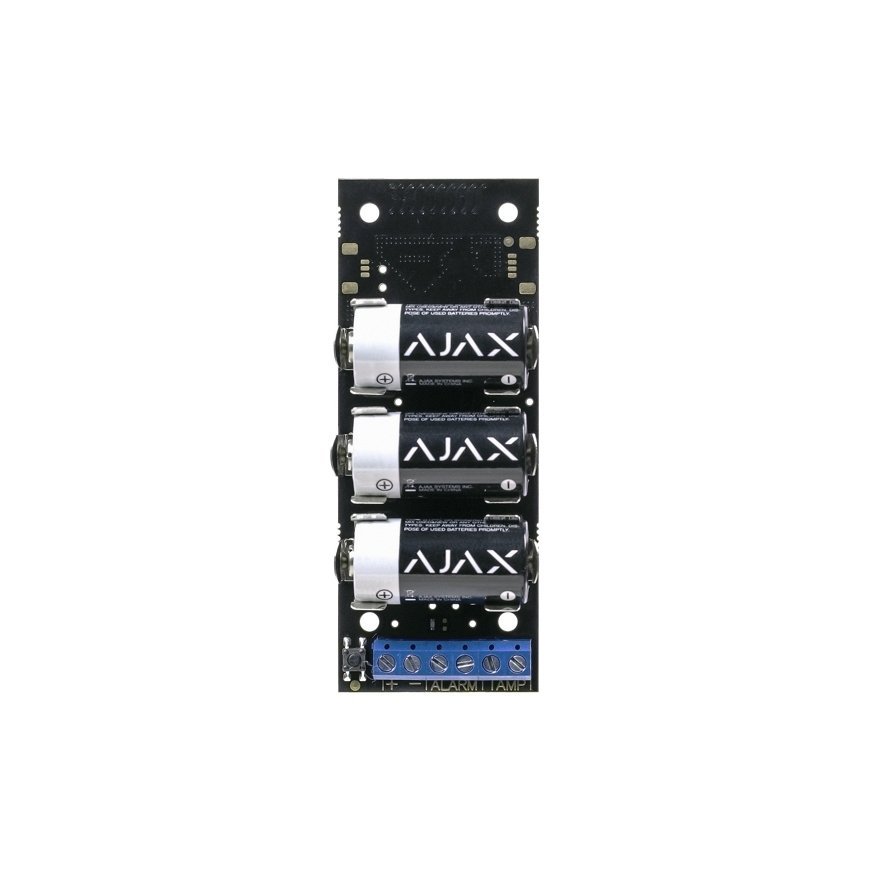

Ajax Transmitter smart home transmitter Wired & Wireless Wall-mounted Wired
69,01 €
Monthly payment from 2.68 €
2456284 38184
4823114015489
Shipping 3-7 b.d.
You are interested in this product?
- Makes third-party wired device part of the Ajax security system
- Provides 3.3 V⎓ power supply for the wired device
- Operates in temperatures from −25°C to +50°С and humidity up to 75%
Principle of operation
Transmitter allows you to connect a third-party wired detector or device to the Ajax security system. The module receives information about alarms and events via a wired connection. Having received an event, it transmits it to the hub via the Jeweller radio protocol, and the hub notifies the security company and system users.
Features
Transmitter works with any detector or device with NC/NO contact type. The module supports 8 types of events for connected devices: intrusion, fire, medical help, panic button, gas alarm, malfunction, leakage, and custom event. The type of event determines the alarm code sent to the security company monitoring station and the text of notification received by the user. This ensures an accurate response to the threat.
Installation and set up
Scan the QR code in the Ajax app to add Transmitter to the security system. You can specify the type of connected wired device in the Ajax mobile or desktop apps. The compact module is easy to install inside the detector body or mounting box. And the built into Transmitter accelerometer will notify of sabotage attempts.
| Product colour | Black |
| Weight | 74 g |
| Width | 39 mm |
| Depth | 22 mm |
| Height | 100 mm |
| Type | Wall-mounted |
| Connectivity technology | Wired & Wireless |
| Battery type | CR123A |
| Number of batteries supported | 3 |
| Operating temperature (T-T) | -25 - 50 °C |
| Battery technology | Alkaline |
| Power source | Battery |
| Interface | Wired |
| Batteries included | Yes |
| Mounting kit | Yes |
| Maximum operating distance | 1600 m |
| Compatible products | Ajax Hub Hybrid (4G), Hub Hybrid (2G), Hub 2 Plus Jeweller, Hub 2 (4G) Jeweller, Hub 2 (2G) Jeweller, Hub Plus Jeweller, Hub Jeweller, ReX 2, ReX |
| Operating voltage | 3.3 V |
| User guide | Yes |
