Axis TQ5001-E Mount
232,00 €
Monthly payment from 6.87 €
2445847 02411-001
7331021076914
Shipping 2-3 b.d.
You are interested in this product?

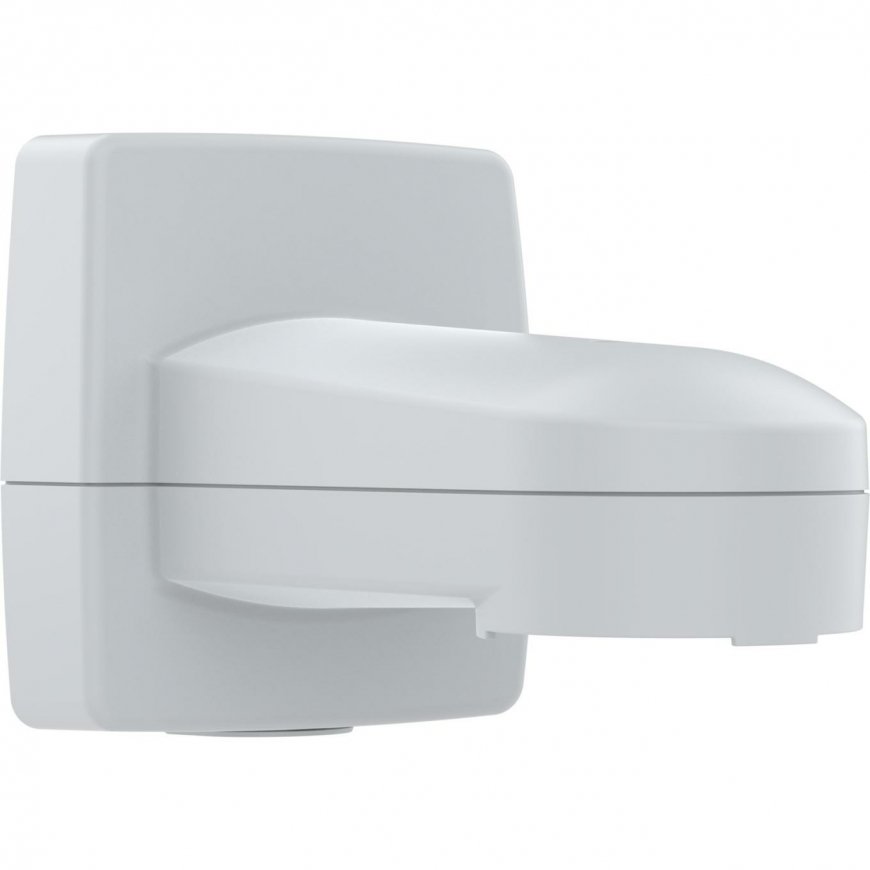

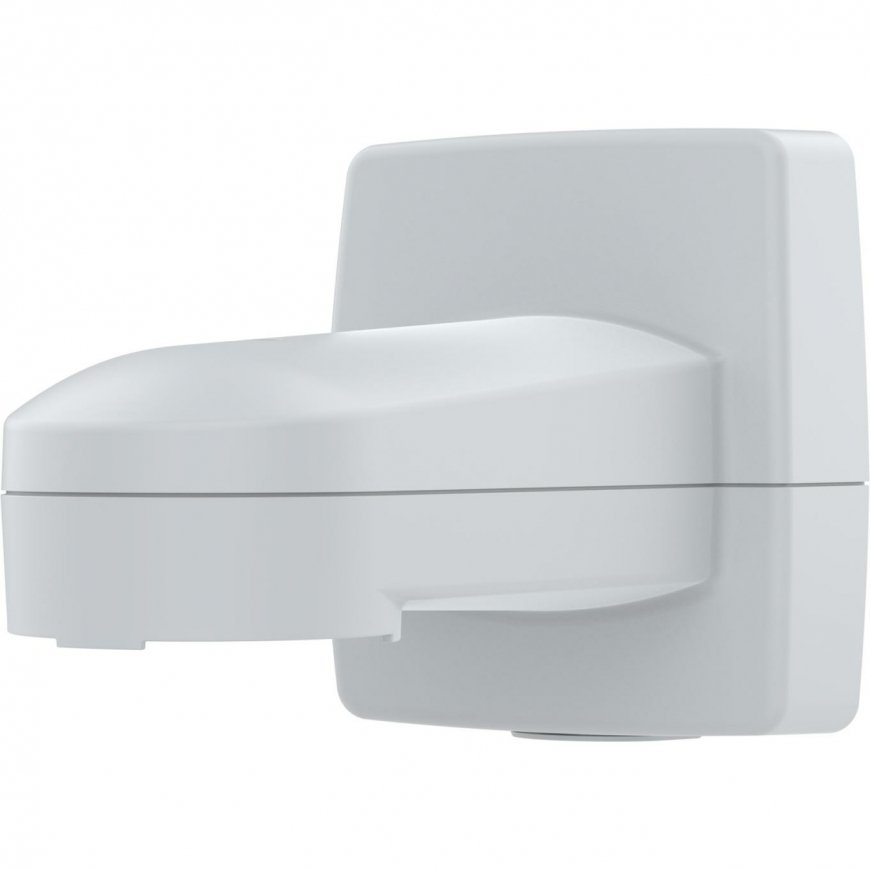

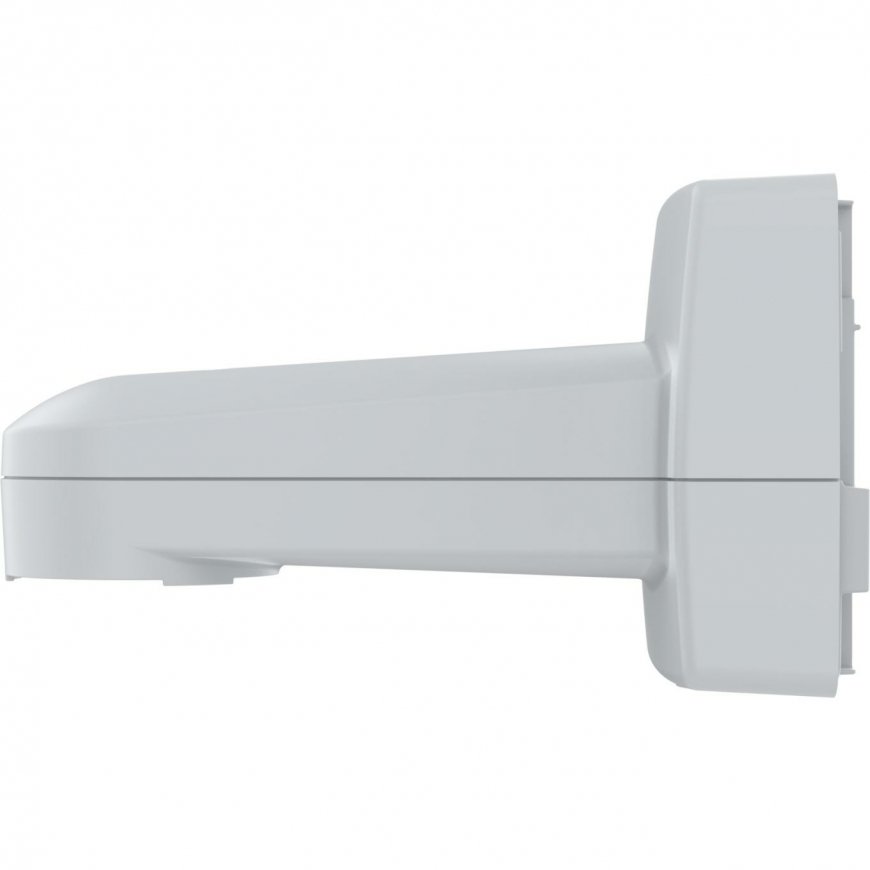

With this wall-and-pole mount, installers can choose between using an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TQ5001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TQ5001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.
Performance | |
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA |
| Placement supported | Universal |
| Type | Pedestal |
Design | |
| Housing material | Aluminium |
| International Protection (IP) code | IP66 |
| Protection features | Dust resistant, Shockproof, Water resistant |
| Product colour | White |
| IK code | IK10 |
Operational conditions | |
| Operating temperature (T-T) | -50 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 10 - 100% |
Weight & dimensions | |
| Weight | 1.96 kg |
| Width | 152.6 mm |
| Depth | 291.8 mm |
| Height | 175.4 mm |
Other features | |
| Compatibility | M5000 PTZ, M5000-G PTZ, M5525-E PTZ, M5526-E PTZ, P5654-E Mk II PTZ, P5655-E PTZ, P5676-LE PTZ, Q6010-E, Q6074 PTZ, Q6074-E PTZ, Q6075 PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6100-E, Q6135-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ |
| Doesn't contain | PVC |
Logistics data | |
| Quantity per pack | 1 pc(s) |
