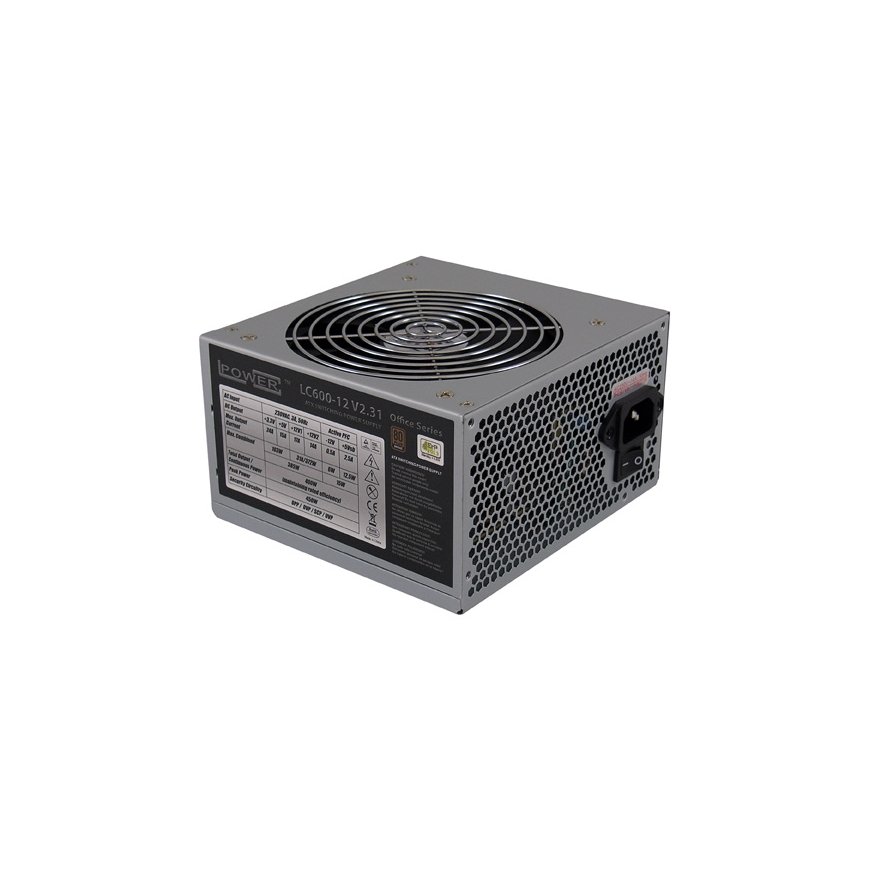

LC-Power LC600-12 V2.31 power supply unit 400 W 20+4 pin ATX ATX Grey
48.03 €
Monthly payment from 2,14 €
2436389 LC600-12 V2.31
4260070124419
Shipping 15-16 b.d.
You are interested in this product?
All about the product
- 450W max. / peak- 80 PLUS® BRONZE 230V EU certified
- Efficiency up to 89,14%
- Standby consumption: 0,16W
- 120mm fan
- 1x PCI-Express 6 pin, 1x PCI-Express 6+2 pin
- Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
Power | |
| Efficiency | 89.14% |
| Input current | 3 A |
| Peak power | 450 W |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 14 A |
| Total power | 400 W |
Performance | |
| ATX version | 2.31 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Grey |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
Ports & interfaces | |
| Floppy drive power connector | 2 |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Number of PATA power connectors | 3 |
Weight & dimensions | |
| Weight | 1.44 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Certification | TÜV, CE |
