The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

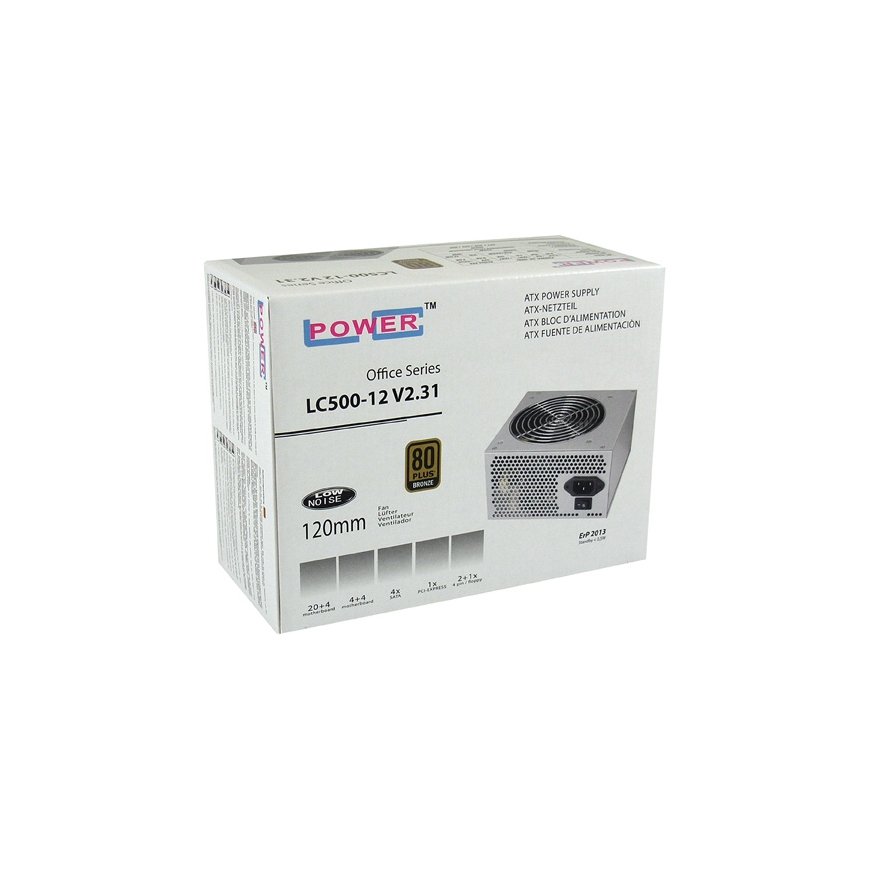

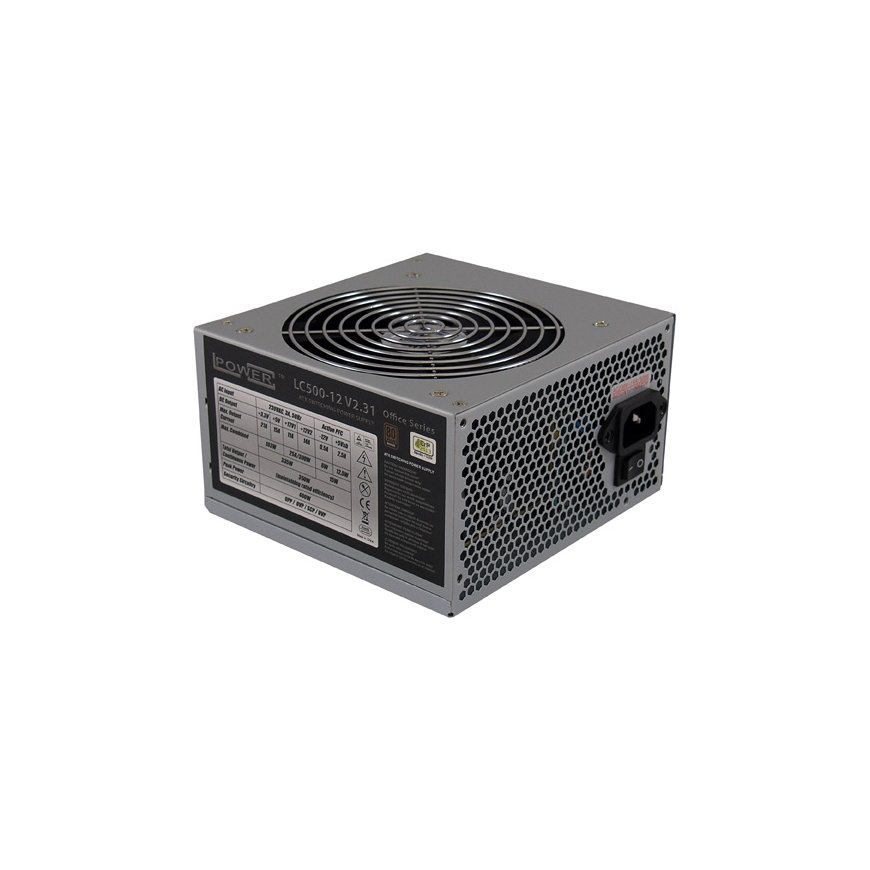

LC-Power LC500-12 V2.31 power supply unit 350 W 20+4 pin ATX ATX Grey
45,82 €
44.82 €
Monthly payment from 2,05 €
2436334 LC500-12 V2.31
4260070124402, 5715063016275
Shipping 12-13 b.d.
You are interested in this product?
All about the product
The OFFICE SERIES by LC-POWER offers a good price-performance ratio:thanks to its 120mm fan, the LC500-12 V2.31 lets you experience a stress-free and silent work in your office as well as at home. Despite the low sound level, the power supply offers a good cooling capacity for your system thanks to its ventilation grille on its back. The power supply features all relevant connectors of the office sector.
The state-of-the-art energy saving technology decreases the power consumption in standby mode (0,21W) and
increases the efficiency of the power supply up to 88,63%!
Power | |
| Efficiency | 88.63% |
| Input current | 3 A |
| Peak power | 400 W |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 300 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Max output current (+12V1) | 11 A |
| Max output current (+12V2) | 14 A |
| Total power | 350 W |
Performance | |
| ATX version | 2.31 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Grey |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
| Number of PATA power connectors | 2 |
Weight & dimensions | |
| Weight | 1.38 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
Packaging data | |
| Package type | Box |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Certification | TÜV, CE |
