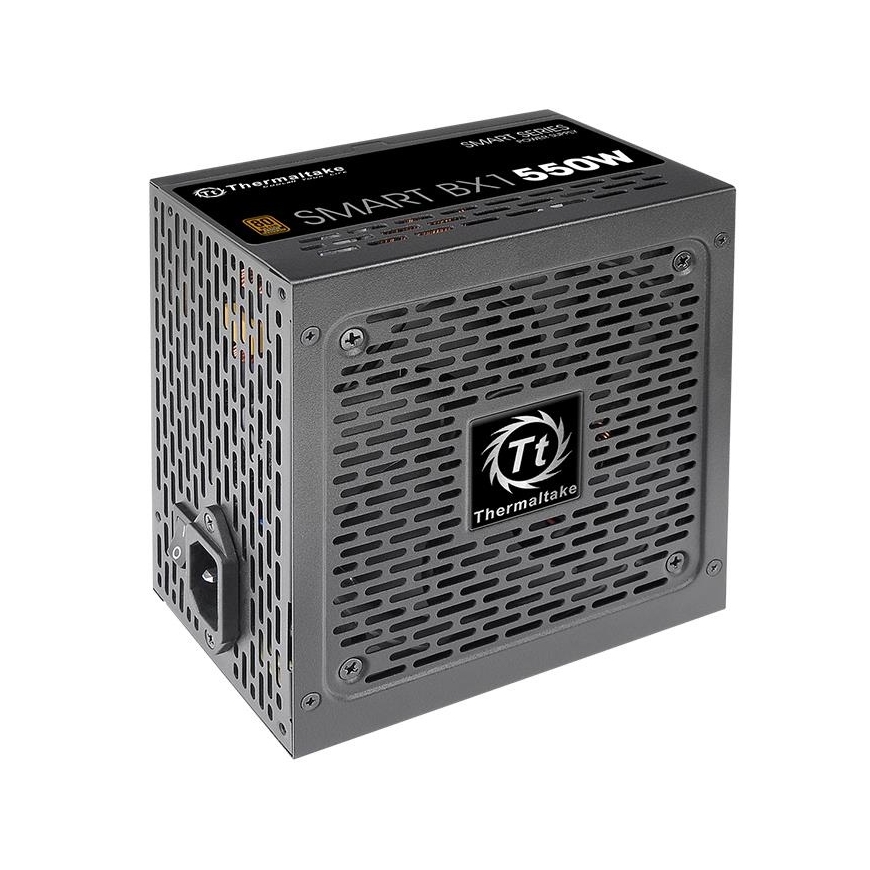

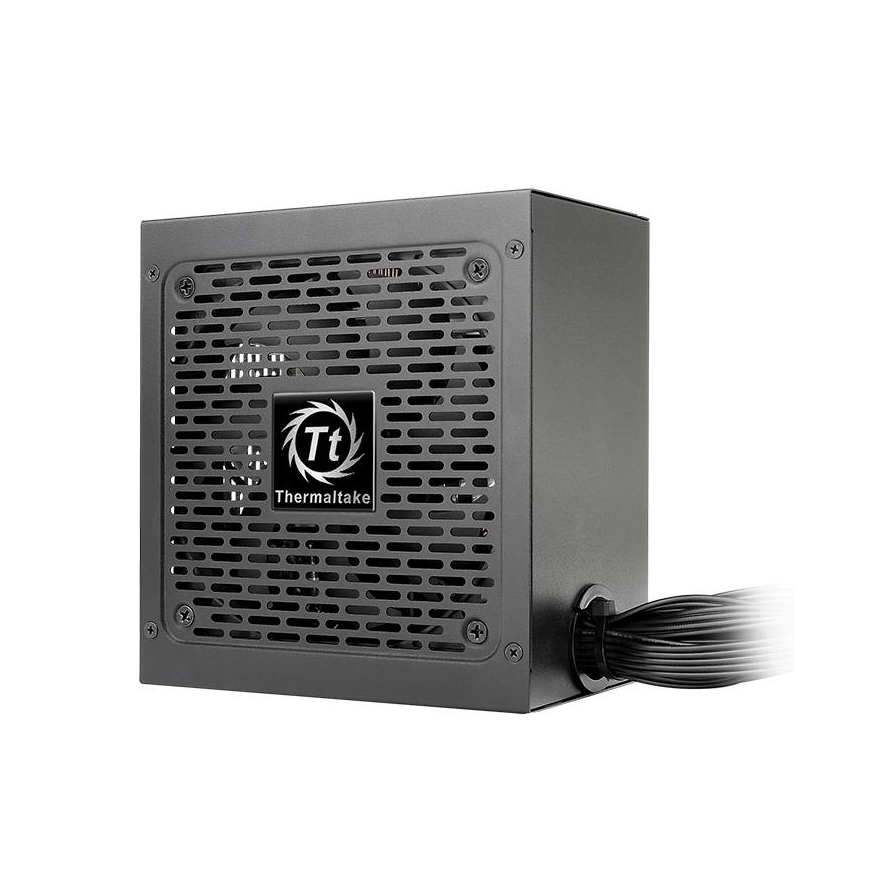

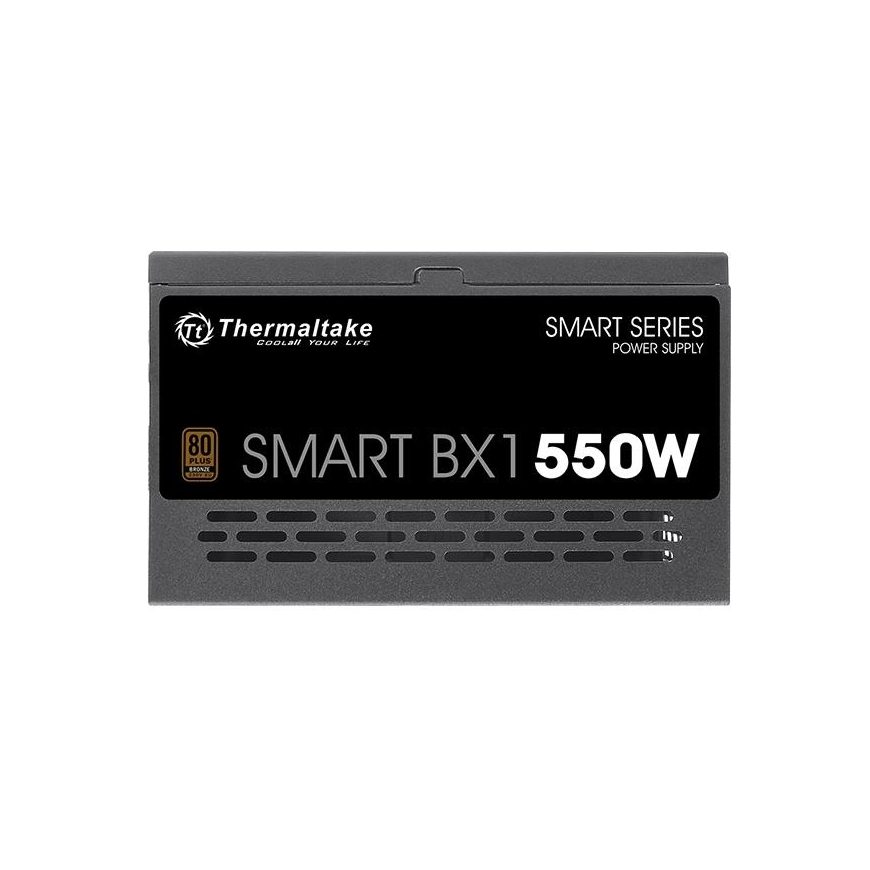

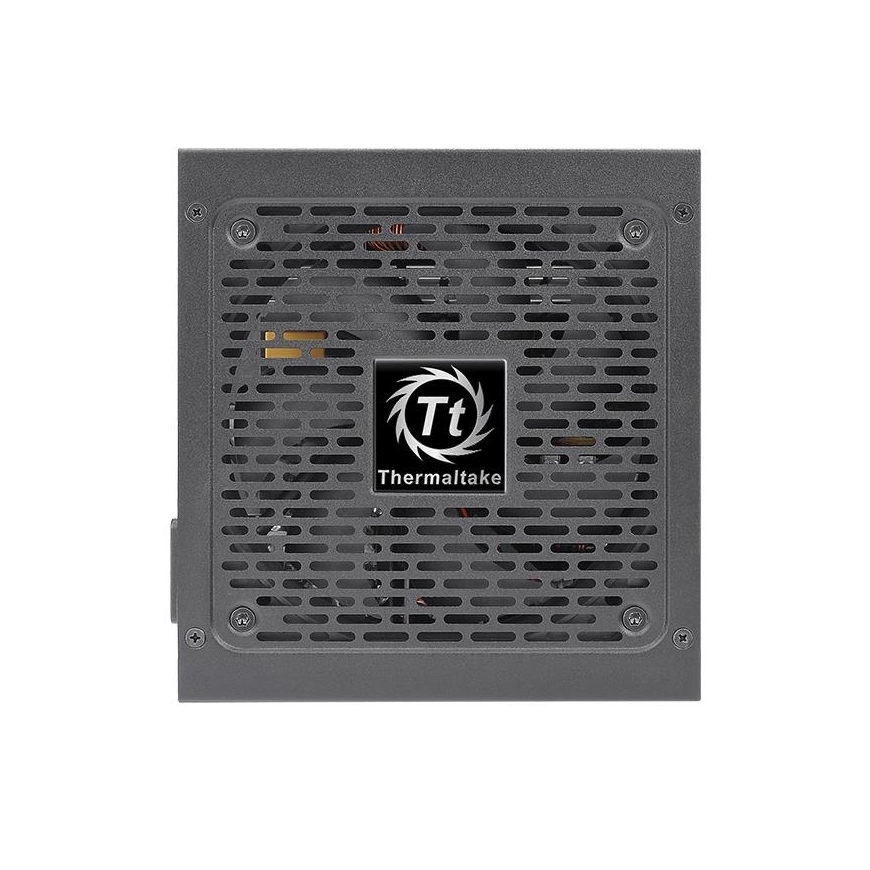

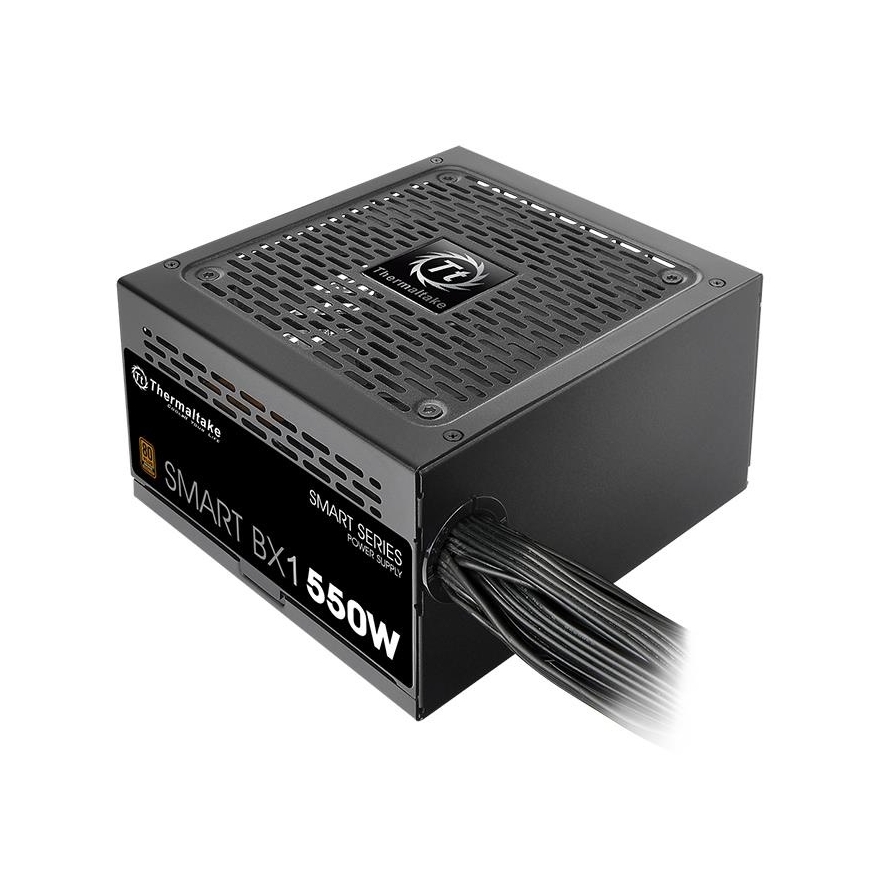

Thermaltake Smart BX1 power supply unit 550 W 24-pin ATX ATX Black
47.98 €
Monthly payment from 2,14 €
2432260 PS-SPD-0550NNSABE-1
4711246875227
Shipping 14-15 b.d.
You are interested in this product?
All about the product
Thermaltake Smart BX1. Total power: 550 W, AC input voltage: 230 V, Peak power: 660 W. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Safety: CE, CB, TUV, EAC, RCMPower | |
| Hold time | 16 ms |
| Efficiency | 88% |
| Input current | 10 A |
| Peak power | 660 W |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Maximum input current (@220V) | 10 A |
| Power Good signal delay range | 100 - 500 ms |
| Total power | 550 W |
Performance | |
| Noise level | 37.6 dB |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Illumination | No |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500, 150 |
| Peripheral (Molex) power cable length | 150, 500 |
| CPU power cable length | 65 cm |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Safety regulation & standards | |
| Safety | CE, CB, TUV, EAC, RCM |
