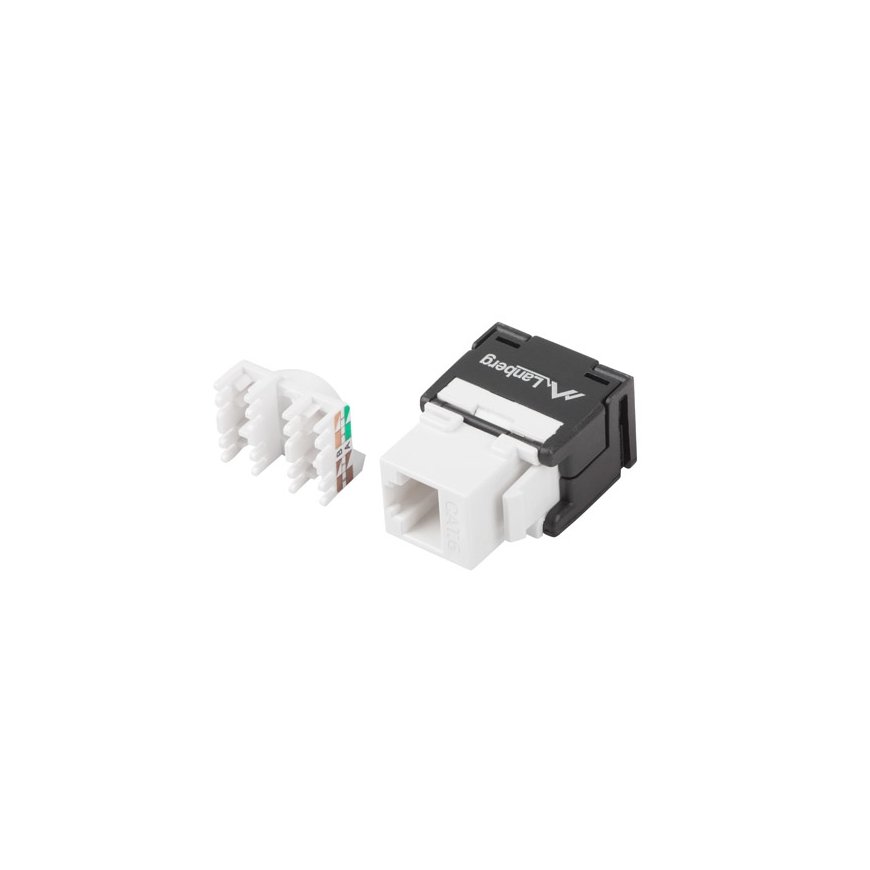

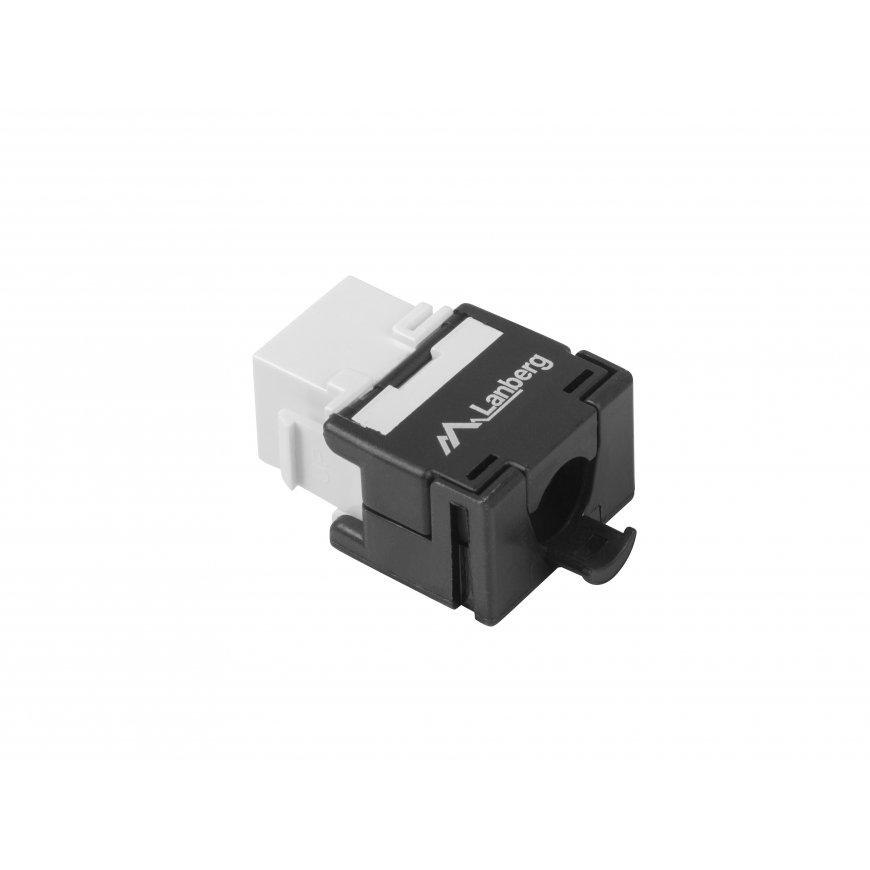

Lanberg KSUA-2000 keystone module
8,33 €
7.56 €
2424817 KSUA-2000
5901969415926
2026-09-29
You are interested in this product?
All about the product
UTP RJ45 cat.6a keystone socket can be installed in any adapter for keystone connectors with dimensions (height x width) 16,10x14,50mm eg in adapters for 45x45 sockets, electrical equipment frames, modular panels, thanks to which the list of applications is very wide this module. The LAN socket has an IDC connector cover and a 568A / B colored connection sequence designation.It is possible to connect cables in the 568B and 568A sequences.
Universal slotted joints compatible with the LSA tool.
Made based on PCBA printed circuit board.
• Connector:
external: 1 x female RJ45 socket (8P/8C)
internal: LSA (tool-free)
• Cat.6a
• Unshielded (UTP)
• Compliant with Cat.6a requirements
EN 50173-1: 2011 and EN 60603-7-4 and ANSI / TIA 568-C.2
• For wire or cable wires up to 0.644 mm (22 - 26 AWG)
PoE support in keystone: up to 36V
Features | |
| Connector 1 | RJ-45 |
| Connector 2 | LSA |
| Product colour | Black, White |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
Weight & dimensions | |
| Height | 16.1 mm |
| Width | 14.5 mm |
