The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

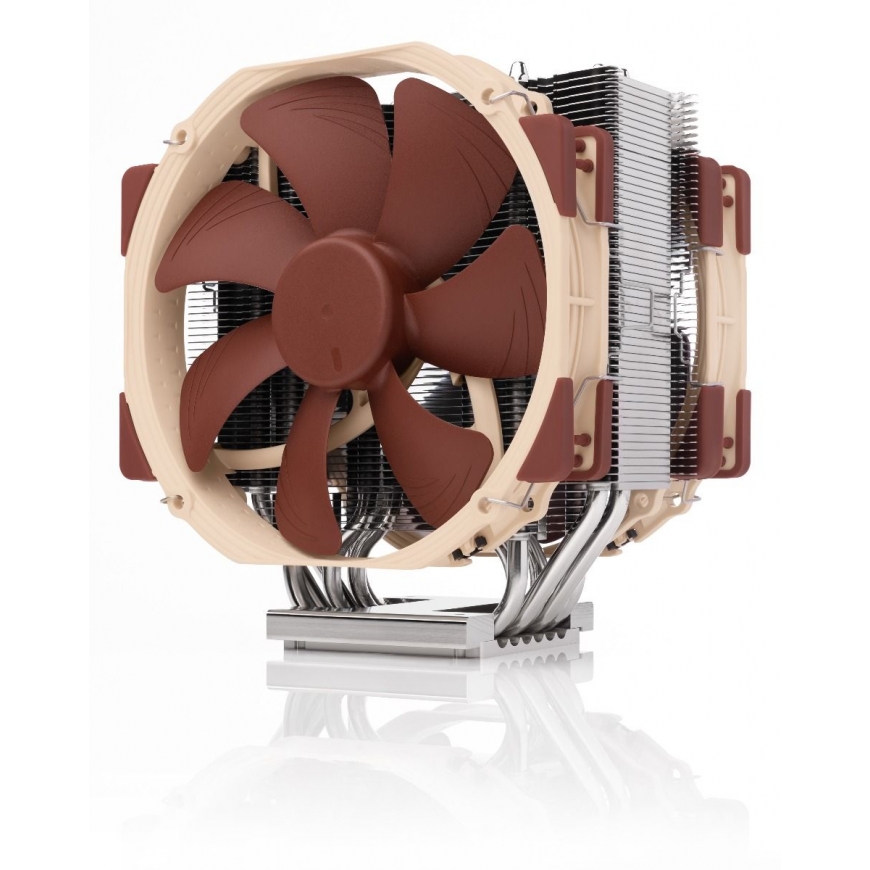

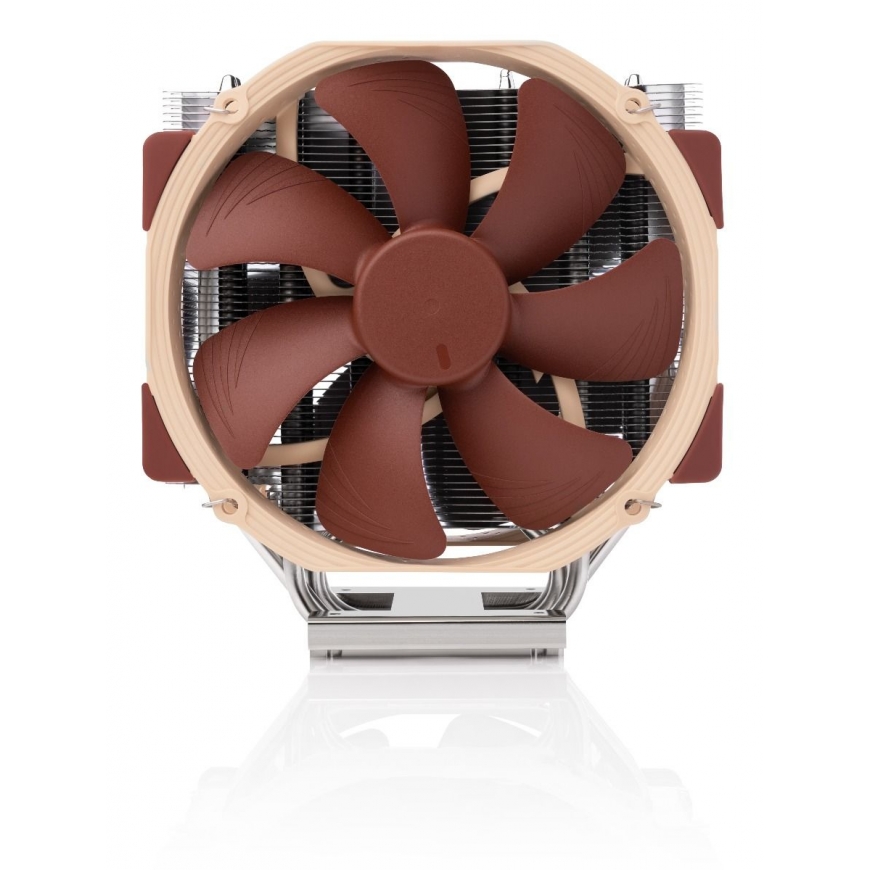

Noctua NH-U14S TR5-SP6 computer cooling system Processor Air cooler 14 cm Light brown 1 pc(s)
143,43 €
Monthly payment from 4.59 €
2416047 NH-U14S TR5-SP6
9010018000450, 0841501100451
2026-07-16
You are interested in this product?
Proven heatsinks for AMD Threadripper & Epyc
First introduced in 2017, Noctua’s Threadripper and Epyc coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for AMD-based workstations and servers. Thanks to their superior acoustic efficiency, they are ideal for Threadripper and Epyc systems that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).
Enlarged contact surface
At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard desktop model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s TR5/SP6 based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.
140mm size for maximum performance
With six heatpipes, a fin surface area of more than 6000cm² and two highly optimised NF-A15 140mm fans, the NH-U14S TR5-SP6 provides a superior level of quiet cooling efficiency. This makes it ideal for building cutting-edge, ultra high-performance Threadripper-based workstations that run almost silent.
Dual NF-A15 140mm premium fans
The NH-U14S TR5-SP6 is equipped with two of Noctua’s award-winning NF-A15 140mm fans. This powerful push/pull dual fan configuration allows it to achieve an unrivalled level of quiet cooling performance and makes it the first choice for workstations that require the best possible cooler, period.
PWM support and splitter cable

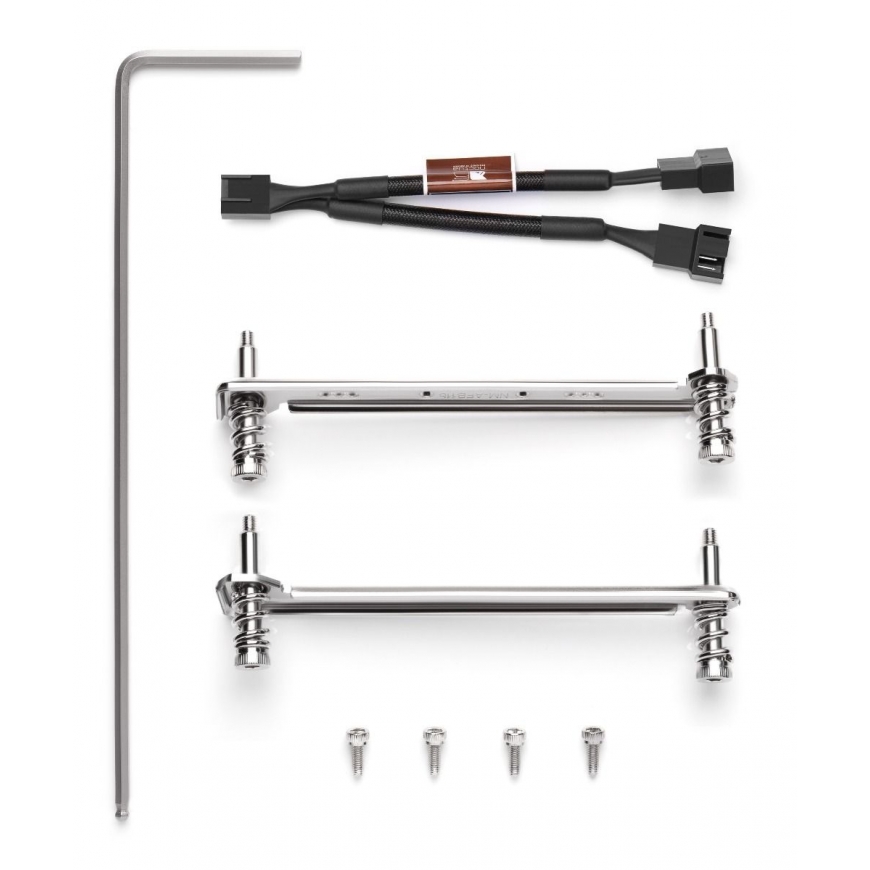

The renowned NF-A15 140mm premium fans supplied with the NH-U14S TR5-SP6 support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and speed up only when necessary. The supplied splitter cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.
SecuFirm2™ mounting for TR5-SP6
The NH-U14S TR5-SP6 combines the proven basis of the TR4-SP3 model with new mounting brackets that meet the increased pressure requirements of AMD’s TR5/SP6 socket (sTRX5/sWRX9). Installation is just as easy as before: Put on the heatsink, fix the four spring-loaded Allen key screws using the supplied tool and you’re done!
Offset mounting options
The SecuFirm2™ mounting for TR5/SP6 makes it possible to offset the cooler by 3 or 6mm. On motherboards with east-to-west socket orientation, this can be used to offset the cooler(s) towards the right, increasing clearance towards the I/O panel. On boards that use a north-to-south orientation of the CPU socket(s), this allows offsetting the cooler towards the upper edge of the motherboard in order to increase PCIe clearance.
Pre-applied NT-H2 thermal compound
Noctua’s much-acclaimed NT-H2 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!
Performance | |
| Supported processor sockets | SP6, sTRX5, sWRX9 |
| Type | Air cooler |
| Fan diameter | 14 cm |
| Airflow | 140.2 m³/h |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1500 RPM |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Quantity per pack | 1 pc(s) |
| Fan 2 rotational speed (min) | 300 RPM |
| Fan 2 rotational speed (max) | 1500 RPM |
| Fan 2 noise level (high speed) | 24.6 dB |
| Fan noise level (max) | 24.6 dB |
| Suitable location | Processor |
Design | |
| Product colour | Light brown |
| Number of fans | 2 fan(s) |
| Fins material | Aluminium |
| Number of fan blades | 7 |
| Base plate material | Copper |
Power | |
| Fan voltage | 12 V |
| Fan power consumption | 1.56 W |
Weight & dimensions | |
| Weight | 1.14 kg |
| Package weight | 1.68 kg |
| Height | 165 mm |
| Width | 150 mm |
| Depth | 111 mm |
| Package height | 227 mm |
| Package width | 223 mm |
| Package depth | 142 mm |
| Radiator width | 15 cm |
| Radiator depth | 5.2 cm |
| Radiator height | 16.5 cm |
Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
