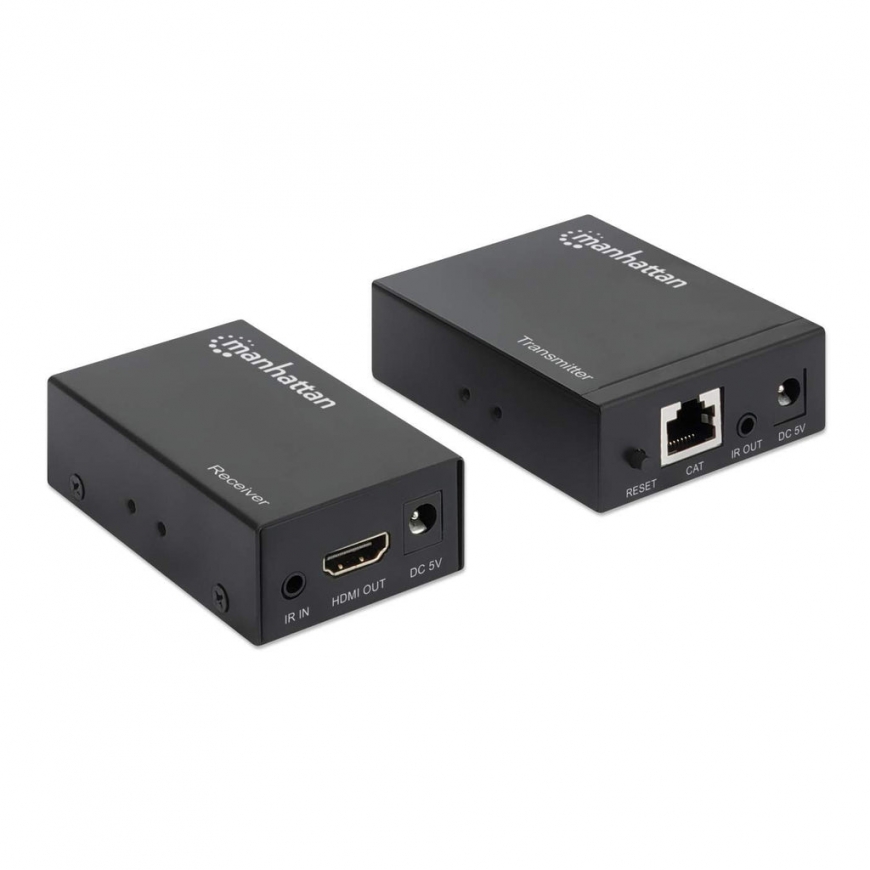

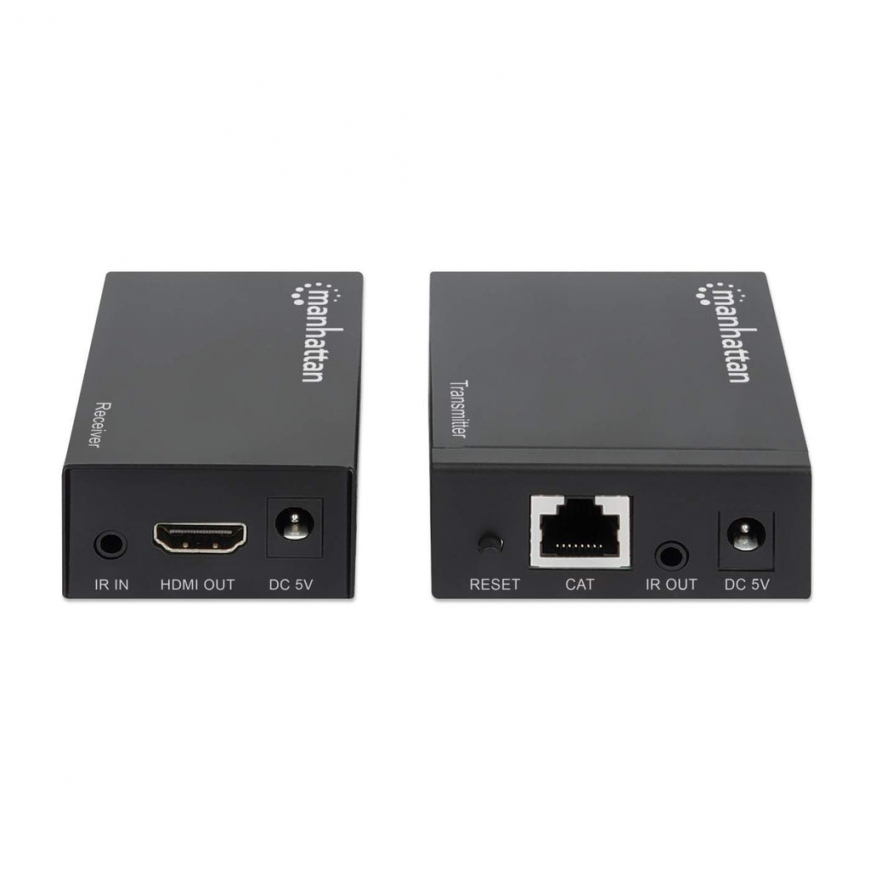

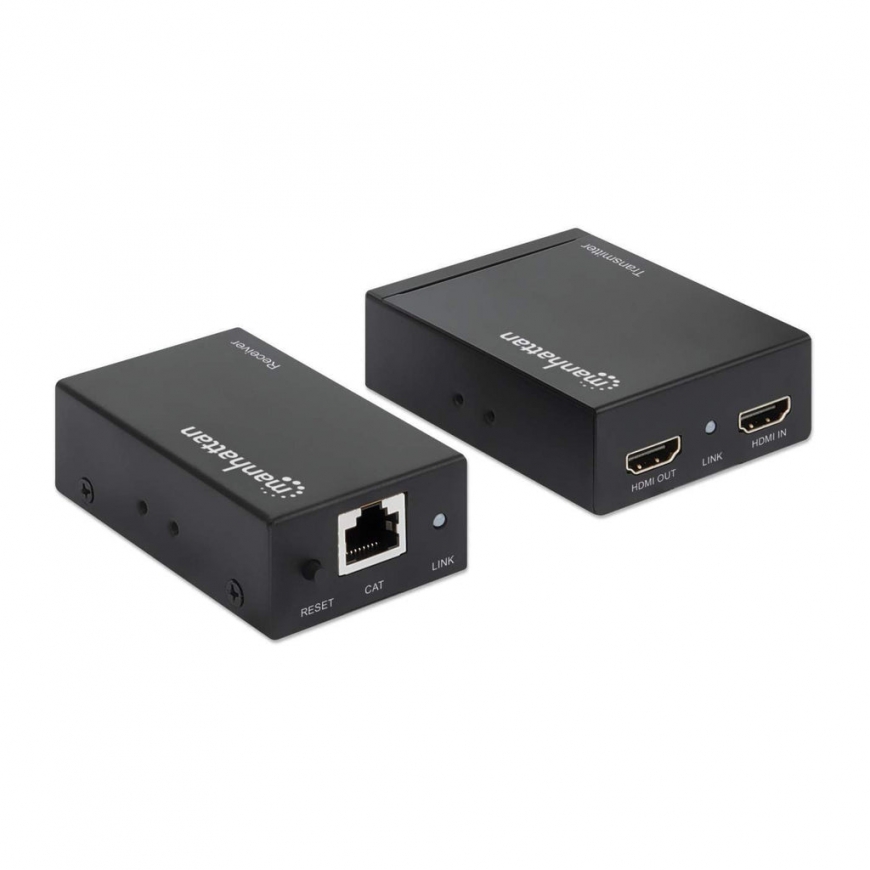

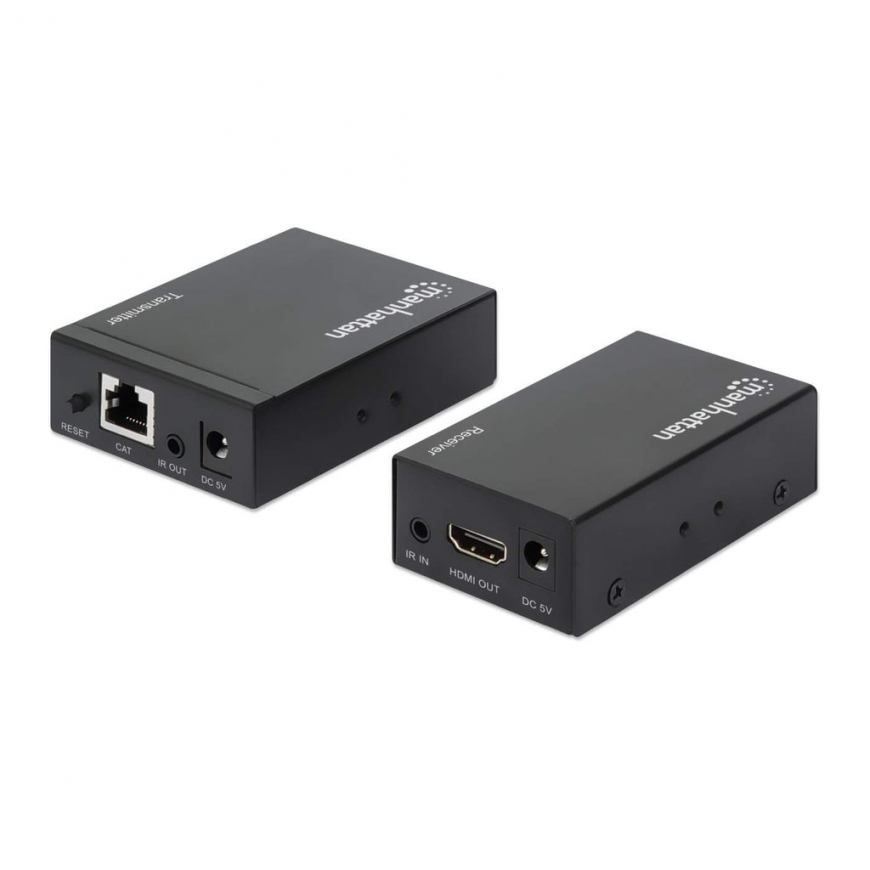

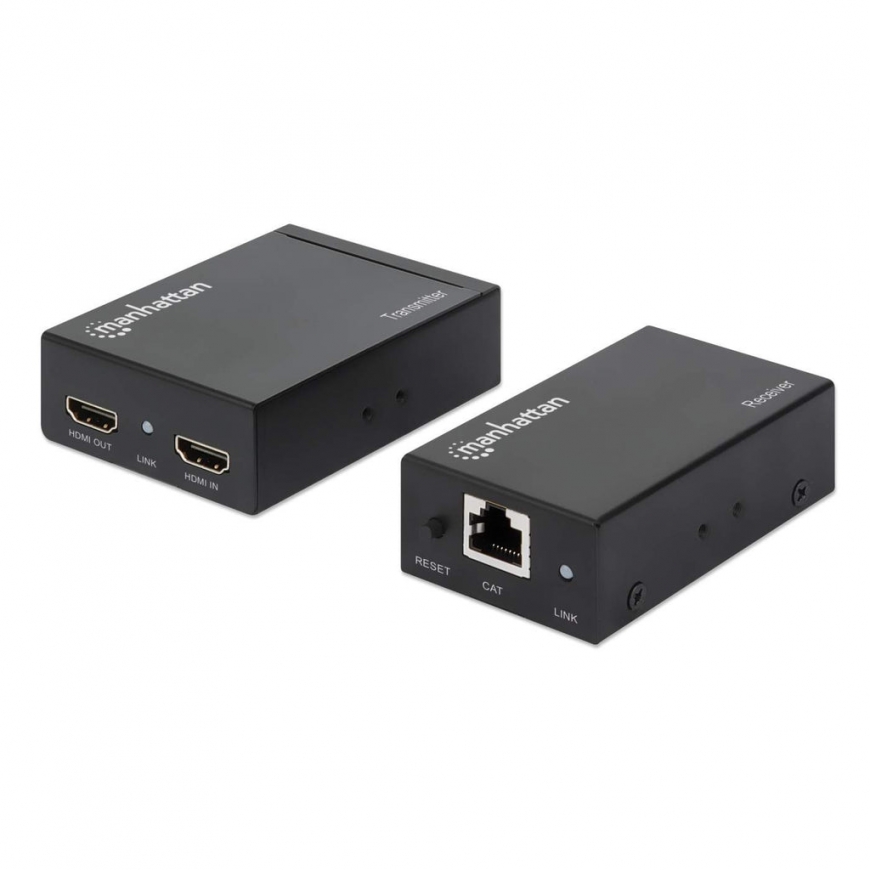

Manhattan 207461 AV extender
68.09 €
Monthly payment from 2,65 €
2411748 207461
0766623207461
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Easily extend a high-definition signal via single Ethernet cable.The Manhattan 1080p HDMI over Ethernet Extender Kit is the ideal solution for connecting virtually any HDMI source (PlayStation, Xbox, Blu-ray player, satellite receiver, digital recorder, etc.) to an HD display or projector up to 50 m (164 ft.) from its source via a single Cat6 Ethernet cable. These powered HDMI Extenders provide reliable 1080p resolution video and multichannel audio transmission over longer distances than is possible with HDMI cables alone. Plus, the transmitter module has an additional HDMI output port, allowing a second monitor to be placed in a control closet or run to second display. For additional quality control, the Manhattan 1080p HDMI over Ethernet Extender Kit includes an EDID control switch to minimize display issues, a built-in equalizer dip switch for long-run screen flickering corrections and a wideband IR blaster and receiver for remote control of the source device.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theatre, conference rooms, business office and retail applications, the Manhattan 1080p HDMI over Ethernet Extender Kit boosts and extends a 1080p signal up to 50 m (164 ft.) for convenient display or projector placement. Ethernet cabling — Cat6 UTP, SSTP or SFTP (cables not included) — is less expensive and easier to install than HDMI cabling and in-line signal repeaters, and, when used with our Extender Kit, delivers a clear, sharp and vivid picture over longer distances.
Quality Construction and Easy Installation
HDCP compliance with HDMI and DVI 1.0 means this Kit is tested to guarantee performance and reliability. It installs quickly without running software or installing additional hardware. It comes with a power adapter, which powers the receiver or transmitter over Ethernet for the unit using the power adapter, freeing up a power plug for more important applications.
Features
| Product colour | Black |
| Audio formats supported | LPCM |
| Weight | 350 g |
| Width | 80 mm |
| Depth | 69 mm |
| Height | 17 mm |
| AC adapter included | Yes |
| Cable length | 1.4 m |
| Frequency | 340 MHz |
| Type | AV transmitter & receiver |
| Material | Metal |
| Supported video modes | 720p; 1080p; 480i; 480p; 1080i; 576i; 576p |
| Maximum resolution | 1920 x 1200 pixels |
| Plug and Play | Yes |
| Connectivity technology | Wired |
| Quick start guide | Yes |
| Supported graphics resolutions | 1024 x 768 (XGA); 1920 x 1200 (WUXGA); 640 x 480 (VGA); 800 x 600 (SVGA) |
| Certification | CE, FCC |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| DC-in jack | Yes |
| Input current | 1 A |
| HDCP | Yes |
| Power over Ethernet (PoE) | Yes |
| RJ-45 input ports | 1 |
| Operating voltage | 5 V |
| Remote (IR) input | 1 |
| IR receiver included | Yes |
| Cable types supported | Cat6 |
| Maximum transfer distance | 100 m |
| HDMI in | 3 |
| IR blaster included | Yes |
| HDCP & EDID bypass | Yes |
| Compliance certificates | CE; RoHS; Federal Communications Commission (FCC) |
