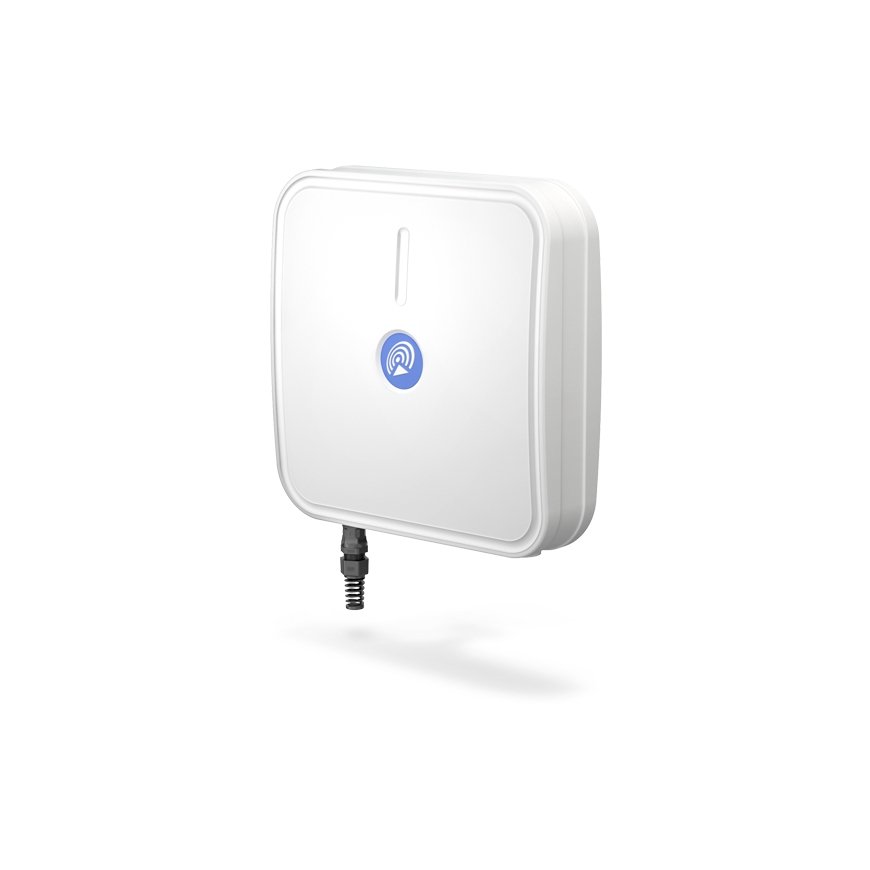

QuWireless AXRL network antenna Directional antenna PoE/LAN 7 dBi
617.33 €
Monthly payment from 16,80 €
2400422 AXRL
5907772035450, 5704174395911
Shipping 4-5 b.d.
You are interested in this product?
All about the product

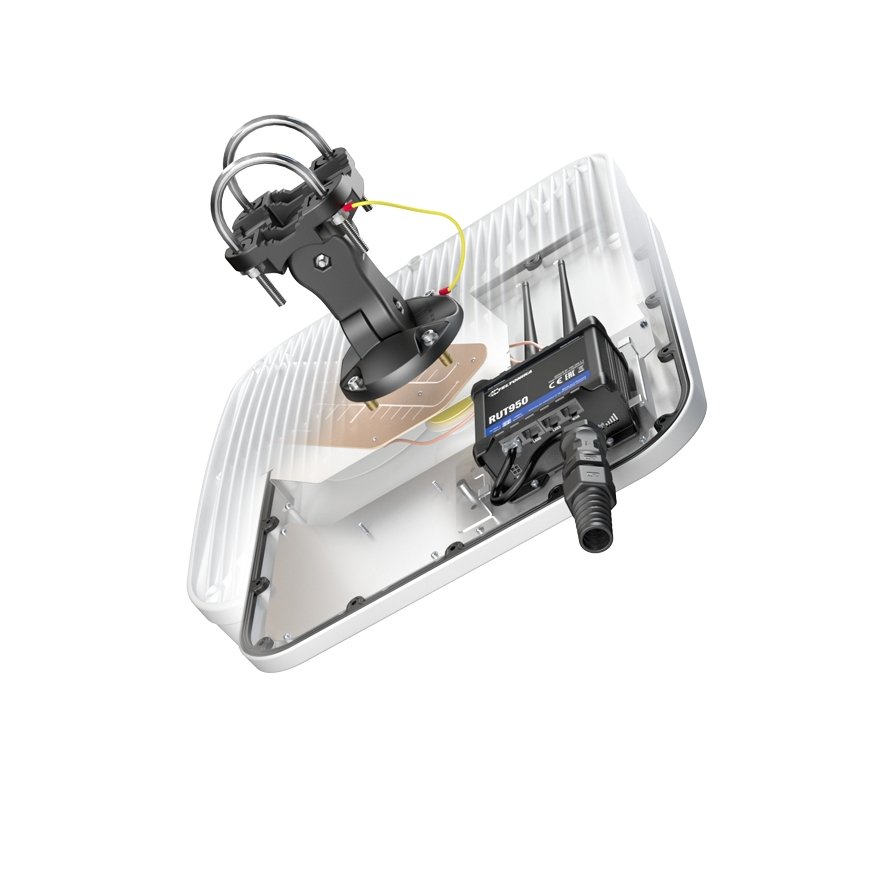

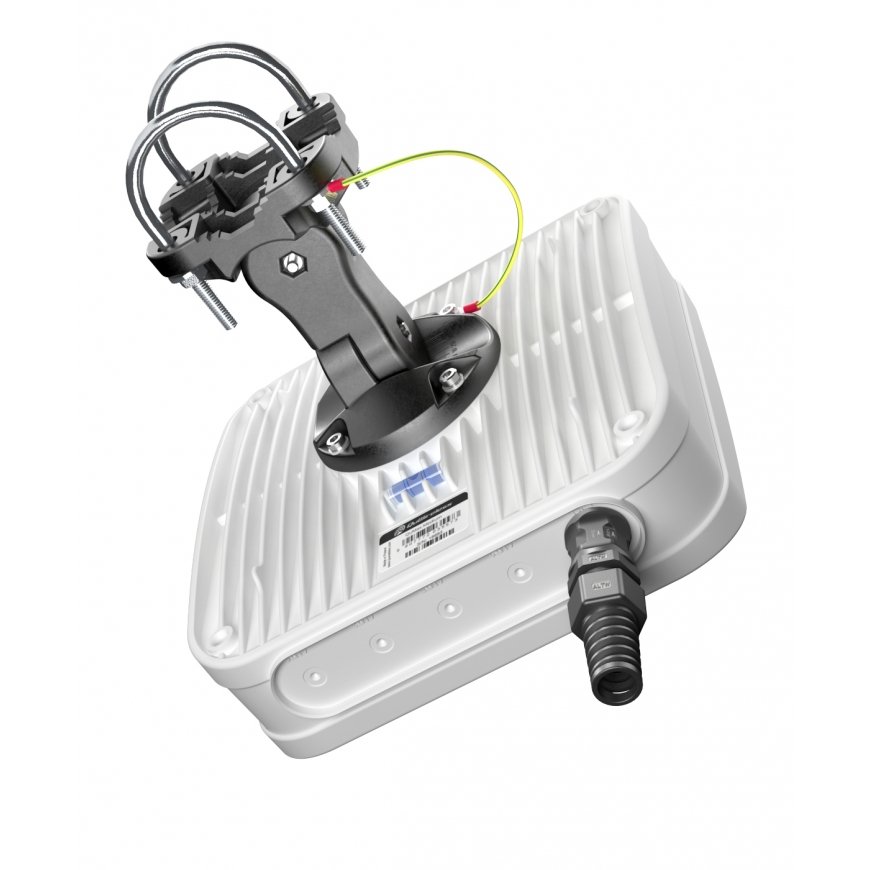

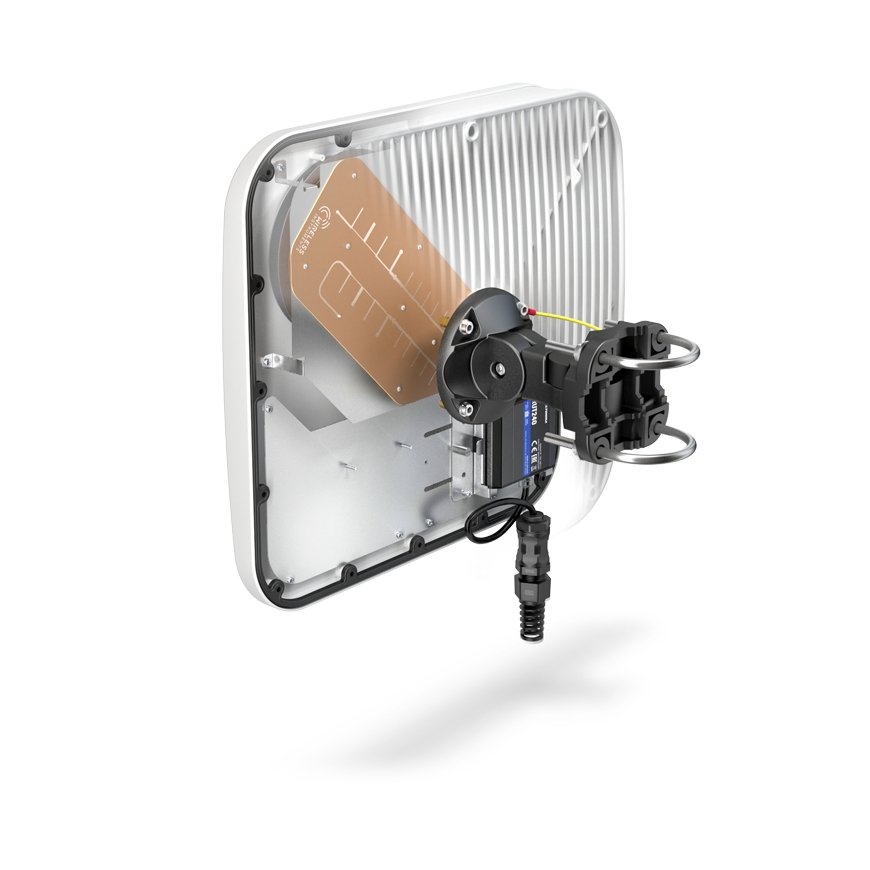

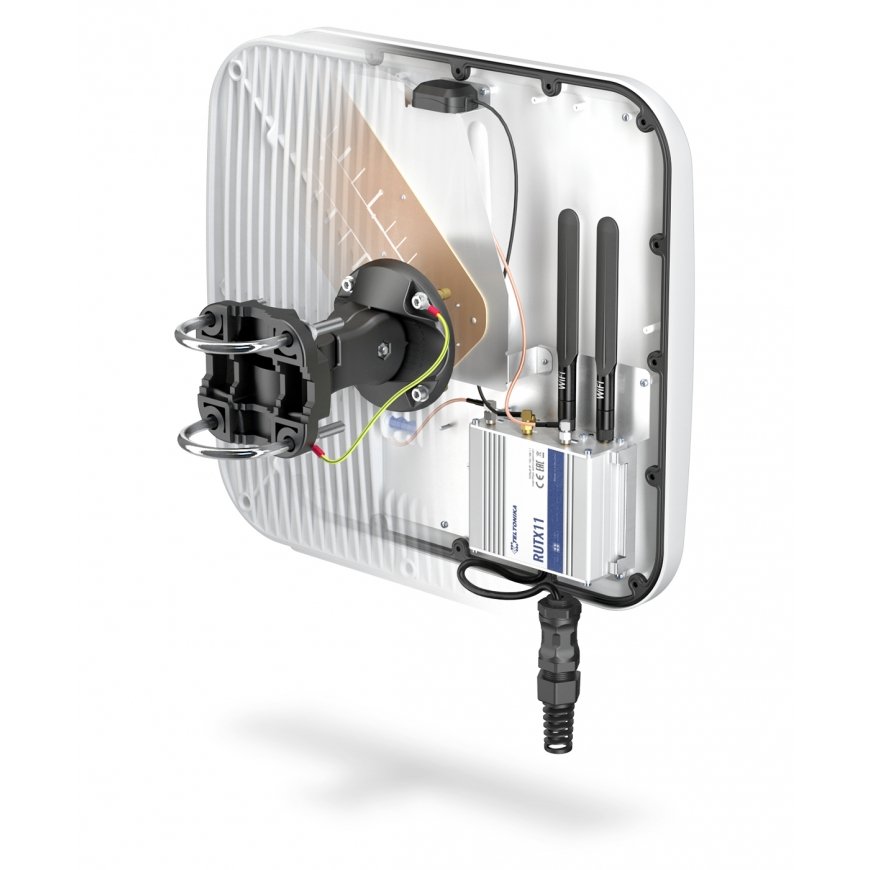

Integrated outdoor multi band eXtra Range LTE directional antenna + place to install Teltonika RUT200/240/241/950/951/955/956/X09/X11QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.
Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.
NOTE: There is also available version with extreme high gain antenna for high bands (2300-2700 MHz) – QuMax XR LTE High Band
Features
| Product colour | White |
| International Protection (IP) code | IP67 |
| Weight | 3.7 kg |
| Width | 392 mm |
| Depth | 392 mm |
| Height | 99 mm |
| Quantity per pack | 1 pc(s) |
| Purpose | Outdoor |
| Operating temperature (T-T) | -40 - 75 °C |
| Housing material | Aluminium; Akrüülnitriil butadieen stüreen (ABS) |
| Protection features | Dust resistant; Rain proof; Snow resistant |
| Impedance | 50 Ω |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7 GHz |
| Waterproof | Yes |
| Antenna type | Directional antenna |
| Mounting kit | Yes |
| Compatible products | RUTX09; RUT200010000; RUT23000E000; RUT24006E000; RUT241010000; RUT260; RUT900; RUT901; RUT950M02290; RUT951100000; RUT955T7V020; RUT956; RUTX11000200 |
| Mounting | Wall/Pole |
| Antenna gain level (max) | 7 dBi |
| Antenna connector type | PoE/LAN |
| Gain | 7 dBi |
| Horizontal beam width | 70° |
| Vertical beam width | 70° |
| Voltage Standing Wave Ratio (VSWR) | 1.7 - 2 |
| Polarization | Dual polarization |
