QuWireless QuMax XR LTE High Band network antenna Directional antenna PoE/LAN 13 dBi
674.06 €
Monthly payment from 18,26 €
2399439 AXRLH
5907772035467
Shipping 4-5 b.d.
You are interested in this product?
All about the product

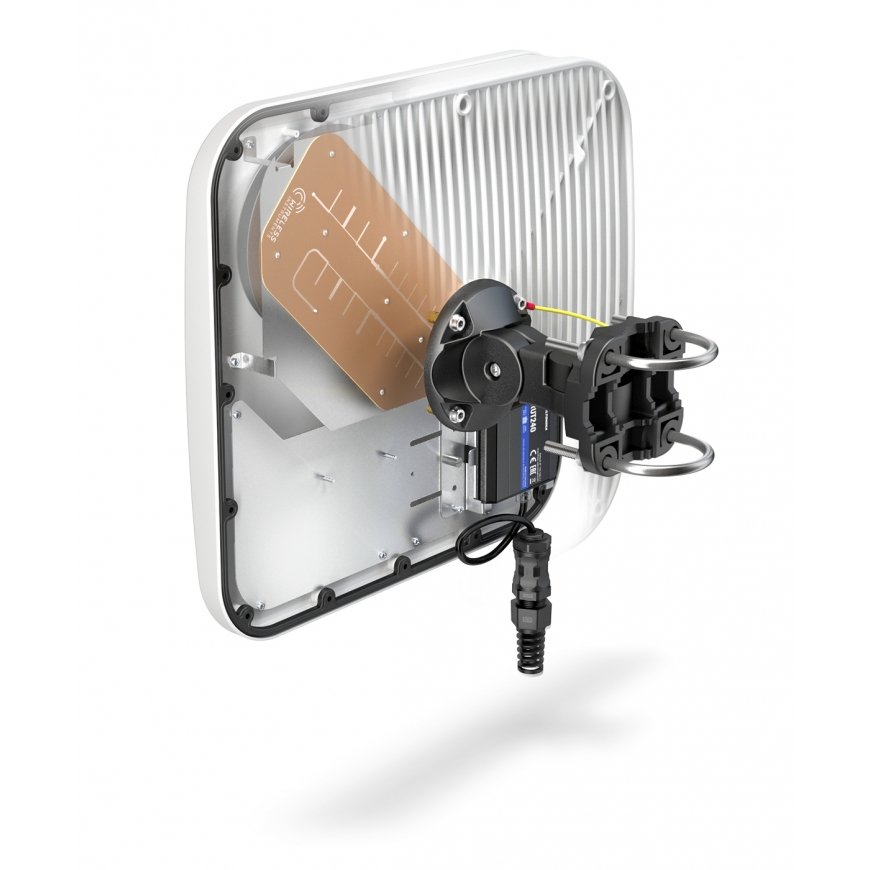

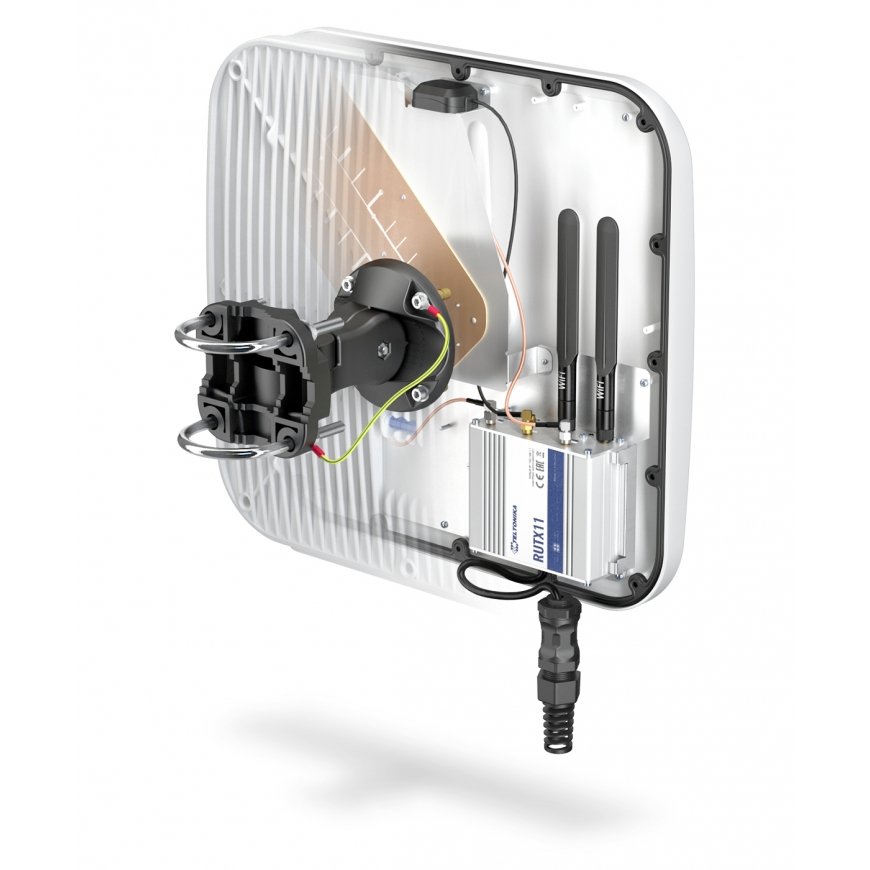

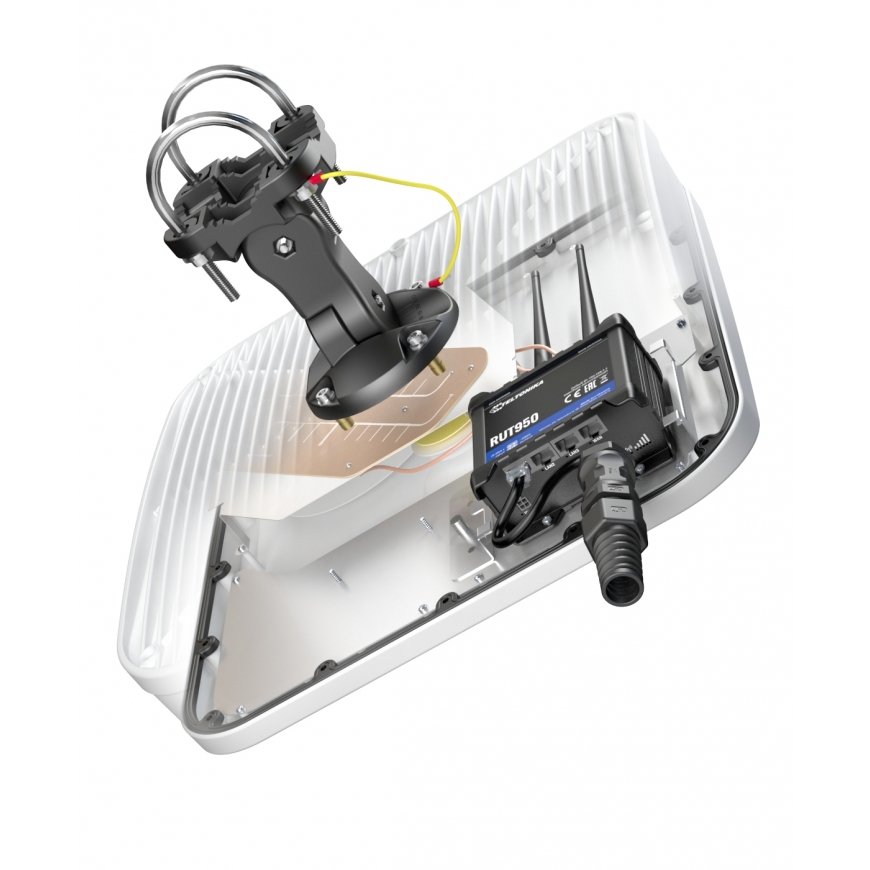

Integrated outdoor multi band eXtra Range LTE directional antenna + place to install Teltonika RUT200/240/241/950/951/955/956/X09/X11QuMax eXtra Range LTE High Band offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure. QuMax XR High Band version offer gain up to 12 dBi in LTE bands: 7, 15, 16, 30, 38, 40, 41, 53, 69 and support many other LTE bands (details in specification table).
Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.
Features
| Product colour | White |
| Weight | 3.7 g |
| Width | 392 mm |
| Depth | 99 mm |
| Height | 392 mm |
| Quantity per pack | 1 pc(s) |
| Country of origin | Poland |
| Purpose | Outdoor |
| Operating temperature (T-T) | -40 - 80 °C |
| Housing material | Akrüülnitriil butadieen stüreen (ABS) |
| Impedance | 50 Ω |
| Frequency band | 0.694-0.96/ 2.3-2.7 GHz |
| Antenna type | Directional antenna |
| Mounting kit | Yes |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11 |
| Mounting | Wall/Pole |
| Antenna gain level (max) | 13 dBi |
| Antenna connector type | PoE/LAN |
| Gain | 13 dBi |
| Horizontal beam width | 30° |
| Vertical beam width | 30° |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Polarization | Dual polarization |
