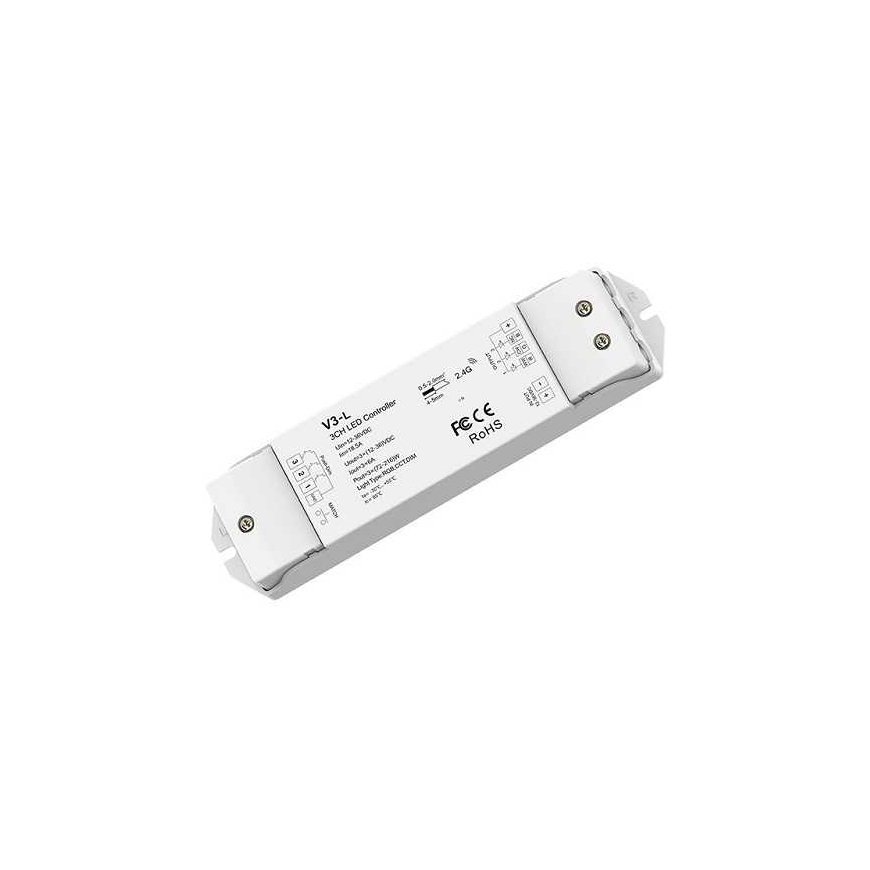

SKYDANCE V3-L constant voltage RGB controller, 12-48V, 3x 6A, Push Dimm
SKYDANCE V3-L constant voltage RGB controller, 12-48V, 3x 6A, Push Dimm
SKYDANCE V3-L constant voltage RGB controller, 12-48V, 3x 6A, Push Dimm

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

SKYDANCE V3-L constant voltage RGB controller, 12-48V, 3x 6A, Push Dimm

31,64 €
2392081

HS082895

9990001082895

Shipping 2-4 days

Quantity

You are interested in this product?
(Read terms of service)
V3-L constant voltage controller for RGB/CCT LED strips, 12-48V DC, 3x 6A, 3 channels, with Push Dimm function


Features:
Supports lighting systems: single-color (1-3 zones), two-color, color RGB, changeable shade CCT.
The constant voltage controller is suitable for controlling constant voltage lighting devices, such as single color LED strip, constant voltage LED panels and so on.
Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips/bulbs.
Allows you to control the color temperature (warm/neutral/cool white light).
Supports dynamic RGB color control (has 10 dynamic modes, including jump or gradual style flip settings).
Has a Push-dimm function: you will be able to connect a normal bell-type (pop-up) switch to the controller.
Allows you to select the light on/off duration.
Simultaneous automatic transmission: automatically transmits the signal to another controller within 30m, synchronizes the operation with other controllers (recommended not to exceed 25 controllers).
It has a matching button (MATCH) for connecting remote controls.
Can be controlled by 2.4 GHz RF remote controls, wireless wall switches, sensor switches.
Control with the SkySmart smart app is supported.
One controller can control up to 10 remote controls. One remote control can control an unlimited number of controllers within 30 m.
The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.
Protection against overload, overheating, reverse polarity and short circuit.
Certificates: CE (EMC/LVD), RoHS.


Technical data:
Product model: V3-L.
Compatibility: Skydance R1, R6-1, RT1, RU4, R6, RA1, RT6, RS1, RS6; R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T1, T1-1, T1-K, KV, KC; T3, T3-1, T3-K.
Number of channels: 3.
Controlled lighting systems: RGB, CCT.
Operating frequency: RF 2.4GHz.
Supply voltage: 12V-48V DC.
Output voltage: 12V-48V DC.
Output current: 6A per channel.
Power: (72-288)W per channel.
PWM frequency: 1000 Hz.
Grayscale: 4096 levels.
Dimming range: 0-100%.
Operating distance: up to 30m.
Safety class: IP20 (not waterproof).
Cross-sectional area of suitable wires: 0.5-2.0 mm².
Certificates: CE, EMC, LVD, RED, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 175 x 45 x 27 mm.
Color: white.
Weight: 115g.


Warranty: 24 months
