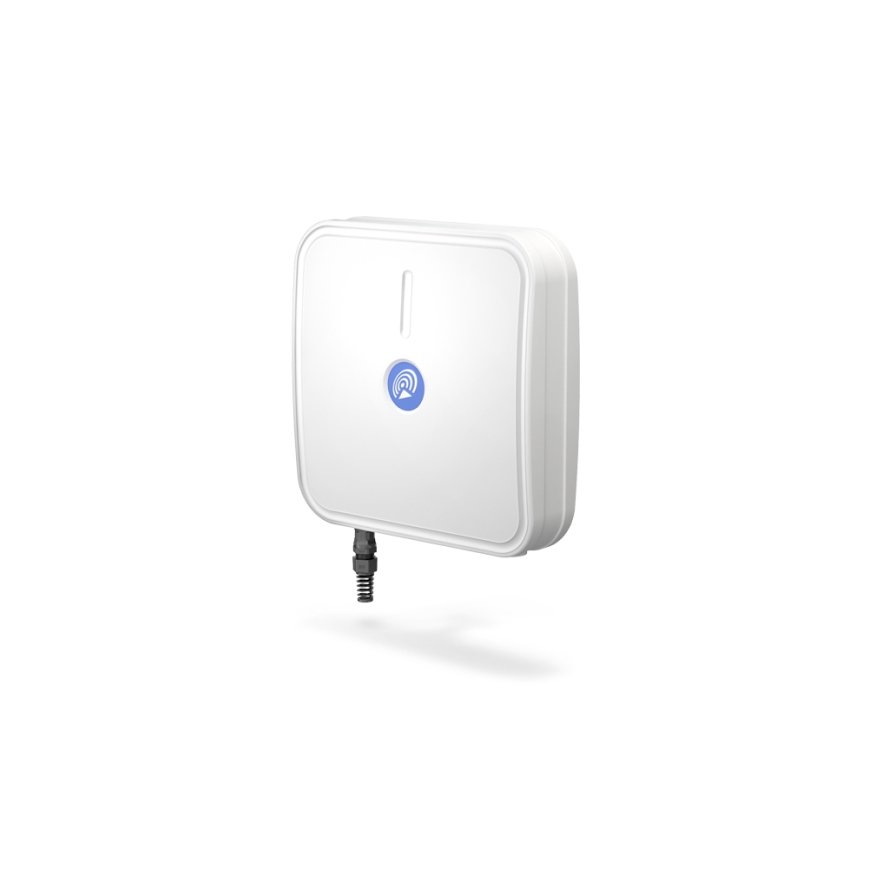

QuWireless QuMax XR All In network antenna Directional antenna PoE/LAN 7 dBi
764.55 €
Monthly payment from 20,59 €
2391058 AXRA
5907772035474, 5704174473503
Shipping 4-5 b.d.
You are interested in this product?
All about the product

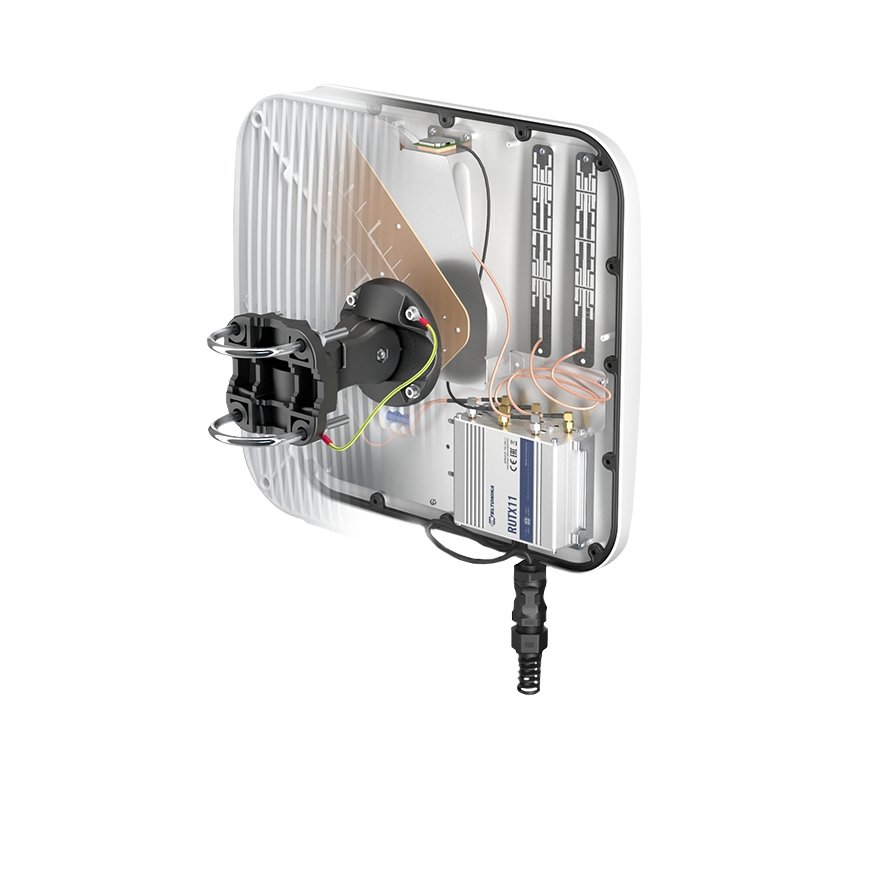

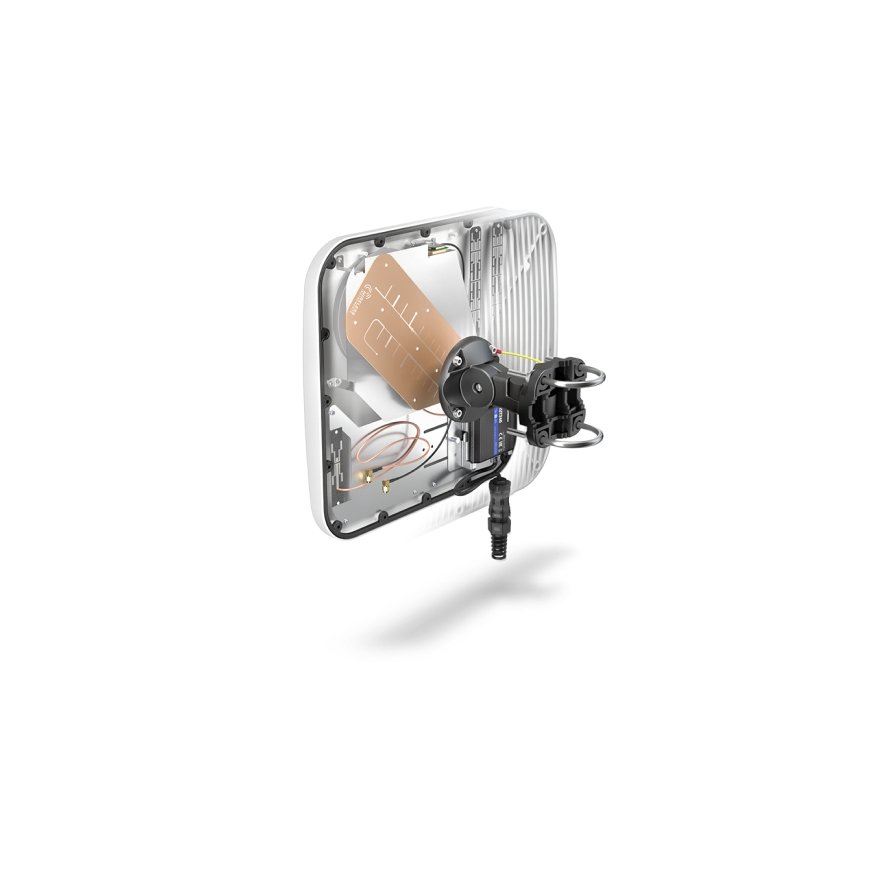

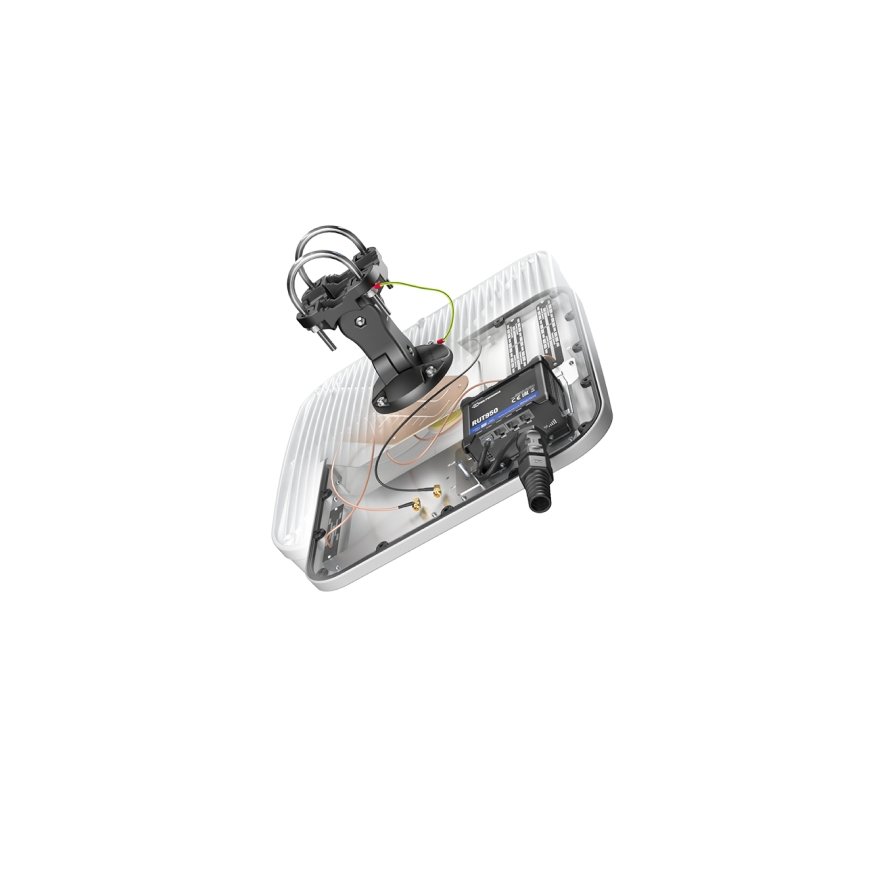

Integrated outdoor multi band eXtra Range LTE directional antenna + Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika RUT200/240/241/950/951/955/956/X09/X11 (All-in-one)QuMAX eXtra Range All In offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUT200/240/241/900/901/950/951/955/956/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.
Features
| Product colour | White |
| International Protection (IP) code | IP67 |
| Weight | 3.7 kg |
| Width | 392 mm |
| Depth | 99 mm |
| Height | 392 mm |
| Quantity per pack | 1 pc(s) |
| Country of origin | Poland |
| Purpose | Indoor & outdoor |
| Operating temperature (T-T) | -40 - 80 °C |
| Housing material | Akrüülnitriil butadieen stüreen (ABS) |
| Impedance | 50 Ω |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Antenna type | Directional antenna |
| Mounting kit | Yes |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11 |
| Mounting | Wall/Pole |
| Antenna gain level (max) | 7 dBi |
| Antenna connector type | PoE/LAN |
| Gain | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Horizontal beam width | 70° |
| Vertical beam width | 70° |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 25° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 25° |
| Polarization | Dual polarization |
