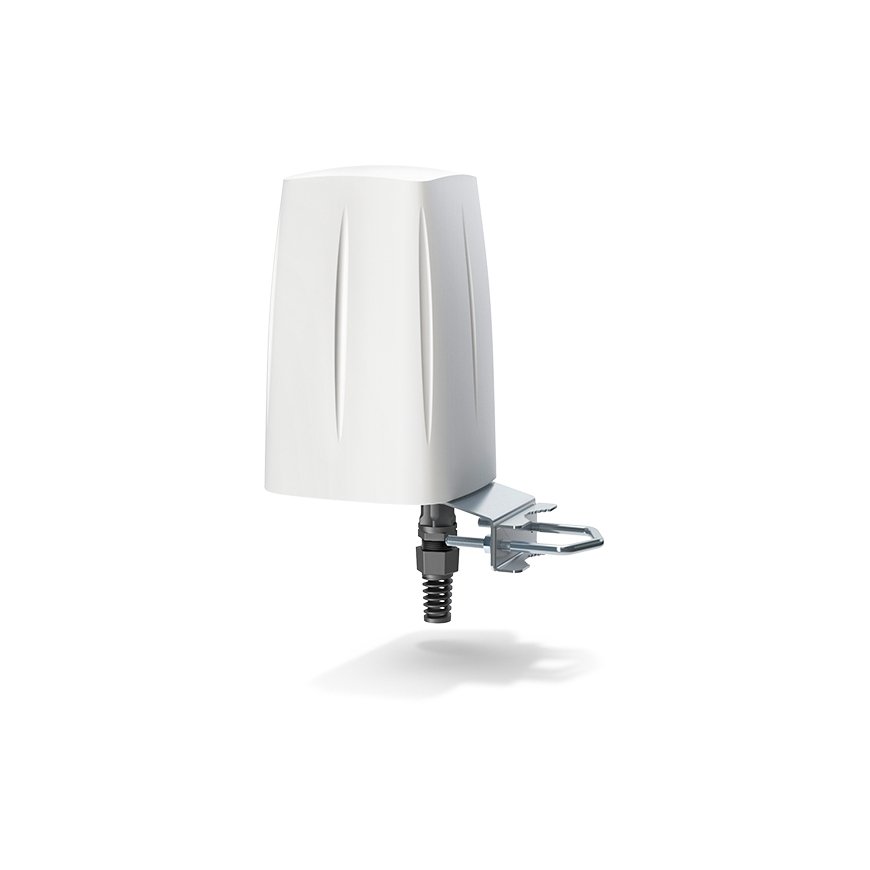

QuWireless AX50S network antenna Omni-directional antenna PoE/LAN 4.5 dBi
874.63 €
Monthly payment from 23,42 €
2389982 AX50S
5907772035948
Shipping 4-5 b.d.
You are interested in this product?
All about the product

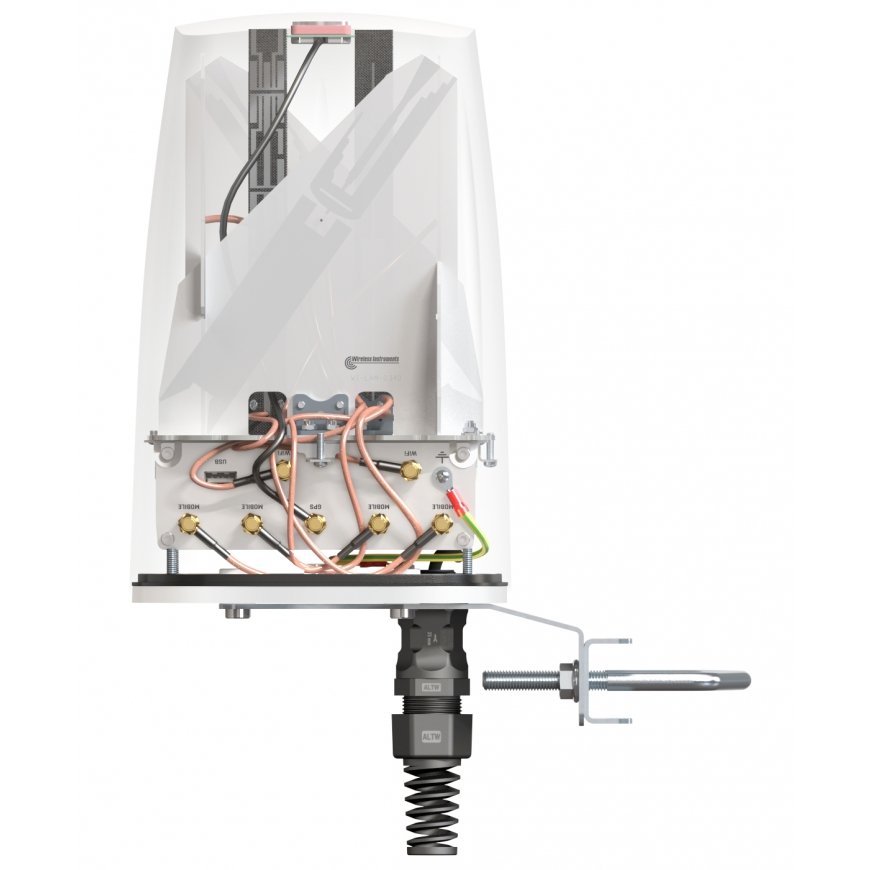

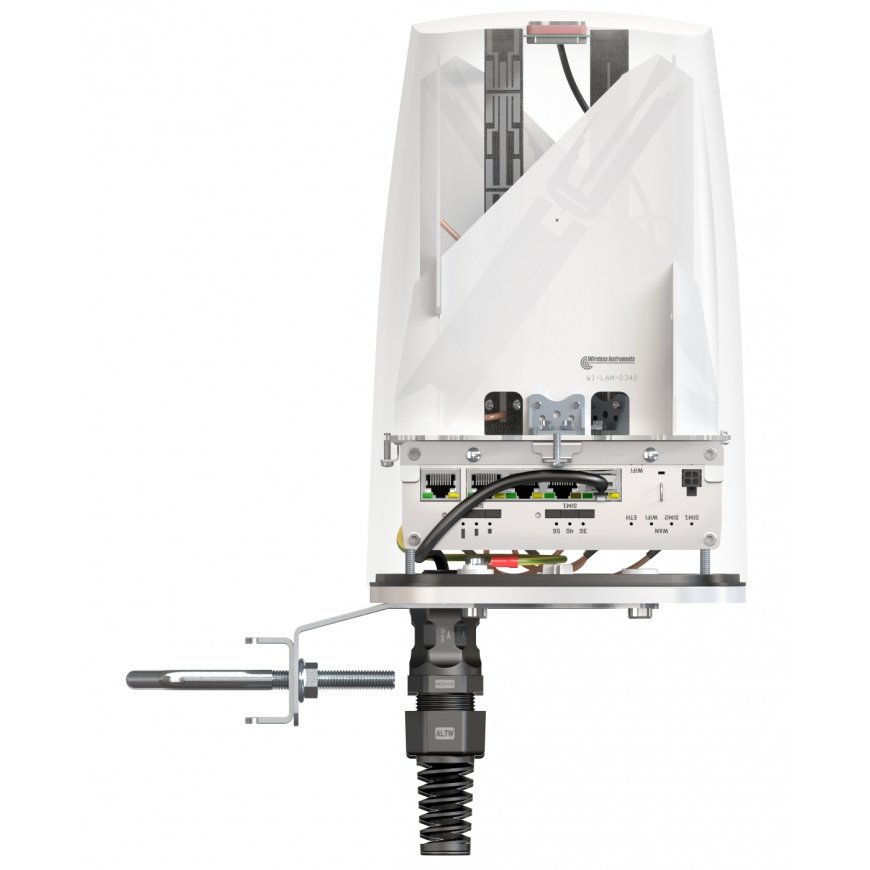

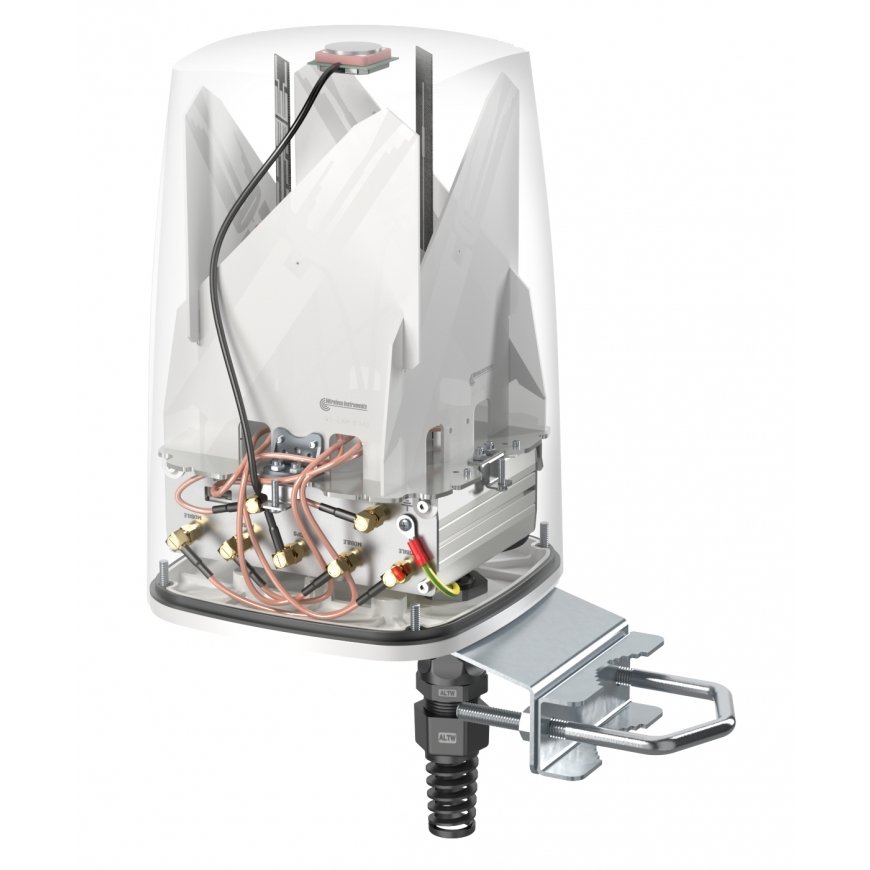

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS PLACE TO INSTALL TELTONIKA RUTX50 (ALL-IN-ONE)QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTX50 solutions.
QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
Features
| Product colour | White |
| International Protection (IP) code | IP67 |
| Weight | 1.5 kg |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 240 mm |
| Quantity per pack | 1 pc(s) |
| Country of origin | Poland |
| Purpose | Indoor & outdoor |
| Operating temperature (T-T) | -40 - 75 °C |
| Housing material | Aluminium; Akrüülnitriil butadieen stüreen (ABS); Polytetrafluoroethylene (PTFE) |
| Impedance | 50 Ω |
| Frequency band | 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz |
| Antenna type | Omni-directional antenna |
| Compatible products | RUTX50 |
| Mounting | Wall/Pole |
| Antenna gain level (max) | 4.5 dBi |
| Antenna connector type | PoE/LAN |
| Gain | 2 / 4.5 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna gain (5 GHz) | 7.5 dBi |
| Horizontal beam width | 360° |
| Vertical beam width | 25° |
| Voltage Standing Wave Ratio (VSWR) | 2.00 |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 25° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 25° |
| Polarization | Vertical polarization |
