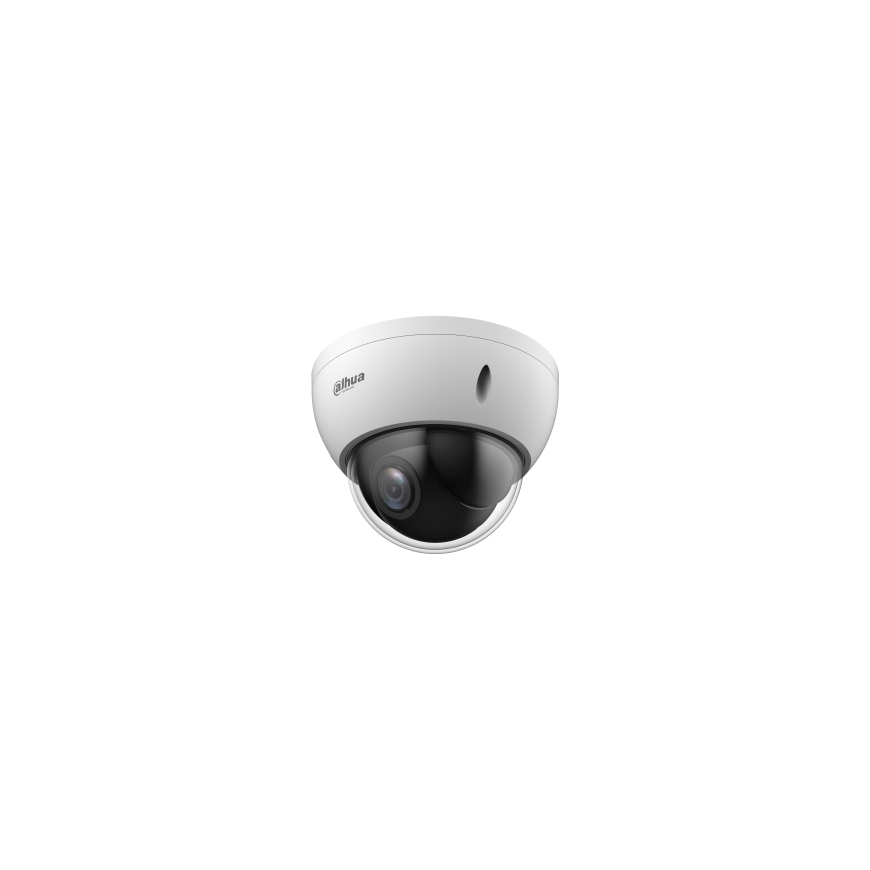

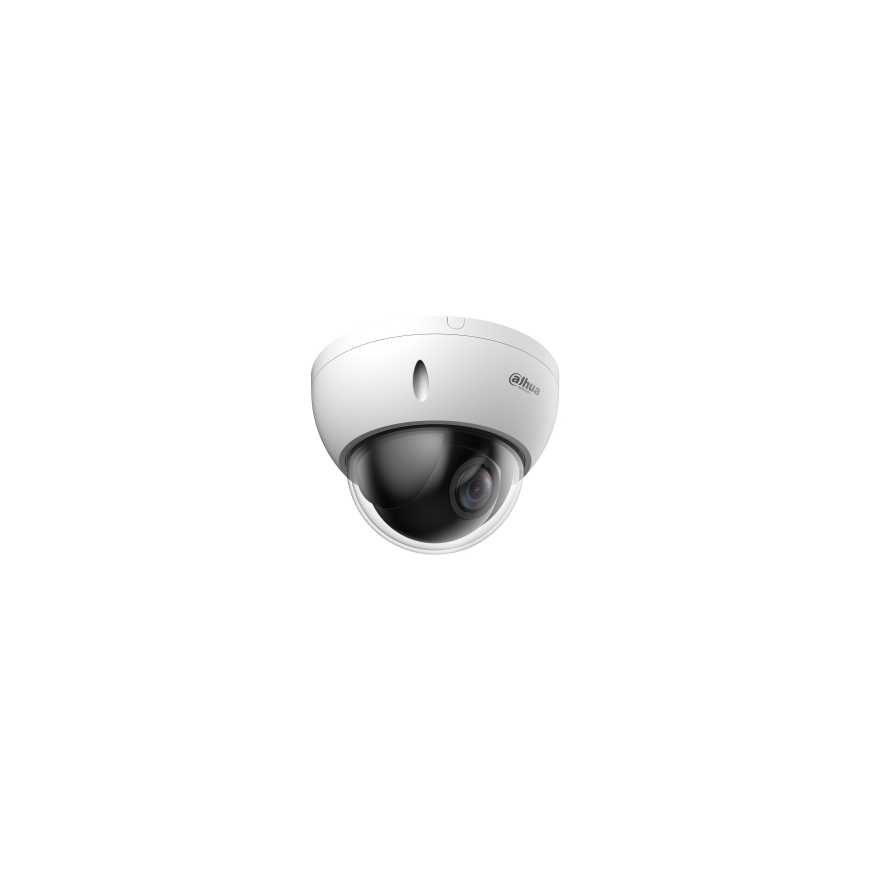

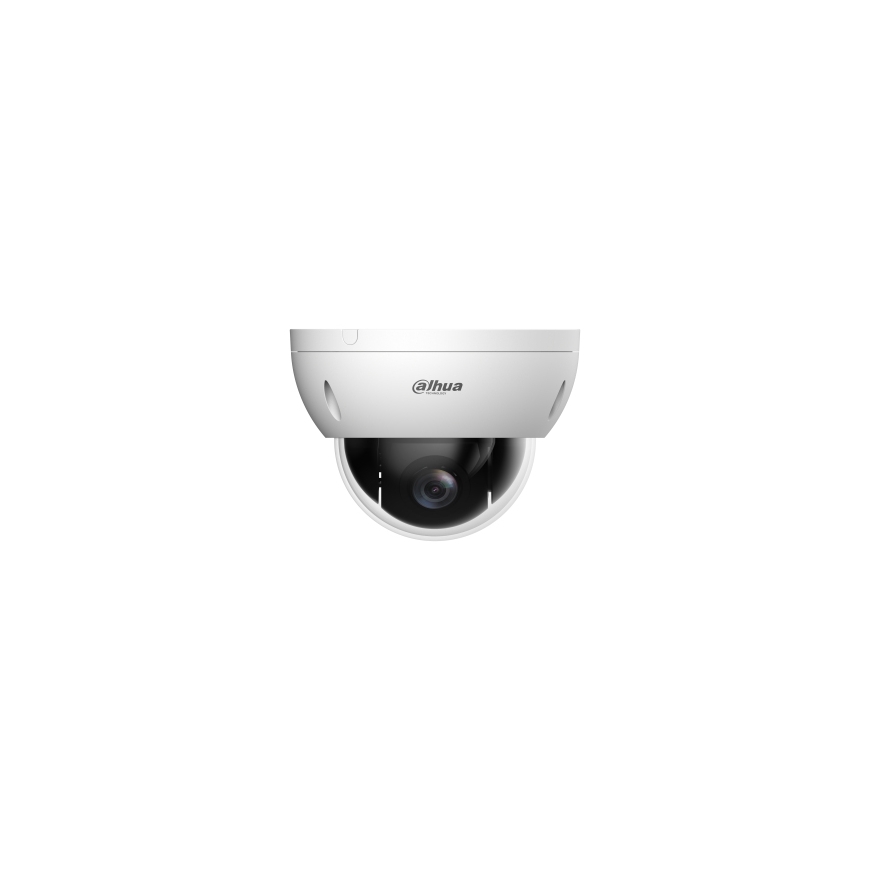

Dahua Technology WizSense SD22404DB-GNY Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole
243,36 €
Monthly payment from 7.17 €
2383987 DH-SD22404DB-GNY
6923172536334
2026-07-24
You are interested in this product?
With its powerful optical zoom, and accurate pan and tilt capabilities, this series of cameras provides a wide monitoring range and great detail. It displays images in 4 MP resolution at 25/30 fps. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small-sized scenes.
Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.
Performance | |
| Connectivity technology | Wired |
| Tour recording | Yes |
| Day/night mode | Yes |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Preset points | Yes |
| PTZ modes | 5 Pattern, 8 Tour |
| PTZ protocols | Pelco-P/D |
Design | |
| Mounting type | Ceiling/Wall/Pole |
| International Protection (IP) code | IP66 |
| Product colour | White |
| Form factor | Dome |
| IK code | IK10 |
| Fog proof | Yes |
Camera | |
| Minimum illumination | 0.0005 lx |
| Camera shutter speed | 1 - 1/30000 s |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
| White balance | ATW, Auto, Indoor, Manual, Outdoor, Natural, Sodium lamp, Street lamp |
| Pan preset speed | 100 °/sec |
| Tilt preset speed | 60 °/sec |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 90.3 - 29.4° |
| Lens viewing angle, vertical | 48.5 - 16.6° |
| Lens viewing angle, diagonal | 105.7 - 33.6° |
| Pan manual speed | 0.1 - 100 °/sec |
| Tilt manual speed | 0.1 - 60 °/sec |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system | |
| Focal length range | 2.8 - 12 mm |
| Digital zoom | 16x |
| Optical zoom | 4x |
| Zoom capability | Yes |
| Auto focus | Yes |
| Maximum aperture number | 3 |
| Closest focusing distance | 1.5 m |
| Detect distance | 240 m |
| Observe distance | 94.8 m |
| Recognize distance | 48 m |
| Identify distance | 24 m |
| Minimum aperture number | 1.6 |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 2560 x 1440 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 640 x 480 (VGA), 352 x 288, 704 x 576, 1280 x 960, 2304 x 1296 |
| Video compression formats | H.264, H.265, M-JPEG, H.264+, H.265+, H.264B, H.264H |
| Noise reduction | Yes |
| Video streaming | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | H.264: 2816Kbps – 13056Kbps; H.265: 1024Kbps – 7936Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Gain control type | Auto/Manual |
| Noise reduction technology | 3D noise reduction, 2D noise reduction |
| Total megapixels | 4 MP |
Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network | |
| Wi-Fi | No |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
| Bluetooth | No |
Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Maximum memory card size | 512 GB |
| ROM capacity | 128 MB |
| RAM capacity | 512 MB |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Security | |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object, Tripwire, Crossing line, Vehicle detection, Moving object |
Power | |
| Power consumption (typical) | 2.3 W |
| DC output current | 1 A |
| DC output voltage | 12 |
| Power consumption (max) | 6.1 W |
| Power source type | DC, PoE |
Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Weight | 500 g |
| Height | 89 mm |
| Diameter | 12.2 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Night vision | Yes |
| LED type | IR |
Management features | |
| Web-based management | Yes |
| Web browser | Yes |
Packaging data | |
| Package weight | 700 g |
