ACCESS CONTROLLER PR312EM-G ROGER
169.00 €
Monthly payment from 5,25 €
2366005 PR312EM-G
5907608962103
Shipping 3-5 b.d.
You are interested in this product?
All about the product

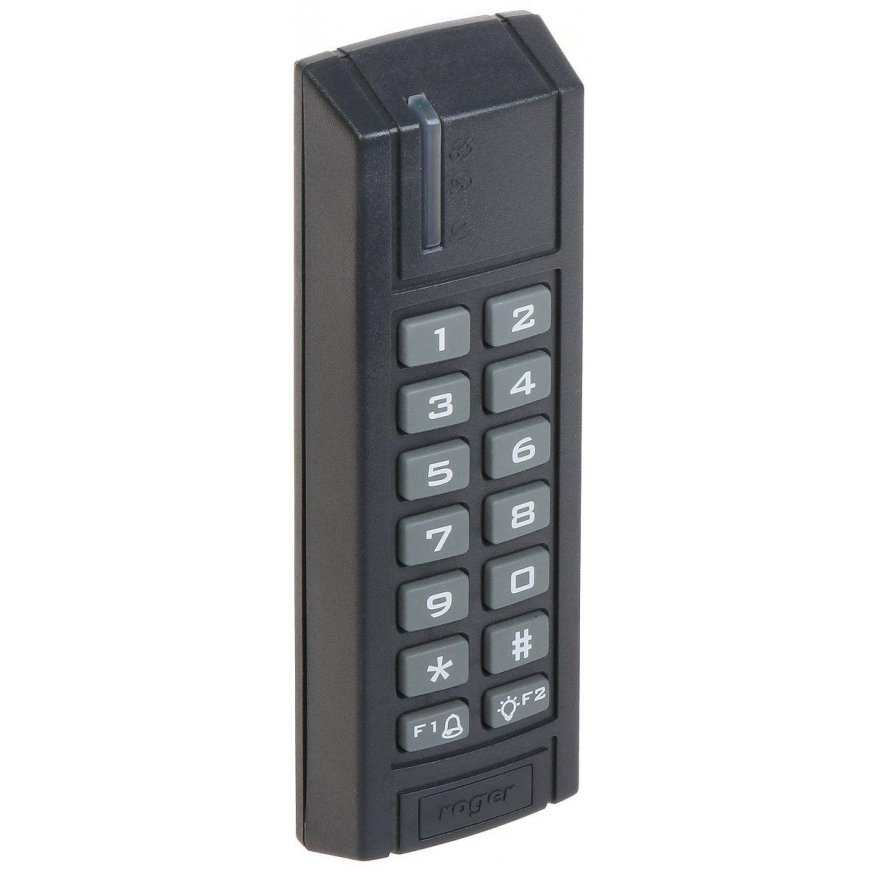

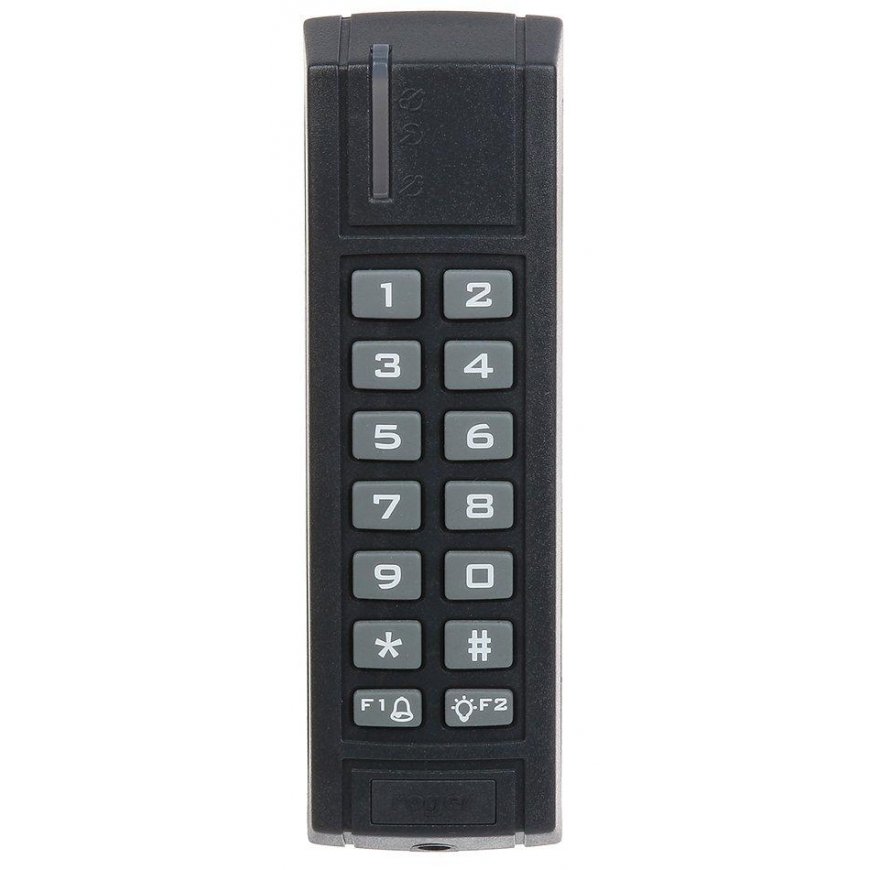

External card and mini panel reader with integrated controller.
Unique 125 kHz standard.
| Environmental class : | IV |
| Relay contact load : | 1.5 A / 30 V |
| Working with the battery : | - |
| Input lines : | 3 pcs. NO/NC |
| Output lines : | 3 pcs. |
| Card support : | Unique EM 125kHz |
| Remote card reading distance : | max. 15 cm |
| Integrated keyboard : | ✔ |
| Automatic work : | ✔ |
| Call Button : | ✔ |
| Tamper output : | ✔ |
| Connection : | RS-485 RACS (Roger) Possibility of adding a biometric reader (option RFT1000) |
| Main features : | The possibility of connecting an external additional counter (reciprocal transition control), 3 programmable input lines NO/NC, 2 programmable transistor outputs 1A, Programmable relay outputs 1.5A/30V, The topology of the communication bus can be freely chosen, 99 temporary graphs, 250 access groups, Ability to connect XM-2 type I/O expansion module, Coordination with the alarm system via we/wy lines, Door modes (Normal, Locked, Unlocked and Conditionally Unlocked), Identification modes (Card or PIN, Card or PIN, Card only, PIN only), Dual user function, triple identification function and other advanced access control functions, System management via computer network WAN/LAN or serial port COM/USB, The possibility of dividing systems and subsystems, LED indication, Sound signal, The keyboard buttons are illuminated |
| Selected features of autonomous mode : | 4000 indexed users, Buffer 32000 events, Cooperation with XM-2 type I/O expansion module (Fully automatic mode) |
| Meals : | 10 ... 15 V DC |
| Average current consumption : | 70 mA |
| Working temperature : | -25 °C ... 60 °C |
| Permissible relative humidity of the environment : | 10 ... 95% (non-condensing) |
| Sealing class : | IP67 |
| Weight : | 0.174 kg |

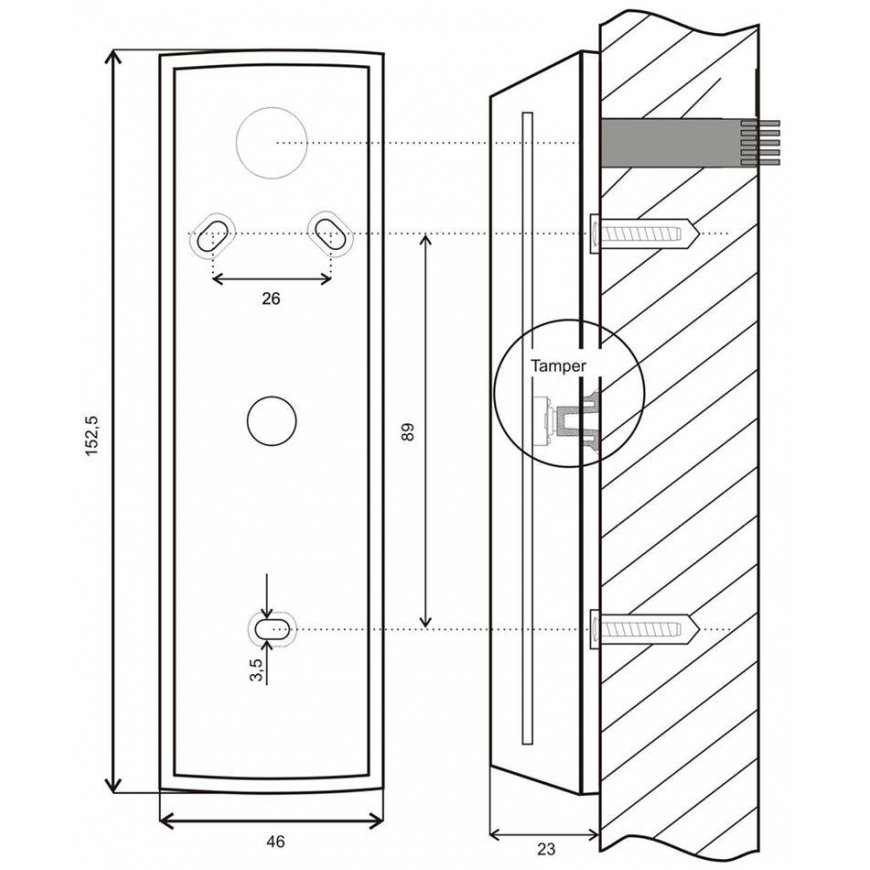

| Dimensions : | 152 x 46 x 23mm (Standard Case Tray) 152 x 46 x 35 mm (Thicker body tray) |
| Manufacturer / Brand : | ROGER |
| Warranty : | 3 years |
