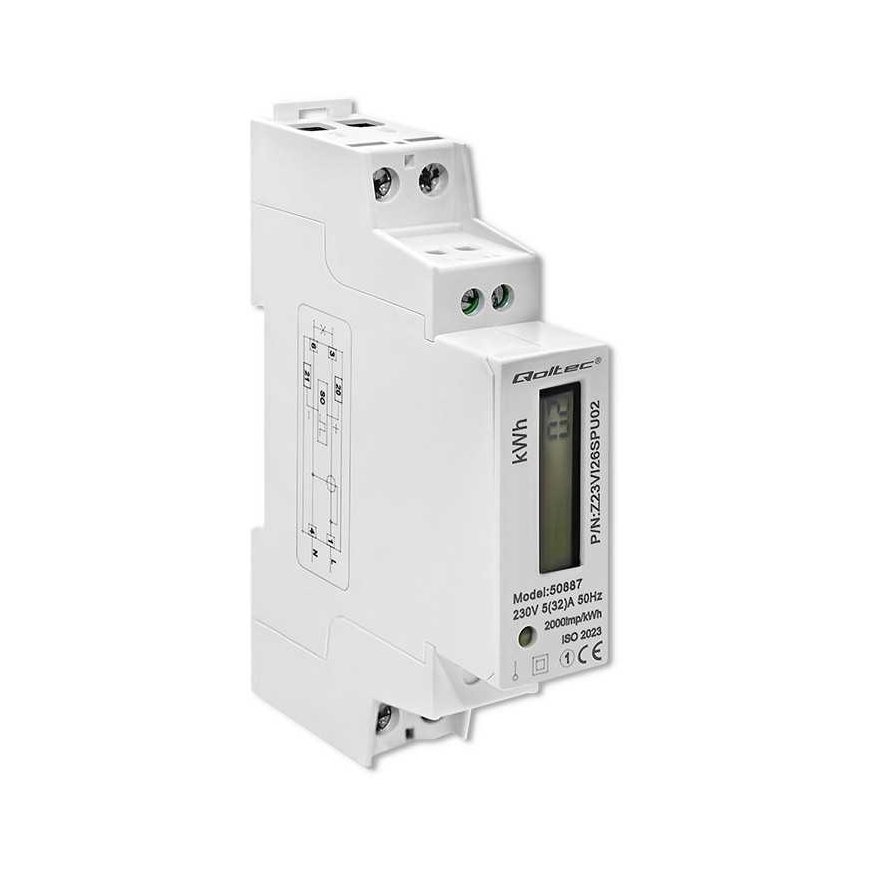

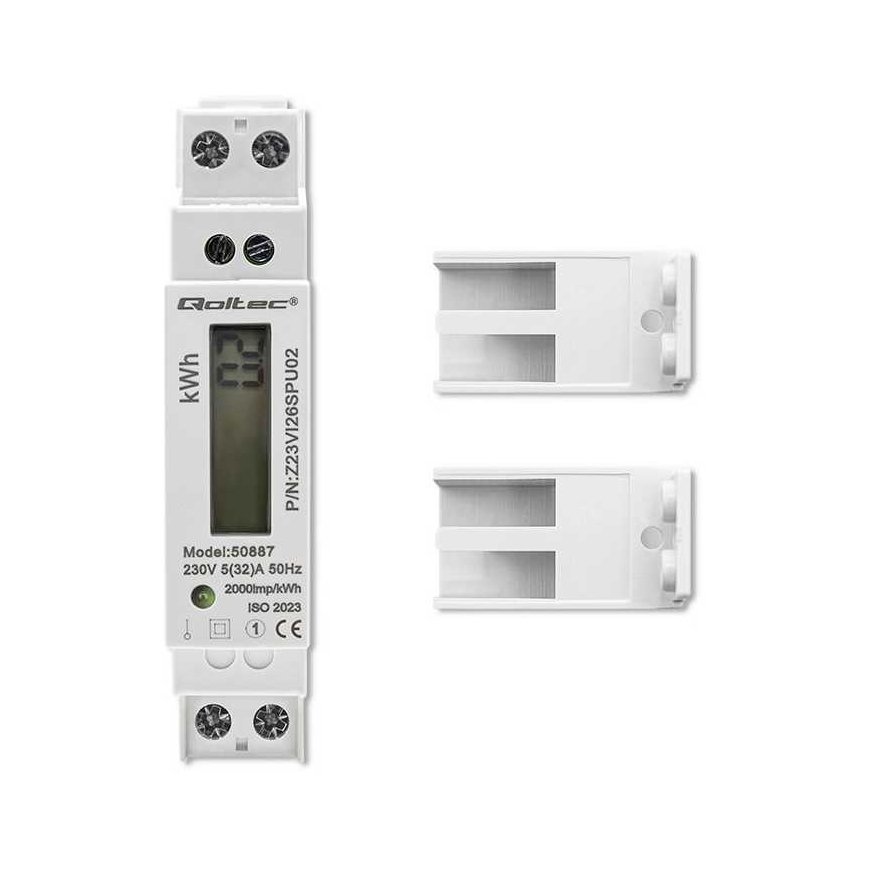

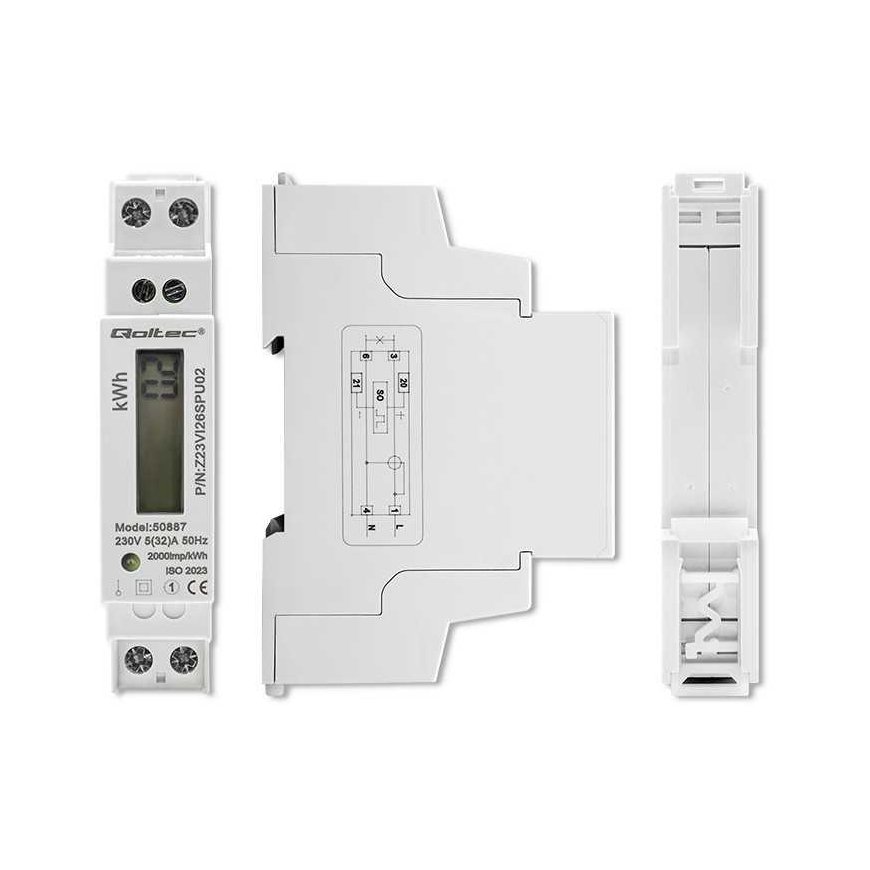

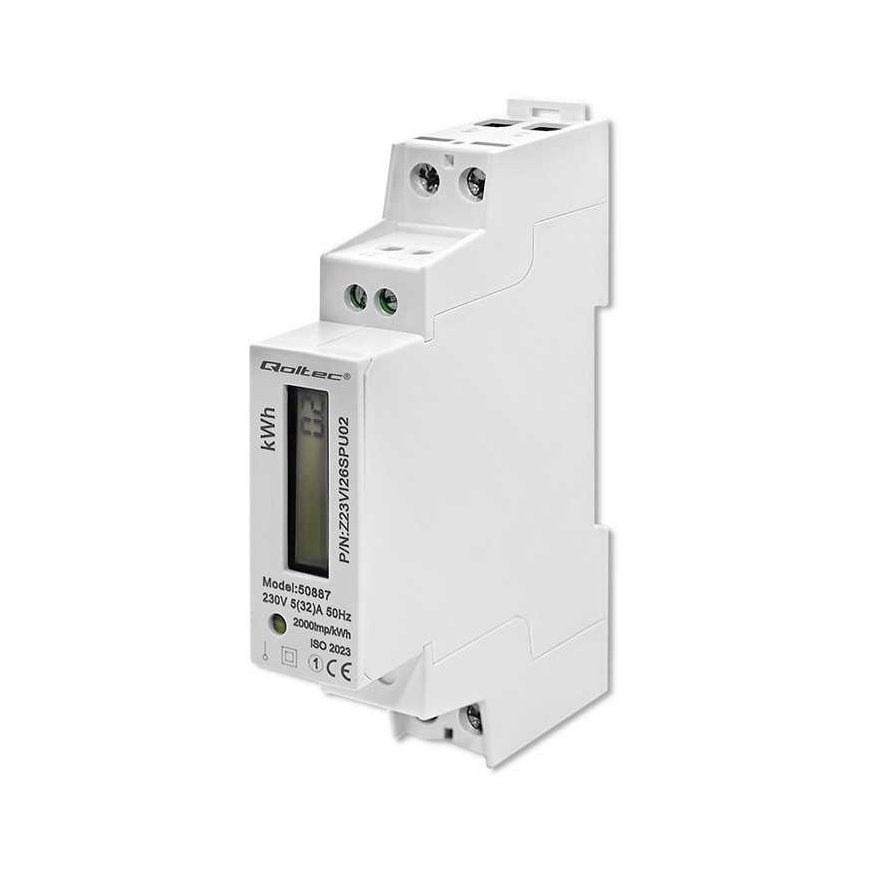

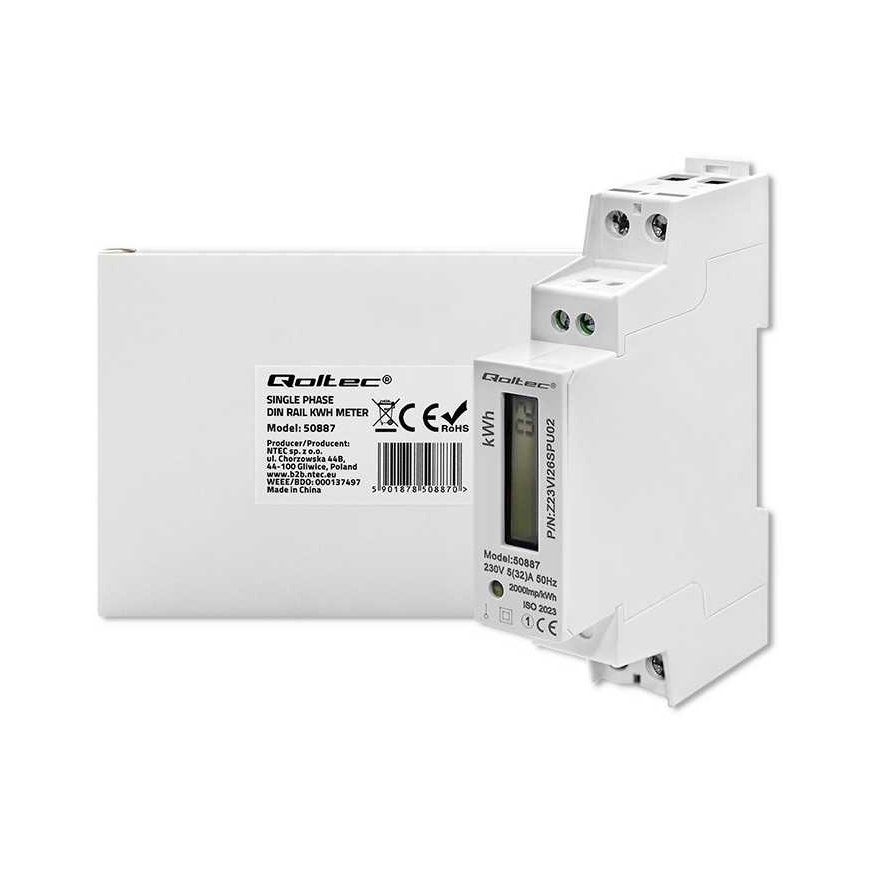

Qoltec Single phase electronic meter | din rail energy consumption meter | 230v | LCD | 2p | slim
2362110 50887
5901878508870
Shipping 9-13 b.d.
All about the product
Investment in energy conservation and control
The electronic electricity meter allows you to continuously monitor the level of electricity consumption of single-phase receivers powered by 230 V alternating current at a frequency of 50 Hz . The device has an LED indicator that signals energy consumption, the diode flashes at a frequency that depends on the energy consumption with a pulse constant of 2000 imp/kWh. The LCD display shows the amount of energy used, calculated by the number of pulses. The meter is intended for installation in switchboards on a DIN TH35 rail . An additional advantage of the product is its very simple handling and small size , which will certainly facilitate the installation of the device.
Convenient and accurate tracking
The Qoltec electricity consumption meter can be used both at home and in industrial enterprises and any other facility.
Product features:
- Single-phase, single-pole ,
- Unidirectional , calculates energy regardless of its flow direction,
- Standard installation of the device in a distribution panel on a 35 mm DIN rail ,
- Energy consumption measurement is displayed in kWh ,
- Has an LCD screen to monitor measurements,
- Direct measurement is 5 (32) A ,
- Meets IEC 62053-21 and DIN EN50022 standards,
- accuracy class 1.0 ,
- Base current is 5A, maximum current is 32A .
