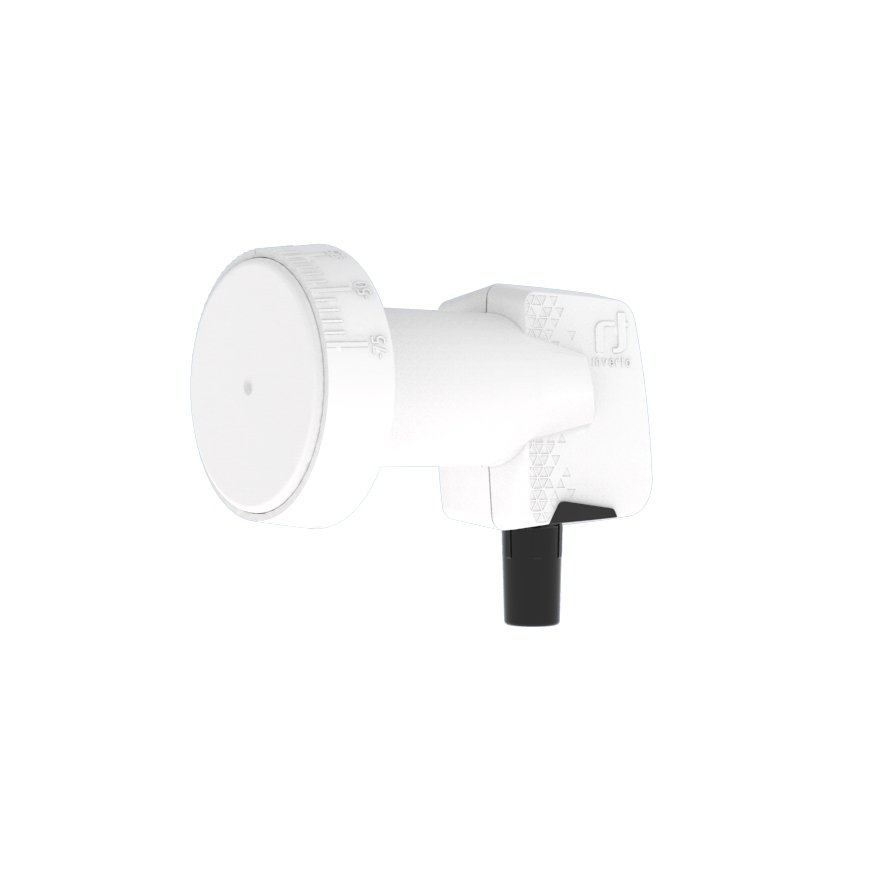

Inverto IDLH-SNL410-HMPRO-OPN Low Noise Block downconverter (LNB) 10.7 - 12.75 GHz Black, White
19.00 €
2358376 5441
5453002613344
Shipping 8-14 b.d.
You are interested in this product?
All about the product
Specifically designed to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV from a single satellite and its distribution to a single tuner Set-top box. The LNB supports HD and UHD transmissions, delivers excellent RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for DTH operators and satellite broadcast reception across the world.Features
| Product colour | Black; White |
| Weight | 136 g |
| Package width | 131 mm |
| Package depth | 81 mm |
| Package height | 76 mm |
| Package weight | 182 g |
| Operating temperature (T-T) | -30 - 60 °C |
| Quantity | 1 |
| Power consumption | 95 mA |
| Voltage Standing Wave Ratio (VSWR) | 2.5 : 1 |
| Output impedance | 75 Ω |
| Input frequency range | 10.7 - 12.75 GHz |
| Conversion gain | 55 dB |
| Noise figure | 0.3 dB |
| Output frequency range | 950 - 2150 MHz |
| Low band LO frequency | 9.75 GHz |
| High band LO frequency | 10.6 GHz |
| Image rejection | 40 dBmW |
| Temperature drift (±) | 1 MHz |
| Gain ripple (±) | 0.75 dB |
| Cross-polarization isolation | 22 dB |
