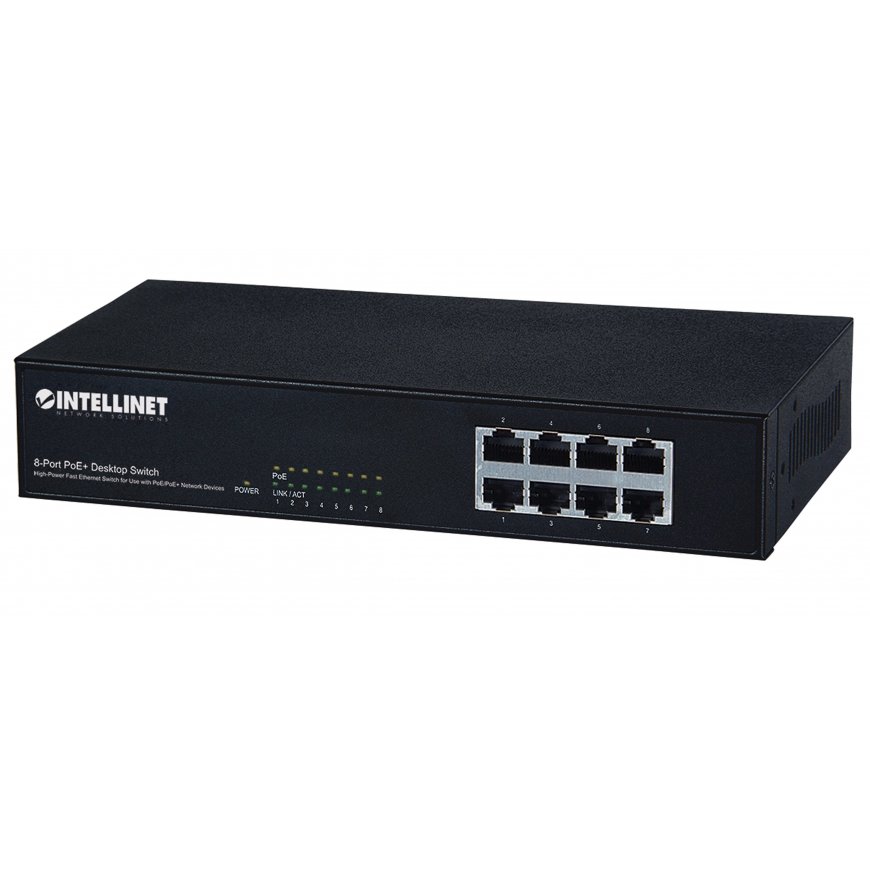

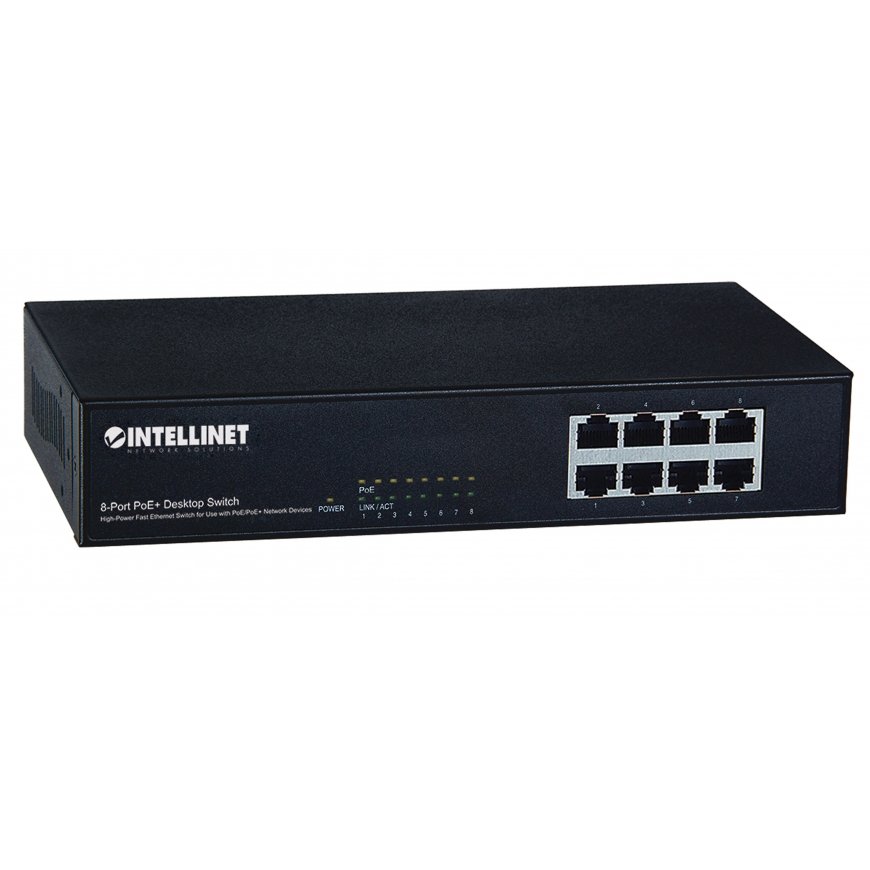

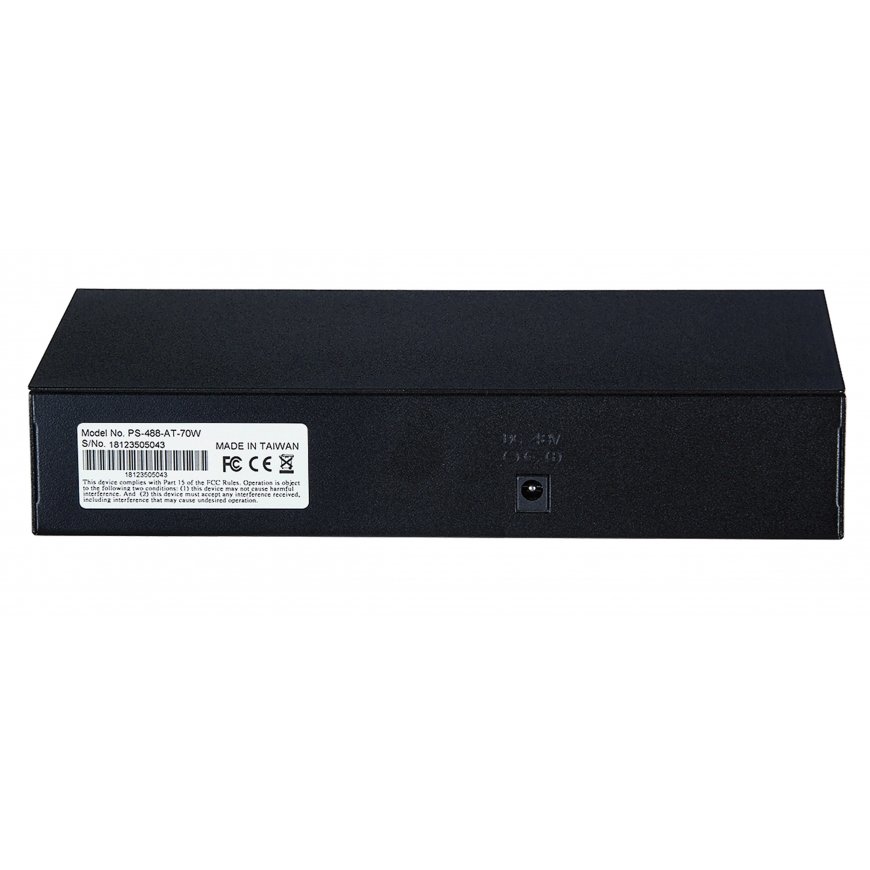

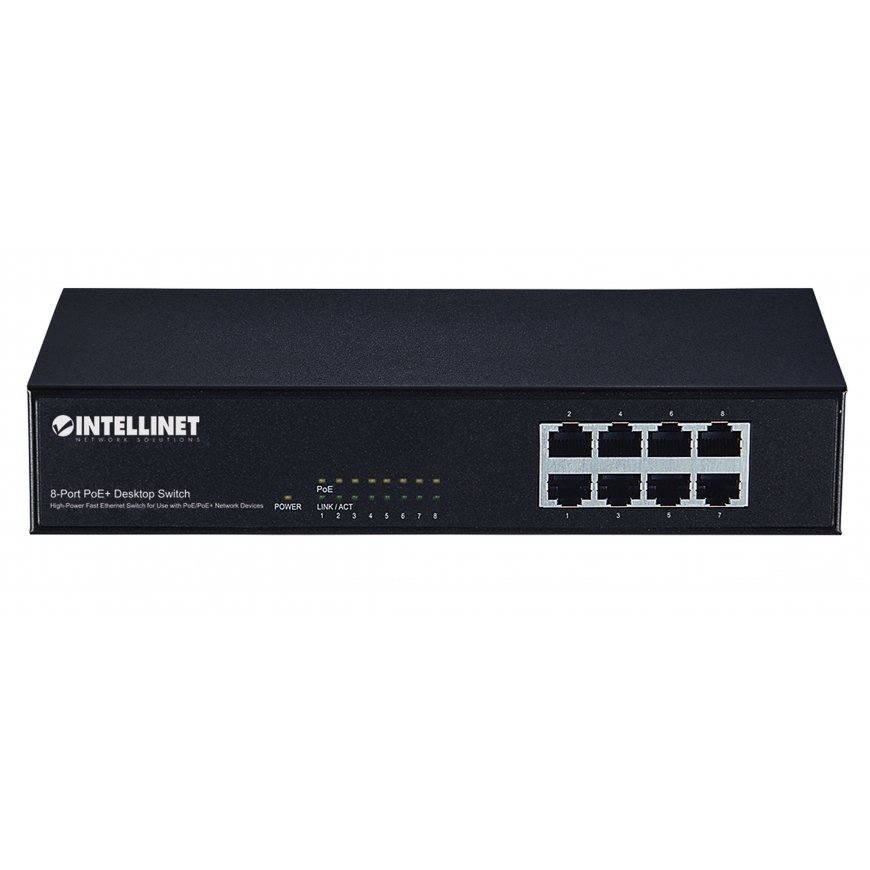

Intellinet 560764 network switch
129,69 €
118.28 €
Monthly payment from 3,95 €
2357667 560764
0766623560764, 0011411364636, 0115971124218, 0132017733876, 0163120831371, 0163120898800, 0182682396289, 0617407377477, 0620896506808, 0754262023702, 0758616954476, 0803982925190, 0806294960118, 0807032934576, 0809188489931, 0809387585670, 0946296444176, 7666235607648
Shipping 11-16 b.d.
You are interested in this product?
All about the product
Save installation time and money with PoE. _x000D__x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (560764) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (all of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
_x000D_
* Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3at, IEEE 802.3x, IEEE 802.1af |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Security | |
| MAC address table | 2048 entries |
Design | |
| LED indicators | Power, Activity, Link, PoE |
| Product colour | Black |
| Housing material | Metal |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 280 mm |
| Depth | 179 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
Certificates | |
| Certification | FCC Class A, CE |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| Cables included | AC |
| Manual | Yes |
