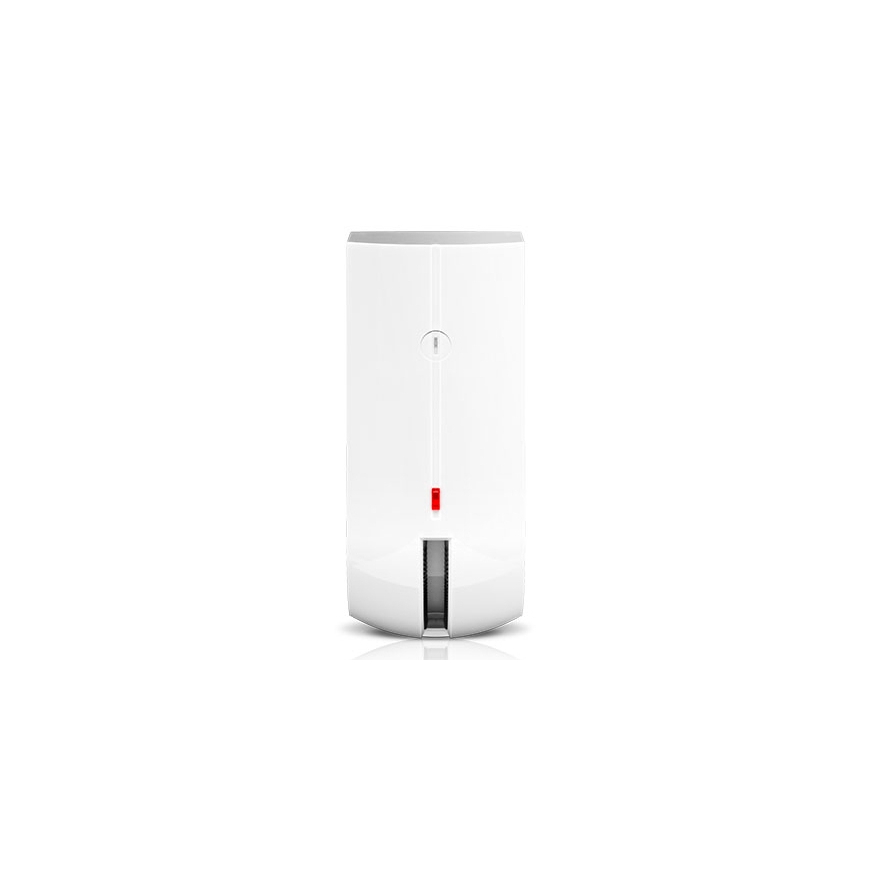

Satel AOCD-260 SET Passive infrared (PIR) sensor/Microwave sensor Wireless Ceiling/wall White
139,35 €
Monthly payment from 4.49 €
2353490 AOCD-260SET
5905033336681
2026-07-22
You are interested in this product?
Discover our curtain detectors: ready to protect your building boundary, as well as site perimeter.
The AOCD-260 curtain detector supervises a narrow strip, only 0.6 m wide and 10 m long. The device, which detects movement when the boundary of the protected area is crossed, can be a component of perimeter protection. It works as part of the ABAX 2/ABAX two-way wireless system. The product complies with the EN 50131 Grade 2 requirements (for indoor use).
The detector has two detection paths i.e. infrared and microwave, which can be adjusted independently. The detection is based on digital signal processing supported by dynamic temperature compensation, which ensures proper functioning of the detector within the temperature range from -40°C to +55°C. AOCD-260 supervises the motion detection system and indicates any faults in its operation. The detector is characterized by high immunity to false alarms.
Configuration of the device and updating of its firmware are carried out remotely. Radio communication within the ABAX 2 system is AES encrypted.
AOCD-260 has a three-color LED which indicates, for example, violations in test mode.
The detector is powered by a CR123A 3 V battery. When the level of its charge is lower than the set value, the detector will report low battery. The "ECO" option (available in ABAX 2 only) extends the device operation time even fourfold without battery replacement.
The device has a polycarbonate enclosure (with IP54 protection rating). The detector has tamper protection against opening and removal from the mount. It can be mounted directly on the wall (Grade 2) or, alternatively, using the angle-type bracket.
To increase the detector's distance from the wall, at a distance of even by over a dozen centimeters, it is worth using the BRACKET E modular set. Especially if there is a gutter or lamp in the vicinity of the device, which can limit the full range of the device detection field. A special insert for AGATE / AOCD-260 detectors allows their installation also using BRACKET A and BRACKET B brackets (recommended for indoor installation).
All listed brackets are adapted for wall and ceiling mounting. In addition, BRACKET E and BRACKET B have an enclosed design that makes it easier to hide the cable, thereby improving the overall aesthetics of the installation.
For additional protection of the device against atmospheric precipitation and fouling, you can install the HOOD A protective cover on the detector enclosure.
| Product colour | White |
| International Protection (IP) code | IP54 |
| Weight | 118 g |
| Width | 44 mm |
| Depth | 105 mm |
| Height | 40 mm |
| Quantity per pack | 1 pc(s) |
| Connectivity technology | Wireless |
| Certification | EN50131-1, EN50130-4, EN50130-5 |
| Operating temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 0 - 93% |
| Input voltage | 3 V |
| Mounting type | Ceiling/wall |
| Power source type | DC |
| Placement | Indoor |
| Operating frequency | 24125 MHz |
| Sensor type | Passive infrared (PIR) sensor/Microwave sensor |
| Power consumption | 26 mA |
| Installation height (max) | 2.4 m |
| LED colour | Various |
| Tamper protection | Yes |
