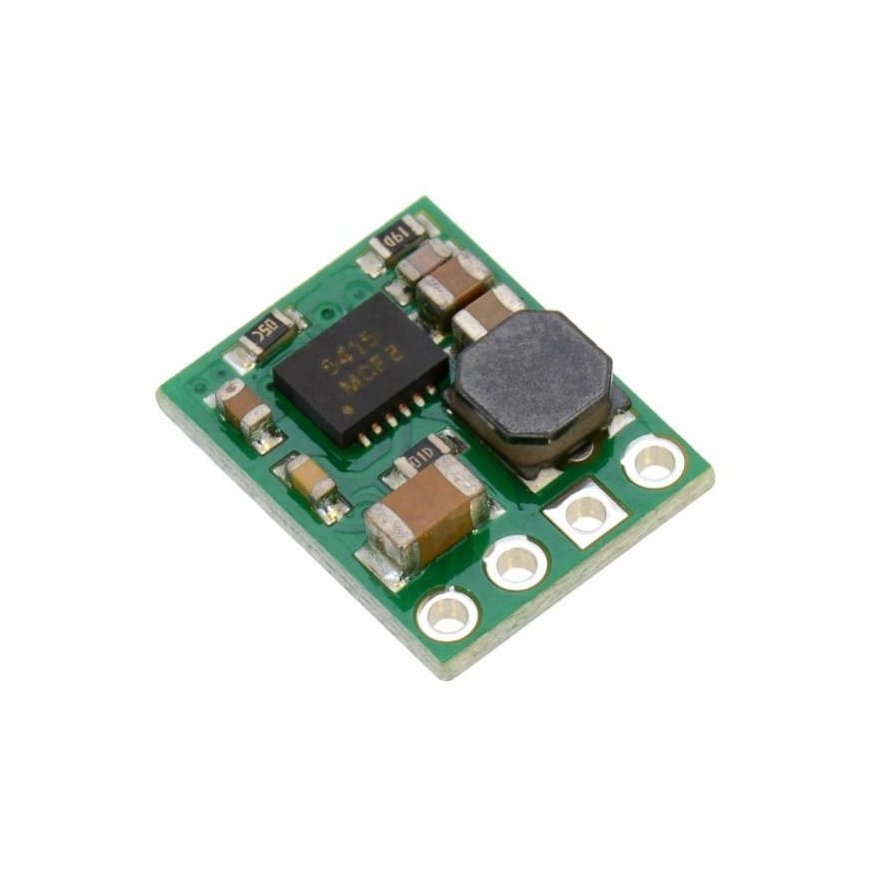

Justpi DC/DC Voltage Converter 3.4V-36V TO 3.3V D24V5F3 (STEP DOWN)
19.00 €
2333313 AN-03109
5904422360115
Shipping 11-18 b.d.
You are interested in this product?
All about the product
A DC-DC switching regulator converts the input voltage from 3.4V* to 36V to output 3.3V.
Specification
- Input voltage: 3.4V * to 36V
- Output voltage: 3.3V
- Output voltage accuracy: 4%
- Maximum output current: 0.5A
- Switching frequency: 500 kHz
- Integrated protection:
- Driver: ISL85415
- Dimensions: 13 x 10 x 3 mm
- Weight: 1g (without connectors)
- The website of the manufacturer: Pololu 2842
