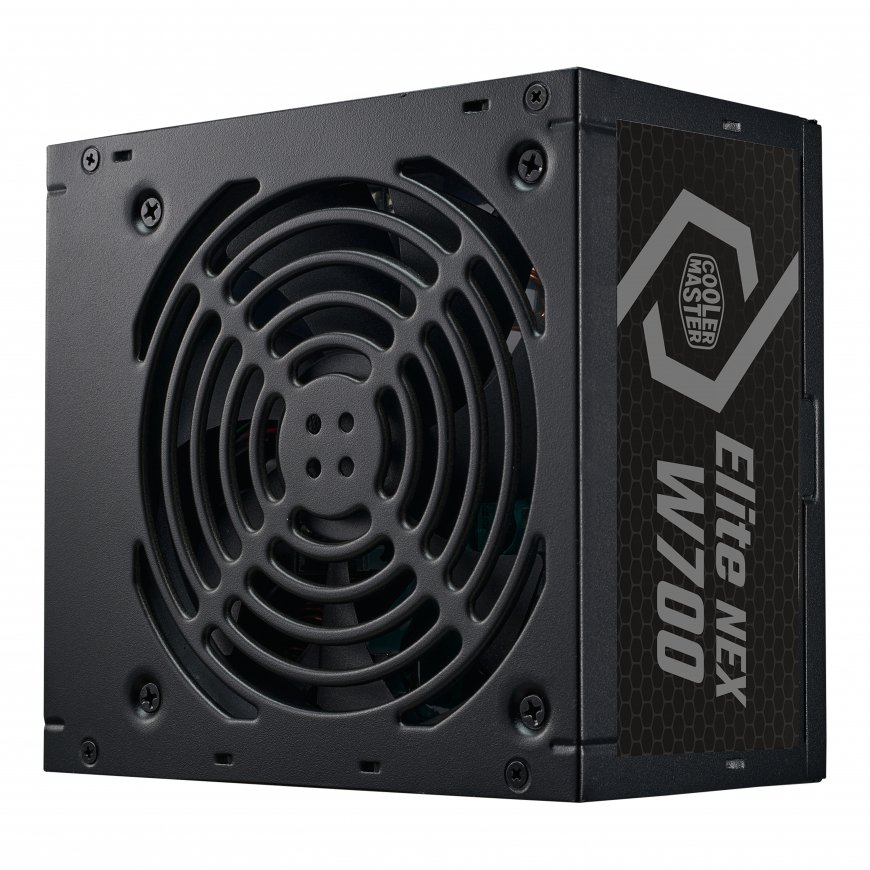

Cooler Master Elite NEX White 230V 700 power supply unit 700 W 24-pin ATX ATX Black
95,01 €
86.09 €
Monthly payment from 3,12 €
2333273 MPW-7001-ACBW-BEU
4719512130254, 0884102102578
Shipping 9-13 b.d.
You are interested in this product?
All about the product
NEX Level ATX Power SupplyNEX Level Power
The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, active PFC and 3 years warranty deliver a complete power solution at a popular price.
Active PFC + Dual Forward Topology Design
Constructed with the active PFC for high-end power supply and the dual forward topology design, it can not only reduce interference and increase power quality, but reduce power loss to increase efficiency.
High Temperature Resistance
It's capable of operating at 40°C under full load, allowing a longer lifespan in warmer environments.
Peak Power Tolerance
This unit can reliably push an additional 100W at peak power load for up to 20 seconds.
82% Efficiency
The power supply achieves an average efficiency of 82% at typical loads.
Power | |
| Hold time | 10 ms |
| Efficiency | 85% |
| Input current | 5 A |
| Power protection features | Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 19 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Good signal delay range | 100 - 500 ms |
| Total power | 700 W |
Performance | |
| ATX version | 2.41 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
| Bearing technology | Sleeve |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 5 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 700, 400, 550 |
| Peripheral (Molex) power cable length | 400, 550, 700 |
| PCI Express power cable length | 62 cm |
| EPS power connector (4+4 pin) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Weight | 1.53 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, UKCA |
Packaging data | |
| Package weight | 1.94 kg |
| Package height | 95 mm |
| Package width | 190 mm |
| Package depth | 245 mm |
Other features | |
| EPS cable length | 67 cm |
Logistics data | |
| Master (outer) cases per pallet | 64 pc(s) |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 503 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 5 pc(s) |
Certificates | |
| Certification | ErP 2014 Lot 3, TUV, cTUVus, FCC, CCC, EAC |
