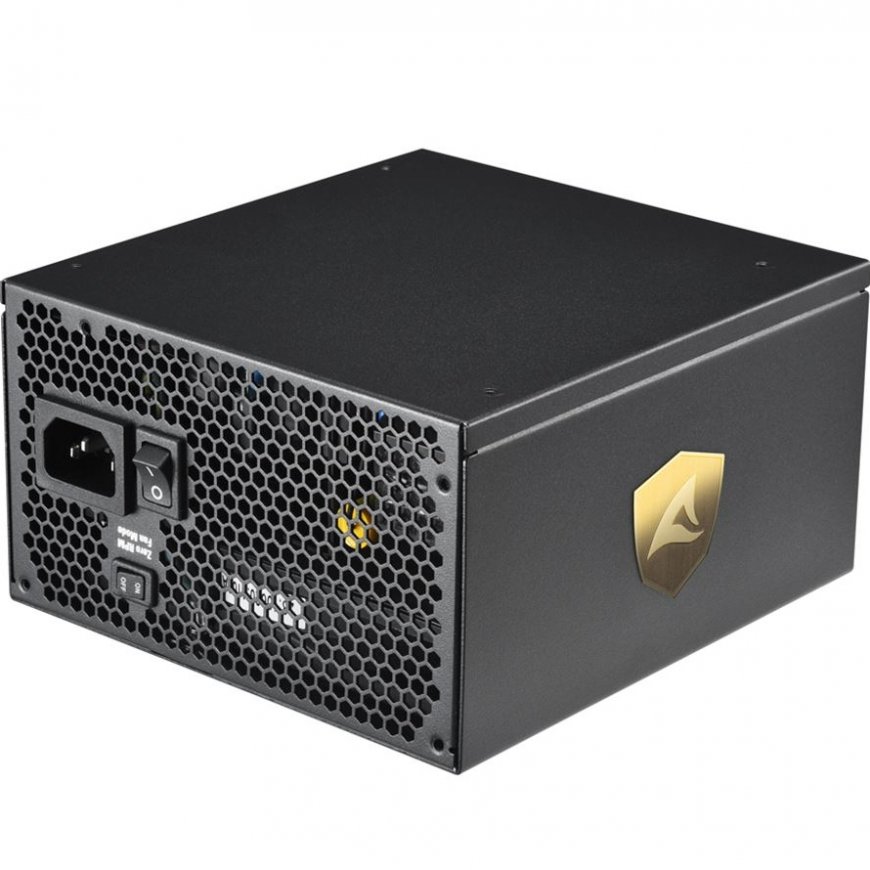

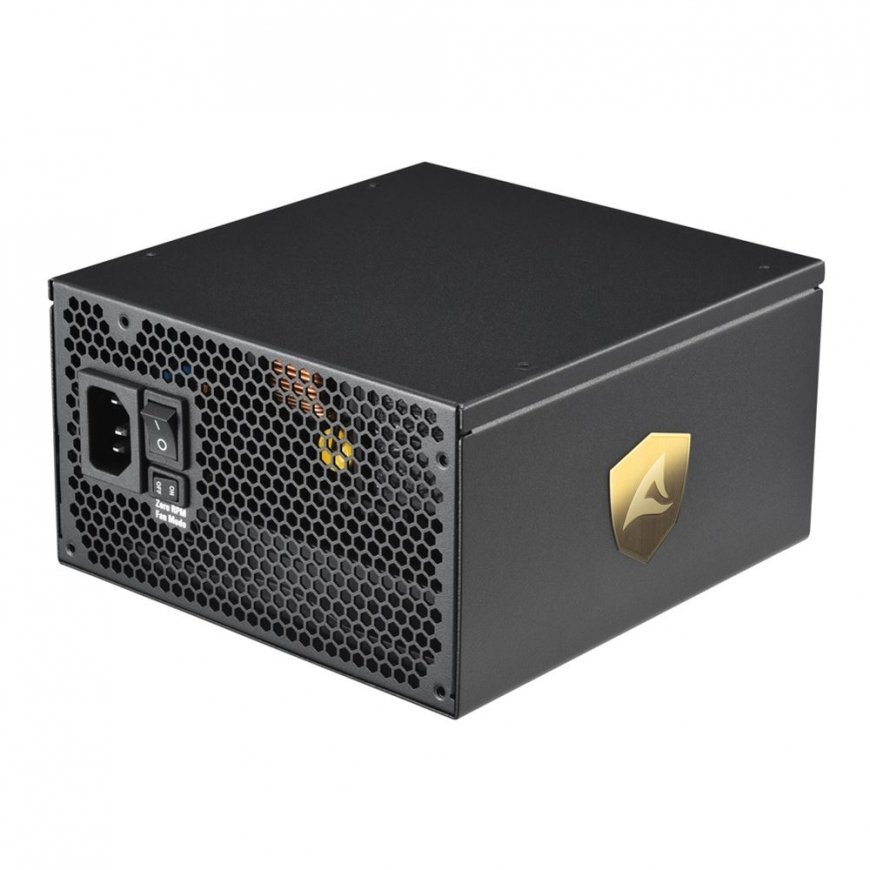

Sharkoon Rebel P30 Gold power supply unit 1300 W 20+4 pin ATX ATX Black
279.00 €
Monthly payment from 8,08 €
2265552 4044951038541
4044951038541
Shipping 14-15 b.d.
You are interested in this product?
All about the product
Designed for performance, the Rebel P30 Gold is a power supply unit that is fully modular and certified with 80 PLUS Gold. With the new ATX 3.0 standard and a PCIe Gen5 12VHPWR connection, it offers full compatibility for high-end graphics cards. In addition, the PSU is supplied with LLC resonant-converter and DC/DC technology and is equipped only with high-quality Japanese capacitors. A quiet 135 mm fan with an intelligent Zero RPM mode provides the cooling as well as a low-noise operation.Full Support for High-End Graphics Cards
The Rebel P30 Gold supports the new ATX 3.0 standard and is equipped with a modern PCIe Gen5 12VHPWR connection that is required for current high-end graphics cards and the highest performance.
Certified Safety and Efficiency
As its name suggests, the Rebel P30 Gold is 80 PLUS Gold certified, providing at least 90 percent efficiency at 20 percent load, 92 percent efficiency at 50 percent load, and an efficiency of 89 percent at 100 percent load. In addition, both the PSU and the user are safeguarded by all the common protective technology. This encompasses over-current protection, over- and under-voltage protection, short-circuit protection, over-temperature protection and over-power protection.
Always Cool and Quiet

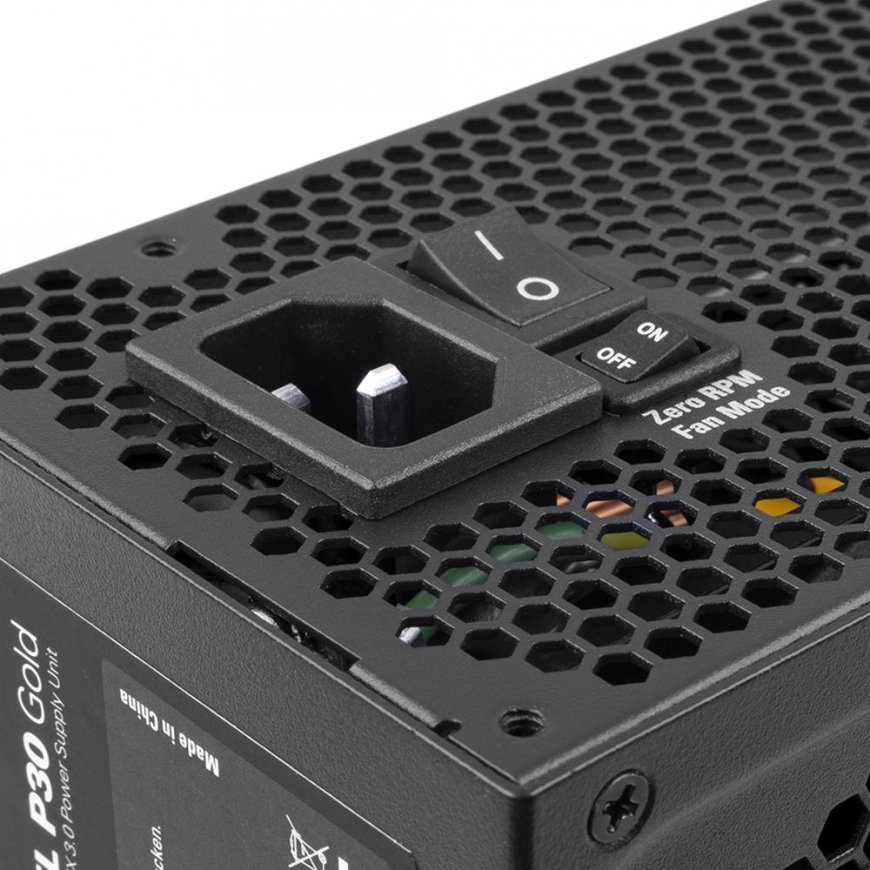

A quiet 135 mm fan with a fluid dynamic bearing is used in the Rebel P30 Gold. For silent operation, the PSU's Zero RPM mode can be selected, allowing the fan rotation to be completely deactivated at moderate loads. To ensure an effective cooling for the hardware, the fan delay mode lets the fan continue to run for up to 60 seconds after the PSU has been shut down.
High Quality in Focus
For high degrees of reliability and performance, quality all-Japanese capacitors, LLC resonant converters and DC/DC technology are used in the Rebel P30 Gold. Thanks to this, the Rebel P30 Gold always delivers a constant and stable voltage with optimized noise and heat levels.
Full-Modular Assembly

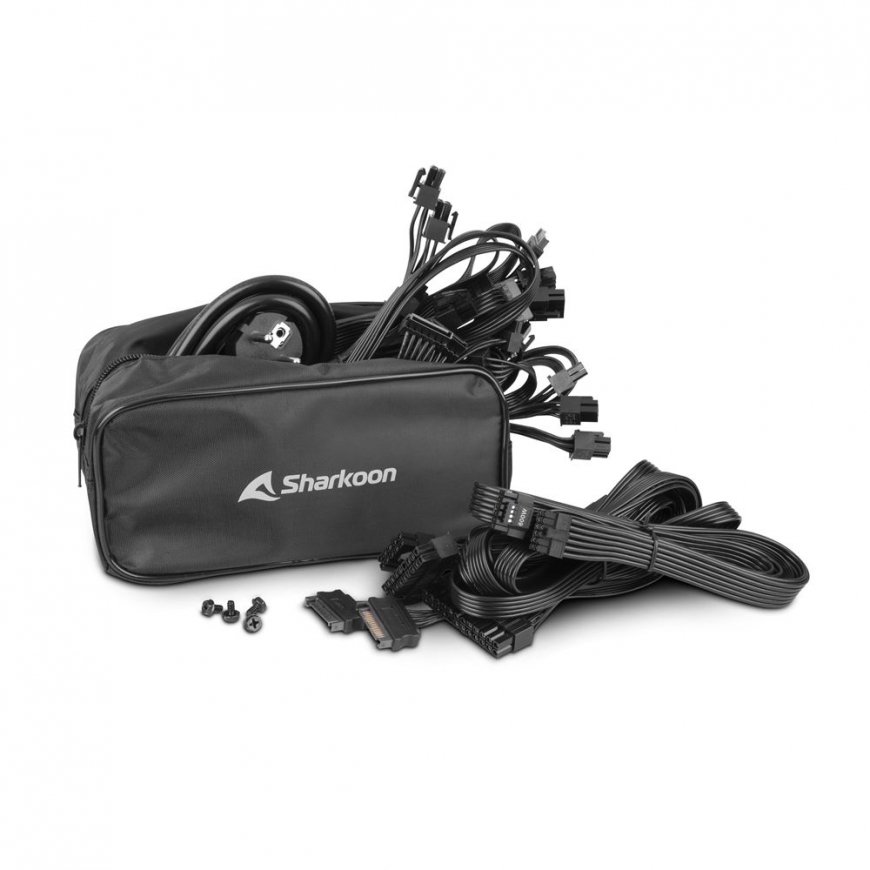

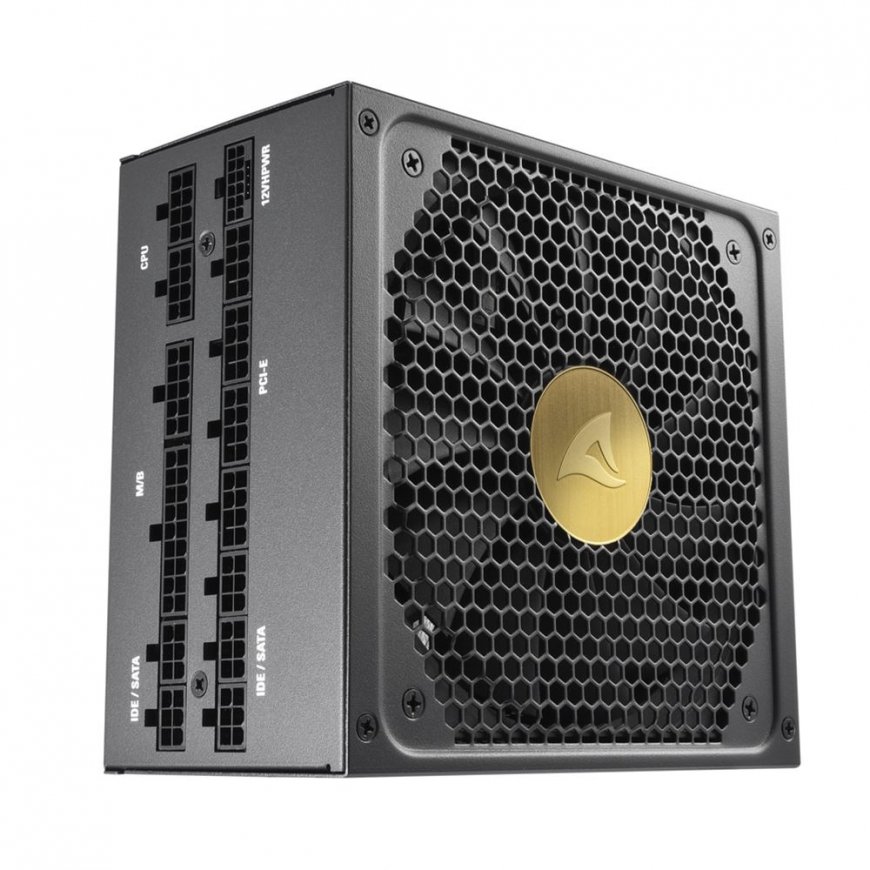

All the Rebel P30's cables are modular and can be used as and when they are needed. Apart from a PCIe Gen5 12VHPWR connector, the PSU comes with a total of twelve SATA connectors and four 6+2-pin PCIe connectors. The 1,300-watt model even has up to eight 6+2-pin PCIe connectors. Two IDE connectors and a floppy connector are also available using the included adapters.
Power | |
| Power protection features | Over current, Over voltage, Overheating, Short circuit, Under voltage |
| Maximum input current (@110V) | 15 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1300 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 108.3 A |
| Max output current (+5V) | 24 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@220V) | 8 A |
| Total power | 1300 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.0 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 12 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 62 cm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
| Weight | 1.75 kg |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Technical details | |
| Sustainability certificates | ErP |
Packaging content | |
| Cables included | AC |
Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, CB |
