The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

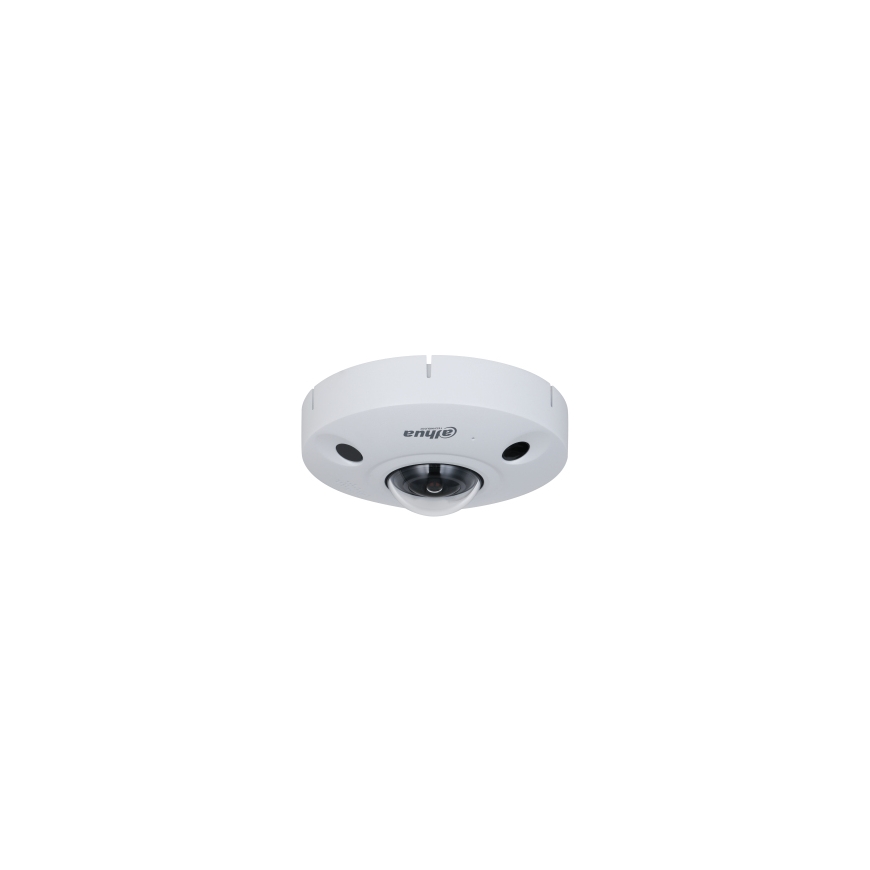

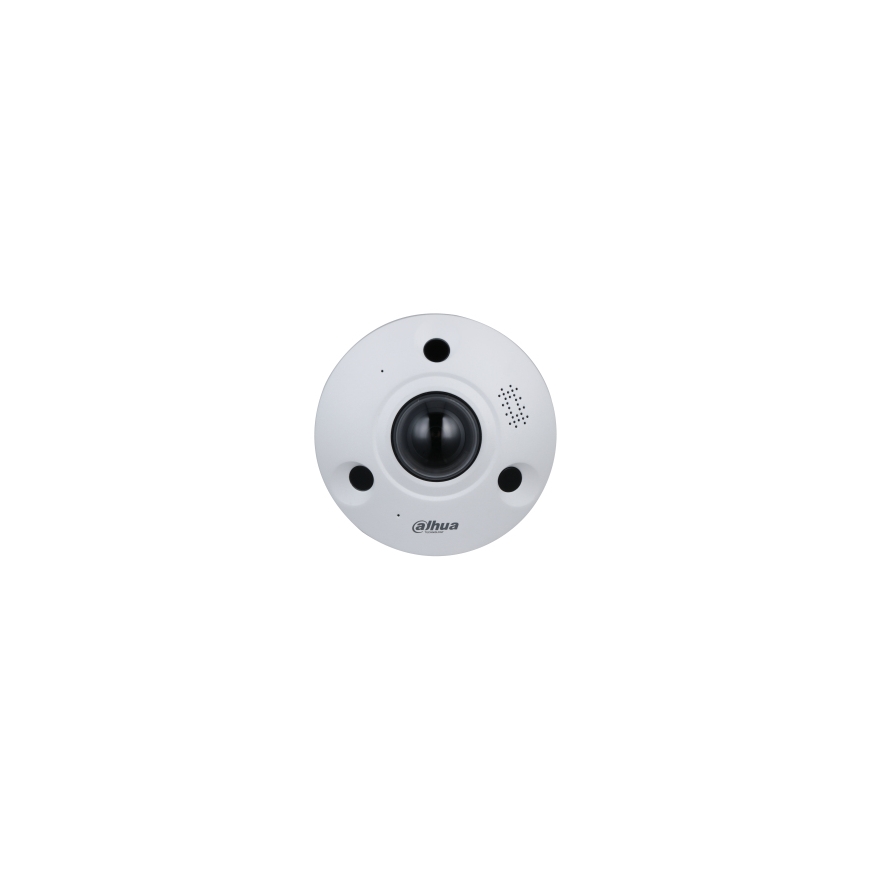

Dahua Technology WizMind DH-IPC-EBW81242-AS-S2 security camera Dome IP security camera Outdoor 4000 x 3000 pixels Ceiling
679.00 €
Monthly payment from 18,38 €
2257575 DH-IPC-EBW81242-AS-S2
6923172507631
Shipping 1-2 days
You are interested in this product?
All about the product
Launched by Dahua Technology, Dahua WizMind is a full portfolio ofsolutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer's requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals
Series Overview
With fisheye lens, Dahua Fisheye series camera can realize 360°
surveillance, and it is widely applied in various scenes such as airports,
shopping centers, banks and hotels.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Fisheye VR
With intelligent algorithm, Dahua Fisheye VR technology provides
interactive 3-dimensional dynamic view through fisheye image. Dahua
fisheye VR supports various interactive modes, such as original, bowl,
cylinder and asteroid, providing more interactive experience.
People Counting
With advanced stereo image technology and deep leaning algorithm,
Dahua In Area No. technology recognizes human targets accurately to
count people in area in real-time. You can set people quantity threshold,
when the number larger or smaller than the threshold, it triggers
linkage. It is applicable in the scene that has limit on people quantity.
Queue Management
With advanced image processing technology and deep leaning
algorithm, Dahua Queue Management technology counts people
quantity in selected area in real time to realize queue management. It
supports multiple polygon areas. When No. in area/strand time is not
smaller or not larger than the threshold, it triggers alarm.
Heat Map
With deep learning algorithm, Dahua People Counting technology
can track and process moving human body targets to realize the
accurate statistics of enter No., leave No., and In Area No. Working with
management platform, it outputs reports to meet your requirements.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to
outdoor environment with instable voltage.
Cyber Security
Dahua network cameras employ a series of security technologies,
including security authentication and authorization, access control
protocols, trusted protection, encrypted transmission and encrypted
storage. These technologies improve the camera's defense against
external cyber threats and prev
Performance | |
| Maximum operating distance | 40 m |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Remote viewing | Yes |
| People counting function | Yes |
| Dynamic range | 56 dB |
Design | |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Form factor | Dome |
| IK code | IK10 |
Camera | |
| Minimum illumination | 0 lx |
| Camera shutter speed | 1/3 –1/100,000 |
| Field of view (FOV) angle | 185° |
| Camera shutter type | Electronic |
| Adjustment shutter speed | Auto/Manual |
| Camera pan control | No |
| Camera tilt control | No |
| Lens viewing angle, horizontal | 185° |
| Lens viewing angle, vertical | 180° |
| Number of Privacy masking areas | 4 |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.7 mm (1 / 1.7") |
| Progressive scan | Yes |
Lens system | |
| Zoom capability | No |
| Fixed focal length | 1.85 mm |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.4 m |
| Detect distance | 40 m |
| Observe distance | 16 m |
| Recognize distance | 8 m |
| Identify distance | 4 m |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 4000 x 3000 pixels |
| Frame rate | 30 fps |
| Video formats supported | H.264, M-JPEG, H.265 |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 2048 x 1536 (QXGA), 4000 x 3000, 2880 x 2160, 3280 x 2048 |
| Video compression formats | H.264, H.265, M-JPEG, H.264H |
| Noise reduction | Yes |
| Video streaming | Yes |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
| Gain control type | Auto |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 12 MP |
| Video intelligence analytic | Yes |
| Video recording | Yes |
Audio | |
| Audio formats supported | G.711, PCM, G.726, G.723 |
| Built-in microphone | Yes |
| Audio detection | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Audio codecs | PCM; G.711A; G.711Mu; G.726; G.723 |
| Audio system | 1-way |
| Voice codecs | G.723, G.726, G.711Mu, G.711a, PCM |
| Audio input channels | 1.0 channels |
Network | |
| Wi-Fi | No |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast |
| Bluetooth | No |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| User access level | Administrator, Operator, User |
| Web servers supported | IE: IE11, IE10 Chrome: 48.0.2564.116 Firefox: 48.0.2 Edge: 42.17134.1.0 |
Storage | |
| Internal memory | 4000 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| ROM capacity | 2000 MB |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Security | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Security algorithms | HTTPS |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire, People counting |
| Digest authentication | Yes |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
Power | |
| Power consumption (typical) | 6.5 W |
| DC output voltage | 12 |
| Power consumption (max) | 13 W |
| Power consumption (Power over Ethernet (PoE)) | 13.9 W |
| Power source type | DC, PoE |
Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions | |
| Weight | 790 g |
| Width | 59.8 mm |
| Diameter | 15 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Number of illumination LEDs | 3 |
| Night vision | Yes |
| LED type | IR |
Management features | |
| Web-based management | Yes |
| Web browser | Yes |
| Management software | Smart PSS; DSS; DMSS |
Panoramic camera | |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
Packaging data | |
| Package weight | 1.21 kg |
Sustainability | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
