ATEN CE820-ATA-U KVM extender Transmitter & receiver
739.00 €
Monthly payment from 19,93 €
2256575 CE820-ATA-U
4710469341823
Shipping 3-7 b.d.
You are interested in this product?
All about the product

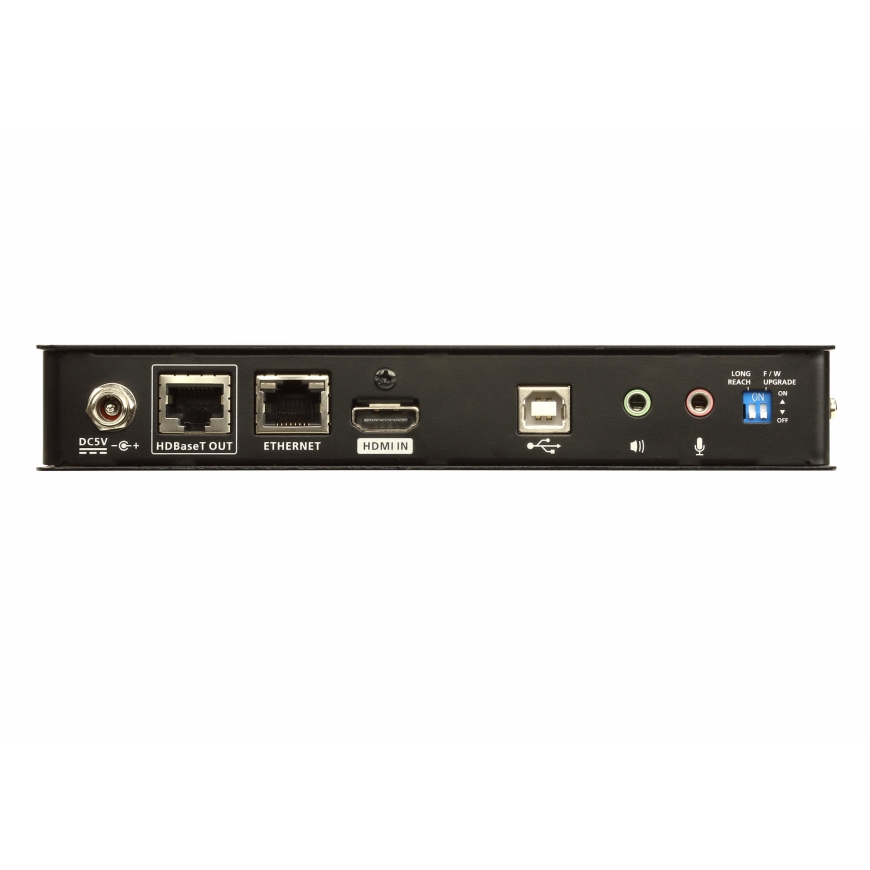

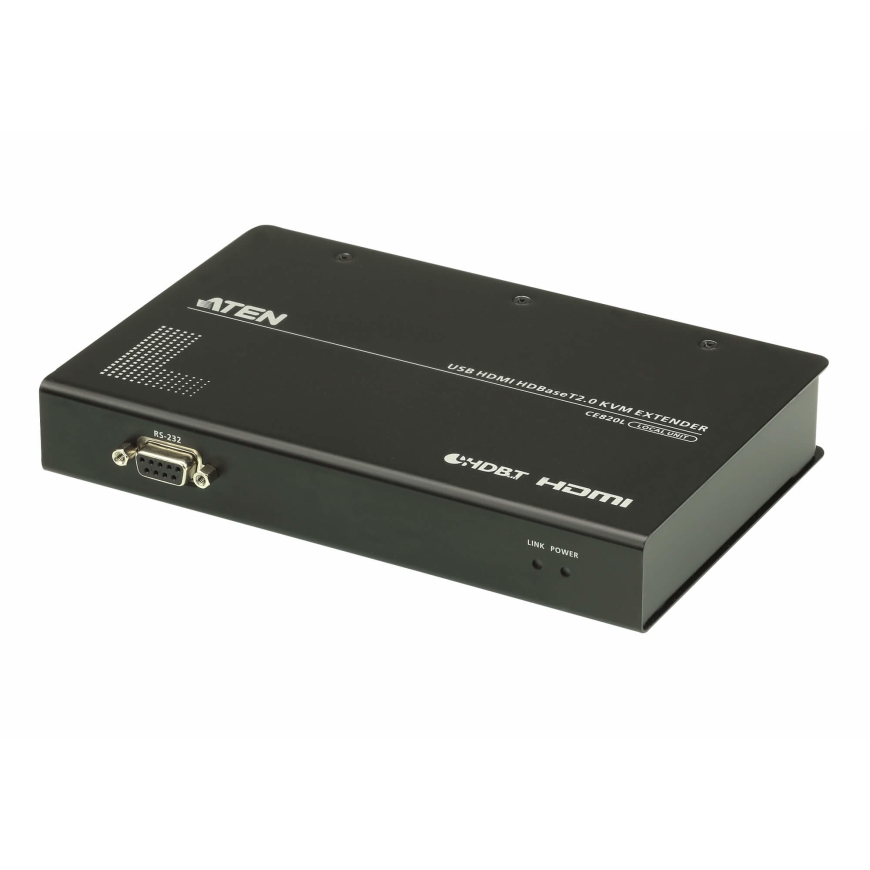

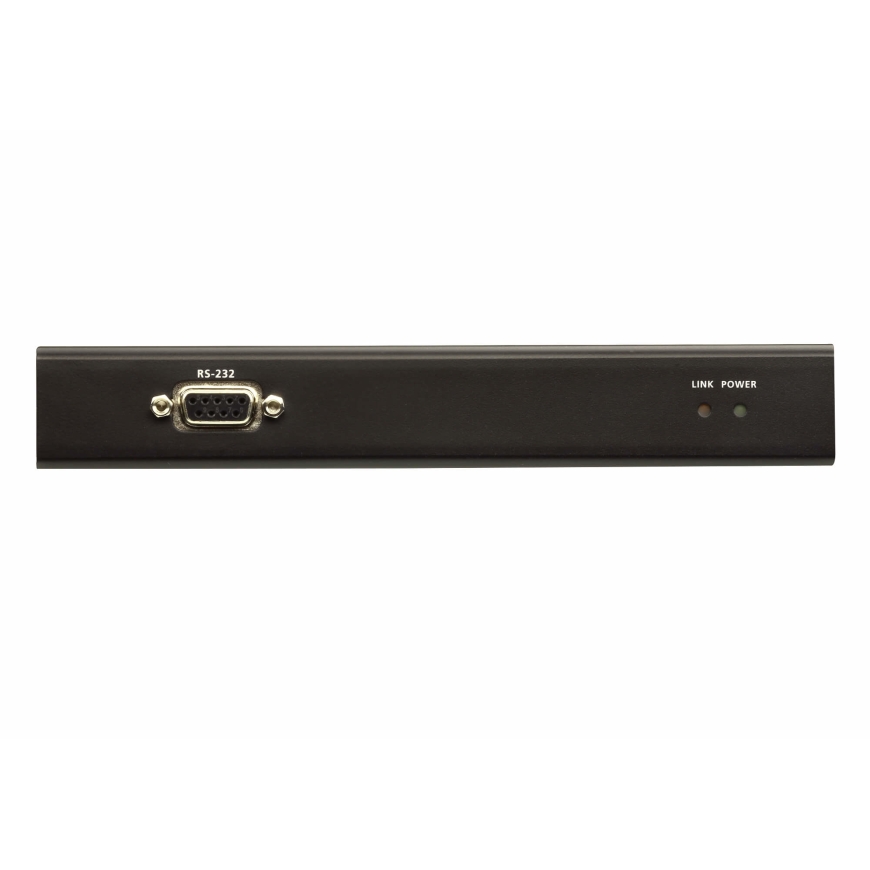

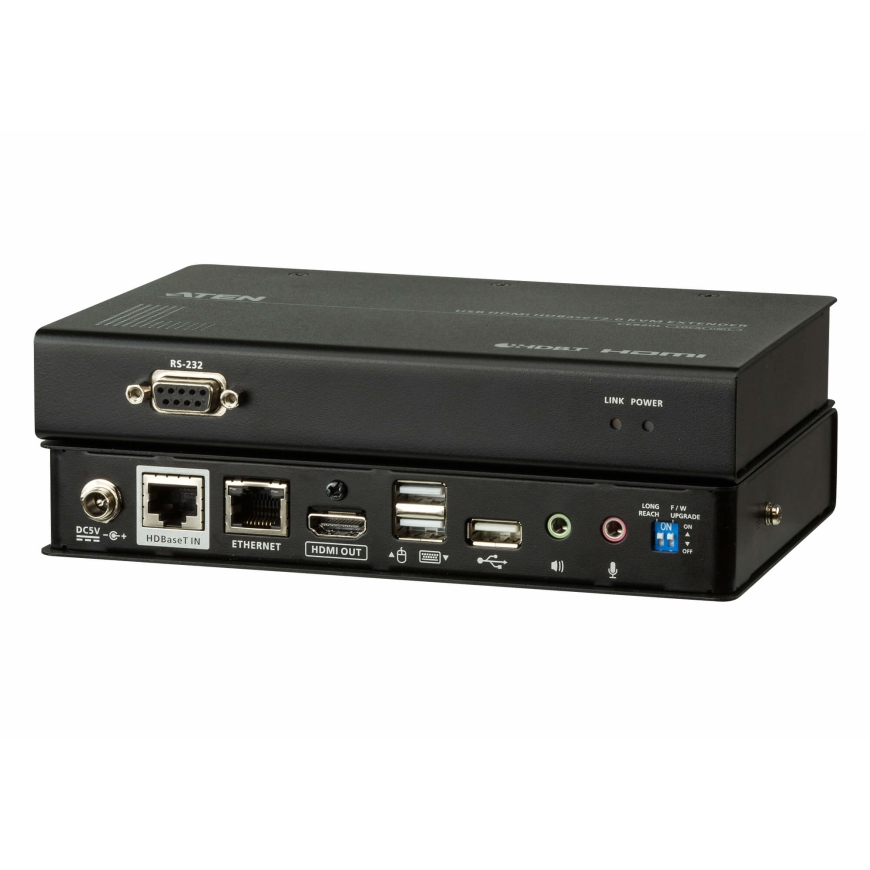

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)

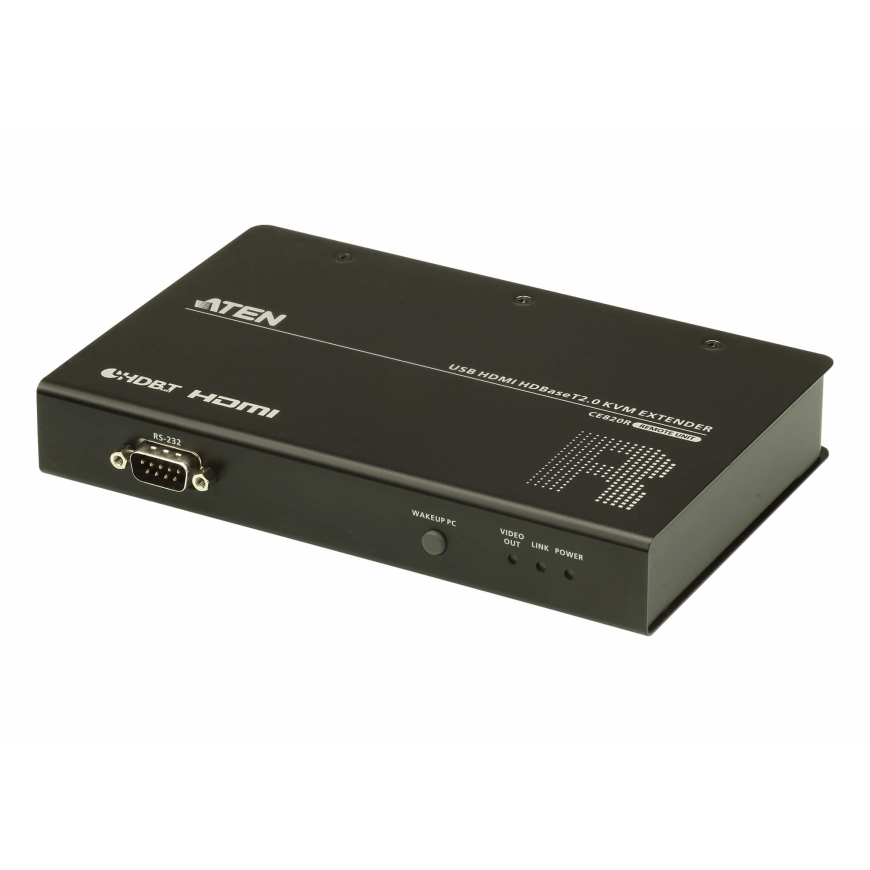

1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions
Features
| Product colour | Black |
| USB 2.0 ports quantity | 4 |
| Type | Transmitter & receiver |
| Material | Metal |
| Connectivity technology | Wired |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum digital resolution | 4096 x 2160 pixels |
| LED indicators | Power; Link; Video |
| PC Audio in | Yes |
| Receiver weight | 650 g |
| Rack mounting | Yes |
| AC adapter output voltage | 5 V |
| Cable types supported | Cat6; Cat5e; Cat6a |
| Maximum transfer distance | 150 m |
| PC Audio out | Yes |
| Transmitter weight | 630 g |
| Receiver width | 18.2 cm |
| Receiver depth | 12.2 cm |
| Receiver height | 2.87 cm |
| Transmitter video port type | HDMI |
| Receiver local video port type | HDMI |
| Power consumption (transmitter) (max) | 2.87 W |
| Power consumption (receiver) (max) | 5.37 W |
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.2 cm |
| Transmitter height | 2.87 cm |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Receiver local keyboard/mouse port type | USB |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
