EK Water Blocks 3831109824689 computer cooling system part/accessory Mounting plate
18.31 €
2254765 3831109824689
3831109824689
Shipping 12-17 b.d.
You are interested in this product?
All about the product

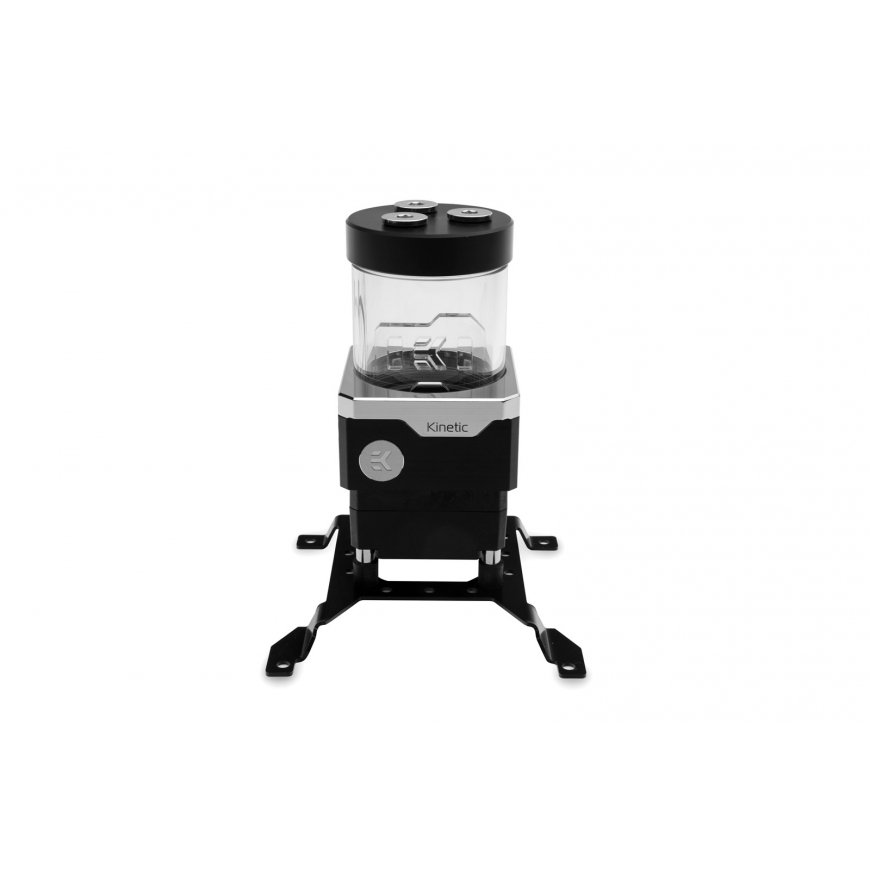

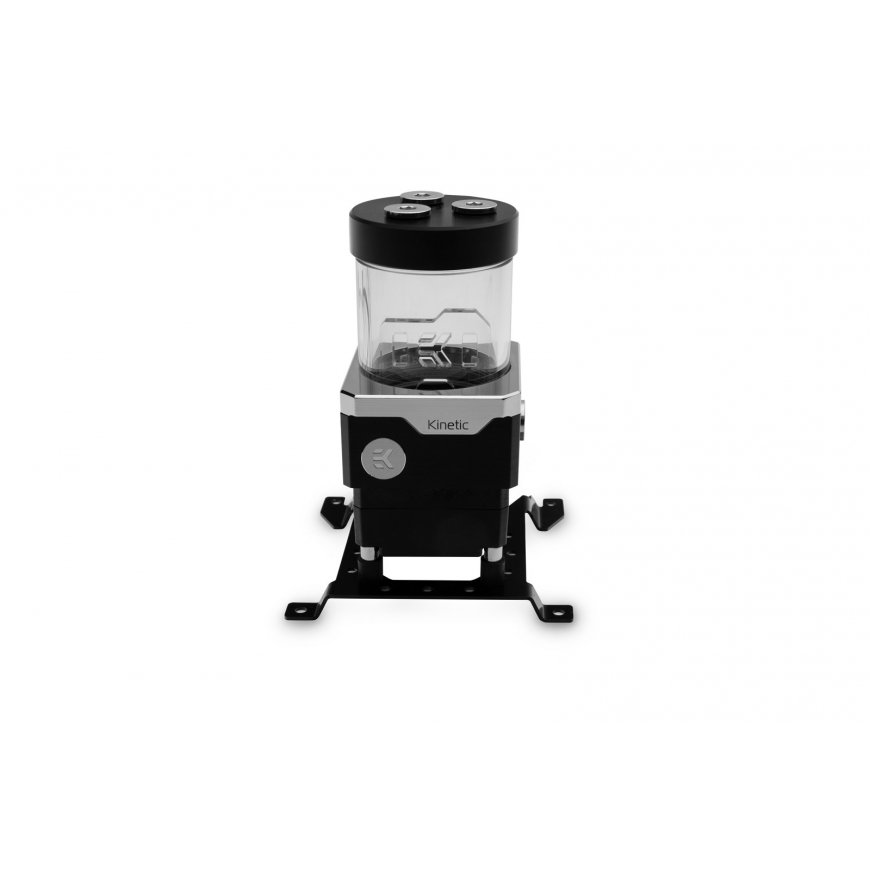

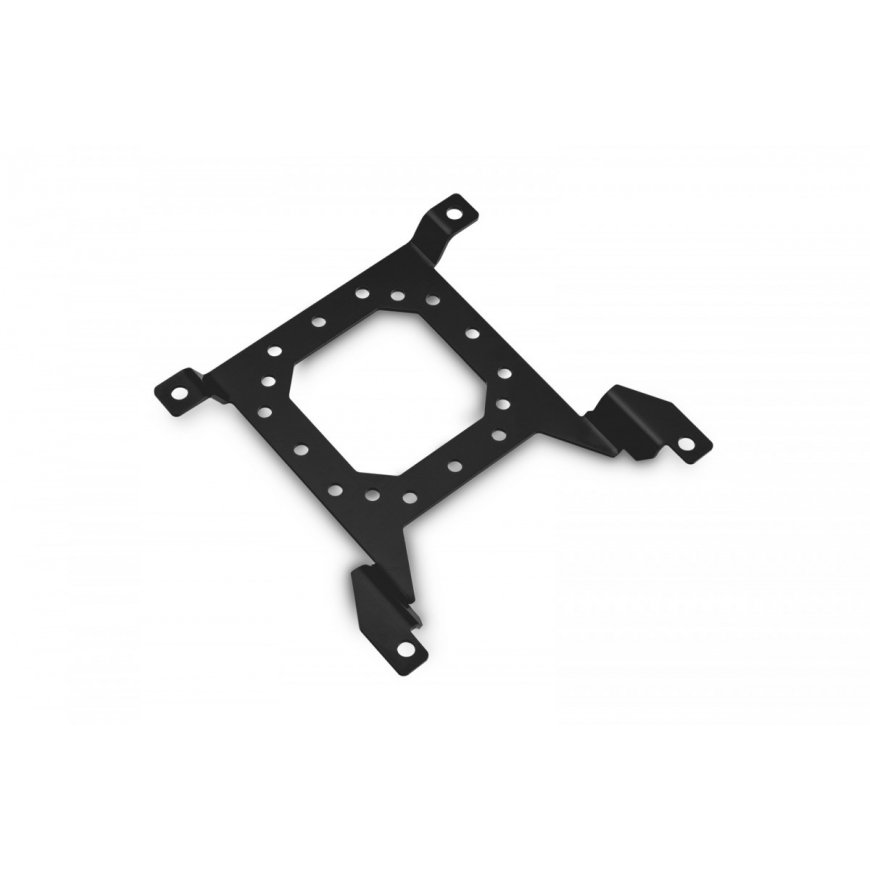

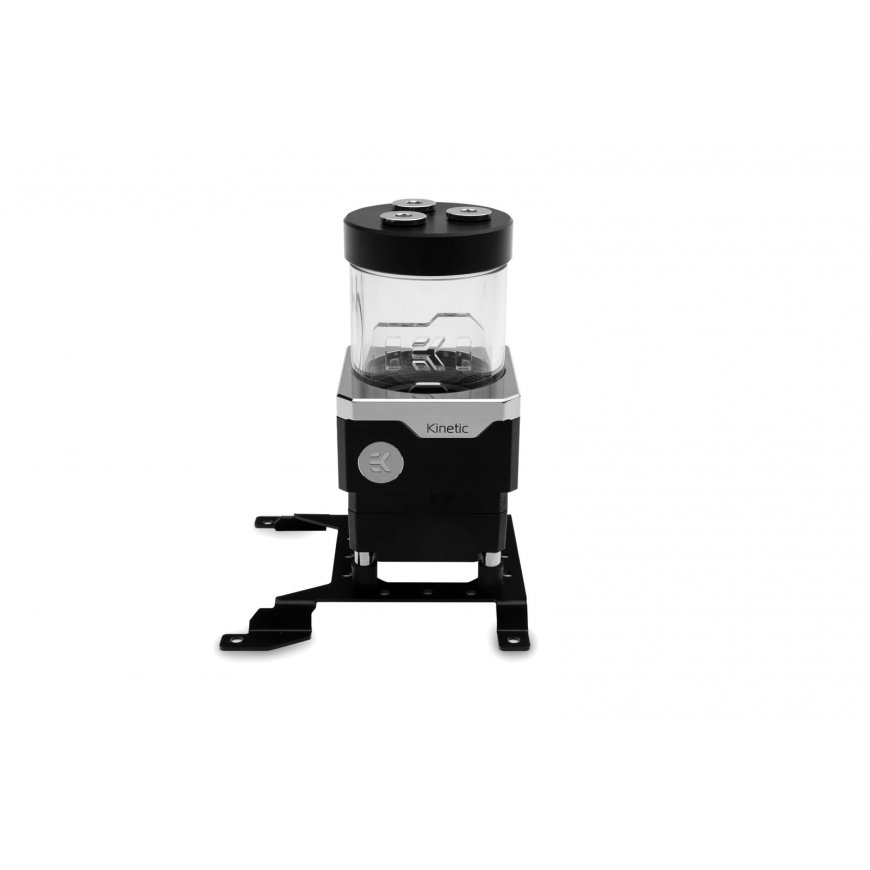

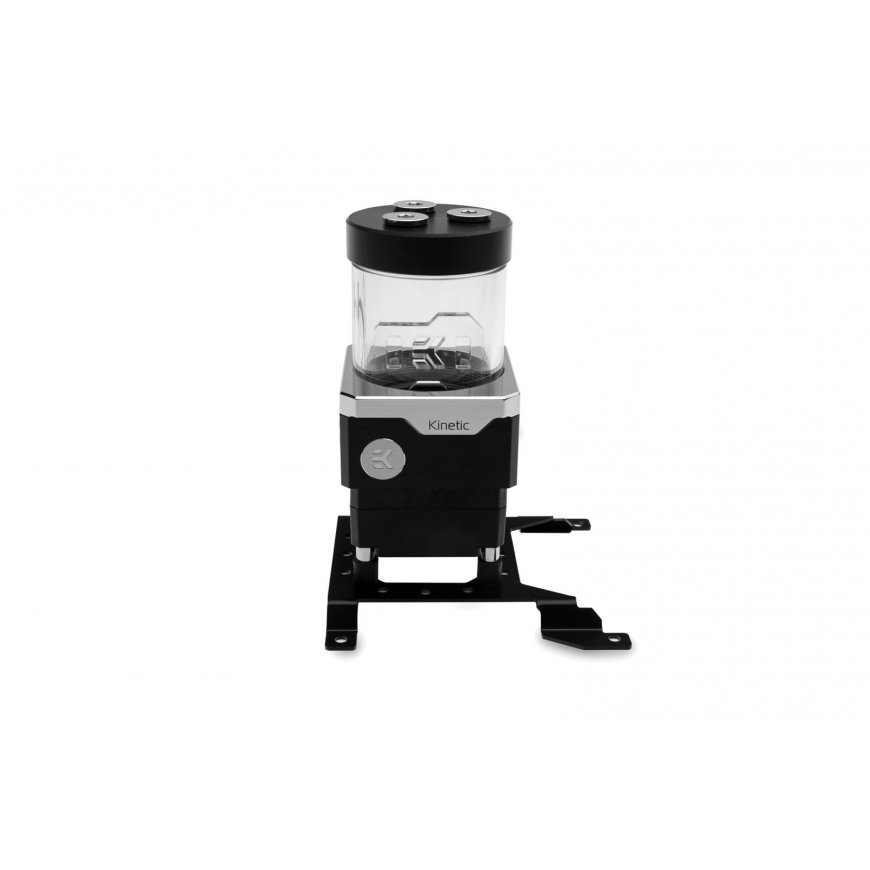

EK-Loop UNI Pump Reservoir Bracket - 120mm is a mounting adapter for installation of EK D5, DDC, SPC, and VTX pumps and pump-reservoir combo units to any 120mm fan mounting hole pattern (105mm hole spacing). Additionally, it can be used with EK-RES X3 Holder 60mm (2pcs) to mount any reservoir or pump-reservoir combo with a tube of 60mm in diameter.It can be used horizontally or vertically. The offset on the bracket allows for precise placement of the pump or reservoir according to your needs for clearance or easier tube routing. By turning the bracket around the offset can be moved left, right, back, or forward in a horizontal setup, and also left, right, up, or down in a vertical setup.
Made from press-bent 1,5mm thick painted steel. The height of the bracket is 11.5mm.
Enclosed:
- EK-Loop Uni Pump Reservoir Bracket - 120mm
- 5x polyamide washer M4 0.8mm
- 5x screws M4x6 DIN7984
- 5x nut M4
- Allen key 2.5mm
Performance | |
| Type | Mounting plate |
Design | |
| Product colour | Black |
| Material | Steel |
