Electric car charging station plug Duosida Type 2 (Male), 32A, 3-phase
69.01 €
Monthly payment from 2,68 €
2251926 EV200184
9990000200184
Shipping 2-4 days
You are interested in this product?
All about the product

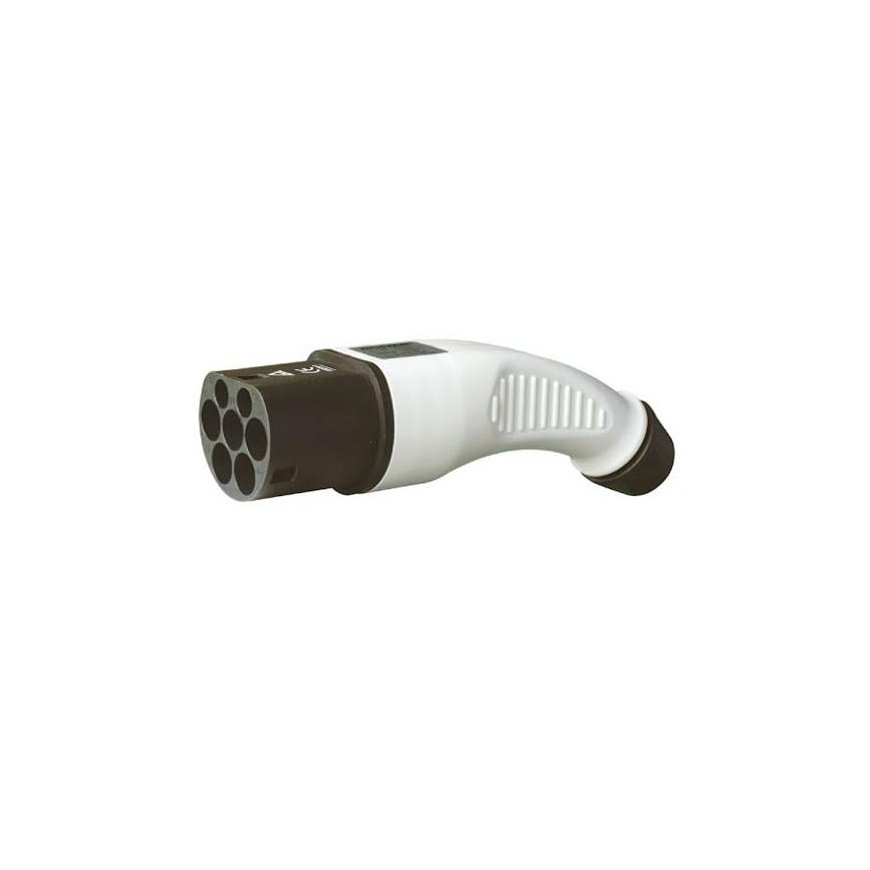

Plug for electric car Type 2 (Male) (to the station), 32A, 3-phase, without cable. The plug is designed to create your own charger by choosing the desired cable length and connectors.Technical data:
EV connector type: IEC 62196, Type 2 (European), Mennekes, 7 pins.
Nominal current: 32A.
Operating voltage: 415V AC.
Maximum charging power: 22kW (3-phase).
Material: thermoplastic, fire resistance UL94 V-0.
Cable contacts: copper alloy, silver plating.
Adaptable cable dimensions: 5x6mm²+ 1x0.75mm² (3-phase).
Number of contacts 7.
Safety class: IP44.
Operating temperature: -30°C~+50°C.
Certificates: CE, TUV.
Color: black / white.
Warranty: 24 months
