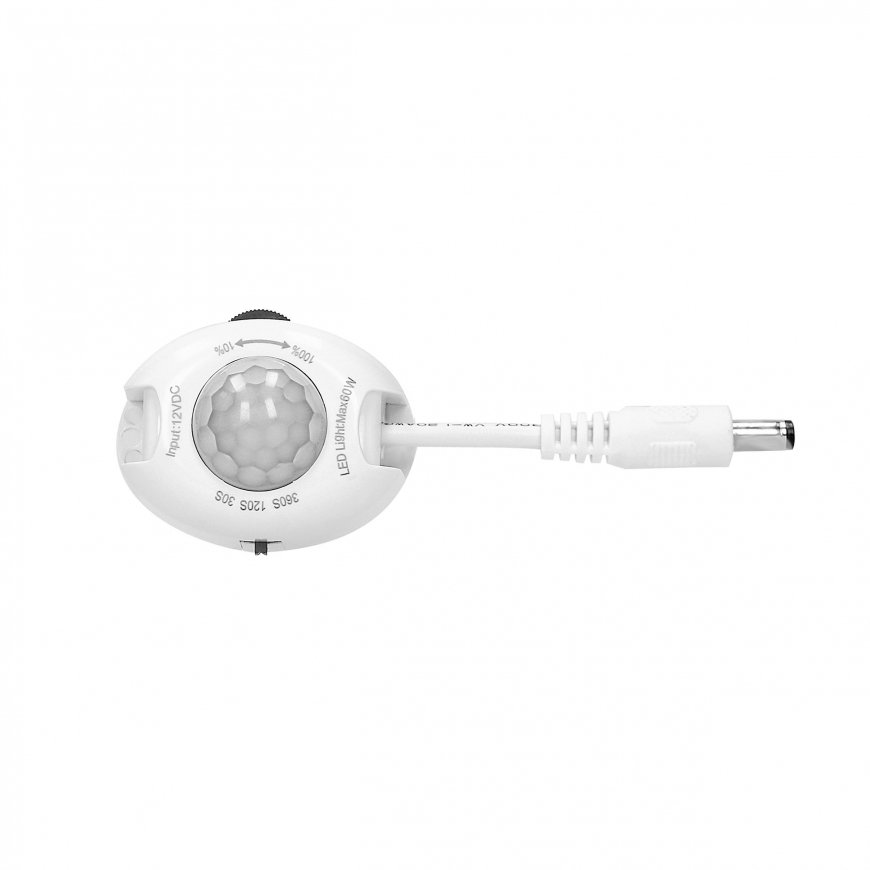

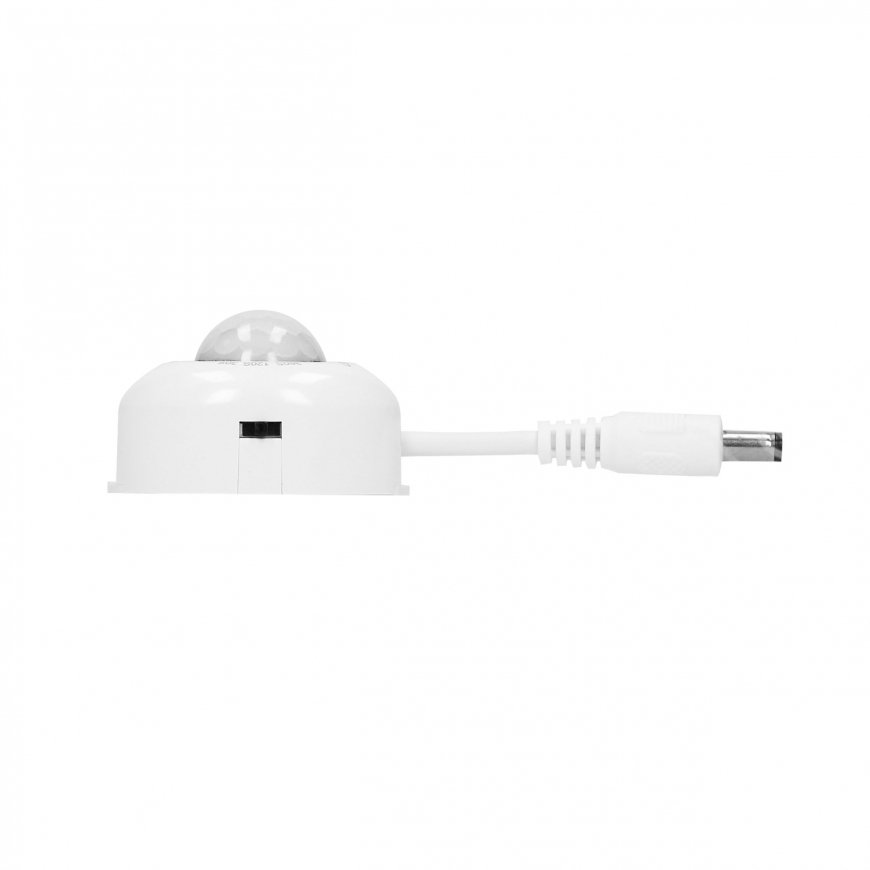

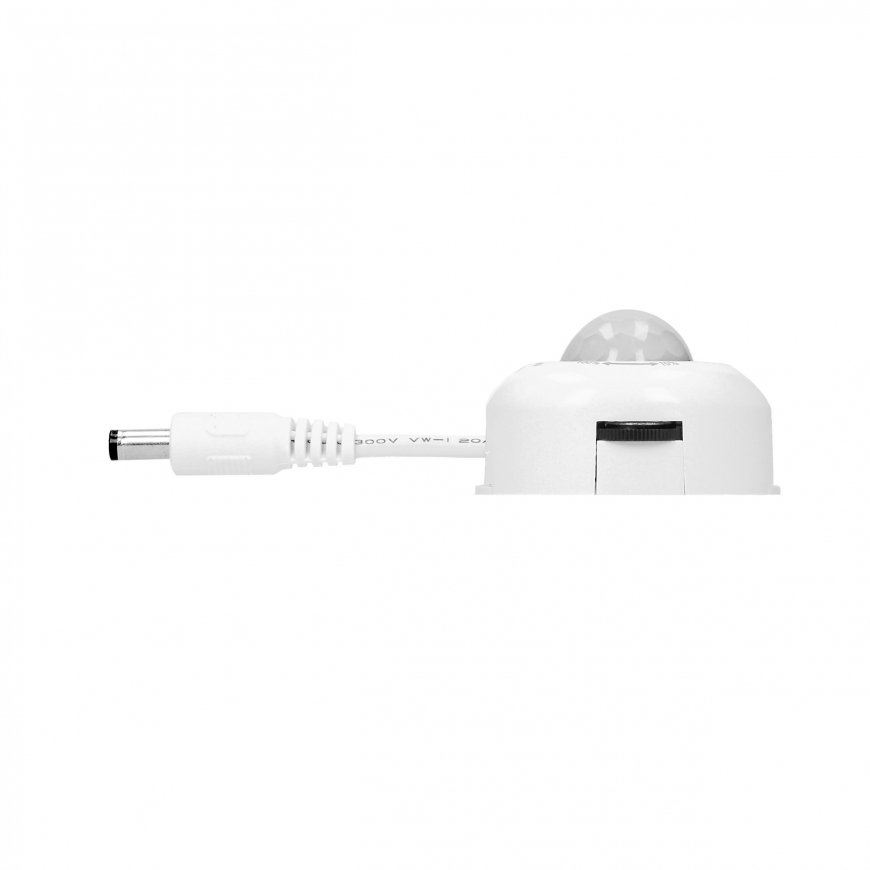

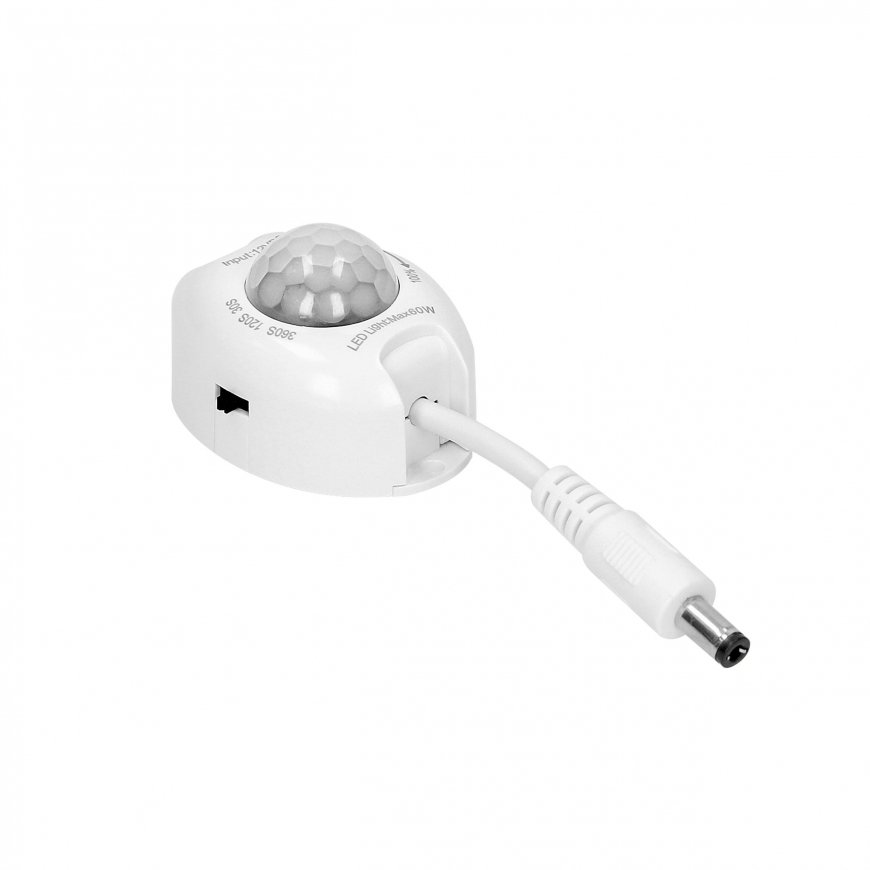

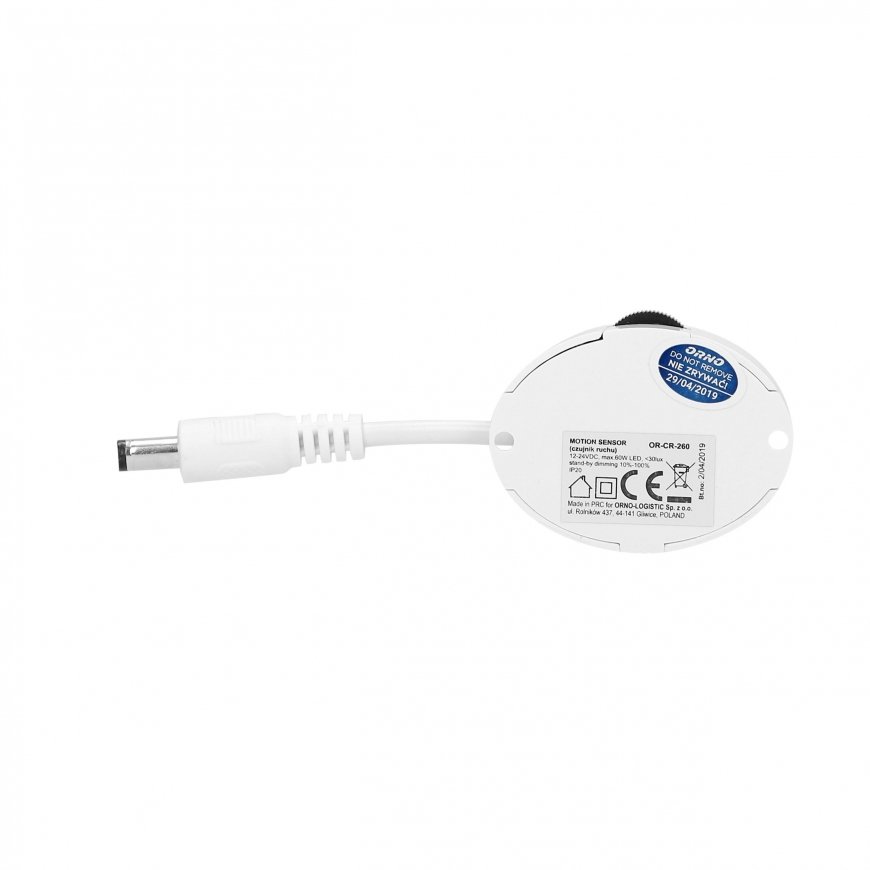

Orno Motion sensor for LED strip 120pcs, 12V, max LED 60W, dimming function
2236862 OR-CR-260
5900378653394
Shipping 11-16 b.d.
All about the product
The Orno OR-CR-260 motion sensor is used to automatically turn on LED strips and lighting circuits. The basis of its operation is the detection of the movement of a heat-emitting object in the field of view of the sensor. Then the LED strip or circuit is switched on.
The device also has a built-in twilight sensor that reacts to changes in light intensity and therefore determines the time of day - day or night. The advantage is also the possibility of dimming (10%-100%).
Product features:
- passive infrared sensor
- built-in twilight sensor
- adjustment of lighting time (TIME) and degree of dimming (10% - 100%)
- detection range: max. 10 years
- viewing angle: 120 degrees
- White color
- degree of protection: IP20
- installation: surface
Technical specifications:
- max load: 60W
- viewing angle: 120 degrees
- light intensity: <30 lux
- lighting time adjustment: 30 s / 120 s / 360 s
- dimming adjustment: 10% - 100%
- sensor range: max. 10 years
- working temperature: -20 degrees C ... +40 degrees C
- detected movement speed: 0.6 ~ 1.5 m/s
- degree of protection: IP20
- power supply: 12-24V DC
- power consumption: 0.5 W (working)
- dimensions: 50 x 37 x 31 mm
- weight: 0.03 kg
Including:
- sensor Orno OR-CR-260 - 1 pc.;
- quick reference.
