QuWireless QuMax Omni for TRB500 network antenna Omni-directional antenna PoE/LAN 4 dBi
204,74 €
Monthly payment from 6.17 €
2221003 A500MO
5907772035825
Shipping 4-5 b.d.
You are interested in this product?

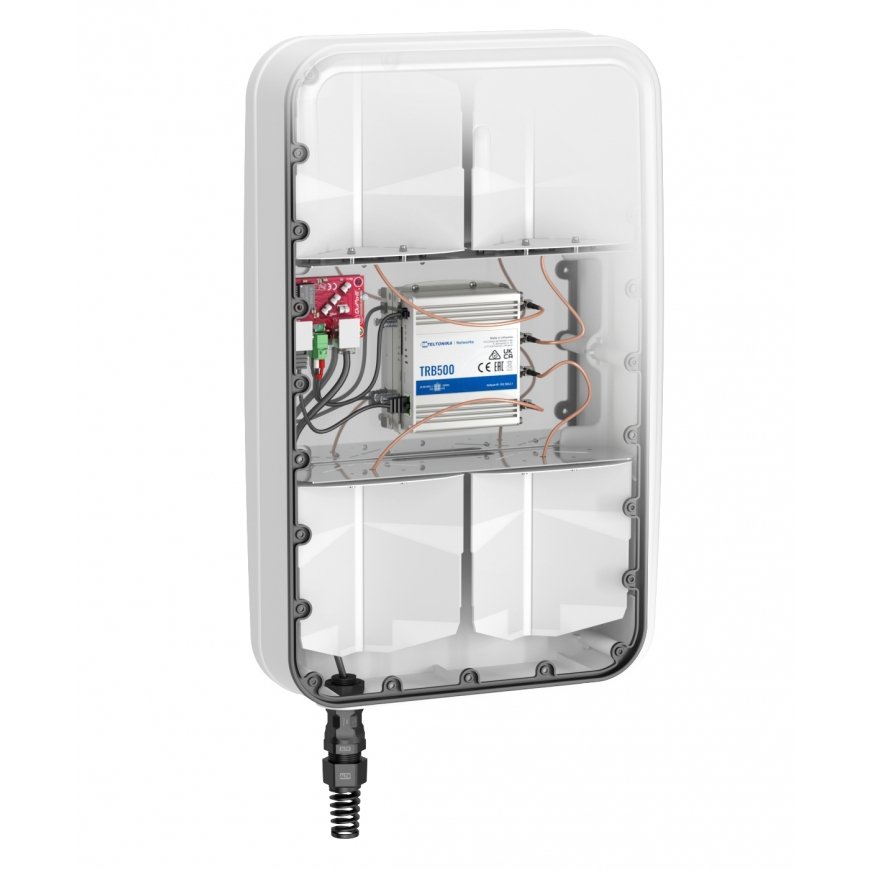

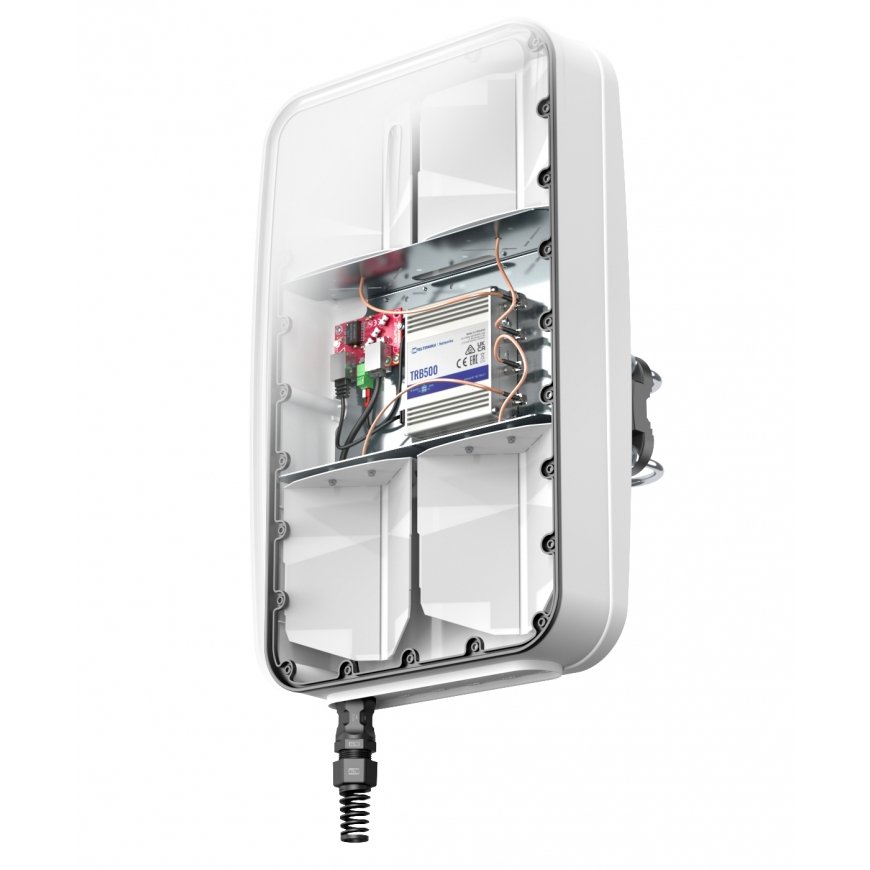

QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna for the Teltonika TRB500 gateway. The antenna covers a wide frequency range from 617MHz (Band71) to 3.8GHz. Additional router compartment inside the housing creates a variety of new outdoor (IP67) scenarios. It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas.
The set contains a PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.
NOTE! The antenna doesn’t support B32 band and n77 (above 3800MHz) band!
| Product colour | White |
| International Protection (IP) code | IP67 |
| Weight | 2.5 kg |
| Width | 292.2 mm |
| Depth | 105.6 mm |
| Height | 486 mm |
| Quantity per pack | 1 pc(s) |
| Country of origin | Poland |
| Purpose | Indoor & outdoor |
| Operating temperature (T-T) | -40 - 70 °C |
| Housing material | Akrüülnitriil butadieen stüreen (ABS) |
| Impedance | 50 Ω |
| Frequency band | 0.617-0.96/1.7-2.2/2.2-2.7/3.3–3.8 |
| Antenna type | Omni-directional antenna |
| Compatible products | TRB500 |

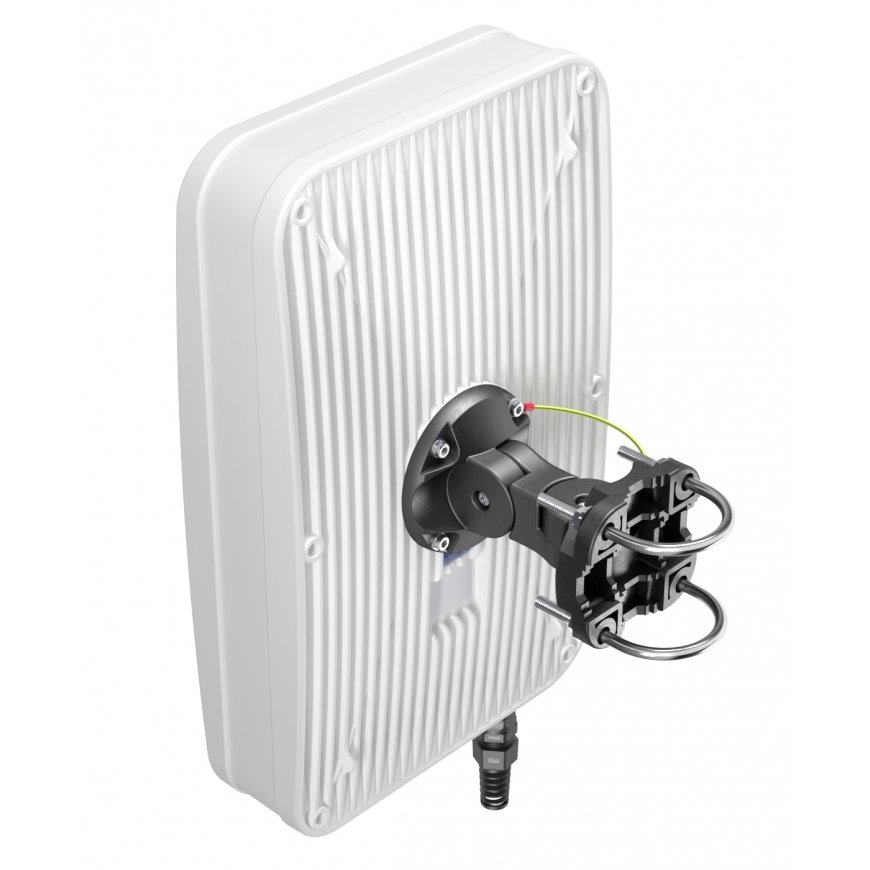

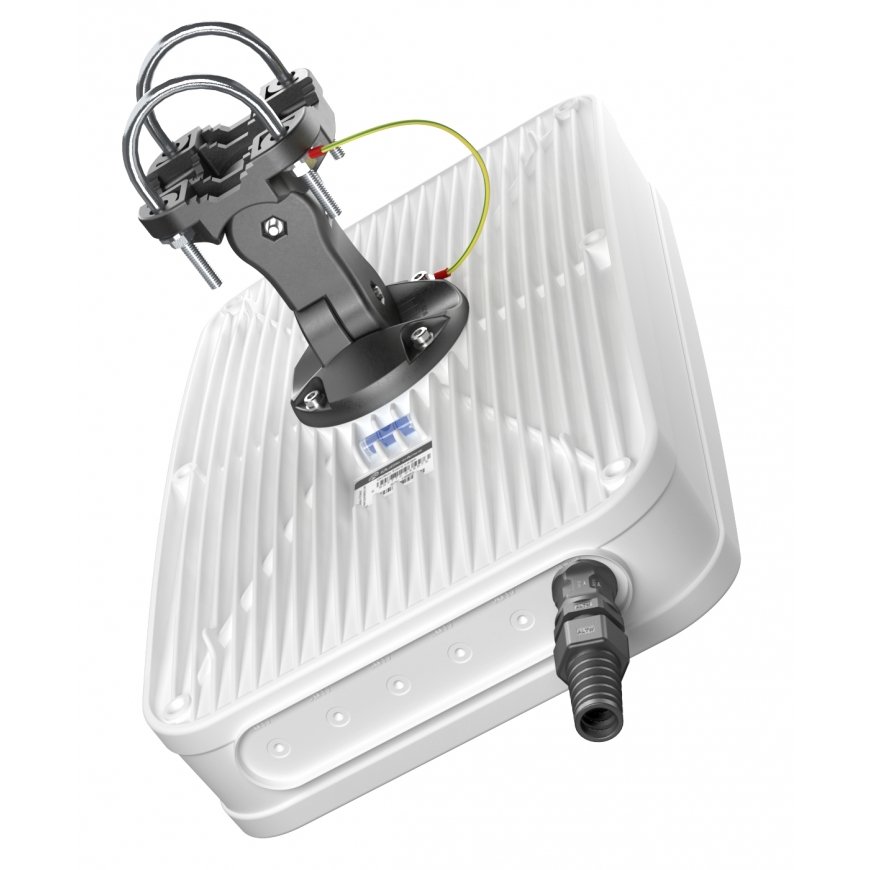

| Mounting | Wall/Pole |
| Antenna gain level (max) | 4 dBi |
| Antenna connector type | PoE/LAN |
| Gain | 3 / 4 dBi |
| Horizontal beam width | 360° |
| Vertical beam width | 35° |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Polarization | Vertical polarization |
