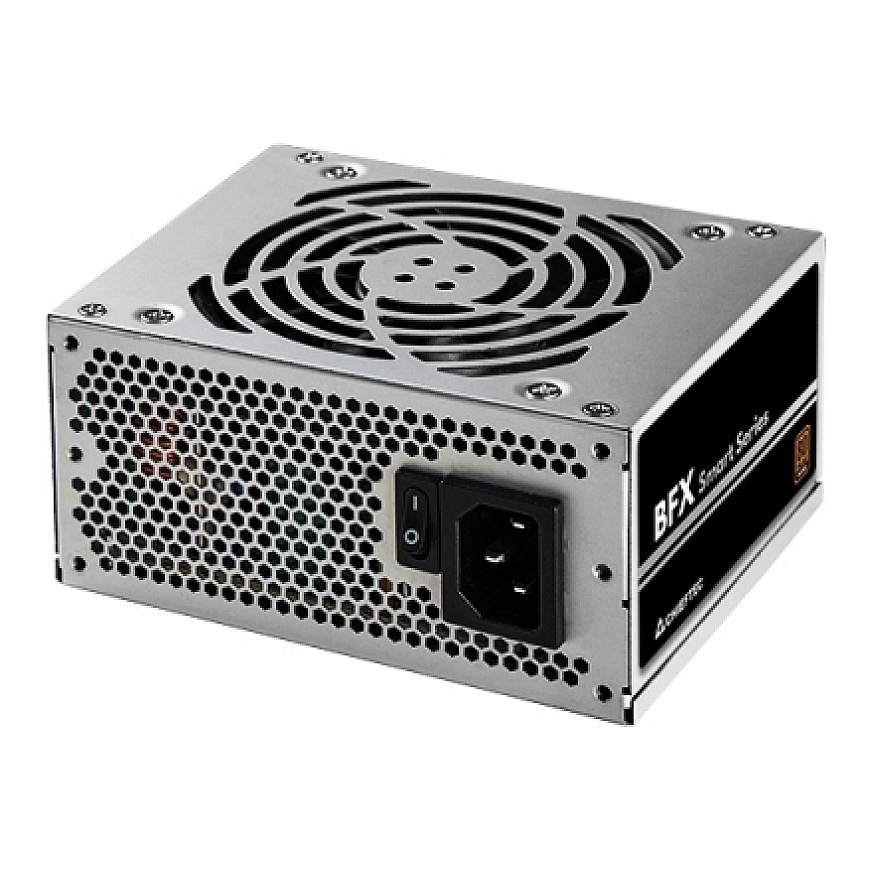

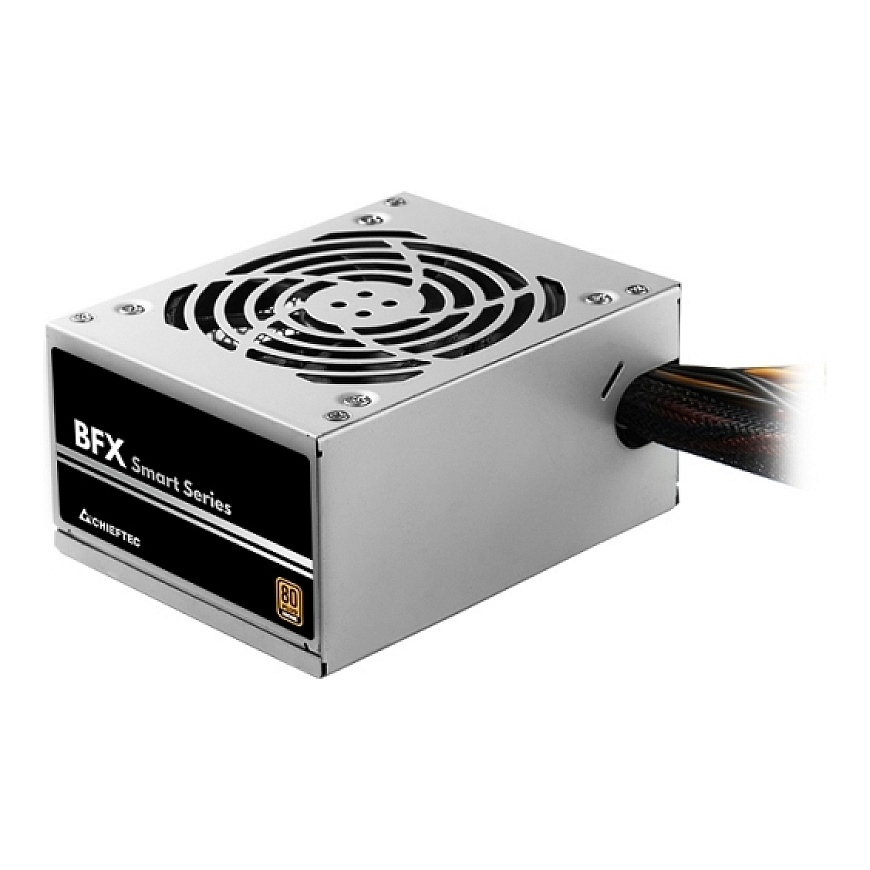

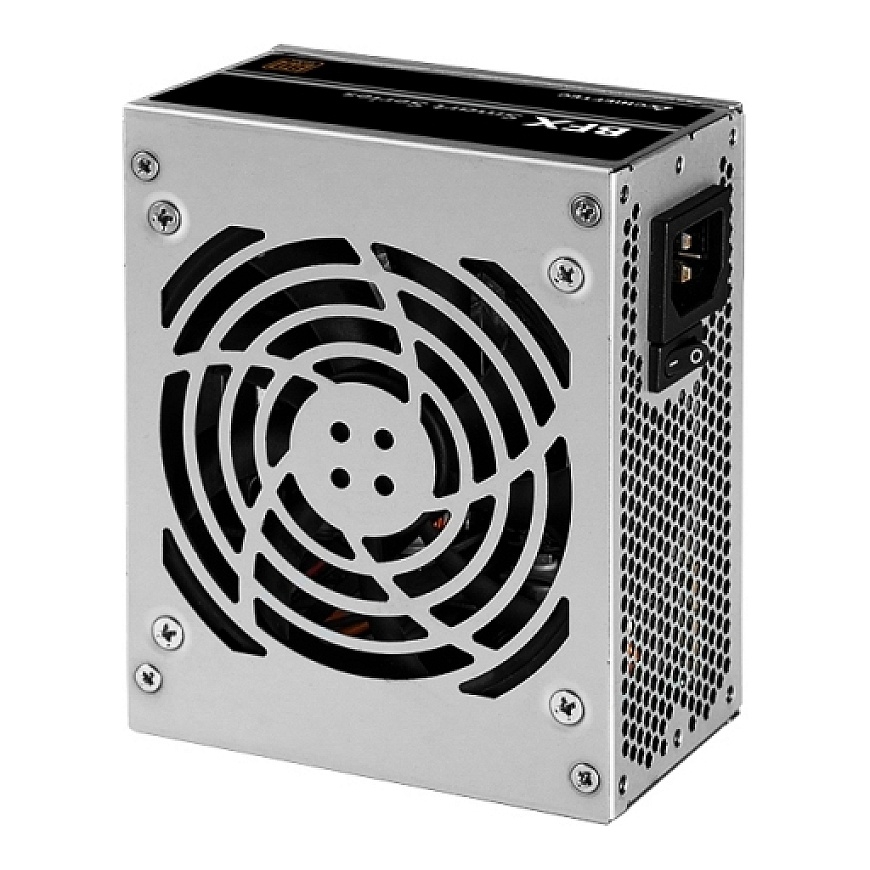

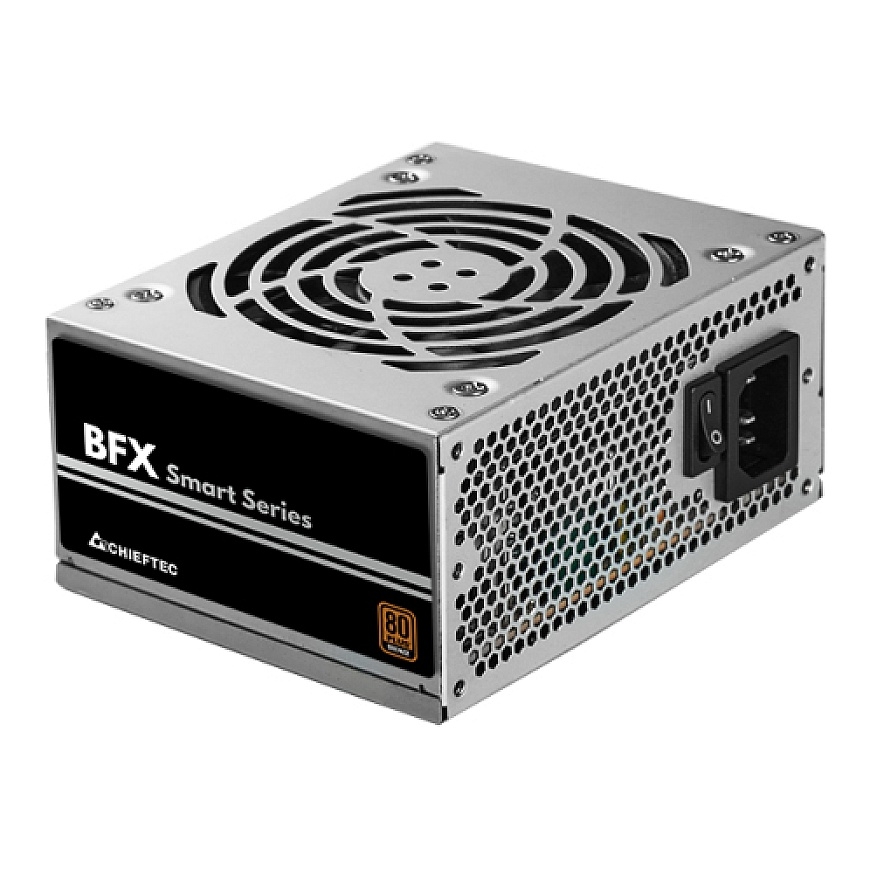

Chieftec Smart 350W power supply unit 20+4 pin ATX ATX Black, Silver
58,63 €
Monthly payment from 2.41 €
2219500 BFX-350BS
0753263077486, 7532630774868
Shipping 3-5 b.d.
You are interested in this product?
Power | |
| Input current | 5 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 349.92 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 18 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+12V1) | 29.16 A |
| Total power | 350 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black, Silver |
| Fan diameter | 9 cm |
| Cooling type | Active |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 35 cm |
| SATA power cable length | 250 mm |
| Peripheral (Molex) power cable length | 150 mm |
| PCI Express power cable length | 35 cm |
| Floppy disk drive cable length | 15 cm |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Weight | 1.3 kg |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 64 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
