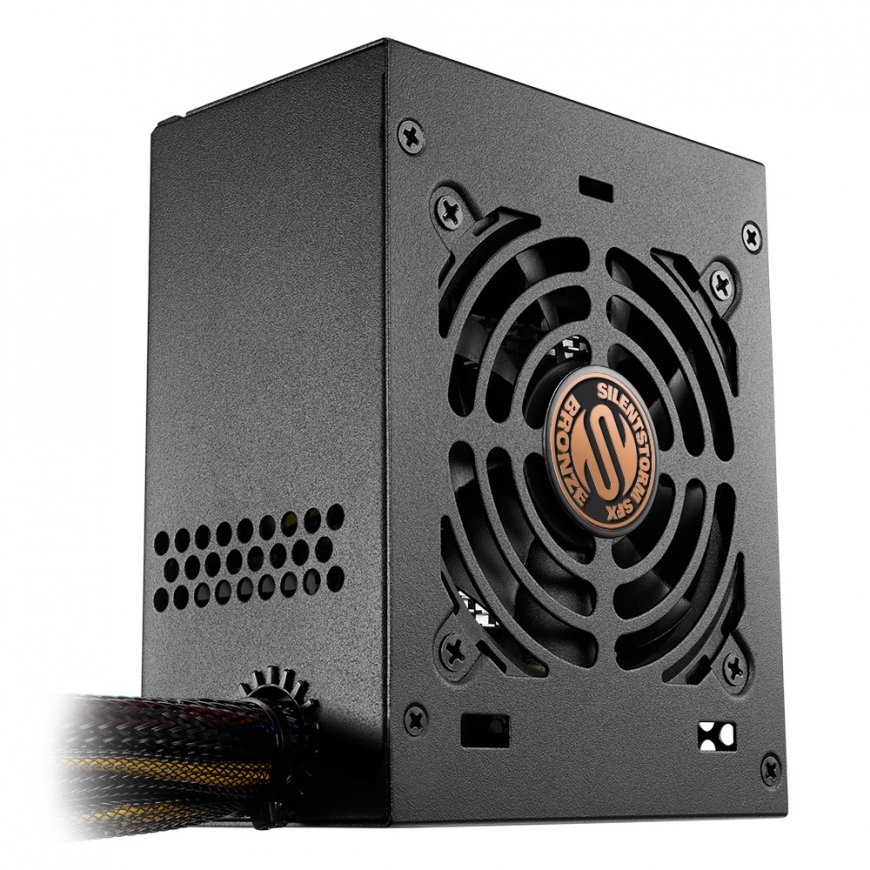

Sharkoon SilentStorm SFX Bronze power supply unit 450 W 20+4 pin ATX Black
79.61 €
Monthly payment from 2,95 €
2215436 4044951016402
4044951016402, 5715063073438
Shipping 12-13 b.d.
You are interested in this product?
All about the product

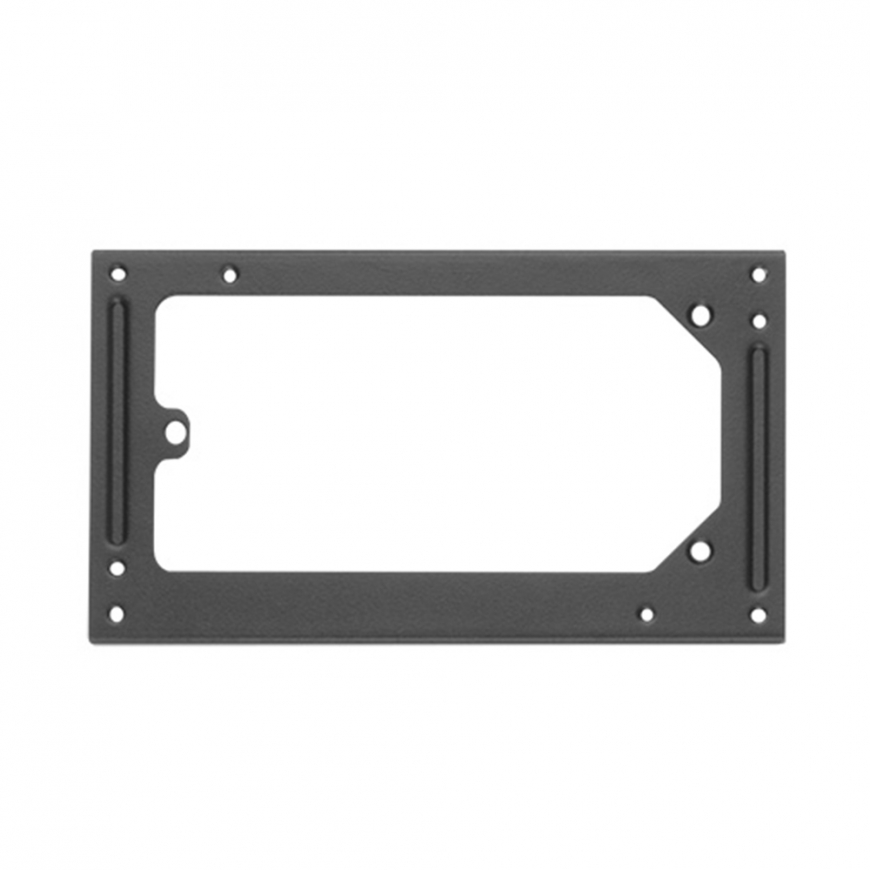

SFX Power Supply with “80 PLUS Bronze” CertificationThe SilentStorm SFX Bronze series is an “80 PLUS Bronze” certified SFX power supply series for users looking for the best price-performance. It offers outstanding efficiency of over 85 percent under 50 percent load and meets the strict requirements of the independent 80 PLUS Initiative “PLUG LOAD SOLUTIONS” for the Bronze certificate. The compact dimensions total to only 125 x 100 x 63 mm. The power supplies are available in 450 Watt or 350 Watt. Power supplies can be installed into conventional ATX cases using the enclosed ATX mounting frame.
Sufficient Connection Options

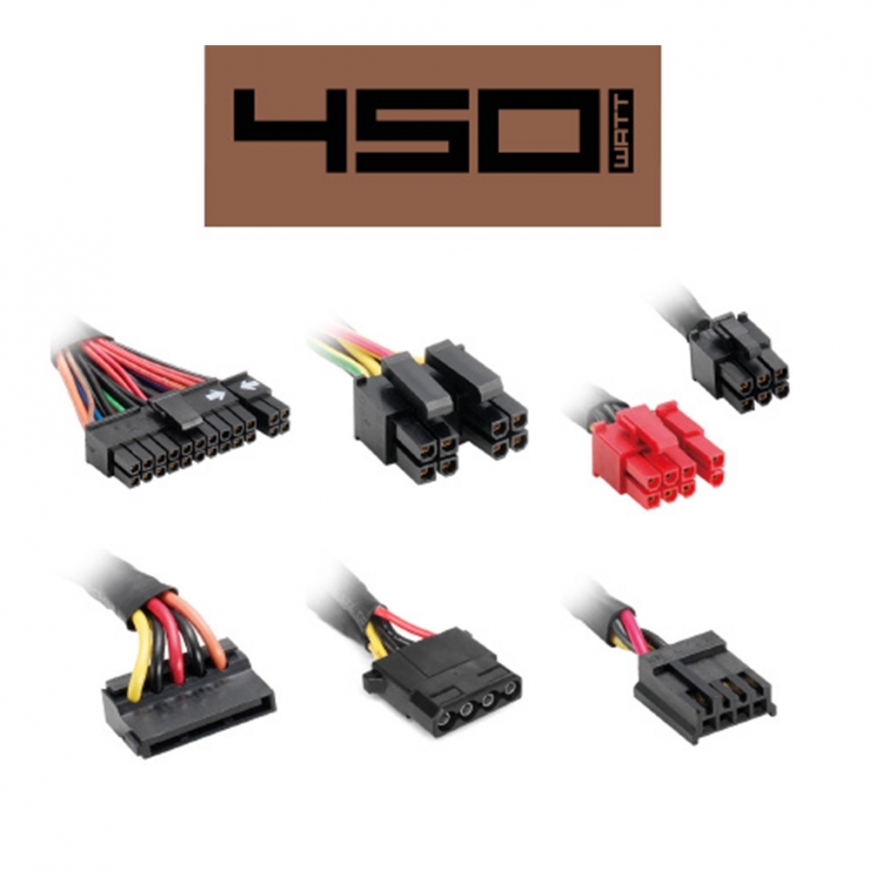

The Intel HASWELL compatible power supply series in the 350 Watt version provides, in addition to the standard CPU and mainboard connectors, a 6-pin PCIe connector, two SATA, two IDE and a Floppy connector. The SilentStorm SFX Bronze 450 Watt also offers an additional SATA connector as well as a 6+2-pin PCIe connector.
Effective Cooling
The internal power supply components of the SilentStorm SFX Bronze series are cooled by an effective 80 mm fan.
Suitable Protective Circuit with Three Year Guarantee
The SilentStorm SFX Bronze power supply series features an overload, overvoltage, undervoltage as well as short circuit protection and are certified with current energy and environmental standards. The guarantee period is three years.
High Energy Efficiency

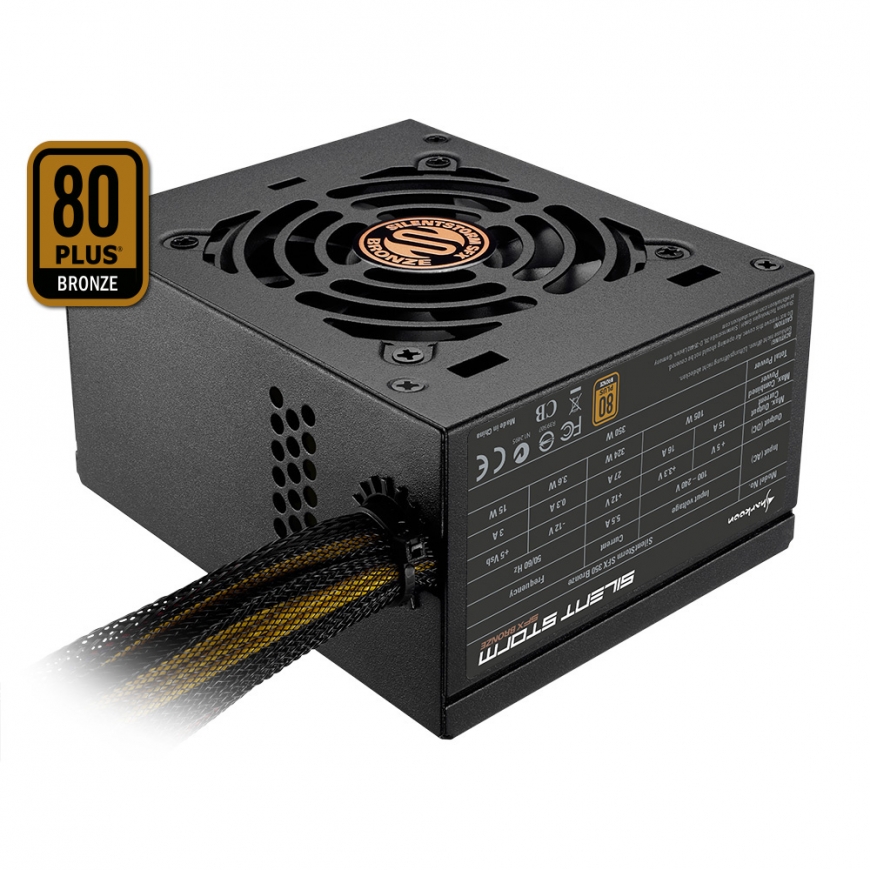

This power supply is “80 PLUS Bronze” certified and meets all requirements with an efficiency of at least 85 % under 50 % load and 82 % under both 20 % and 100 % load.
Power | |
| Input current | 7 A |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 432 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V) | 36 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 450 W |
Performance | |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | SFX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 3 |
| PCI Express power connectors (6-pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
Weight & dimensions | |
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63 mm |
Packaging data | |
| Package weight | 1.5 kg |
| Manual | Yes |
| Package height | 80 mm |
| Package width | 230 mm |
| Package depth | 190 mm |
Other features | |
| Housing colour | Black |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
