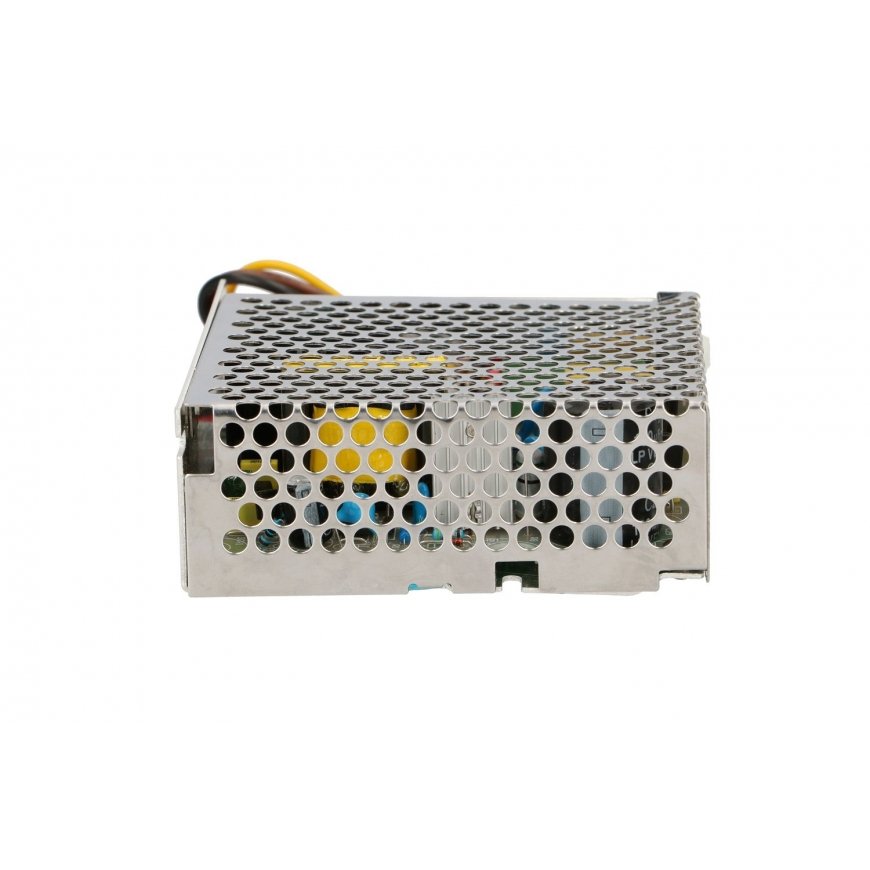

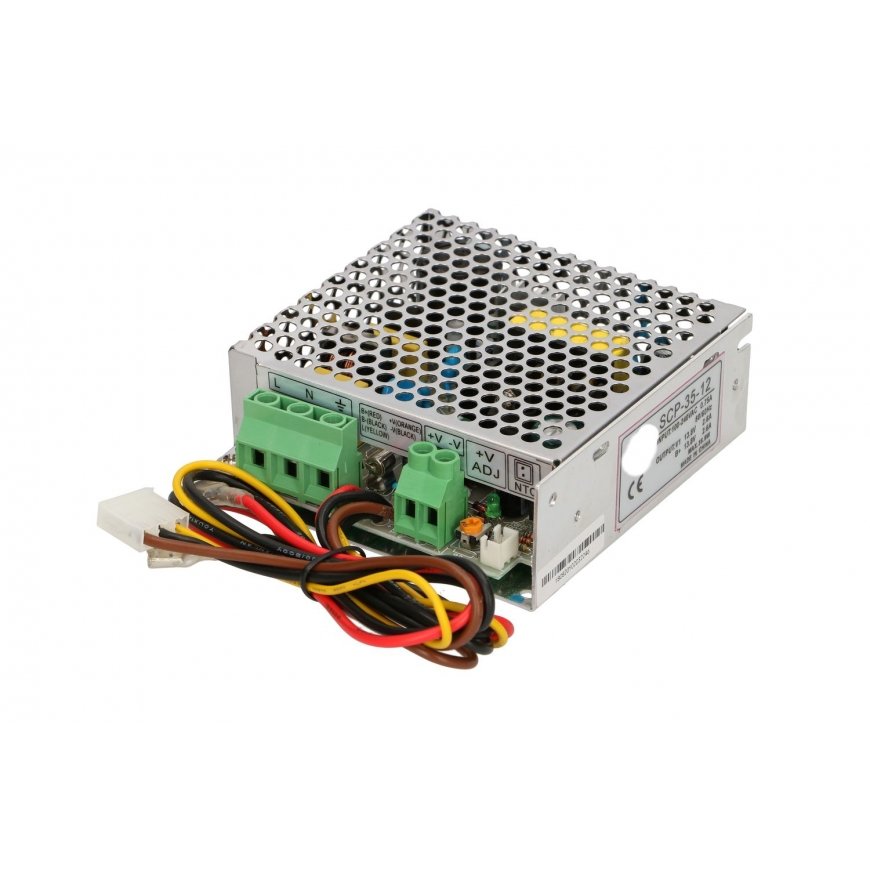

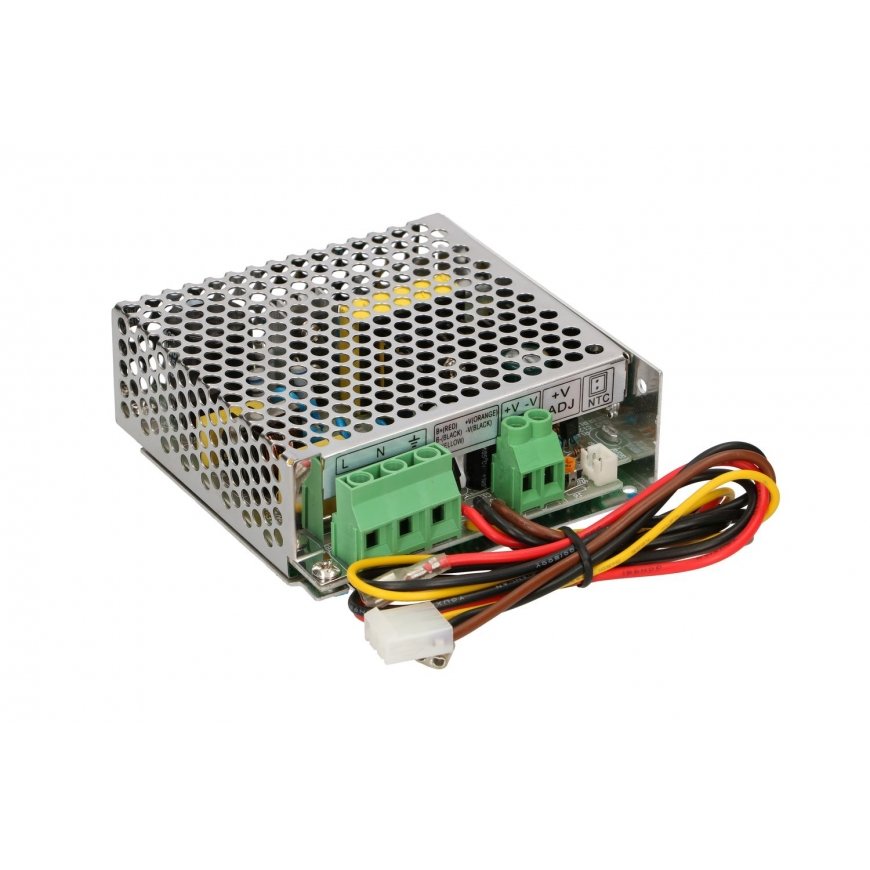

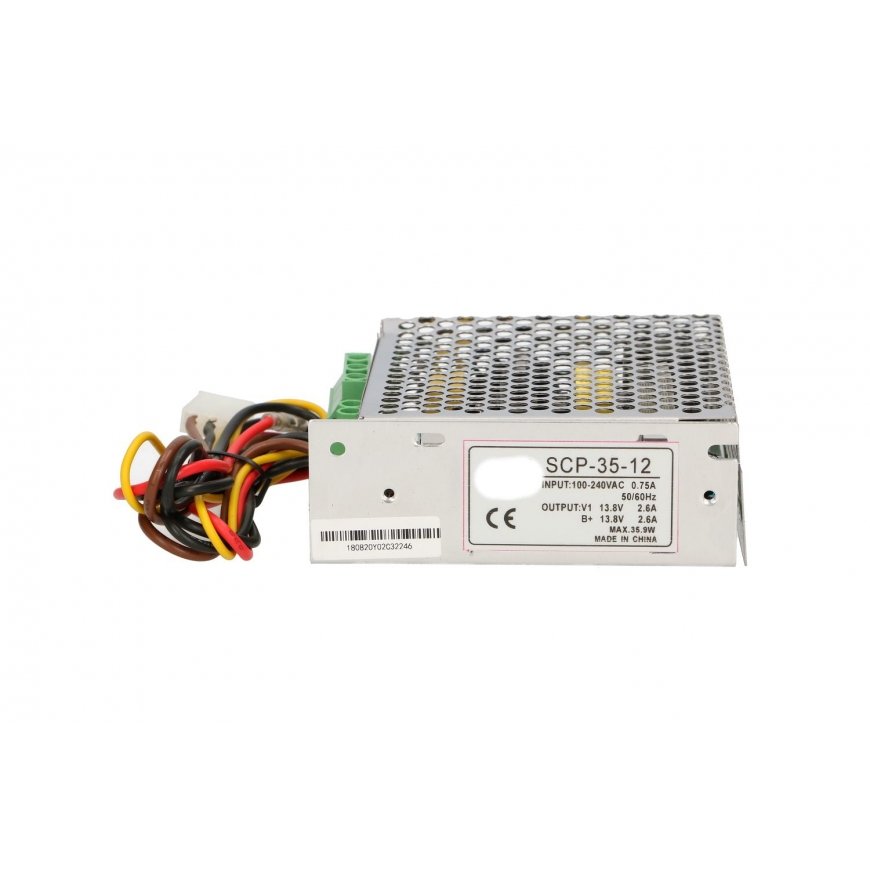

Extralink Power supply SCP-35-12 13,8V, 35W
79.00 €
Monthly payment from 2,93 €
2200181 EX.14541
5903148914541
Shipping 4-5 b.d.
You are interested in this product?
All about the product

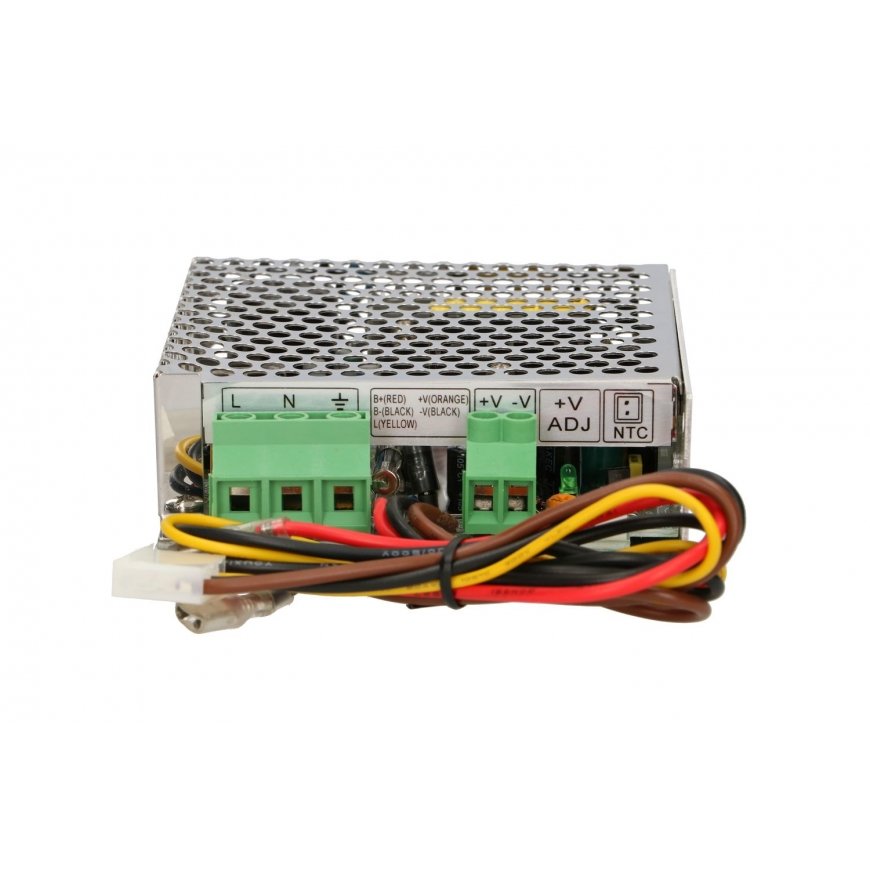

The buffer power supply is an electrical device that converts 230V mains voltage into DC voltage. Its specificity is that we can connect an external battery to it, from which energy will be drawn in case of a 230V power outage, so as to ensure the continuity of the receiving device.The perforated metal casing facilitates the airflow, which results in more efficient cooling of the device. The screw terminals are marked accordingly and are used to connect the cable entries in accordance with electrical principles. The installer can adjust the output voltage within a certain range using a potentiometer.
Design | |
| Product colour | Grey |
| Housing material | Metal |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions | |
| Width | 99 mm |
| Depth | 97 mm |
| Height | 38 mm |
| Weight | 400 g |
Packaging data | |
| Package width | 220 mm |
| Package depth | 240 mm |
| Package height | 160 mm |
| Package weight | 4.8 kg |
| Package type | Box |
Packaging content | |
| Batteries included | No |
