The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

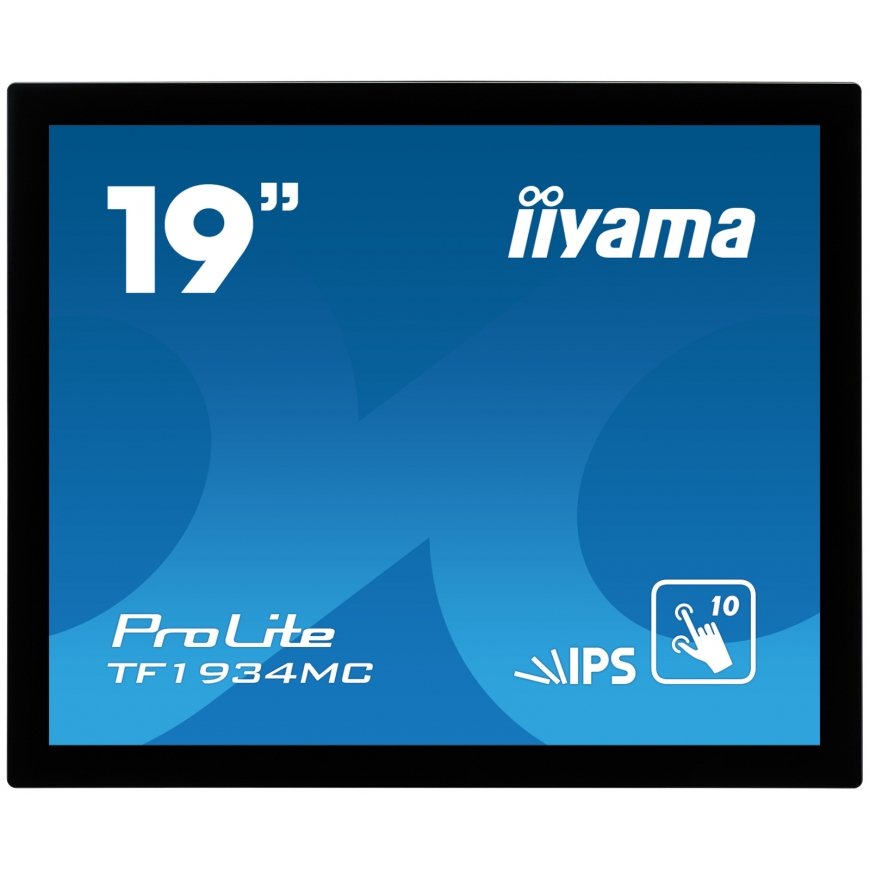

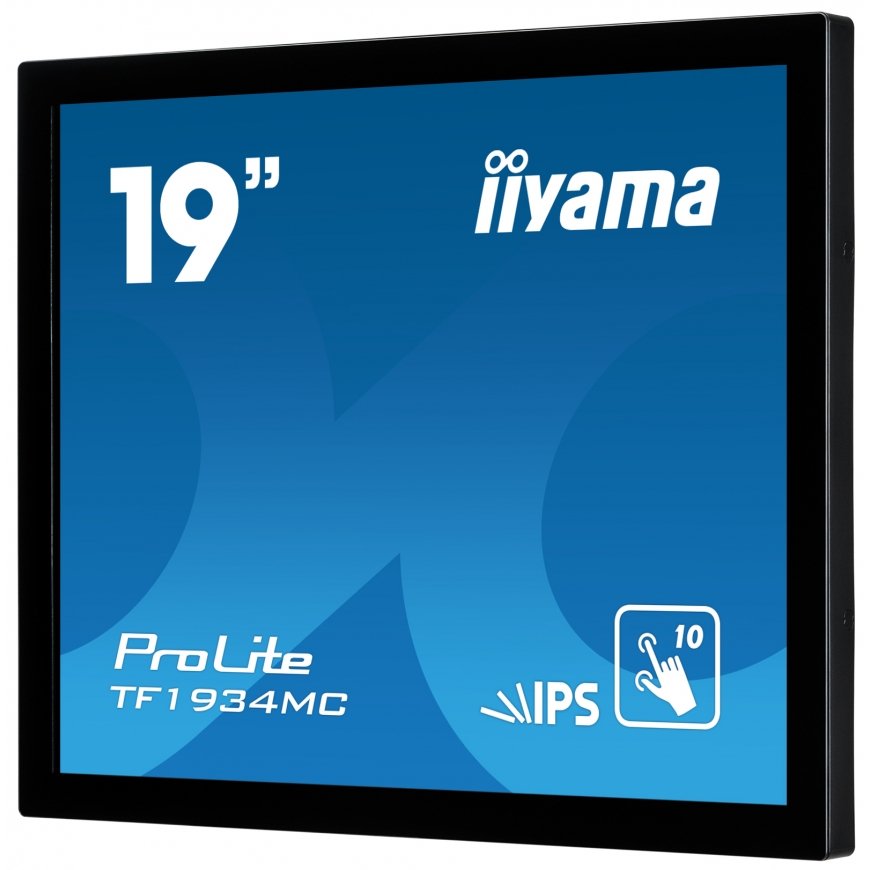

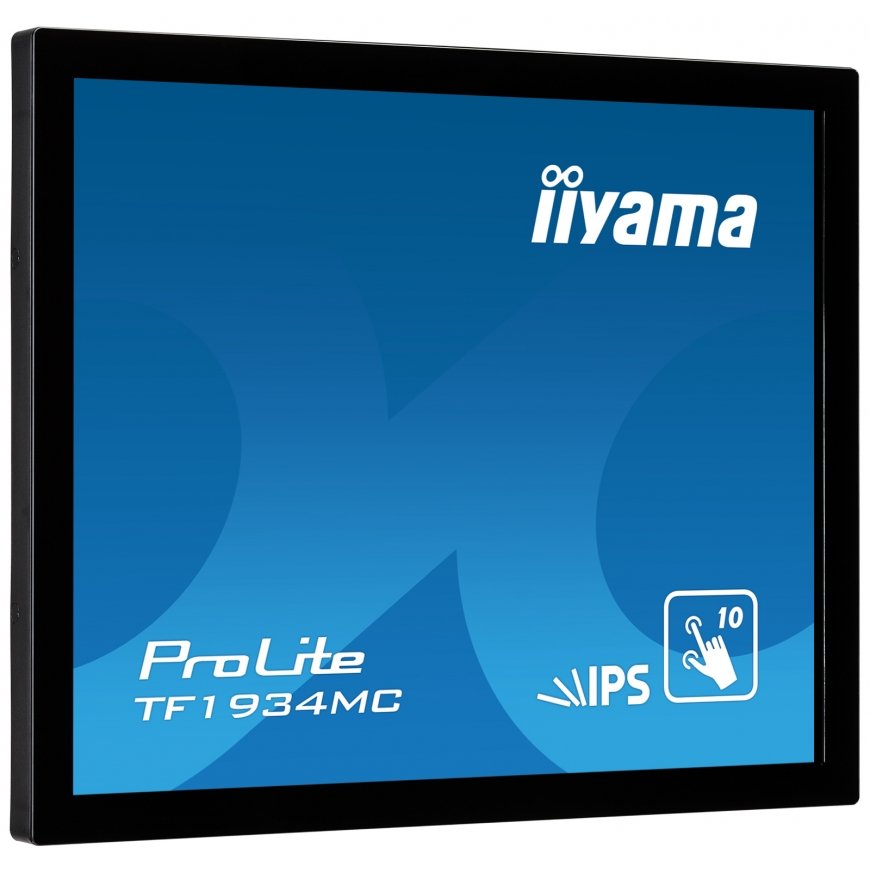

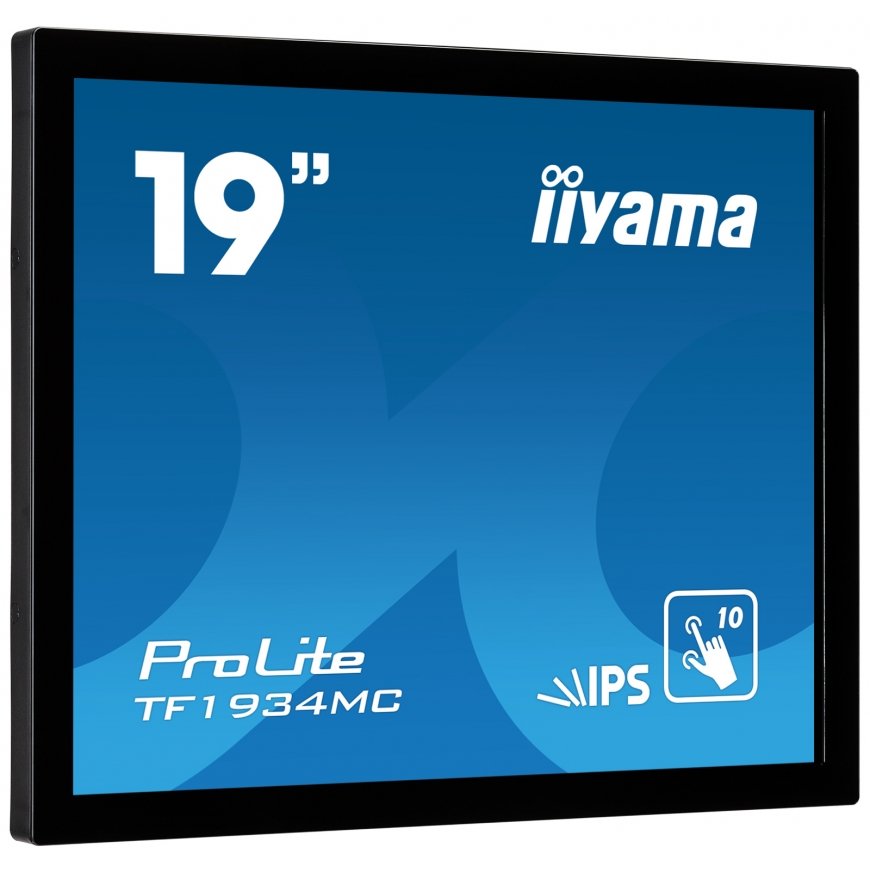

iiyama ProLite TF1934MC-B7X computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Touchscreen Black
2186022 TF1934MC-B7X
4948570118403
2026-07-28
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
| Display diagonal | 48.3 cm (19") |
| HD type | SXGA |
| Display resolution | 1280 x 1024 pixels |
| Screen shape | Flat |
| Native aspect ratio | 5:4 |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| HDMI ports quantity | 1 |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Width (with stand) | 416 mm |
| Depth (with stand) | 46.5 mm |
| Height (with stand) | 344 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 416 mm |
| Depth (without stand) | 46.5 mm |
| Height (without stand) | 344 mm |
| Weight (without stand) | 4.4 kg |
| Touchscreen | Yes |
| Display number of colours | 16.7 million colours |
| International Protection (IP) code | IP65 |
| Package width | 16.4 mm |
| Package depth | 16.4 mm |
| Package height | 13.5 mm |
| Power consumption (off) | 1.5 W |
| Quick start guide | Yes |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
| Power consumption (typical) | 21 W |
| Energy efficiency scale | A to G |
| Display technology | LED |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 48 cm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | German; English; Spanish; French; Italian; Japanese |
| LED backlight | Yes |
| Wall mountable | Yes |
| HDCP | Yes |
| Power consumption (standby) | 1.5 W |
| Display brightness | 350 cd/m² |
| Built-in microphone | No |
| Power supply type | External |
| Backlight type | LED |
| VGA (D-Sub) ports quantity | 1 |
| Contrast ratio (dynamic) | 1000:1 |
| Panel type | IPS |
| Display brightness (typical) | 350 cd/m² |
| Aspect ratio | 5:4 |
| Pixel pitch | 0.294 x 0.294 mm |
| HDMI | Yes |
| DisplayPorts quantity | 1 |
| Harmonized System (HS) code | 85285210 |
| Response time | 14 ms |
| Built-in camera | No |
| Touchscreen technology | Projected capacitive system |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Horizontal scan range | 31.4 - 80 kHz |
| AC adapter output voltage | 12 V |
| Glass thickness | 6 mm |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display viewable area (HxV) | 376.5 x 301.1 mm |
| USB Touch port | Yes |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Connection to PC | Yes |
| Front bezel colour | Black |
| Viewable size diagonal | 48 cm |
| European Product Registry for Energy Labelling (EPREL) code | 392527 |
| Response time measurement type | GTG (Gray to Gray) |
