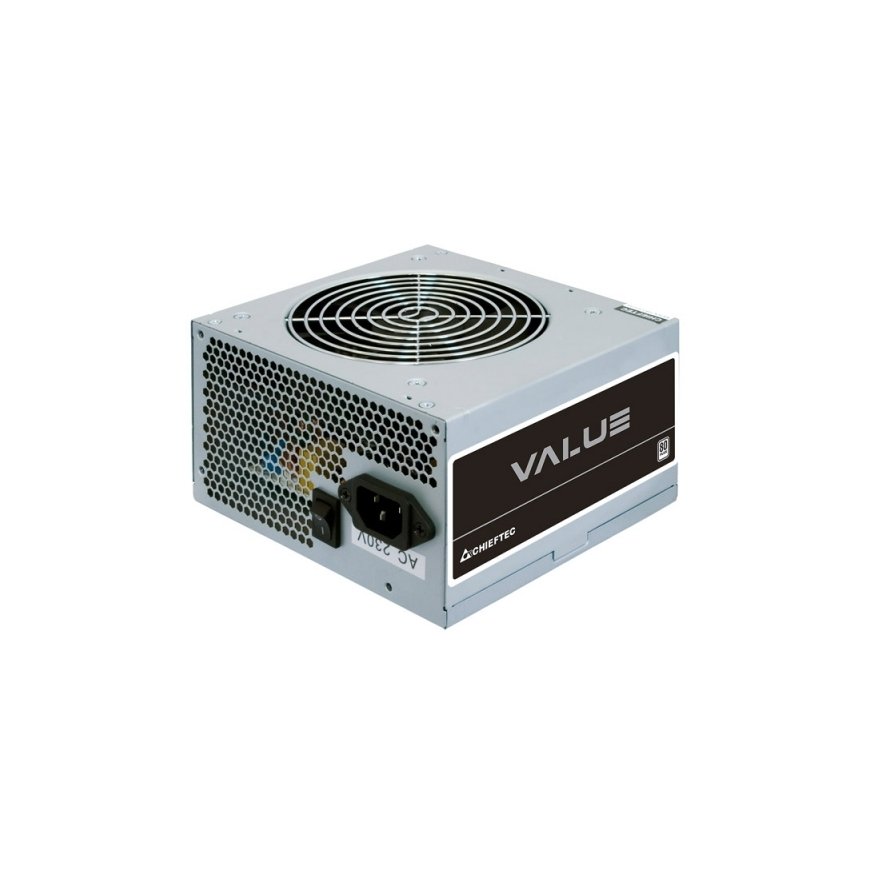

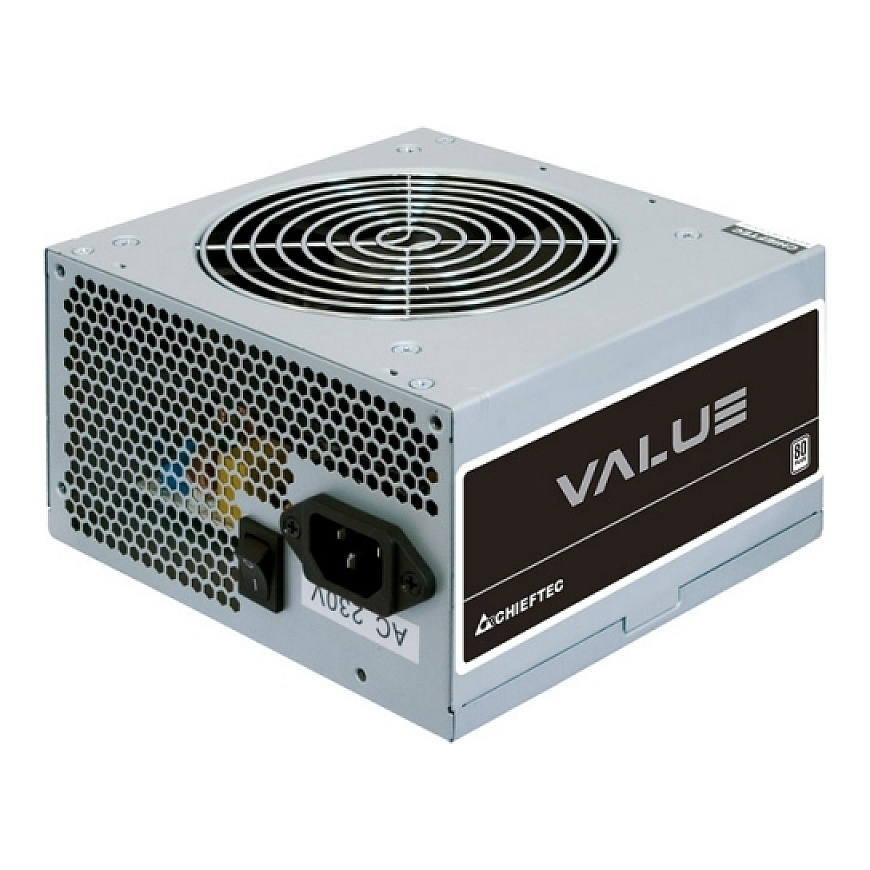

Chieftec Value APB-600B8 power supply unit 600 W 20+4 pin ATX ATX Steel
41,58 €
Monthly payment from 1.97 €
2185133 APB-600B8
0753263077813
Shipping 2-3 b.d.
You are interested in this product?
Power | |
| Peak power | 600 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 552 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+12V1) | 46 A |
| Maximum input current (@220V) | 4.5 A |
| Total power | 600 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Steel |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 4 |
| EPS power connector (8-pin) | No |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 500, 150 |
| Peripheral (Molex) power cable length | 150, 500 |
| Floppy disk drive cable length | 15 cm |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Weight | 1.42 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
Packaging data | |
| Package weight | 1.56 kg |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Compliance certificates | CE, RoHS |
