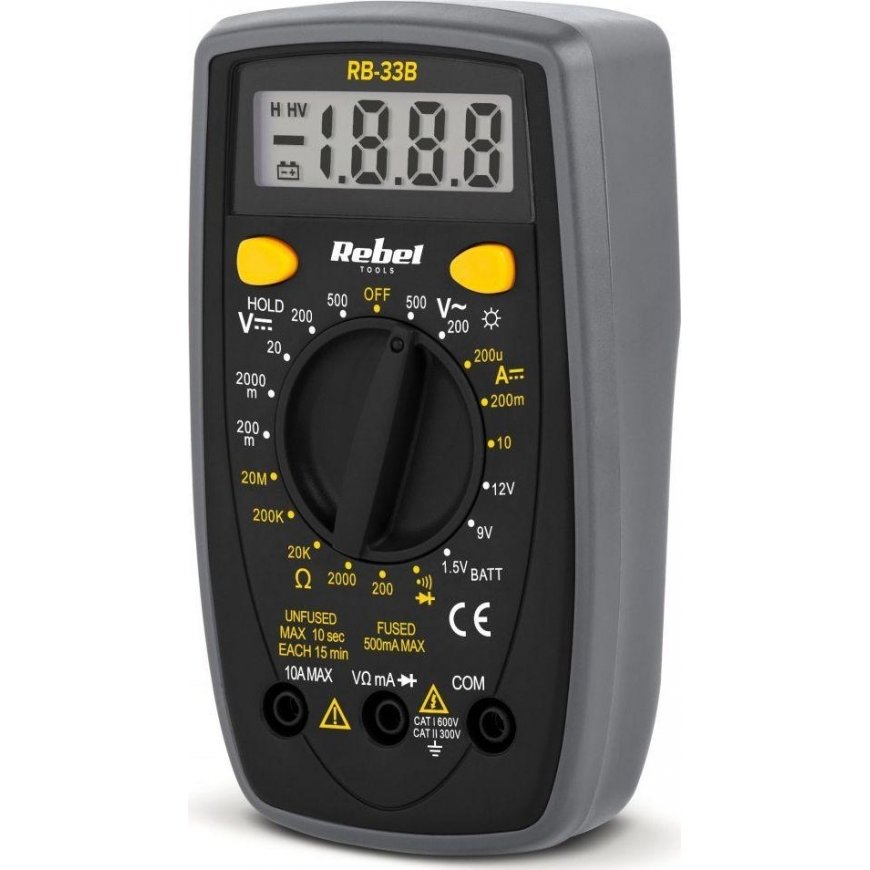

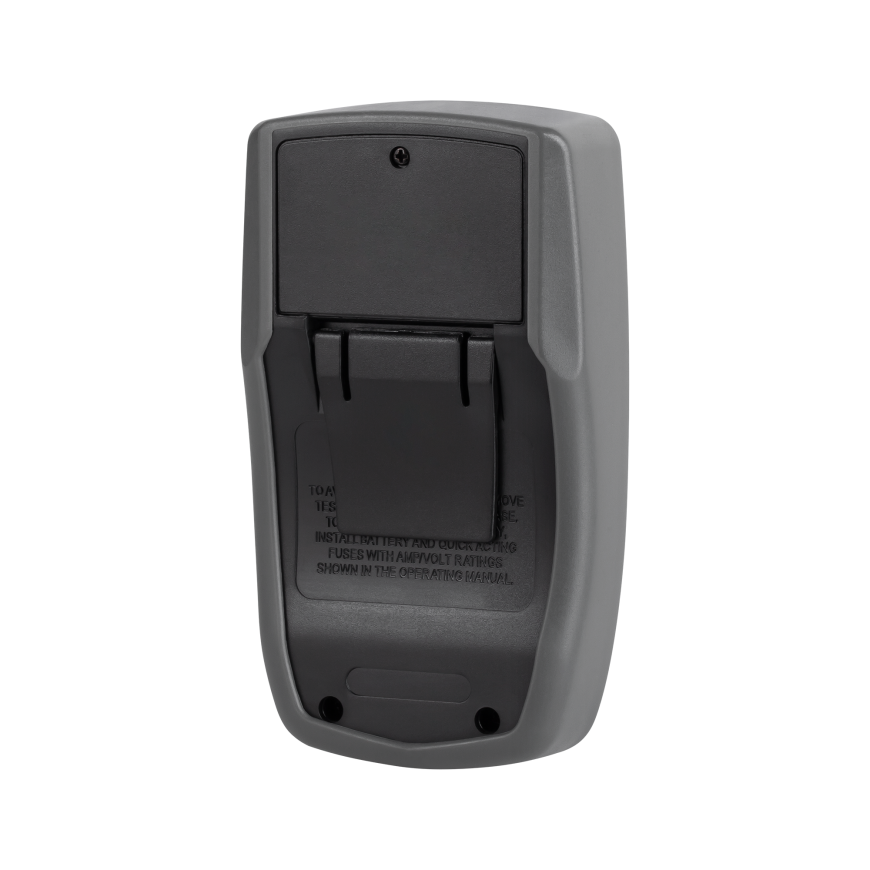

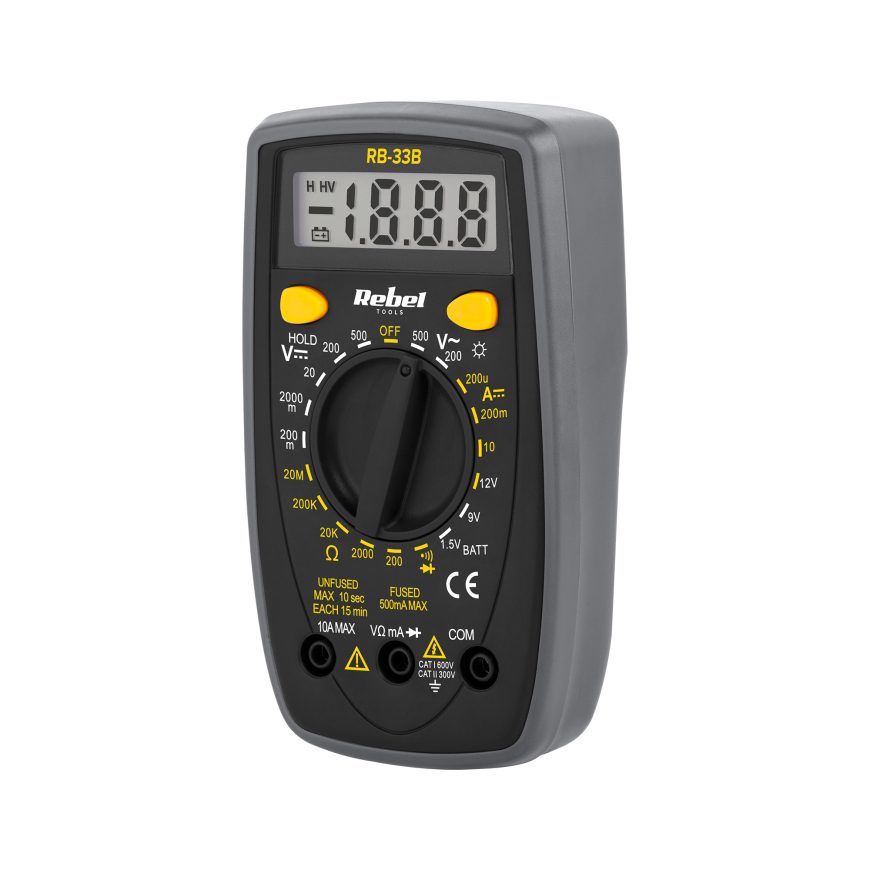

Universal multimeter Rebel RB-33B
18.08 €
2181730 MIE-RB-33B
5901890059060
Shipping 11-16 b.d.
You are interested in this product?
All about the product
The Rebel Meter RB-33B is an easy-to-use instrument that allows you to measure DC voltage, AC voltage and resistance. They also include features that allow the meter to be used as a circuit continuity tester, battery tester, and diode tester. The meter has a large black knob for manual setting of measurement ranges. The device is also equipped with a Data HOLD function.
Specification:
- Illuminated screen
- Manual change of measurement ranges

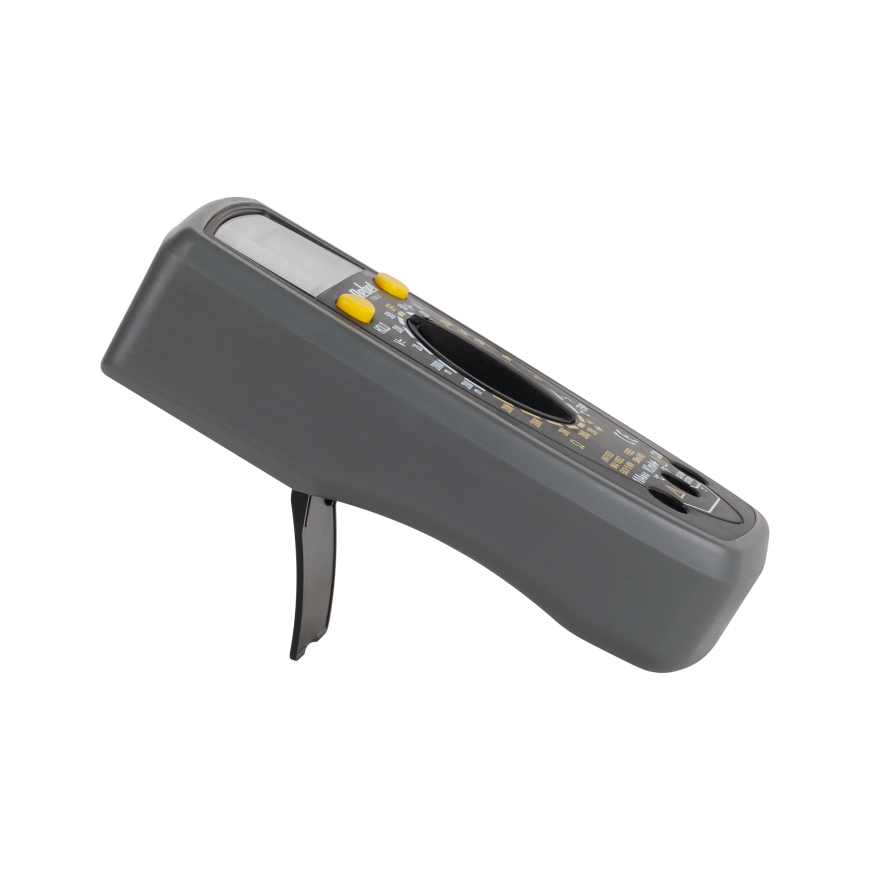

- Folding stand
- Freezes the last reading
- Low battery indicator
- Polarization: automatic
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Screen size: 45x21mm
- Operating temperature: 0°C ~ 40° when humidity <80%
- Storage temperature: -10° ~ 50°C when humidity <85%
- Power supply: 9V battery
- Dimensions: 160x76x32mm
- Weight: 150g

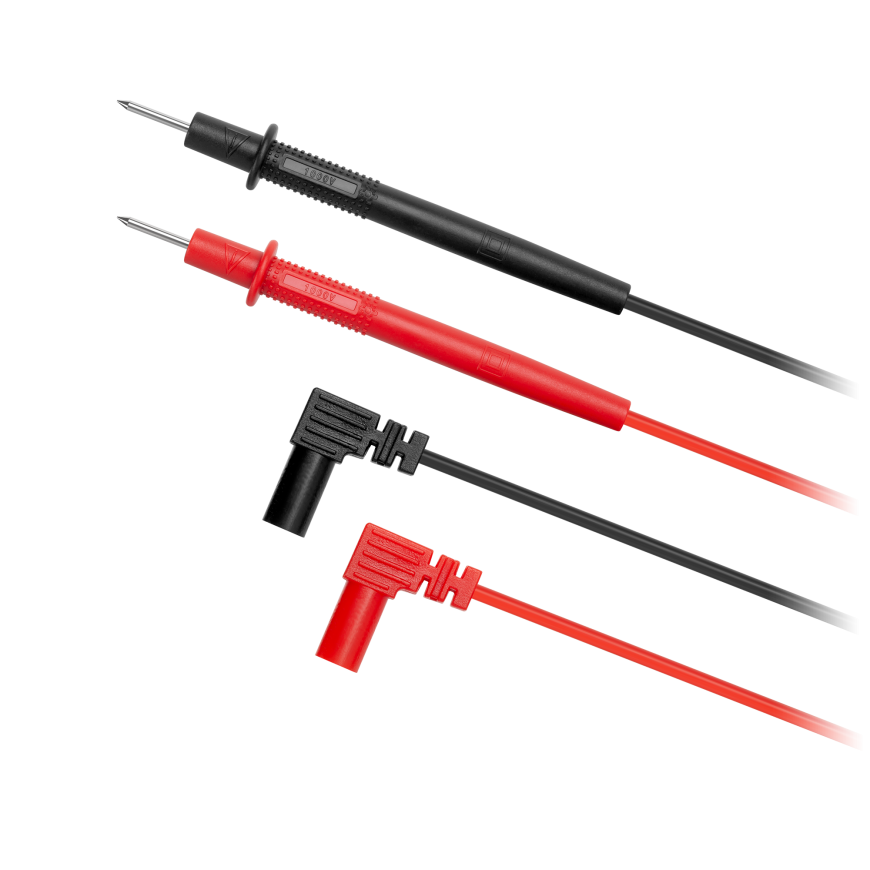

- In the set: meter, measuring cables, instructions
MEASUREMENT RANGES:
- DC voltage: 200mV, 2000mV, 20V, 200V, 500V
- AC voltage: 200V, 500V
- Continuous current: 200 µA, 200 mA, 10 A
- Resistance: 200 ohms, 2000 ohms, 20 kOhm, 200 kOhm, 20 MOhm
- Battery test: 1.5V, 9V
- Diode test
- Continuity check
