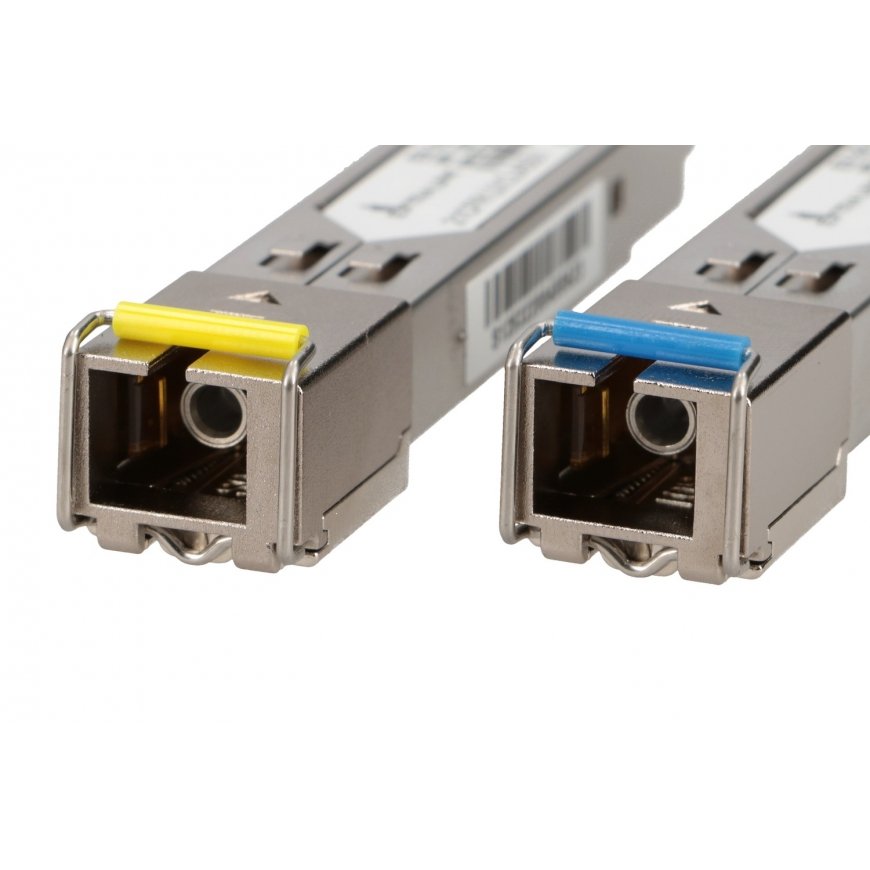

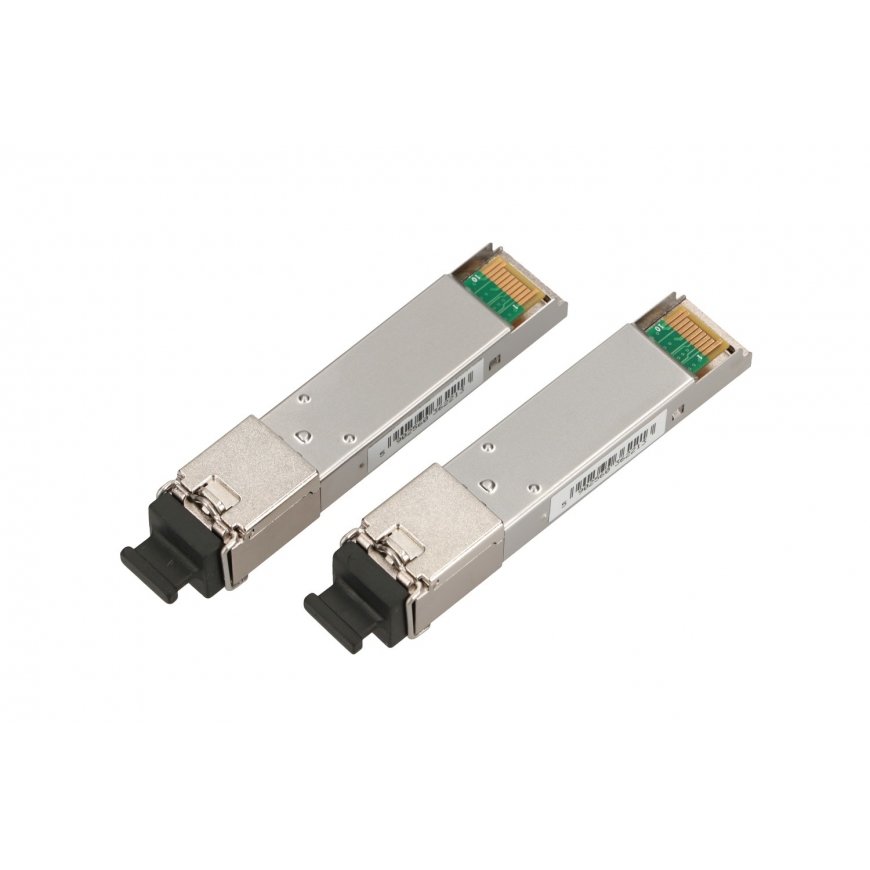

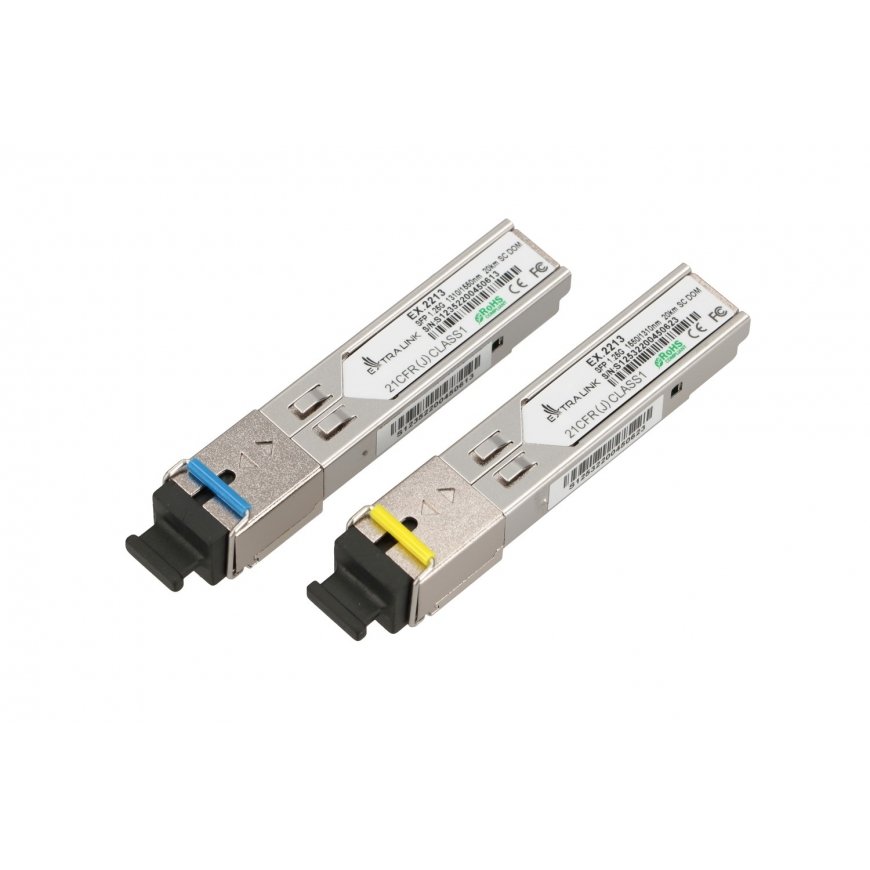

Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair – 2
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair – 3
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair
Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair

69.01 €
Monthly payment from 2,68 €
2166826

EX.2213

5902560362213

Shipping 4-5 b.d.

You are interested in this product?
(Read terms of service)

All about the product

SFP 1.25G WDM 1310/1550NM SM 20KM SC single-mode modules set
Bidirectional SFP modules are high-performance, cost-effective single-mode SFP modules supporting data transfer rates 1.25 Gbps/1.0625 Gbps and transmission ranges up to 20 km with SMF. The fiber optic SFP module consists of three sections, i.e. FP laser transmitter, PIN photodiode integrated with transimpedance preamplifier (TIA) and MCU control unit. All SFP optical modules meet Class I laser safety requirements. The bidirectional SFP 1.25G SFP modules comply with SONET OC-24-LR-1 and the RoHS directive.

SFP fiber optic inserts for wide applications
Pair of SFP 1.25G WDM 1310/1550NM SM 20KM SC modules can be used in Gigabit Ethernet, fiber optic channels, switch-to-switch interfaces, switched backplane applications, router/server interfaces and other optical transmission systems.
Design
Product colour Silver
Weight & dimensions
Weight 51 g
Packaging data
Package weight 12.8 kg
Package type Box
Package height 230 mm
Package width 355 mm
Package depth 440 mm
Other features
Package volume 0.14 cm³
Logistics data
Quantity per pack 250 pc(s)
