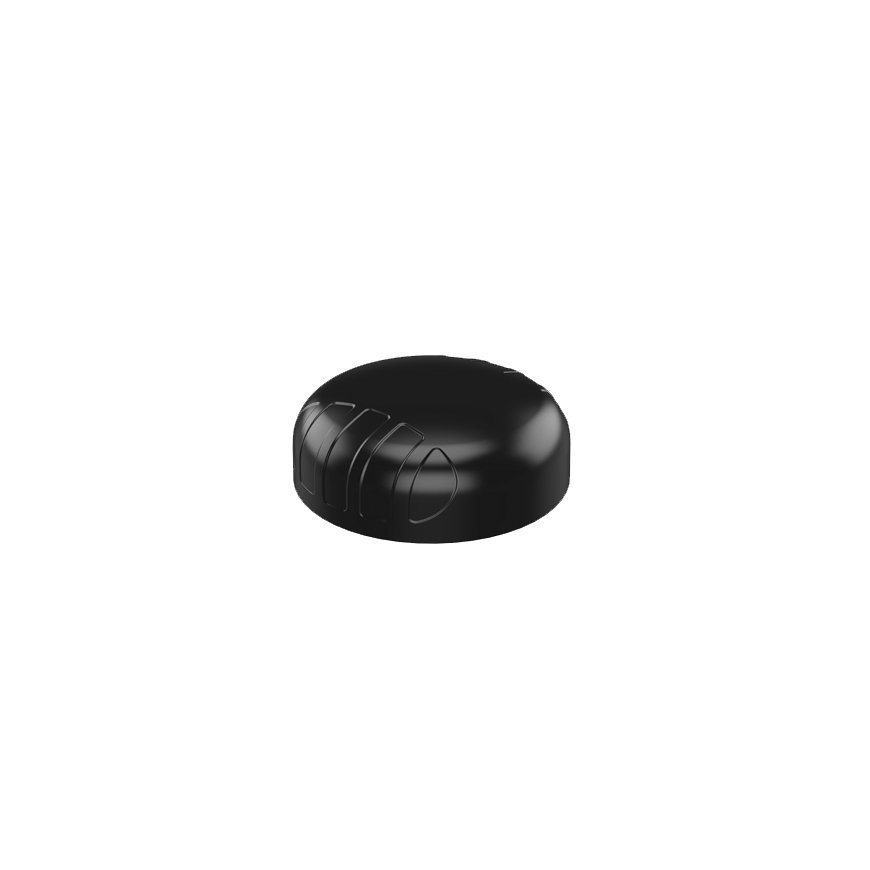

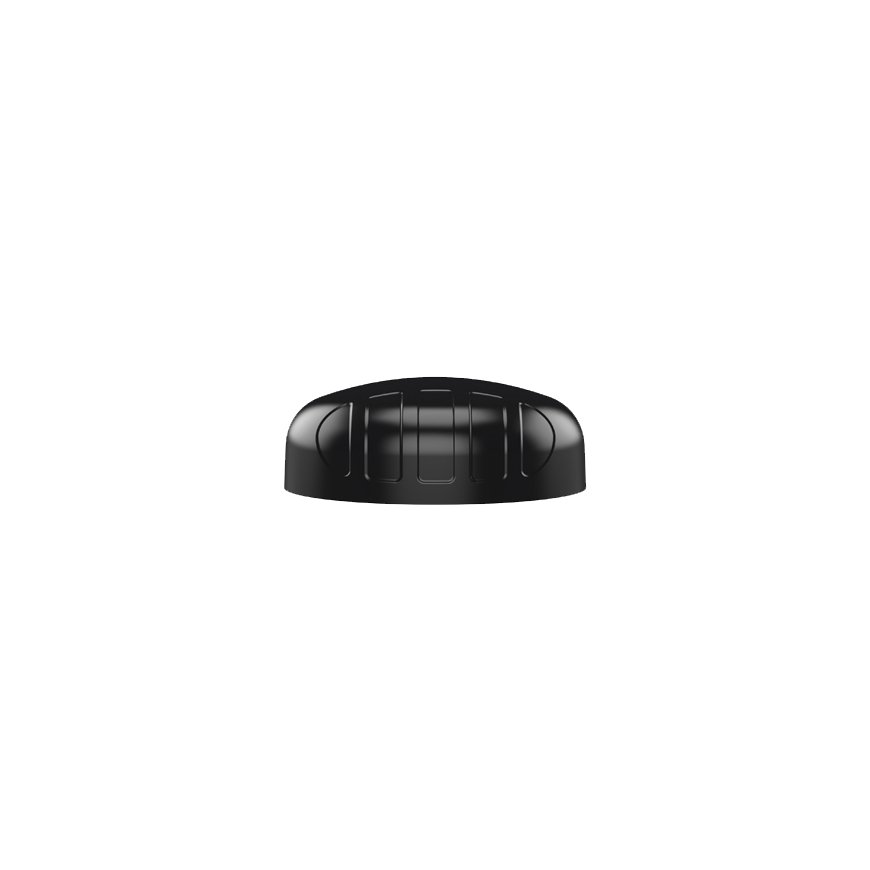

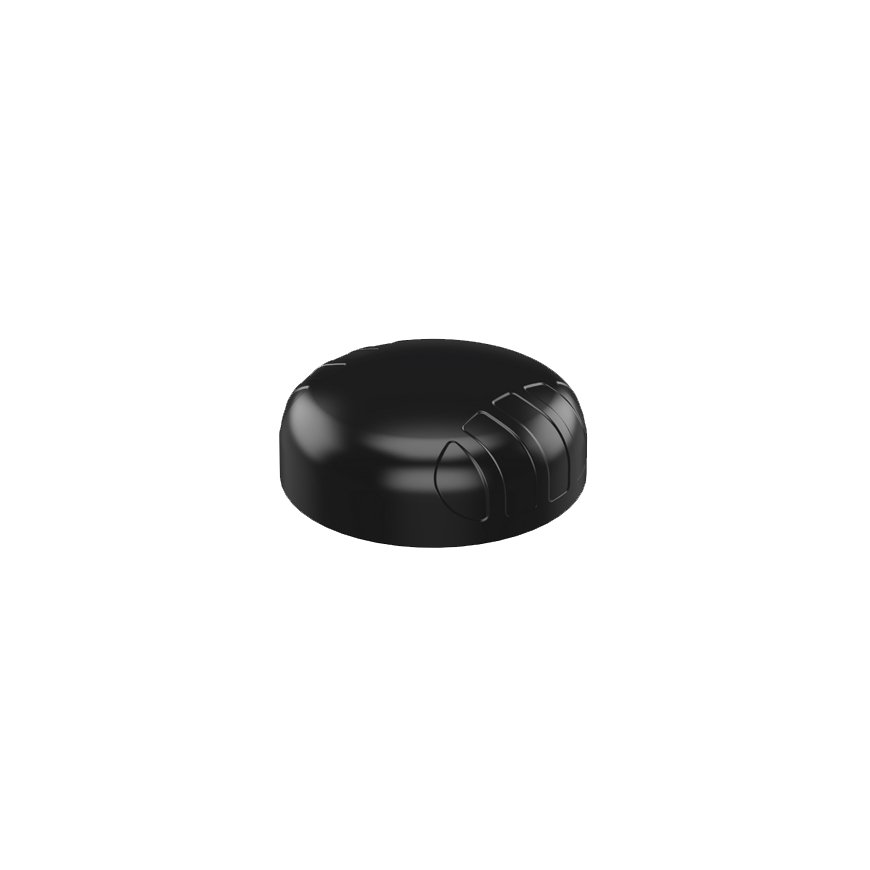

Poynting A-PUCK-0007-V1-01 network antenna Omni-directional antenna 7.5 dBi
159.01 €
Monthly payment from 4,99 €
2149151 A-PUCK-0007-V1-01
6009710920497
Shipping 8-11 b.d.
You are interested in this product?
All about the product
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-7 consists of a 4-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE and 2×2 MIMO Wi-Fi (Dual-band 2.4 GHz & 5 GHz). The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 698 MHz to 3800 MHz band, this includes the most popular international LTE bands. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4 GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2×2 MIMO. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.Features
| Product colour | Black |
| International Protection (IP) code | IP68 |
| Cable length | 2 m |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 120 mm |
| Package weight | 607 g |
| Cable type | RTK-031 |
| Antenna type | Omni-directional antenna |
| Antenna gain level (max) | 7.5 dBi |
| Bandwidth note | 698-960, 710-2700, 3400-3800 MHz |
