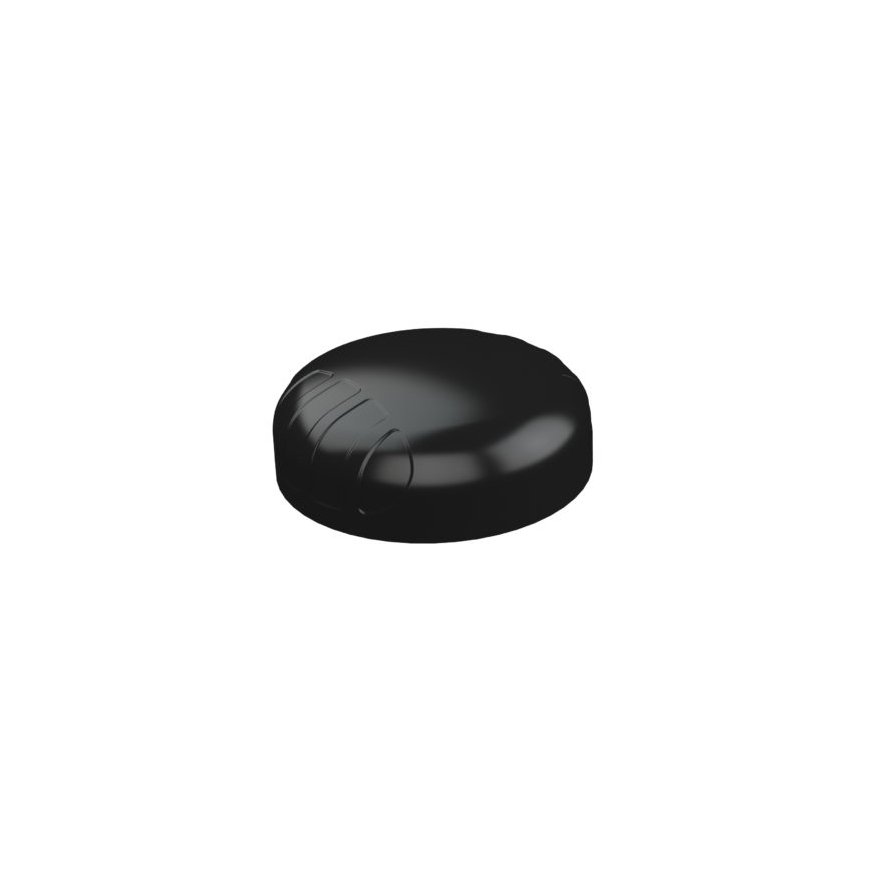

Poynting A-PUCK-0012-V1-01 network antenna MIMO directional antenna SMA 7 dBi
109,00 €
98.92 €
Monthly payment from 3,45 €
2145853 A-PUCK-0012-V1-01
6009880915248
Shipping 8-11 b.d.
You are interested in this product?
All about the product
Poynting’s PUCK-12 antenna offers a small profile antenna for use in the IoT/M2M markets. This 2×2 MIMO Wi-Fi (Dualband 2.4GHz & 5GHz) antenna design helps to make implementation as simple as possible with its many mounting options. Due to excellence in engineering and a solid design, this antenna provides exceptional performance for its small size.The antenna provides 2x dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna, capable of 802.11n, 802.11ac and the new 802.11ax with 2×2 MIMO.

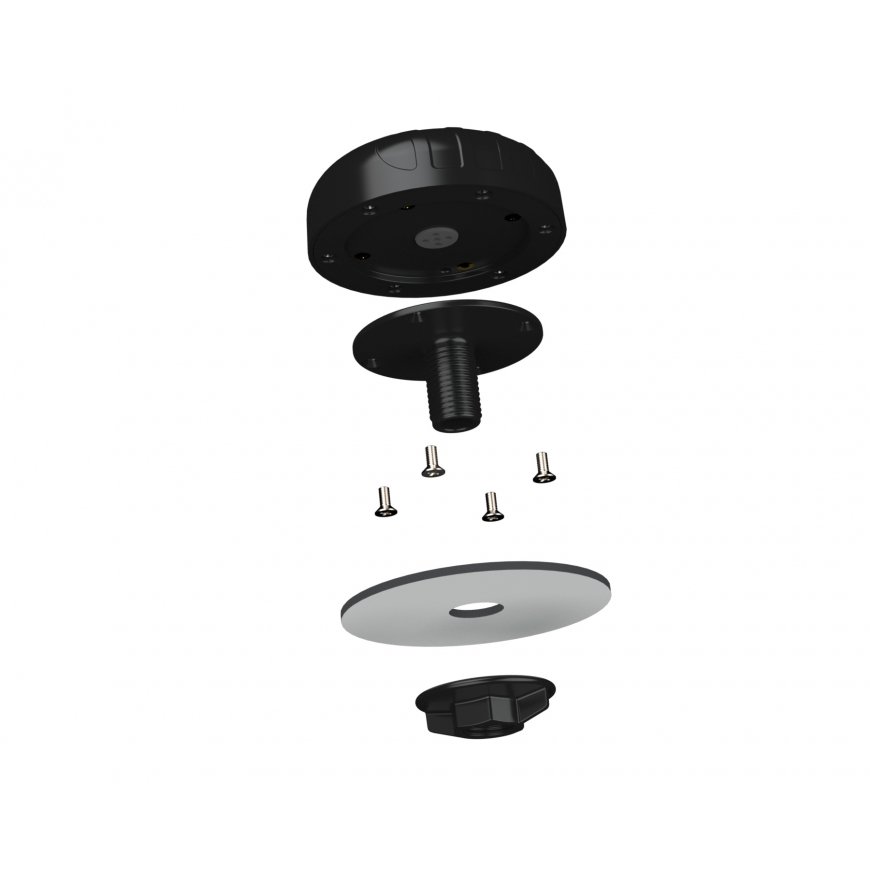

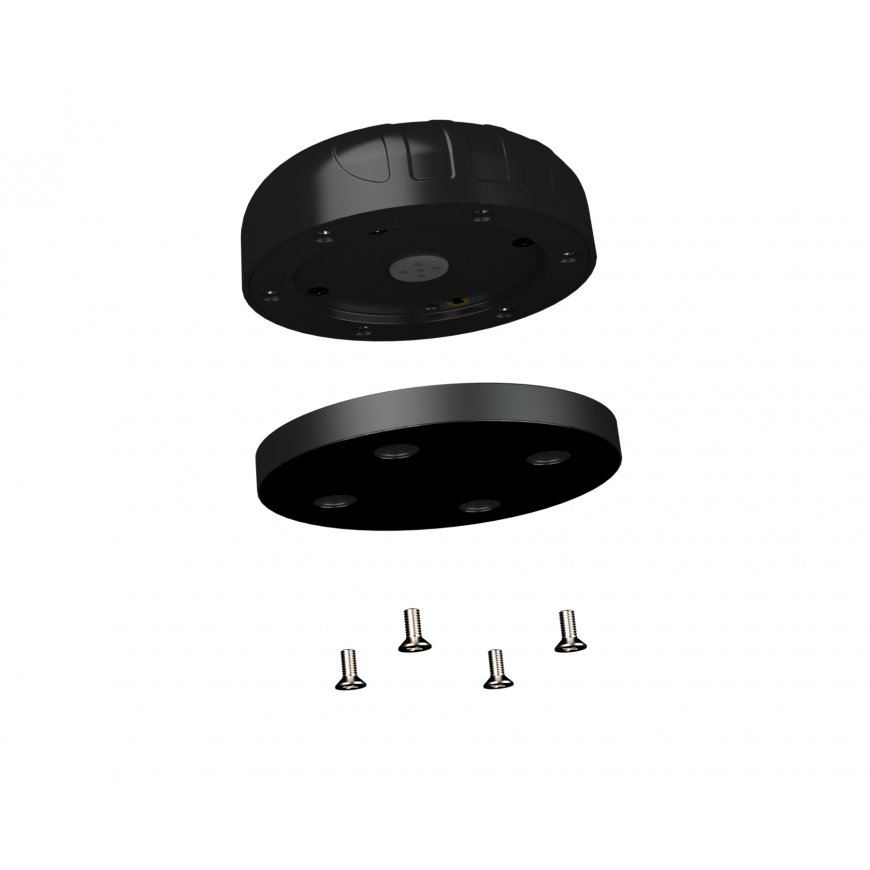

Poynting’s new PUCK antenna range provides easy installation with the multiple mounting options. This includes as standard:
- Spigot Mount – two different lengths included (40mm & 80mm)

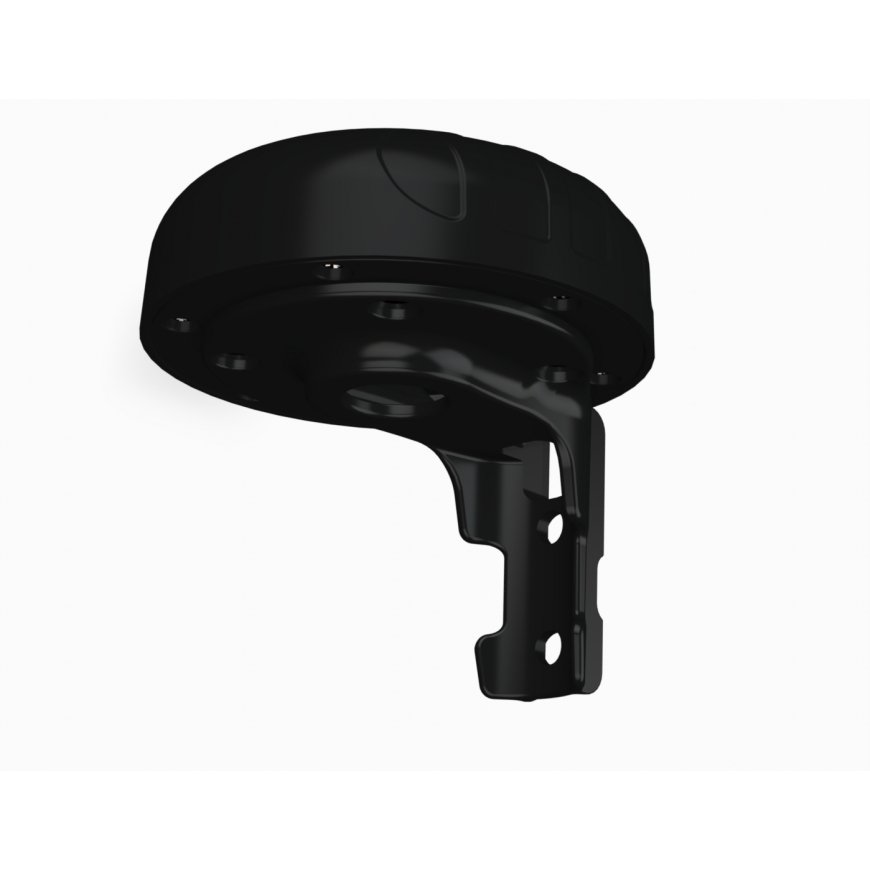

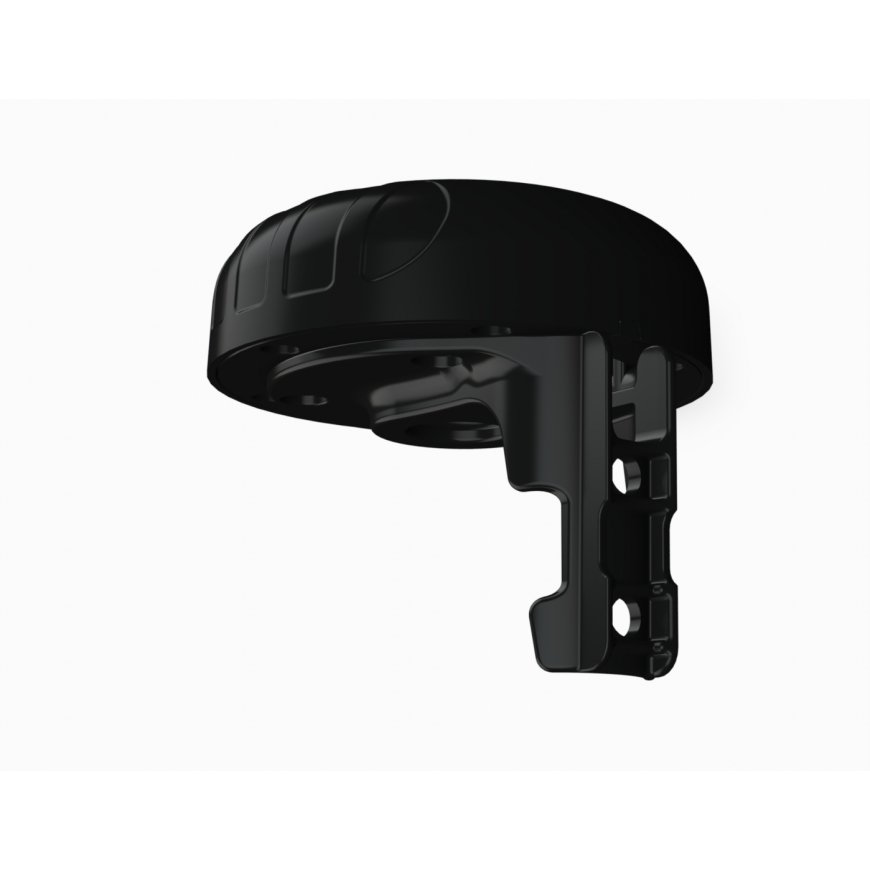

- Vertical Pole mount (inner & outer mounting for smaller and larger poles)
- Horizontal Pole Mount (e.g. marine rails)
- Magnetic Mount
- Surface Mount (Double Sided Tape)
- Wall Mount
Features
| Product colour | Black |
| International Protection (IP) code | IP68 |
| Weight | 376 g |
| Height | 36 mm |
| Cable length | 2 m |
| Quantity per pack | 1 pc(s) |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 120 mm |
| Package weight | 507 g |
| Sustainability certificates | RoHS |
| Cable type | RTK-031 |
| Connector gender | Male |
| Purpose | Indoor & outdoor |
| Certification | CE, EN, CSA, IEC |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Housing material | Akrüülnitriil butadieen stüreen (ABS) |
| Impedance | 50 Ω |
| Frequency band | 2.4 - 2.5/5 - 6 GHz |
| Antenna type | MIMO directional antenna |
| Storage relative humidity (H-H) | 5 - 95% |
| Mounting kit | Yes |
| Diameter | 9.93 cm |
| Antenna gain level (max) | 7 dBi |
| Antenna connector type | SMA |
| Polarization | Linear polarization |
| Survival wind speed | 220 km/h |
| Power handling | 10 W |
| Compliance certificates | RoHS |
