The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

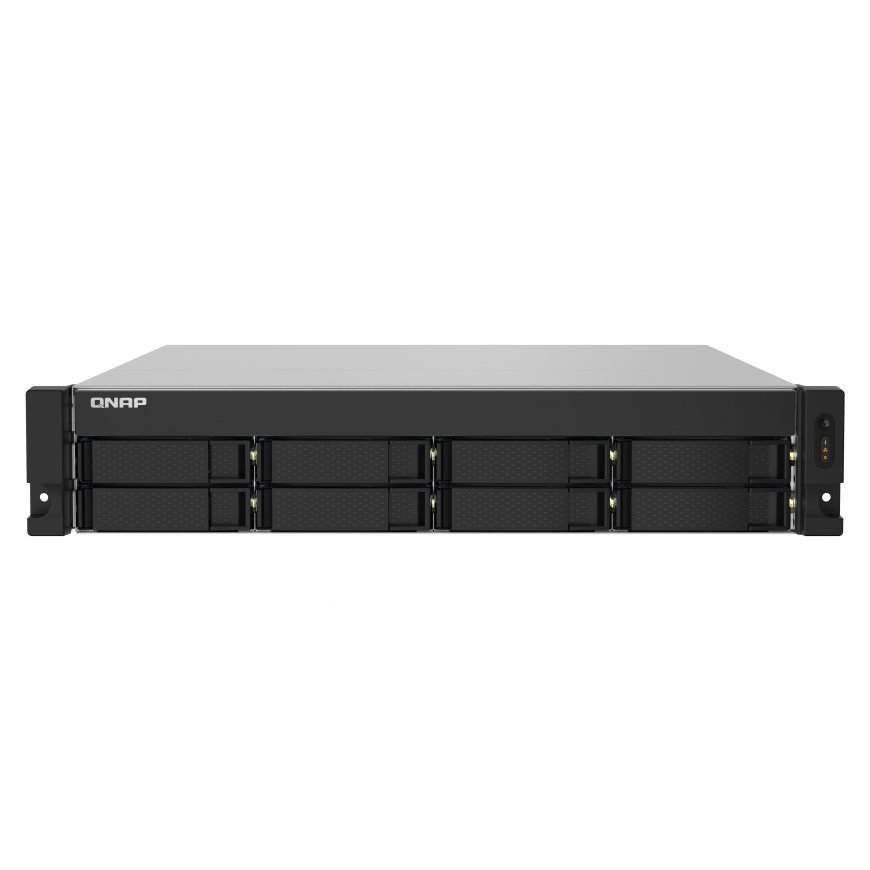

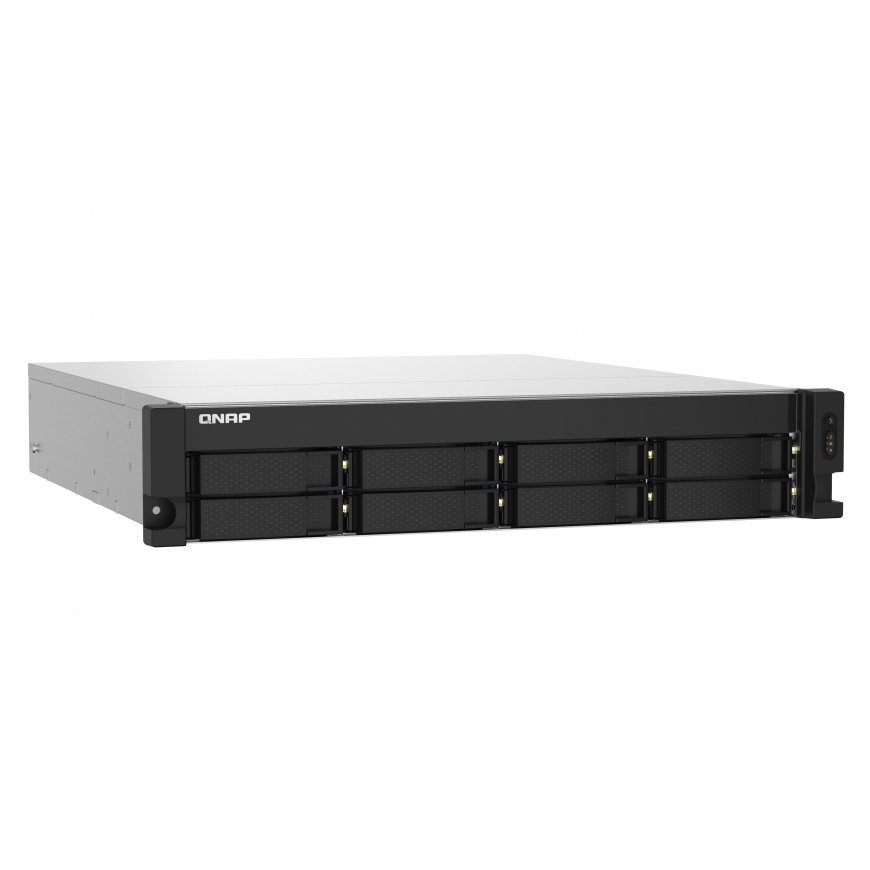

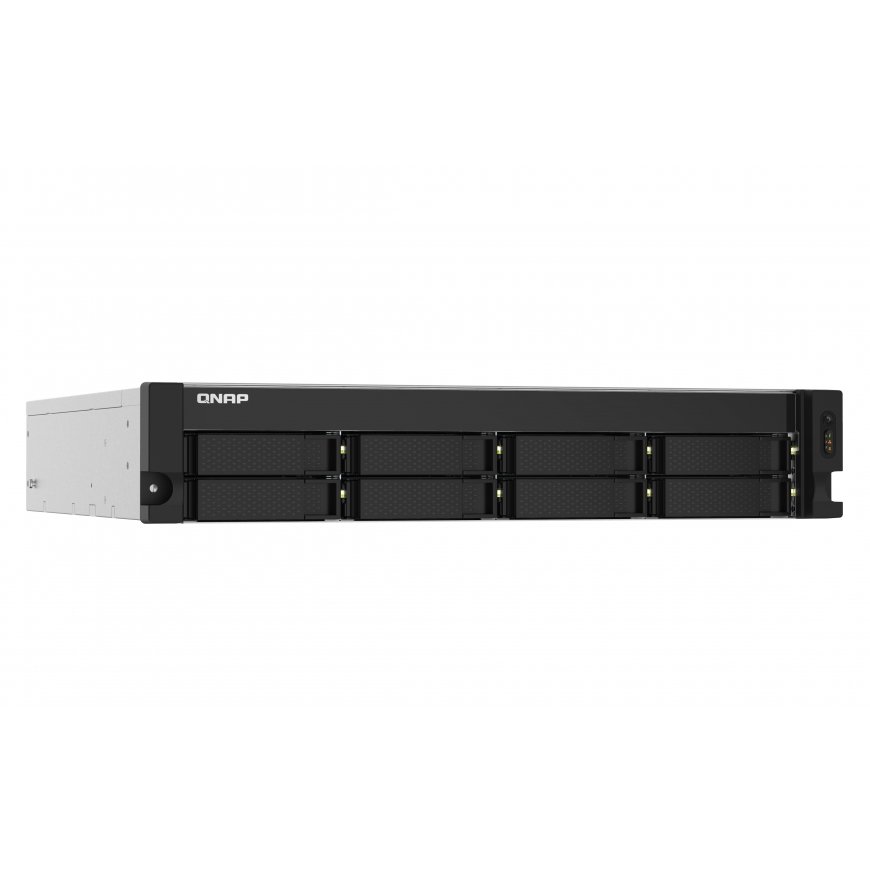

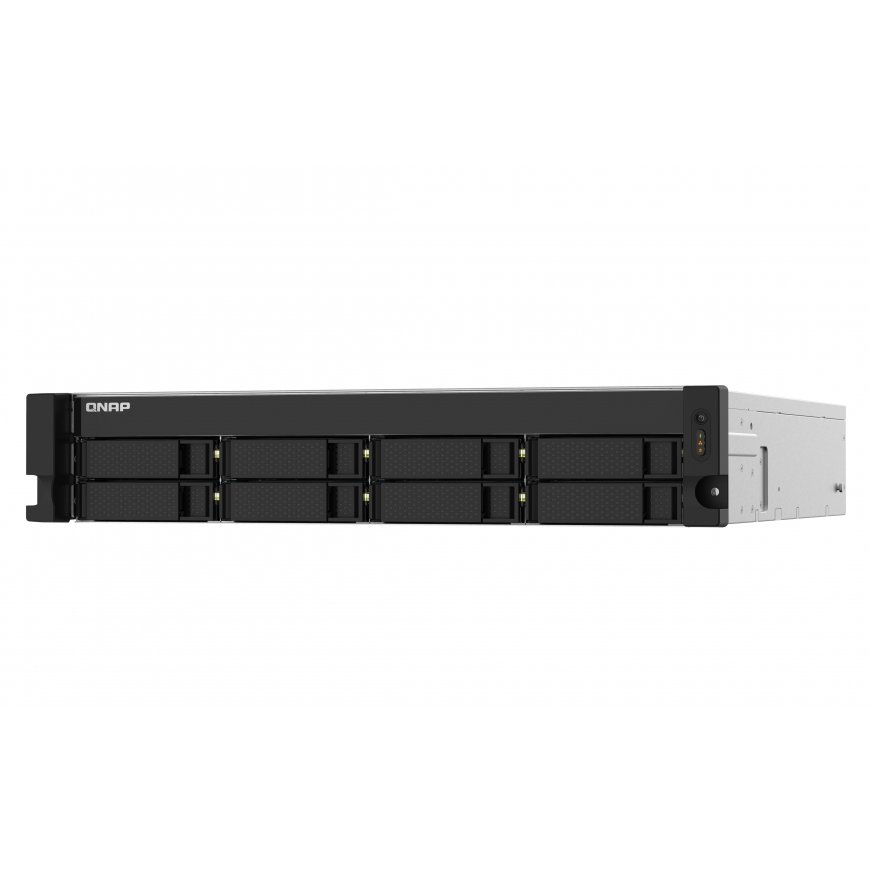

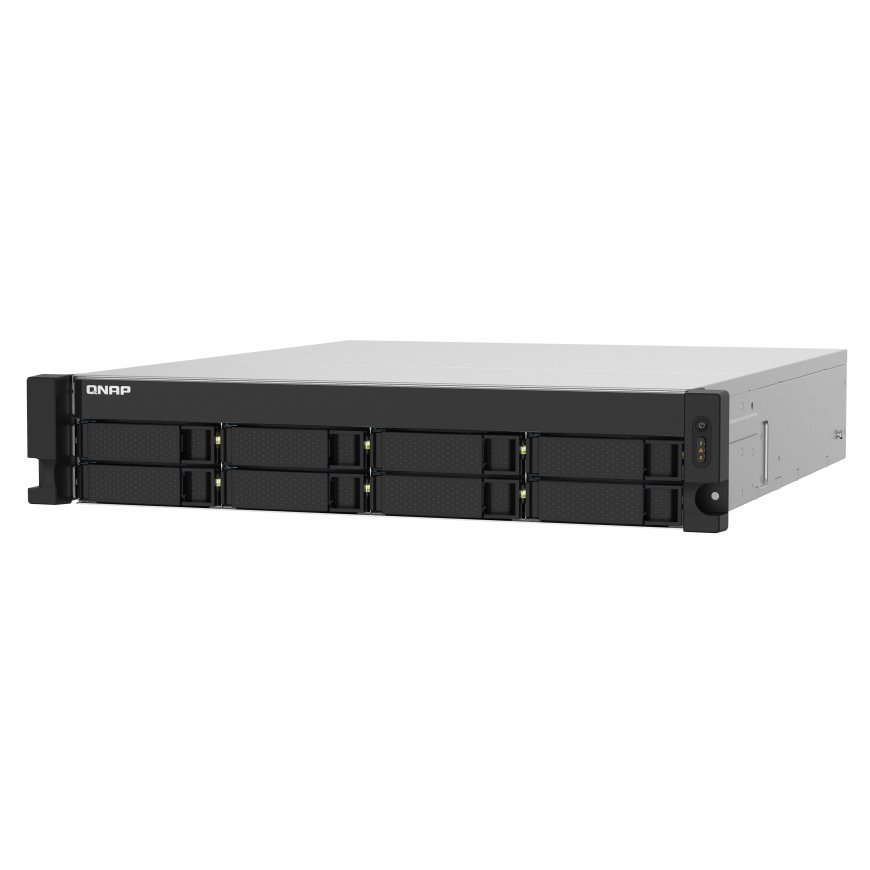

QNAP TS-832PXU NAS Rack (2U) Annapurna Labs AL324 4 GB DDR4 0 TB QNAP Turbo System Aluminium, Black
2145827 TS-832PXU-4G
0885022020171, 4713213518151
Shipping 4-6 b.d.
All about the product
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.
Features
| Operating system installed | QNAP Turbo System |
| Product colour | Black; Aluminium |
| Processor frequency | 1.7 GHz |
| Processor family | Annapurna Labs |
| Processor model | AL324 |
| Processor cores | 4 |
| USB port | Yes |
| Weight | 9.45 kg |
| Width | 482 mm |
| Depth | 534 mm |
| Height | 89 mm |
| Cables included | AC; LAN (RJ-45) |
| Type | NAS |
| Package type | Box |
| Internal memory | 4 GB |
| Internal memory type | DDR4 |
| Memory form factor | UDIMM |
| Cooling type | Active |
| Package width | 560 mm |
| Package depth | 720 mm |
| Package height | 270 mm |
| Package weight | 12.7 kg |
| Windows operating systems supported | Windows 7; Windows 8; Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan; Mac OS X 10.12 Sierra; Mac OS X 10.14 Mojave; Mac OS X 10.13 High Sierra; Mac OS X 10.15 Catalina; Mac OS X 10.10 Yosemite |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 100; 1000; 2500; 10000 |
| LED indicators | Status; LAN; HDD |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 56.412 W |
| On/off switch | Yes |
| Fan diameter | 7 cm |
| Number of fans | 2 fan(s) |
| Noise level | 24.9 dB |
| Supported storage drive interfaces | Serial ATA II; Serial ATA III |
| Number of storage drives supported | 8 |
| Operating system version | 5.0.0 |
| Security algorithms | SSH; HTTPS; SNMP; 256-bit AES; FIPS 140-2 |
| Buzzer | Yes |
| Supported network protocols | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Number of screws | 56 |
| Linux operating systems supported | Ubuntu 14.04; CentOS 7.0; Solaris 10 U4; Solaris 10 U5; openSUSE 12.1; openSUSE 12.2 |
| Flash memory | 512 MB |
| Browser supported | Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome |
| Processor manufacturer | Annapurna Labs |
| Memory slots | 1 |
| Chassis type | Rack (2U) |
| Harmonized System (HS) code | 84714100 |
| Storage drive sizes supported | 2.5; 3.5 |
| Supported storage drive types | HDD & SSD |
| Reset button | Yes |
| Web-based management | Yes |
| Link aggregation | Yes |
| Jumbo frames support | Yes |
| Access Control List (ACL) | Yes |
| Fan voltage | 12 V |
| Dynamic DNS (DDNS) | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Number of storage drives installed | 0 |
| Server operating systems supported | Windows Server 2008 R2; Windows Server 2012; Windows Server 2012 R2; Windows Server 2016; Windows Server 2019 |
| Number of power supply units | 1 |
| RAID levels | 0; 1; 5; 6; 10; 50; 60; JBOD |
| S.M.A.R.T. support | Yes |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Wake-on-LAN ready | Yes |
| Load balancing system | Yes |
| Supported file systems | FAT32; NTFS; ext3; ext4; HFS+ |
| iSCSI support | Yes |
| RAID support | Yes |
| Storage drive interface | Serial ATA III |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Installed storage drive type | No |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud; iSCSI LUN |
| Power supply location | Built-in |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Maximum RAM supported | 16 GB |
| WLAN adapter supported | Yes |
| Multilingual support | Yes |
| Third-party support | Yes |
| Snapshot | Yes |
| Built-in FTP server | Yes |
| System log | Yes |
| Hot spare | Yes |
| USB copy function | Yes |
| Power supply unit (PSU) capacity | 250 W |
| Bad block scan | Yes |
| Disk scan | Yes |
| Warranty period | 3 year(s) |
