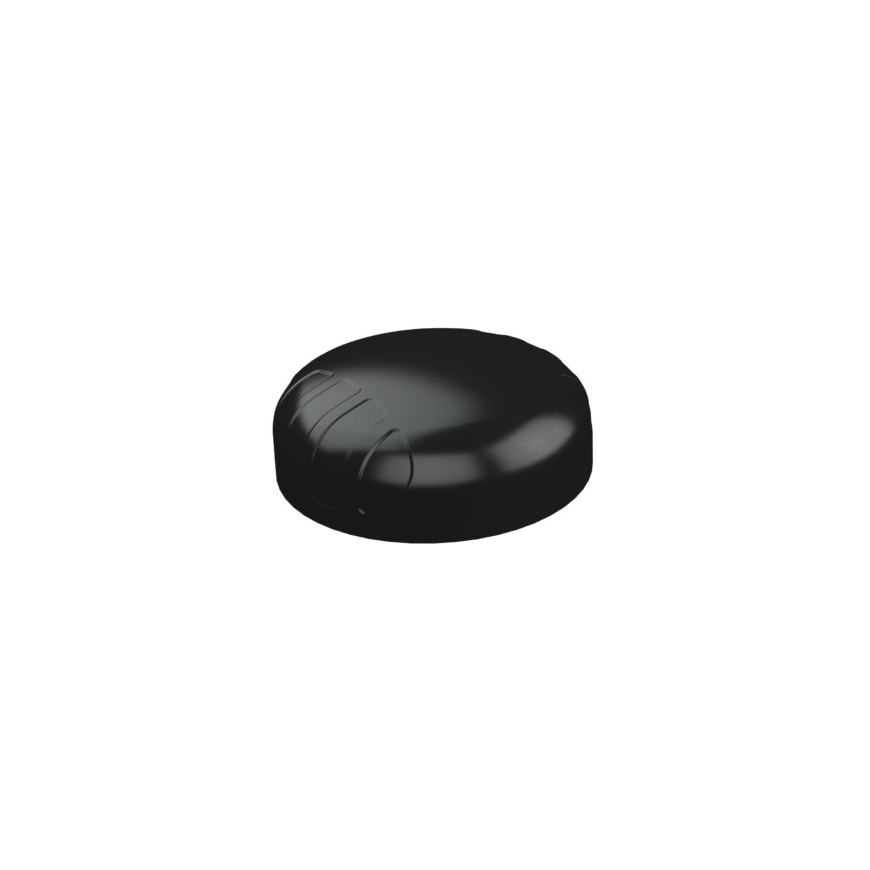

Poynting A-PUCK-0002-V1-01 network antenna MIMO directional antenna SMA 6 dBi
109.00 €
Monthly payment from 3,71 €
2138518 A-PUCK-0002-V1-01
6009880915200
Shipping 8-11 b.d.
You are interested in this product?
All about the product
Poynting’s PUCK-2 antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities and Transportation markets. This 2-in-1 antenna boasts 2×2 MIMO LTE within the same enclosure, while keeping implementation as simple as possible with its many mounting options. Due to excellence in engineering and a solid design, this antenna provides exceptional performance for its small size.The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 698MHz to 3800MHz band, which includes the most popular international LTE bands.
Poynting’s new PUCK antenna range provides easy installation with the multiple mounting options. This includes as standard:

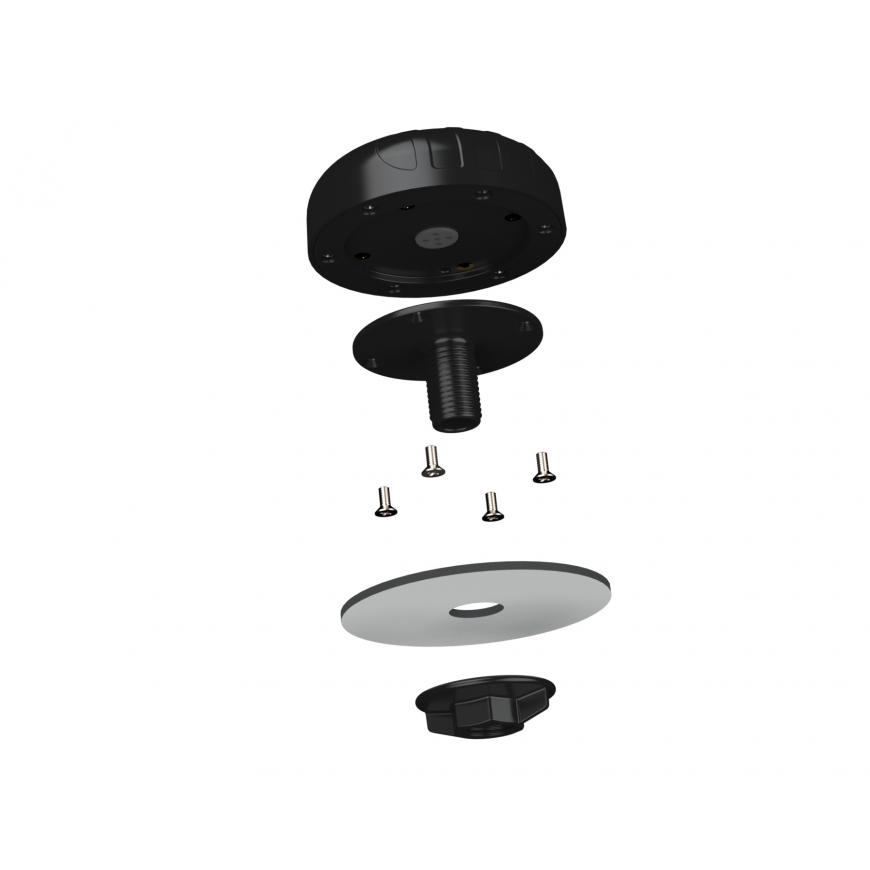

- Spigot Mount – two different lengths included (40mm & 80mm)

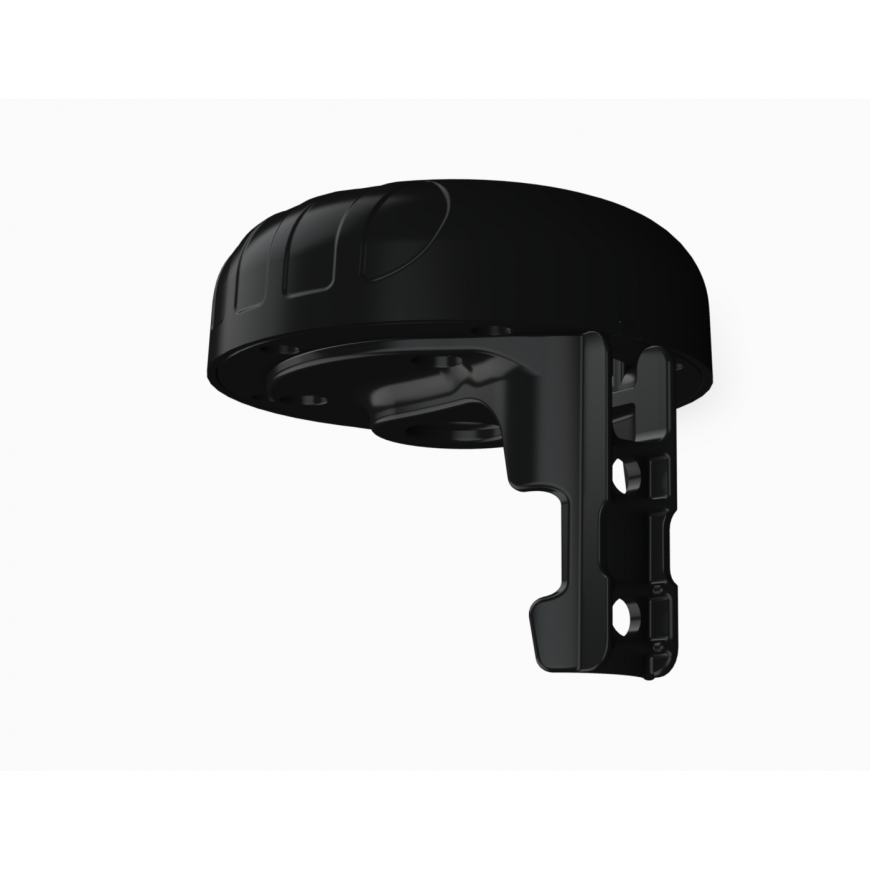

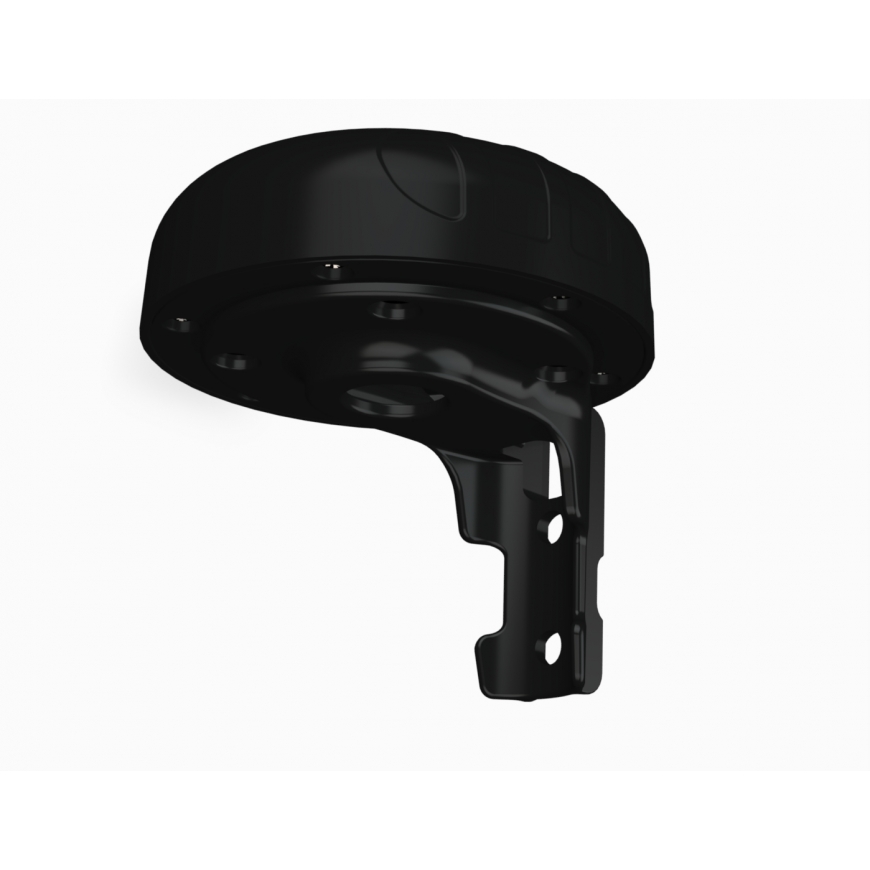

- Vertical Pole mount (inner & outer mounting for smaller and larger poles)
- Horizontal Pole Mount (e.g. marine rails)

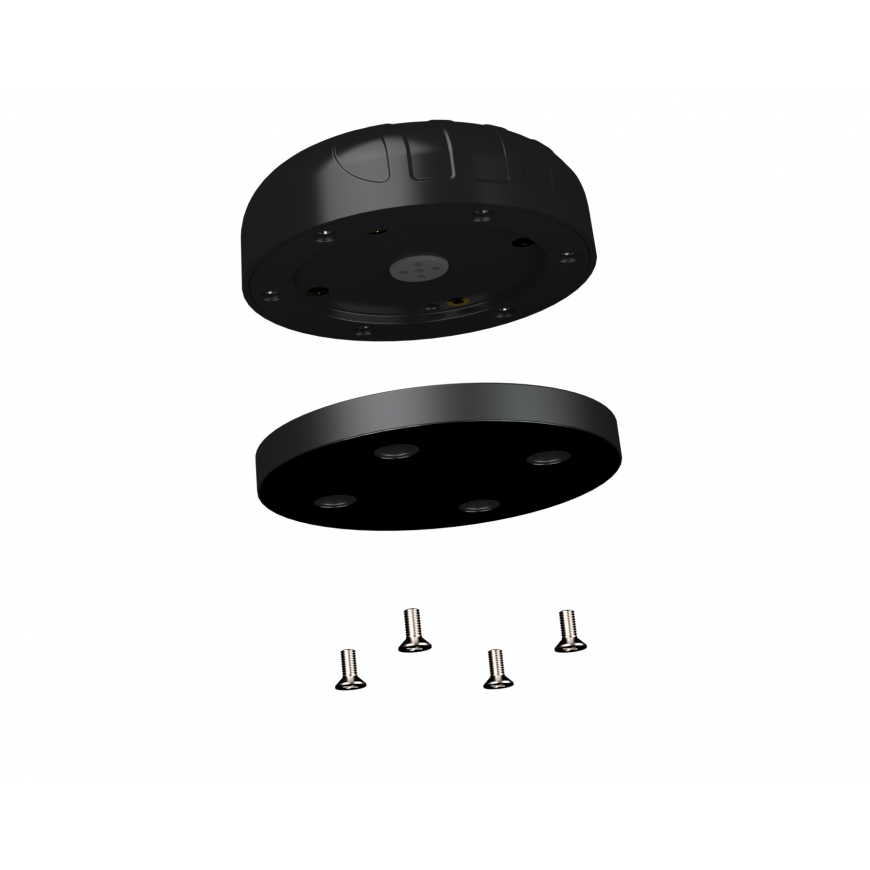

- Magnetic Mount
- Surface Mount (Double Sided Tape)
- Wall Mount
Features
| Product colour | Black |
| International Protection (IP) code | IP68 |
| Weight | 376 g |
| Height | 36 mm |
| Cable length | 2 m |
| Quantity per pack | 1 pc(s) |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 120 mm |
| Package weight | 507 g |
| Sustainability certificates | RoHS |
| Cable type | RTK-031 |
| Connector gender | Male |
| Purpose | Indoor & outdoor |
| Certification | CE, EN, CSA, IEC |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Housing material | Akrüülnitriil butadieen stüreen (ABS) |
| Impedance | 50 Ω |
| Frequency band | 0.69 - 0.96/1.71 - 2.7/3.2 - 3.8 GHz |
| Antenna type | MIMO directional antenna |
| Storage relative humidity (H-H) | 5 - 95% |
| Mounting kit | Yes |
| Diameter | 9.92 cm |
| Antenna gain level (max) | 6 dBi |
| Antenna connector type | SMA |
| Polarization | Linear polarization |
| Survival wind speed | 220 km/h |
| Power handling | 10 W |
