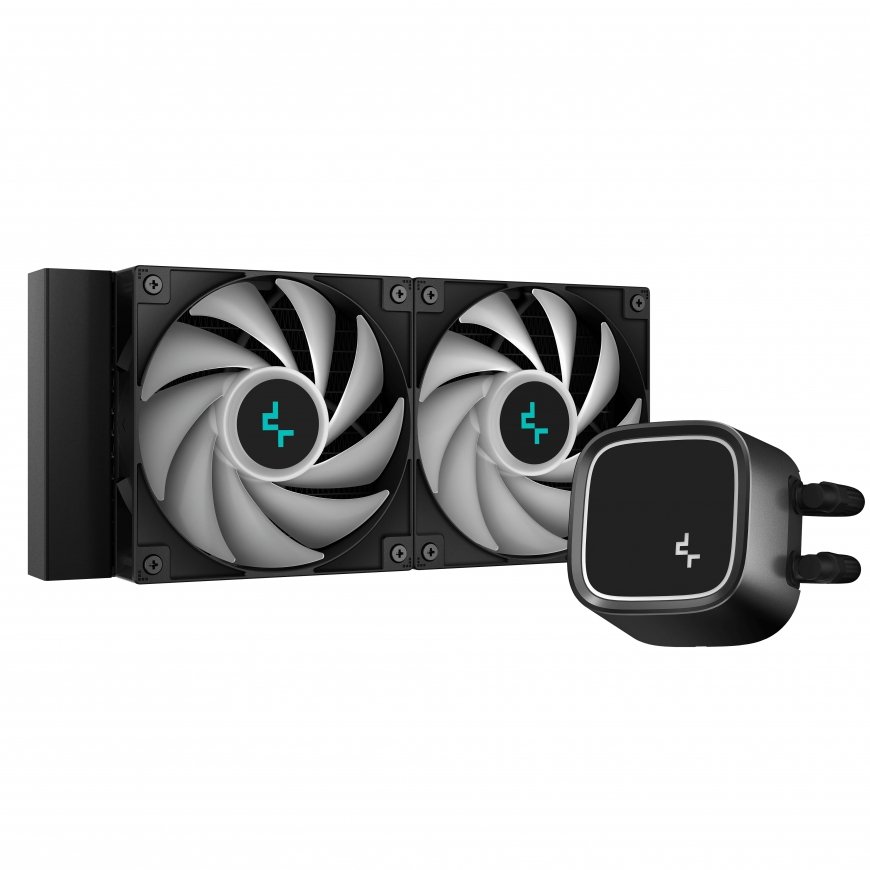

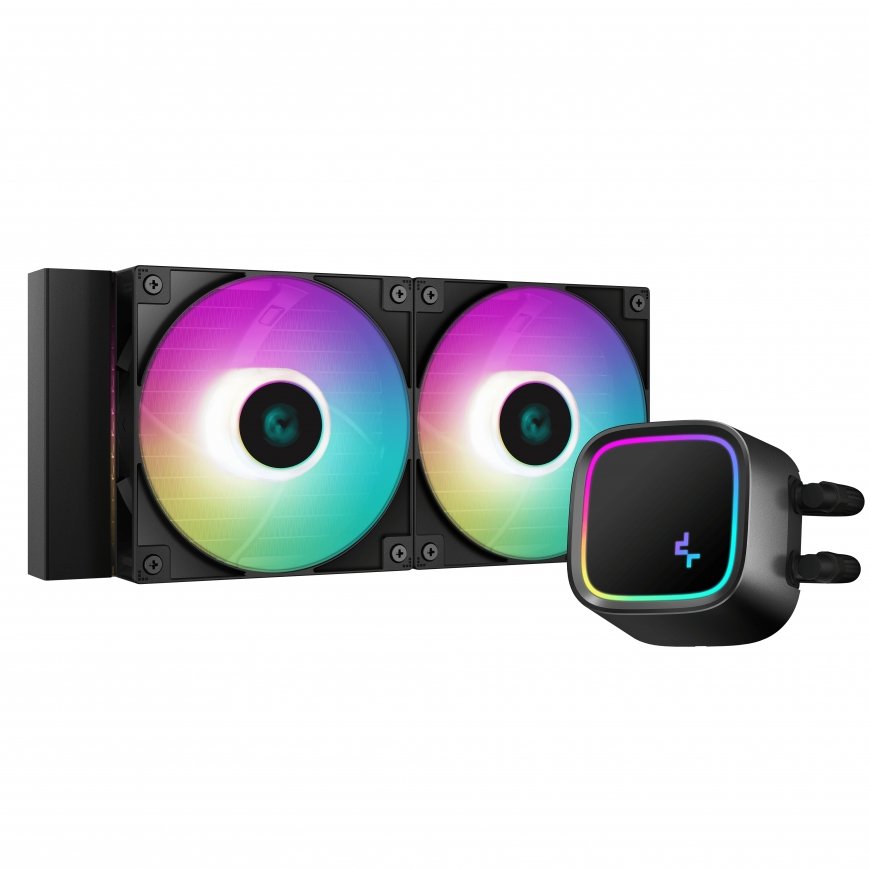

DeepCool LE520 Processor All-in-one liquid cooler 12 cm Black 1 pc(s)
102.63 €
Monthly payment from 3,54 €
2107844 R-LE520-BKAMMN-G-1
6933412728047
Shipping 9-10 b.d.
You are interested in this product?
All about the product
LE520The DeepCool LE520 all-in-one liquid cooler is equipped with new high-performance ARGB fans, thermal paste, and DeepCool's new liquid cooler series design elements.
LE520
240mm ARGB Liquid Cooler
POWERFUL HEAT DISSIPATION

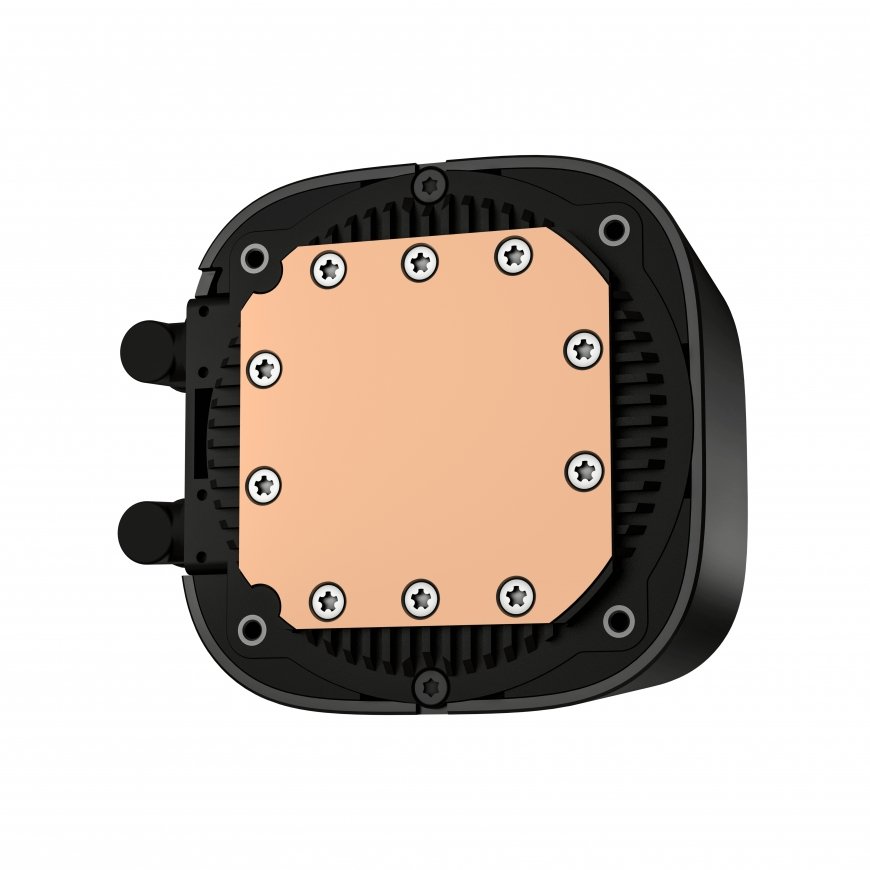

Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

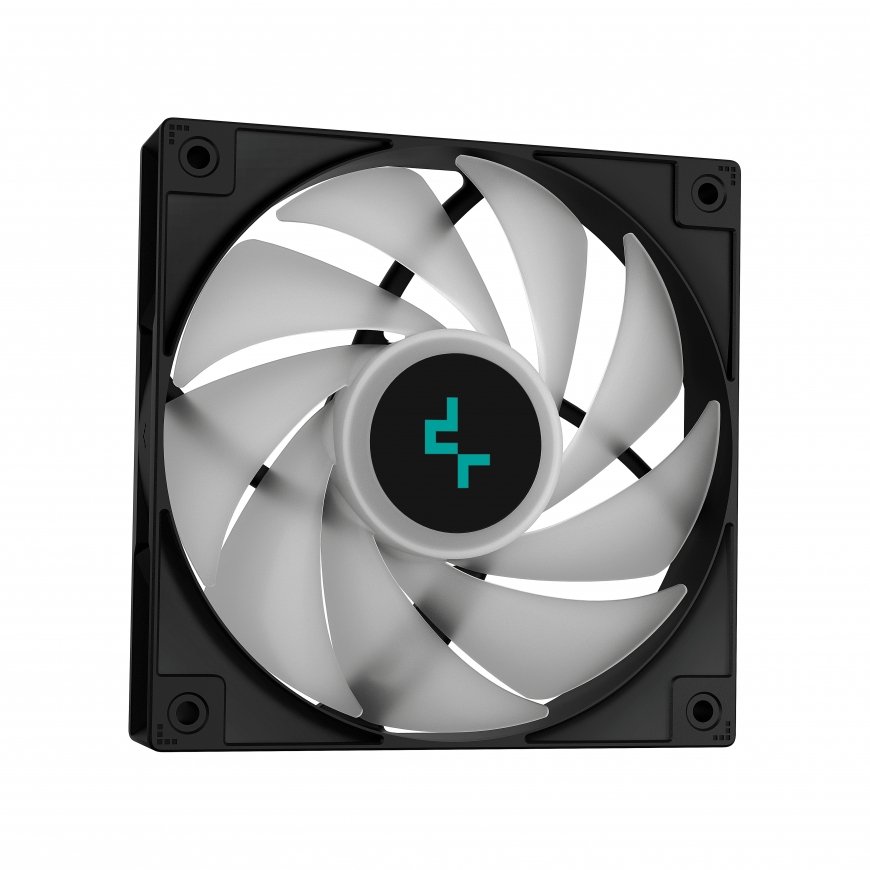

HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
ANTI-LEAK TECHNOLOGY
The LE520 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLE AND SECURE
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
Performance | |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), Socket AM4, LGA 1200 (Socket H5), LGA 1700, Socket AM5 |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 2400 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2250 RPM |
| Fan noise level (max) | 32.9 dB |
| Pump noise level | 17.8 dB |
| Fan bearing technology | Hydro bearing |
| Suitable location | Processor |
Design | |
| Product colour | Black |
| Illumination colour | Multi |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
| Number of fan blades | 9 |

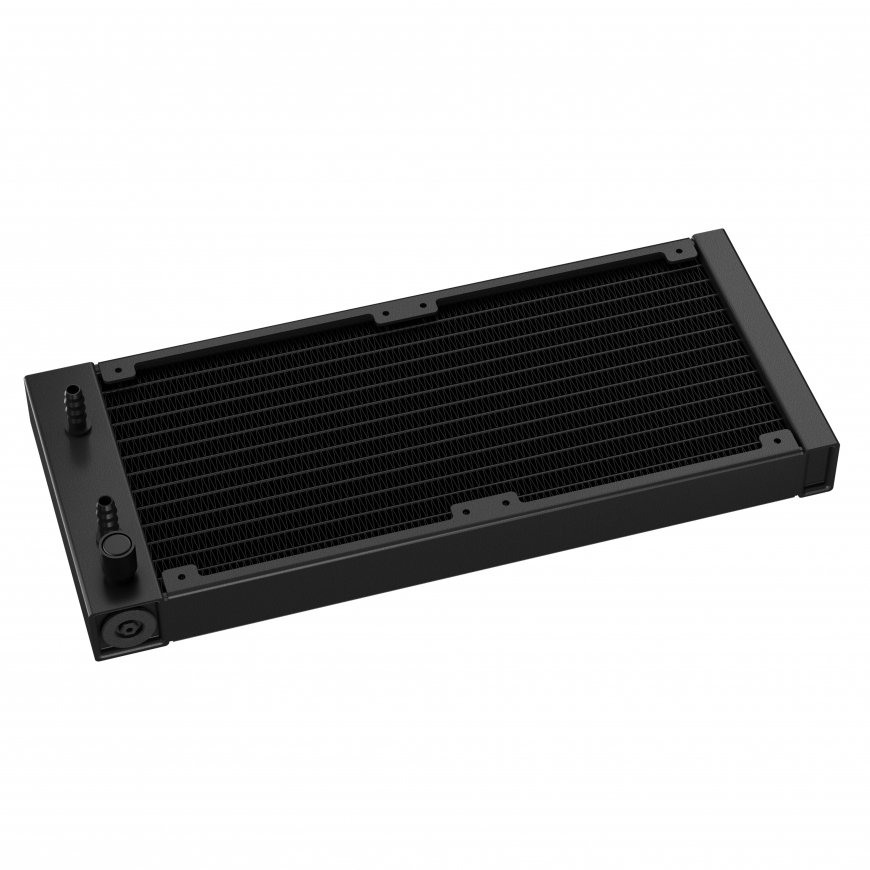

| Radiator material | Aluminum |
| Base plate material | Copper |
| LED connector type | 3-pin |
Power | |
| Thermal Design Power (TDP) | 220 W |
| LED voltage | 5 V |
| Pump voltage | 12 V |
| Pump current | 200 mA |
| Fan voltage | 12 V |
| Fan current | 0.25 A |
| Fan power consumption | 3 W |
| Pump power consumption | 2.4 W |
| LED power consumption (fan) | 2.1 W |
| LED power consumption (pump) | 2.25 W |
Weight & dimensions | |
| Weight | 1.24 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 12 cm |
| Radiator depth | 28.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 9.1 cm |
| Pump depth | 8 cm |
| Pump height | 5.2 cm |
Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
