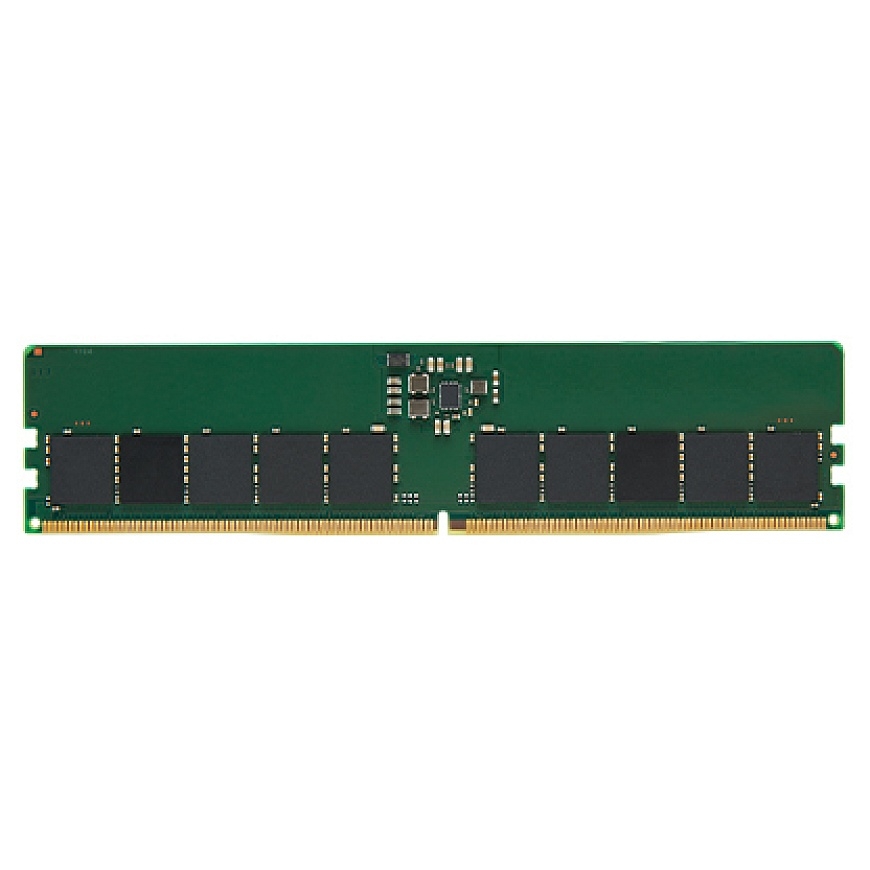

Kingston Technology KSM56E46BS8KM-16HA memory module 16 GB 1 x 16 GB DDR5 5600 MT/s 288-pin DIMM ECC
629.00 €
Monthly payment from 17,10 €
2104721 KSM56E46BS8KM-16HA
0740617336009
Shipping 5-7 days
You are interested in this product?
All about the product
Kingston's KSM56E46BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.Features | |
| ECC | Yes |
| Module configuration | 2048M x 72 |
| Internal memory type | DDR5 |
| Lead plating | Gold |
| CAS latency | 46 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Memory voltage | 1.1 V |
| SPD profile | Yes |
| Memory form factor | 288-pin DIMM |
| Memory ranking | 1 |
| Component for | Server |
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Product colour | Black, Green |
| Row Precharge Time (TRP) | 16 |
| JEDEC standard | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC | Yes |
| Memory data transfer rate | 5600 MT/s |
Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
Other features | |
| Doesn't contain | Halogen |
Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
