HDMI / IP signal converter SPH-HIPV4 Multicast kit
129.00 €
Monthly payment from 4,22 €
2081817 SPH-HIPv4
5903031023800
Shipping 8-11 b.d.
You are interested in this product?
All about the product
The HDMI to IP converter allows you to connect a high definition (HD) signal to a receiver (TV, monitor) with an HDMI connection via a twisted pair cable Cat 5e or Cat 6. The set includes a transmitter and a receiver. The IP signal from the transmitter can be sent to an Ethernet switch to be split into a larger number of receivers. The bit rate of the compressed signal at the output of the transmitter is about 30 Mbit/s. To decode the signal correctly, a special RX receiver is required - it is impossible to view the image on a computer with a network card. Transmission distance up to 120m.
Resolution up to 1080p is supported
The device is perfect for connecting a satellite receiver, DVD player, computer or console to a receiver located away from devices. Only one twisted pair cable needs to be connected to the TV, which simplifies the installation of the device and improves the appearance of the TV installation when hung on the wall using the LCD bracket. The kit is suitable for both single-point and multi-point connections, making the device very versatile. ATTENTION! The set includes a transmitter and a receiver for a single point connection. To transmit the signal from several points, we need to purchase RX receivers, which you will find in our offer.
Converter application scheme:
- one point
- multiple points:
Distinctive features:
- transmission with one 5e/6 cat
- UDP/IP transmission (multicast)
- the ability to create point-to-multipoint connections
- 1080p video mode
- maximum cable length 120m
Technical parameters:
- version v 4.0
- name: HDMI to IP converter
- Supported video formats: DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
- maximum length of twisted pair 5e/6 cat.: 100/120m
- working temperature: -10...60ºC
- Humidity: 20-90% (without condensation)
- dimensions: 110x58x26mm
- Power supply: 230V AC/ 5V DCbr

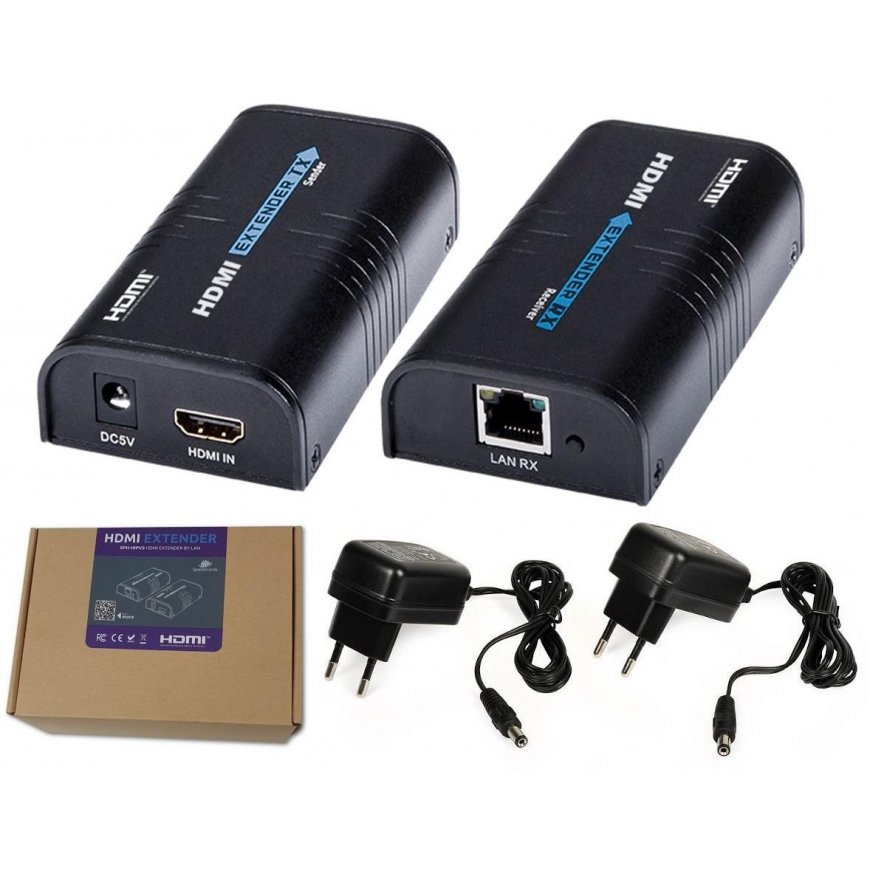

Set content:
- TX transmitter

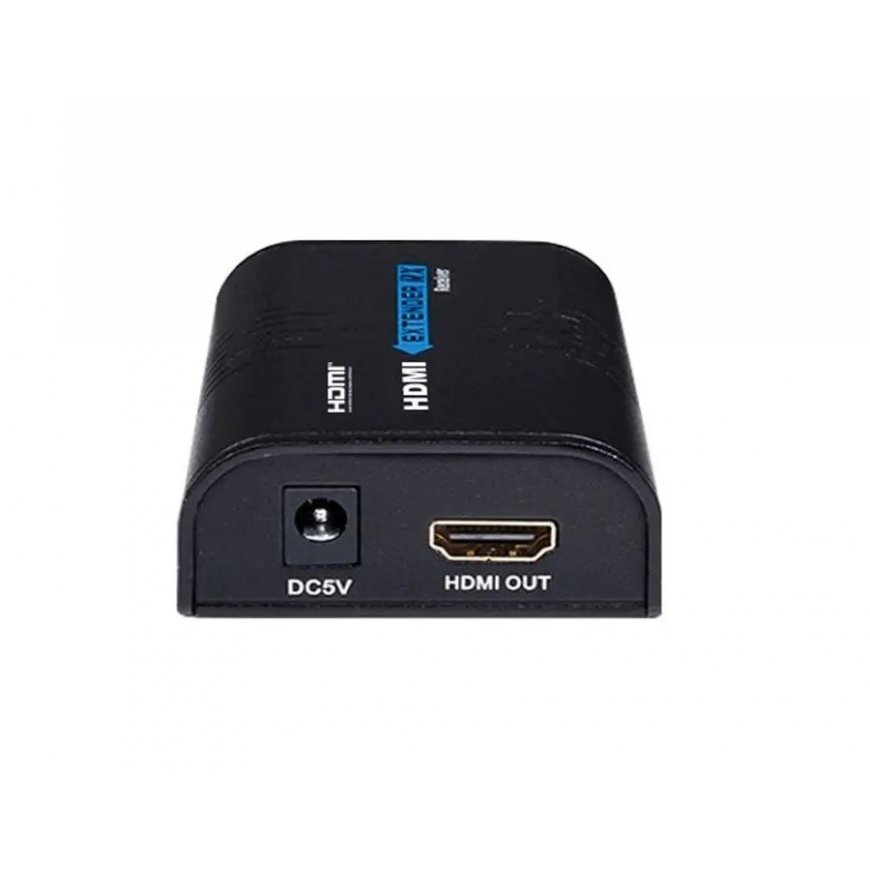

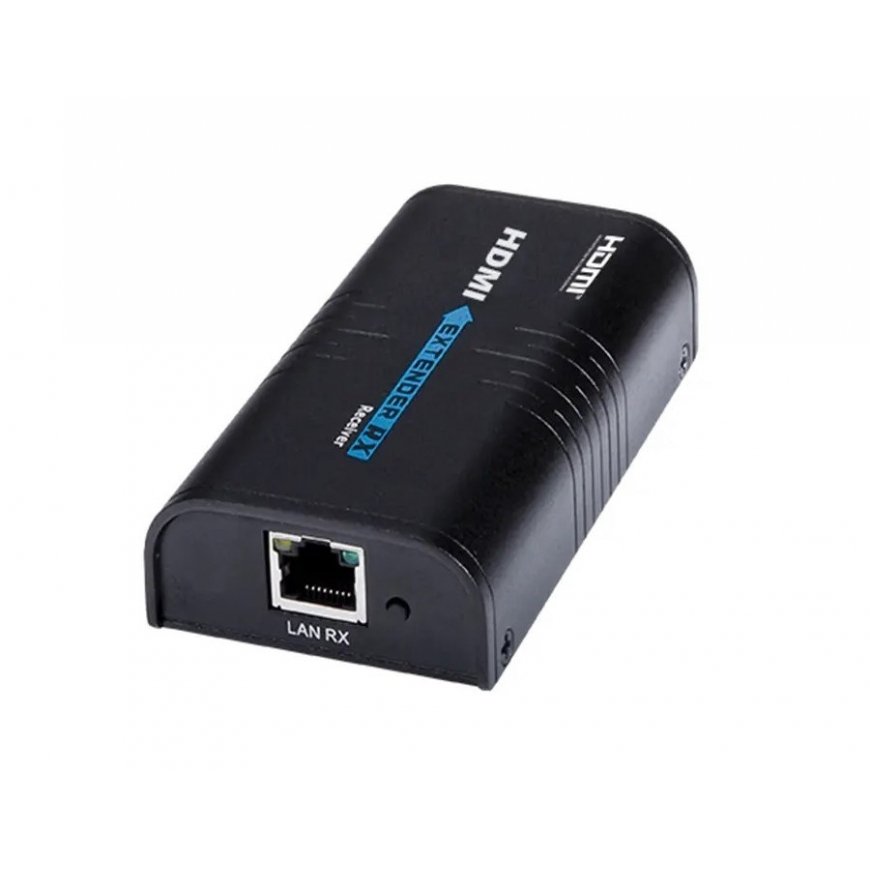

- RX receiver
- 2x power supply
