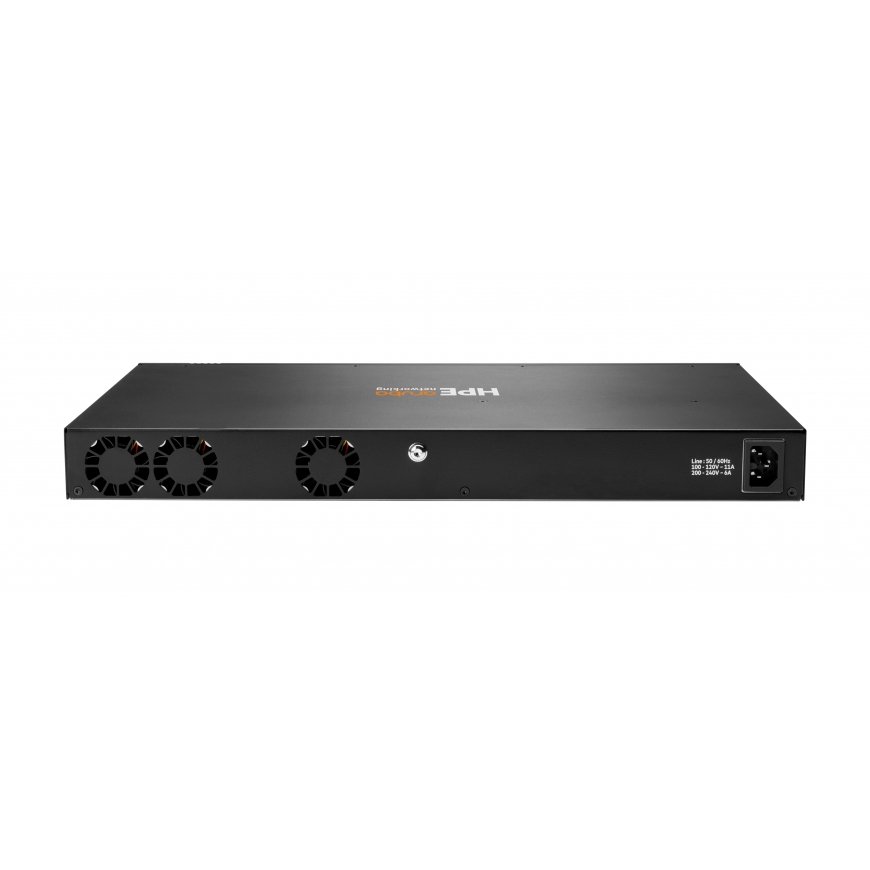

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 740W Switch
2080565 JL728A
0190017409238, 0190017409191, 0190017409207, 0190017409214, 0190017409245, 0190017409276, 0190017409283, 0190017409313, 0190017409320, 0190017409344, 0190017409368, 5715063529812
Shipping 5-8 b.d.
All about the product
Performance and Power at the Edge

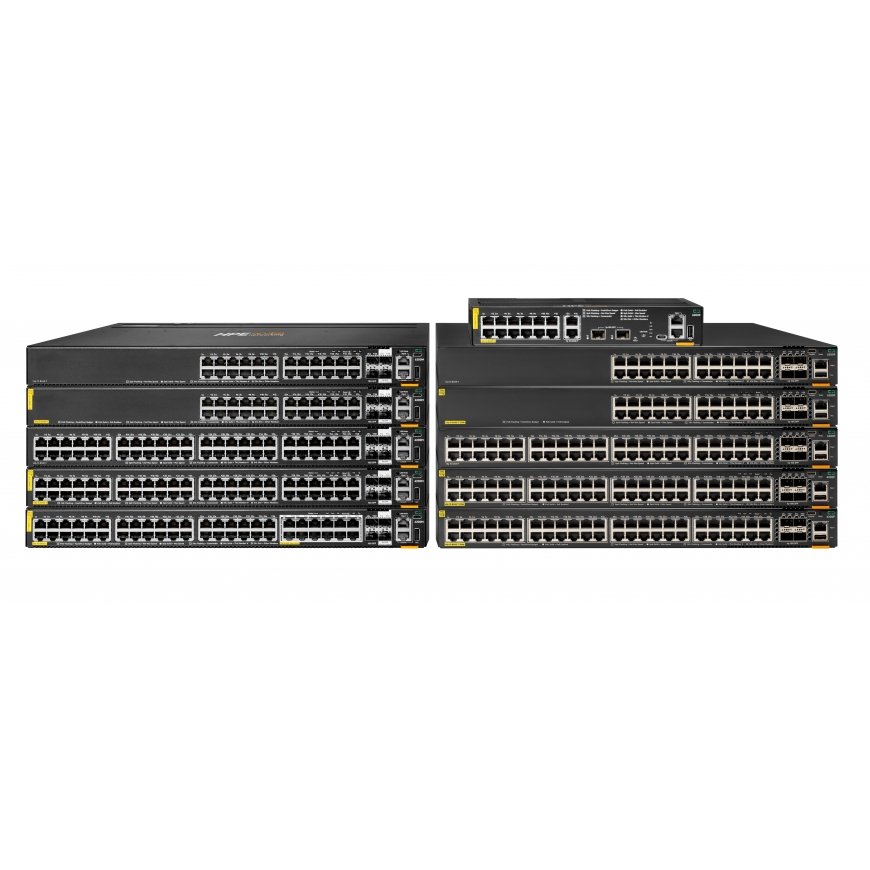

The HPE Aruba Networking CX 6200 Switch Series provides Layer 3 access switching with high performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
A fully distributed architecture with Gen7 ASICs deliver very low latency, increased packet buffering, and adaptive power consumption. Switching and routing are wire-speed to meet the demands of bandwidth-intensive workloads.
HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Automation and Analytics
The HPE Aruba Networking CX 6200 Switch Series delivers visibility and built-in analytics for real-time monitoring and accelerated troubleshooting. The HPE Aruba Networking CX Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.
The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
The HPE Aruba Networking CX Mobile App simplifies connecting and stacking this switch series with easy one touch deployment. Import switch information into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and to continual conformance validation.
Simplified Configuration and Management
The HPE Aruba Networking CX 6200 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use web GUI, or industry standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
Smarter Segmentation
The HPE Aruba Networking CX 6200 Switch Series supports Dynamic Segmentation that automatically applies and enforces common and consistent user, device, and application-aware policies on HPE Aruba Networking wired and wireless networks.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for IT and end-users.
Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.
Reduces time-consuming and error-prone task of adds, moves and changes.
Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1v, IEEE 802.1ak |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Jumbo frames support | Yes |
| Port mirroring | Yes |
Management features | |
| Quality of Service (QoS) support | Yes |
Security | |
| MAC address table | 16000 entries |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Design | |
| Product colour | Black |
Features | |
| Built-in processor | Yes |
| Processor frequency | 1800 MHz |
| Internal memory | 8000 MB |
| Flash memory | 16 MB |
| Processor model | ARM Cortex-A72 |
Power | |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 950 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 442 mm |
| Height | 327 mm |
| Weight | 5.1 kg |
Other features | |
| Form factor | 1U |
| Rack mounting | Yes |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
