All about the product

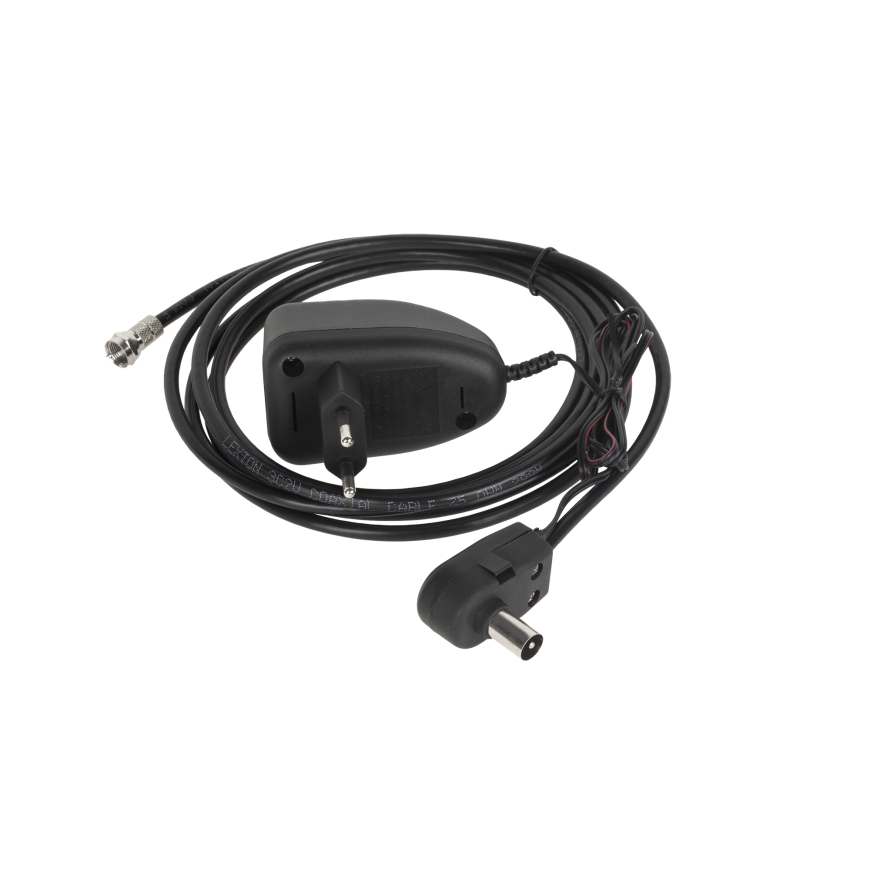

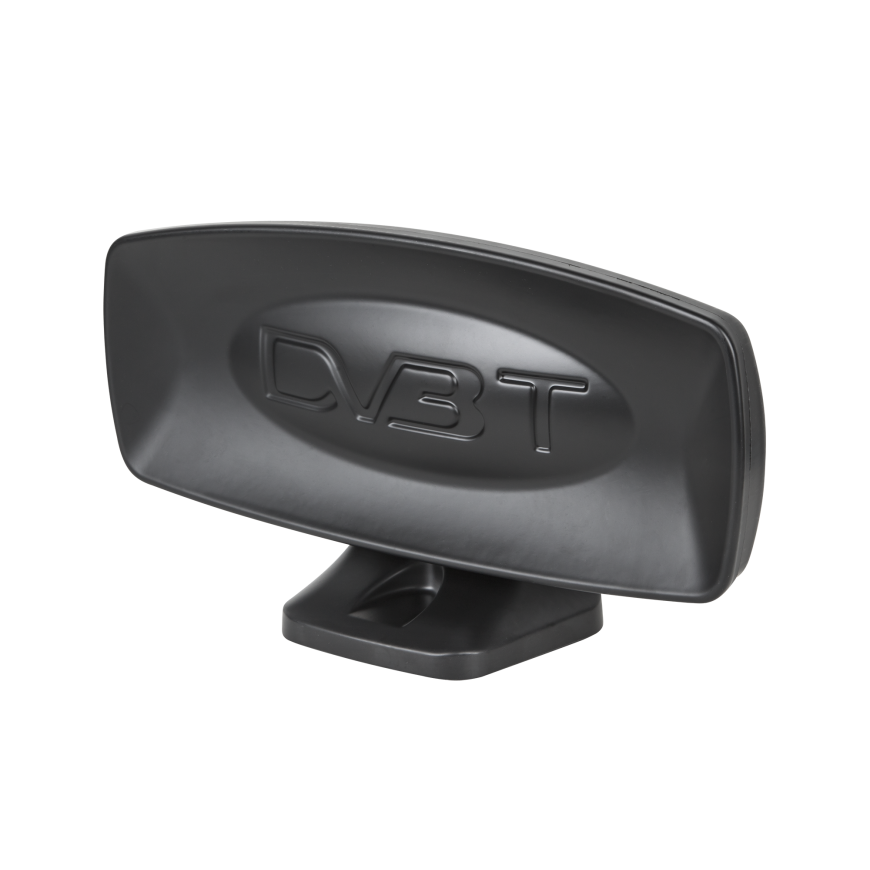

---------- Main parameters ---------- Frequency: 5-862 MHz Channels: 1-69 Nominal gain: 32 dB Average gain with amplifier: 28-32 dB Maximum output level : 73-75 dB Output impedance: 75 Ohm Horizontal angular visibility: 35° Vertical angular visibility: 15° Color: Black Power supply: - AC adapter: 12 V - Possibility of power supply from DVB-T receiver: 5 V Included: antenna power supply power supply with cable and F-type connector ---------- Product features ---------- Adapted to receive analog and digital terrestrial television - DVB-T Integrated antenna amplifier - DIGITactiva Strong GSM mobile phone signal attenuation Compliance coefficient WFS 2.2 High resistance to adverse weather conditions Simple assembly without tools The design of the antenna ensures uniform amplification of received signals in the entire frequency range. The antenna is intended for areas with medium DIGITactivity, and high ? DIGIT, levels of incoming TV signals. The high back/front radiation ratio ensures that the antenna is insensitive to signals reflected from obstacles behind the antenna, which under normal conditions cause a second, slightly shifted image to appear on the TV screen. The antenna is designed for horizontal mounting on building walls, balconies, roofs, it can also be installed on trailers.
